EEV42-90, CCD 2 layers AR coating Test sample
EEV 42-90 (Test sample)
CCD name : None
Serial number : 9052-03-04
Type : Backside, Double layer AR Pixel size 13.5x13.5 µm
Number of photosensitive pixels 2048 x 4600 [HxV]
Number of outputs : 2
Quantum Efficiency, PRNU
CCD temperature : -120ºC, also measured at -110ºC : the results are identical.

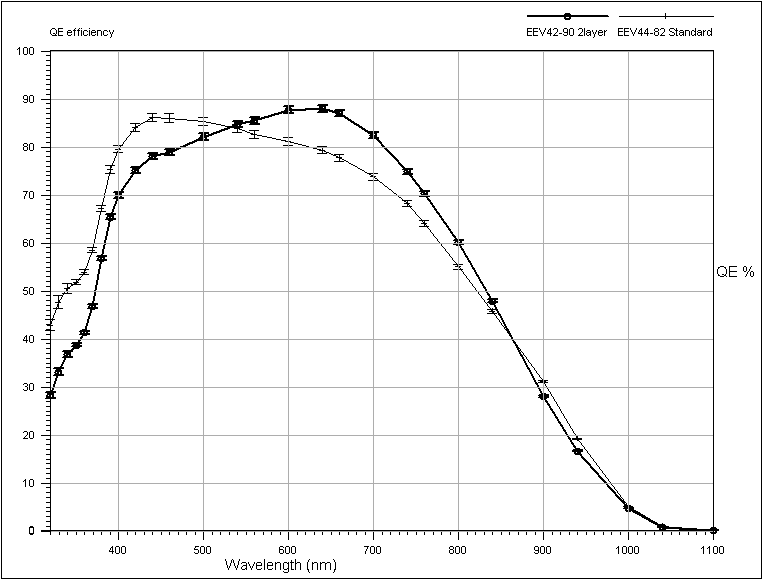

Bold curve is EEV42-90 test sample

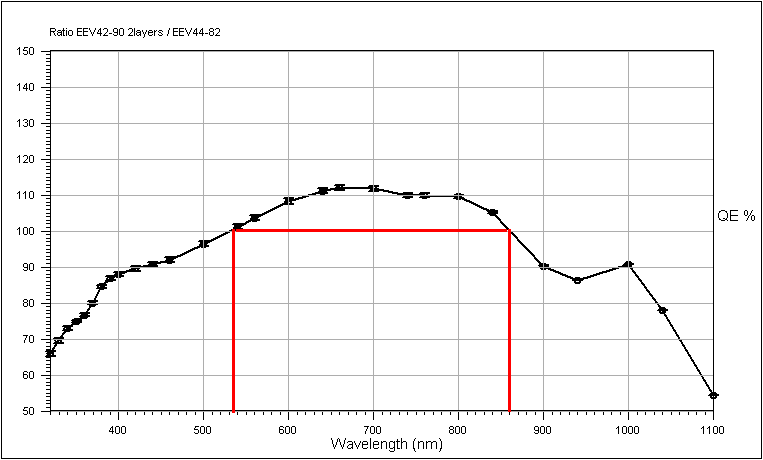

Ratios EEV42-90 and EEV44-82, concerning the EEV42-90, the QE has increased between 530 and 870 nm. 100 is for 100%

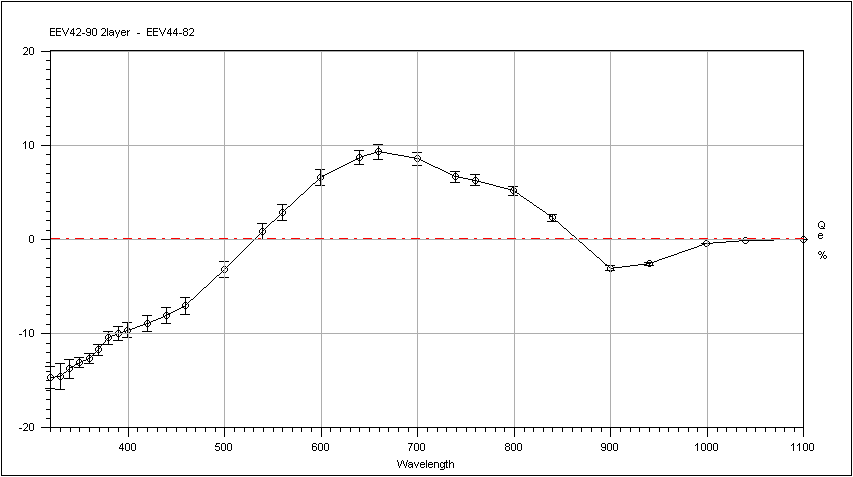

Difference EEV42-90 and EEV44-82, QE%

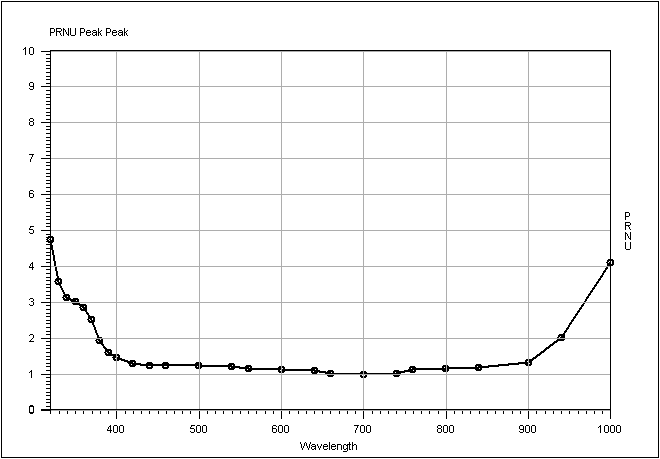

PHOTO RESPONSE NON UNIFORMITY :
EEV42-90 sample : PRNU is very good, also fringing is better than usual !

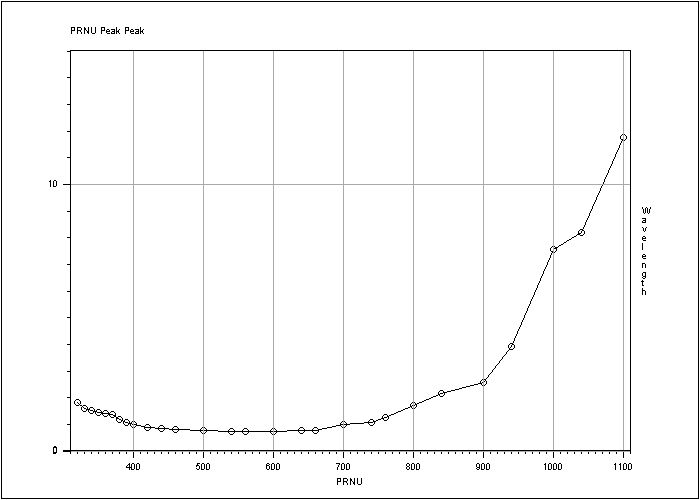

EEV44-82(Bruc)
PRNU for comparison
