#include <baciBACIAction.h>

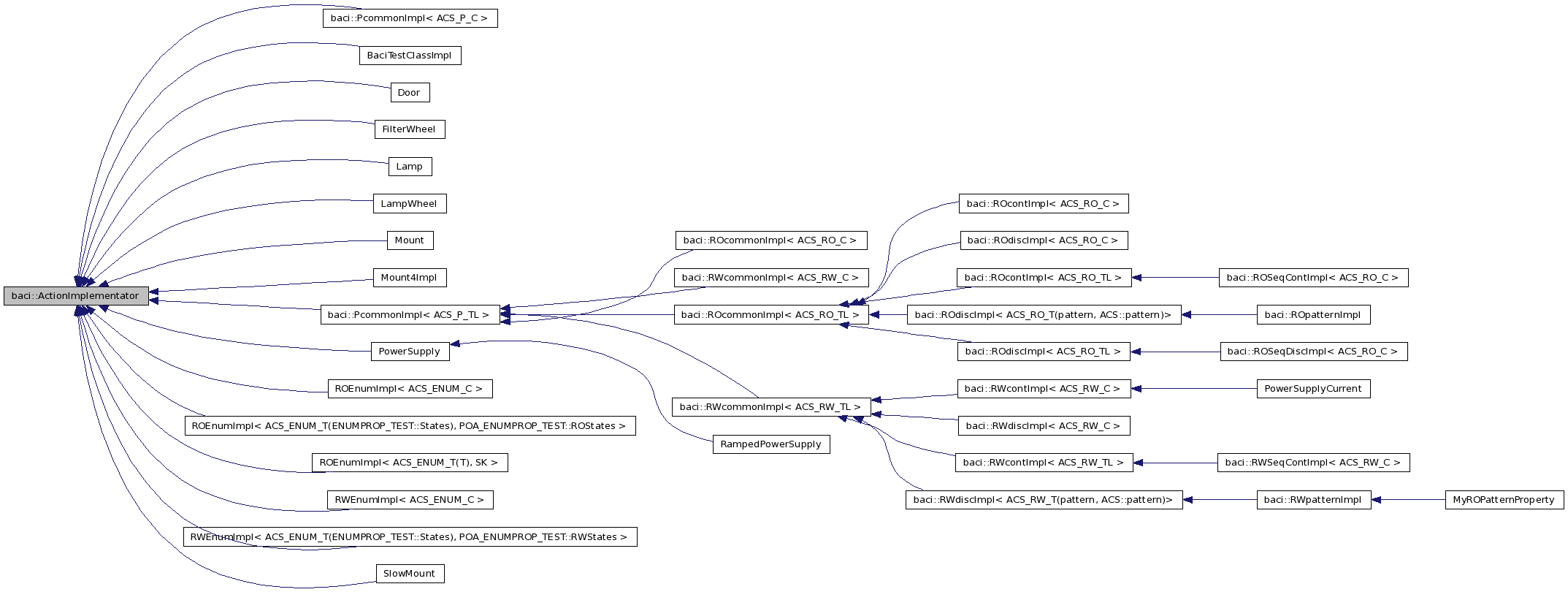

Inheritance diagram for baci::ActionImplementator:
Public Member Functions | |
| virtual ActionRequest | invokeAction (int function, BACIComponent *component_p, const int &callbackID, const CBDescIn &descIn, BACIValue *value, Completion &completion, CBDescOut &descOut)=0 |
| virtual | ~ActionImplementator () |
Detailed Description
Abstract class which every Action caller must implement Direct call is not possbile because method is a member of a class (pointer to member function is actually a class offset)
Constructor & Destructor Documentation
| virtual baci::ActionImplementator::~ActionImplementator | ( | ) | [inline, virtual] |
Member Function Documentation
| virtual ActionRequest baci::ActionImplementator::invokeAction | ( | int | function, | |
| BACIComponent * | component_p, | |||
| const int & | callbackID, | |||
| const CBDescIn & | descIn, | |||
| BACIValue * | value, | |||
| Completion & | completion, | |||
| CBDescOut & | descOut | |||
| ) | [pure virtual] |
Action dispatcher function
- Parameters:
-
function action funtion to be invoked
Decleraton example of function:ActionRequest someAction(BACIComponent* component_p, int callbackID, const CBDescIn& descIn, BACIValue* value, Completion& completion, CBDescOut& descOut);component_p owner of the action callbackID id of the callback to be notified descIn callback descriptor (passed by client) value action data (e.g. value to be set) error error handing structure descOut callback descriptor which will be passed to client
- Returns:
- request to be performed by BACI
- reqNone - do nothing (action will be kept in queue)
- reqInvokeWorking - invoke <type>Callback::working
- reqInvokeDone - invoke <type>Callback::done and destroy callback
- reqDestroy - destroy callback (callback should has been called already by function)
Implemented in Mount4Impl, Door, FilterWheel, Lamp, LampWheel, Mount, PowerSupply, RampedPowerSupply, SlowMount, baci::PcommonImpl< ACS_P_C >, baci::RWcommonImpl< ACS_RW_C >, BaciTestClassImpl, ROEnumImpl< ACS_ENUM_C >, RWEnumImpl< ACS_ENUM_C >, baci::PcommonImpl< ACS_P_TL >, baci::RWcommonImpl< ACS_RW_TL >, ROEnumImpl< ACS_ENUM_T(T), SK >, ROEnumImpl< ACS_ENUM_T(ENUMPROP_TEST::States), POA_ENUMPROP_TEST::ROStates >, and RWEnumImpl< ACS_ENUM_T(ENUMPROP_TEST::States), POA_ENUMPROP_TEST::RWStates >.
The documentation for this class was generated from the following file:
