BaciTestClassImpl Class Reference

#include <baciTestClassImpl.h>

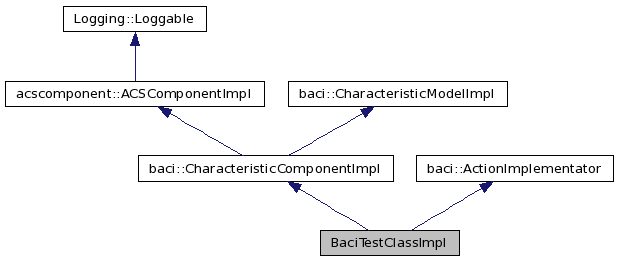

Inheritance diagram for BaciTestClassImpl:

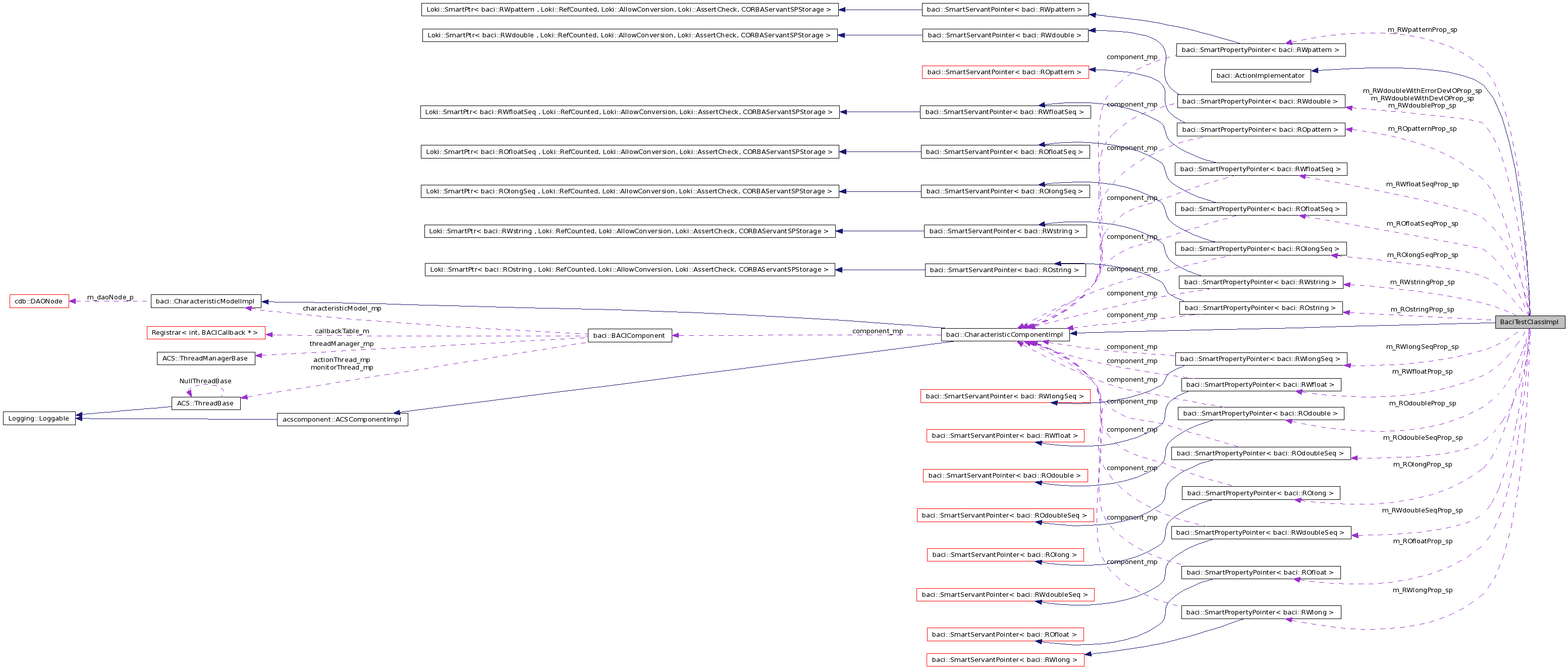

Collaboration diagram for BaciTestClassImpl:

List of all members.

Public Member Functions
	BaciTestClassImpl (const ACE_CString &name, maci::ContainerServices *, bool monitoring=true)
virtual	~BaciTestClassImpl ()
virtual baci::ActionRequest	invokeAction (int function, baci::BACIComponent *component_p, const int &callbackID, const CBDescIn &descIn, baci::BACIValue *value, Completion &completion, CBDescOut &descOut)
virtual baci::ActionRequest	onAction (baci::BACIComponent *component_p, int callbackID, const CBDescIn &descIn, baci::BACIValue *value, Completion &completion, CBDescOut &descOut)
virtual baci::ActionRequest	offAction (baci::BACIComponent *component_p, int callbackID, const CBDescIn &descIn, baci::BACIValue *value, Completion &completion, CBDescOut &descOut)
virtual baci::ActionRequest	resetAction (baci::BACIComponent *component_p, int callbackID, const CBDescIn &descIn, baci::BACIValue *value, Completion &completion, CBDescOut &descOut)
virtual void	shutdown ()
virtual void	on (ACS::CBvoid_ptr cb, const ACS::CBDescIn &desc)
virtual void	off (ACS::CBvoid_ptr cb, const ACS::CBDescIn &desc)
virtual void	reset (ACS::CBvoid_ptr cb, const ACS::CBDescIn &desc)
virtual void	turnOnMonitoring ()
virtual void	turnOffMonitoring ()
virtual CORBA::Boolean	isPropertiesMonitoringActive ()
virtual ACS::RWdouble_ptr	RWdoubleWithErrorDevIOProp ()
virtual ACS::RWdouble_ptr	RWdoubleWithDevIOProp ()
virtual ACS::RWdouble_ptr	RWdoubleProp ()
virtual ACS::ROdouble_ptr	ROdoubleProp ()
virtual ACS::RWfloat_ptr	RWfloatProp ()
virtual ACS::ROfloat_ptr	ROfloatProp ()
virtual ACS::RWlong_ptr	RWlongProp ()
virtual ACS::ROlong_ptr	ROlongProp ()
virtual ACS::ROpattern_ptr	ROpatternProp ()
virtual ACS::RWpattern_ptr	RWpatternProp ()
virtual ACS::ROstring_ptr	ROstringProp ()
virtual ACS::RWstring_ptr	RWstringProp ()
virtual ACS::RWdoubleSeq_ptr	RWdoubleSeqProp ()
virtual ACS::ROdoubleSeq_ptr	ROdoubleSeqProp ()
virtual ACS::RWfloatSeq_ptr	RWfloatSeqProp ()
virtual ACS::ROfloatSeq_ptr	ROfloatSeqProp ()
virtual ACS::RWlongSeq_ptr	RWlongSeqProp ()
virtual ACS::ROlongSeq_ptr	ROlongSeqProp ()
Private Types
typedef baci::ActionRequest(BaciTestClassImpl::*	ActionFunction )(baci::BACIComponent *component_p, int callbackID, const CBDescIn &descIn, baci::BACIValue *value, Completion &completion, CBDescOut &descOut)
Private Attributes
bool	m_shutdown
	Is manager shutting down?
ActionFunction	m_actions [3]
	Array of actions.
baci::SmartPropertyPointer < baci::RWdouble >	m_RWdoubleWithErrorDevIOProp_sp
	The smart pointers for (other) properties.
baci::SmartPropertyPointer < baci::RWdouble >	m_RWdoubleWithDevIOProp_sp
baci::SmartPropertyPointer < baci::ROdouble >	m_ROdoubleProp_sp
baci::SmartPropertyPointer < baci::RWdouble >	m_RWdoubleProp_sp
baci::SmartPropertyPointer < baci::ROfloat >	m_ROfloatProp_sp
baci::SmartPropertyPointer < baci::RWfloat >	m_RWfloatProp_sp
baci::SmartPropertyPointer < baci::ROlong >	m_ROlongProp_sp
baci::SmartPropertyPointer < baci::RWlong >	m_RWlongProp_sp
baci::SmartPropertyPointer < baci::ROpattern >	m_ROpatternProp_sp
baci::SmartPropertyPointer < baci::RWpattern >	m_RWpatternProp_sp
baci::SmartPropertyPointer < baci::ROstring >	m_ROstringProp_sp
baci::SmartPropertyPointer < baci::RWstring >	m_RWstringProp_sp
baci::SmartPropertyPointer < baci::ROdoubleSeq >	m_ROdoubleSeqProp_sp
baci::SmartPropertyPointer < baci::RWdoubleSeq >	m_RWdoubleSeqProp_sp
baci::SmartPropertyPointer < baci::ROfloatSeq >	m_ROfloatSeqProp_sp
baci::SmartPropertyPointer < baci::RWfloatSeq >	m_RWfloatSeqProp_sp
baci::SmartPropertyPointer < baci::ROlongSeq >	m_ROlongSeqProp_sp
baci::SmartPropertyPointer < baci::RWlongSeq >	m_RWlongSeqProp_sp

---

Detailed Description

This test class provides 4 methods: shutdown, on, off and reset. It also provides one property per each type supported

---

Member Typedef Documentation

typedef baci::ActionRequest(BaciTestClassImpl::* BaciTestClassImpl::ActionFunction)(baci::BACIComponent *component_p, int callbackID, const CBDescIn &descIn, baci::BACIValue *value, Completion &completion, CBDescOut &descOut) [private]

Definition of ActionFunction (member function of PowerSupply class)

---

Constructor & Destructor Documentation

BaciTestClassImpl::BaciTestClassImpl	(	const ACE_CString &	name,
		maci::ContainerServices *	,
		bool	monitoring = true
	)

virtual BaciTestClassImpl::~BaciTestClassImpl

(

)

[virtual]

Destructor

---

Member Function Documentation

virtual baci::ActionRequest BaciTestClassImpl::invokeAction	(	int	function,
		baci::BACIComponent *	component_p,
		const int &	callbackID,
		const CBDescIn &	descIn,
		baci::BACIValue *	value,
		Completion &	completion,
		CBDescOut &	descOut
	)			[virtual]

Action dispatcher function

Parameters:

	function	action funtion to be invoked
	component_p	owner of the action
	callbackID	id of the callback to be notified
	descIn	callback descriptor (passed by client)
	value	action data (e.g. value to be set)
	completion	error handing structure
	descOut	callback descriptor which will be passed to client

Returns:

request to be performed by BACI

• reqNone - do nothing (action will be kept in queue)
• reqInvokeWorking - invoke <type>Callback::working
• reqInvokeDone - invoke <type>Callback::done and destroy callback
• reqDestroy - destroy callback (callback should has been called already by function)

Implements baci::ActionImplementator.

virtual CORBA::Boolean BaciTestClassImpl::isPropertiesMonitoringActive

(

)

[virtual]

Check the status of the monitoring thread and logs it

virtual void BaciTestClassImpl::off	(	ACS::CBvoid_ptr	cb,
		const ACS::CBDescIn &	desc
	)			[virtual]

Switches off the power supply. A callback is used to inform the caller when the action is performed.

Parameters:

callBack

callback when action has finished

virtual baci::ActionRequest BaciTestClassImpl::offAction	(	baci::BACIComponent *	component_p,
		int	callbackID,
		const CBDescIn &	descIn,
		baci::BACIValue *	value,
		Completion &	completion,
		CBDescOut &	descOut
	)			[virtual]

virtual void BaciTestClassImpl::on	(	ACS::CBvoid_ptr	cb,
		const ACS::CBDescIn &	desc
	)			[virtual]

Switches on the power supply. A callback is used to inform the caller when the action is performed.

Parameters:

callBack

callback when action has finished

virtual baci::ActionRequest BaciTestClassImpl::onAction	(	baci::BACIComponent *	component_p,
		int	callbackID,
		const CBDescIn &	descIn,
		baci::BACIValue *	value,
		Completion &	completion,
		CBDescOut &	descOut
	)			[virtual]

virtual void BaciTestClassImpl::reset	(	ACS::CBvoid_ptr	cb,
		const ACS::CBDescIn &	desc
	)			[virtual]

Resets the power supply. A callback is used to inform the caller when the action is performed.

Parameters:

callBack

callback when action has finished

virtual baci::ActionRequest BaciTestClassImpl::resetAction	(	baci::BACIComponent *	component_p,
		int	callbackID,
		const CBDescIn &	descIn,
		baci::BACIValue *	value,
		Completion &	completion,
		CBDescOut &	descOut
	)			[virtual]

virtual ACS::ROdouble_ptr BaciTestClassImpl::ROdoubleProp

(

)

[virtual]

Property ROdoubleProp is the ROdoubleProp of the actual setting of the power supply.

virtual ACS::ROdoubleSeq_ptr BaciTestClassImpl::ROdoubleSeqProp

(

)

[virtual]

Property ROdoubleSeqProp is the ROdoubleSeqProp of the actual setting of the power supply.

virtual ACS::ROfloat_ptr BaciTestClassImpl::ROfloatProp

(

)

[virtual]

Property ROfloatProp is the ROfloatProp of the actual setting of the power supply.

virtual ACS::ROfloatSeq_ptr BaciTestClassImpl::ROfloatSeqProp

(

)

[virtual]

Property ROfloatSeqProp is the ROfloatSeqProp of the actual setting of the power supply.

virtual ACS::ROlong_ptr BaciTestClassImpl::ROlongProp

(

)

[virtual]

Property ROlongProp is the ROdoubleProp of the actual "RWlongProp" of the power supply.

virtual ACS::ROlongSeq_ptr BaciTestClassImpl::ROlongSeqProp

(

)

[virtual]

Property ROlongSeqProp is the ROlongSeqProp of the actual "RWlongSeqProp" of the power supply.

virtual ACS::ROpattern_ptr BaciTestClassImpl::ROpatternProp

(

)

[virtual]

Property ROpatternProp contains the actual ROpatternProp of the power supply.

virtual ACS::ROstring_ptr BaciTestClassImpl::ROstringProp

(

)

[virtual]

Property ROstringProps contains a test ROstringProp string

virtual ACS::RWdouble_ptr BaciTestClassImpl::RWdoubleProp

(

)

[virtual]

Property RWdoubleProps contains the actual RWdoubleProp of the power supply.

virtual ACS::RWdoubleSeq_ptr BaciTestClassImpl::RWdoubleSeqProp

(

)

[virtual]

Property RWdoubleSeqProps contains the actual RWdoubleSeqProp of the power supply.

virtual ACS::RWdouble_ptr BaciTestClassImpl::RWdoubleWithDevIOProp

(

)

[virtual]

Property RWdoubleProps contains the actual RWdoubleWithDevIOProp of the power supply.

virtual ACS::RWdouble_ptr BaciTestClassImpl::RWdoubleWithErrorDevIOProp

(

)

[virtual]

Property RWdoubleProps contains the actual RWdoubleWithErrorDevIOProp of the power supply.

virtual ACS::RWfloat_ptr BaciTestClassImpl::RWfloatProp

(

)

[virtual]

Property RWfloatProps contains the actual RWfloatProp of the power supply.

virtual ACS::RWfloatSeq_ptr BaciTestClassImpl::RWfloatSeqProp

(

)

[virtual]

Property RWfloatSeqProps contains the actual RWfloatSeqProp of the power supply.

virtual ACS::RWlong_ptr BaciTestClassImpl::RWlongProp

(

)

[virtual]

Property RWlongProp contains the actual "RWlongProp" of the power supply.

virtual ACS::RWlongSeq_ptr BaciTestClassImpl::RWlongSeqProp

(

)

[virtual]

Property RWlongSeqProp contains the actual "RWlongSeqProp" of the power supply.

virtual ACS::RWpattern_ptr BaciTestClassImpl::RWpatternProp

(

)

[virtual]

Property RWpatternProp contains the actual RWpatternProp of the power supply.

virtual ACS::RWstring_ptr BaciTestClassImpl::RWstringProp

(

)

[virtual]

Property RWstringProps contains a test RWstringProp string

virtual void BaciTestClassImpl::shutdown

(

)

[virtual]

Servant shutdown request function

virtual void BaciTestClassImpl::turnOffMonitoring

(

)

[inline, virtual]

Method to turn monitoring off from a remote client

References ACSErr::ErrorTraceHelper::log(), and baci::CharacteristicComponentImpl::stopPropertiesMonitoring().

virtual void BaciTestClassImpl::turnOnMonitoring

(

)

[inline, virtual]

Method to turn monitoring on from a remote client

References ACSErr::ErrorTraceHelper::log(), and baci::CharacteristicComponentImpl::startPropertiesMonitoring().

---

Member Data Documentation

ActionFunction BaciTestClassImpl::m_actions[3] [private]

Array of actions.

baci::SmartPropertyPointer<baci::ROdouble> BaciTestClassImpl::m_ROdoubleProp_sp [private]

baci::SmartPropertyPointer<baci::ROdoubleSeq> BaciTestClassImpl::m_ROdoubleSeqProp_sp [private]

baci::SmartPropertyPointer<baci::ROfloat> BaciTestClassImpl::m_ROfloatProp_sp [private]

baci::SmartPropertyPointer<baci::ROfloatSeq> BaciTestClassImpl::m_ROfloatSeqProp_sp [private]

baci::SmartPropertyPointer<baci::ROlong> BaciTestClassImpl::m_ROlongProp_sp [private]

baci::SmartPropertyPointer<baci::ROlongSeq> BaciTestClassImpl::m_ROlongSeqProp_sp [private]

baci::SmartPropertyPointer<baci::ROpattern> BaciTestClassImpl::m_ROpatternProp_sp [private]

baci::SmartPropertyPointer<baci::ROstring> BaciTestClassImpl::m_ROstringProp_sp [private]

baci::SmartPropertyPointer<baci::RWdouble> BaciTestClassImpl::m_RWdoubleProp_sp [private]

baci::SmartPropertyPointer<baci::RWdoubleSeq> BaciTestClassImpl::m_RWdoubleSeqProp_sp [private]

baci::SmartPropertyPointer<baci::RWdouble> BaciTestClassImpl::m_RWdoubleWithDevIOProp_sp [private]

baci::SmartPropertyPointer<baci::RWdouble> BaciTestClassImpl::m_RWdoubleWithErrorDevIOProp_sp [private]

The smart pointers for (other) properties.

baci::SmartPropertyPointer<baci::RWfloat> BaciTestClassImpl::m_RWfloatProp_sp [private]

baci::SmartPropertyPointer<baci::RWfloatSeq> BaciTestClassImpl::m_RWfloatSeqProp_sp [private]

baci::SmartPropertyPointer<baci::RWlong> BaciTestClassImpl::m_RWlongProp_sp [private]

baci::SmartPropertyPointer<baci::RWlongSeq> BaciTestClassImpl::m_RWlongSeqProp_sp [private]

baci::SmartPropertyPointer<baci::RWpattern> BaciTestClassImpl::m_RWpatternProp_sp [private]

baci::SmartPropertyPointer<baci::RWstring> BaciTestClassImpl::m_RWstringProp_sp [private]

bool BaciTestClassImpl::m_shutdown [private]

Is manager shutting down?

---

The documentation for this class was generated from the following file:

• baciTestClassImpl.h
