baci::RWcommonImpl< ACS_RW_C > Class Template Reference

#include <baciRWcommonImpl_T.h>

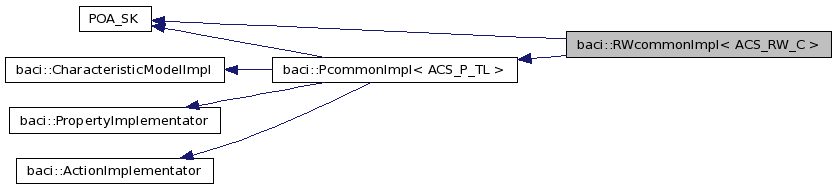

Inheritance diagram for baci::RWcommonImpl< ACS_RW_C >:

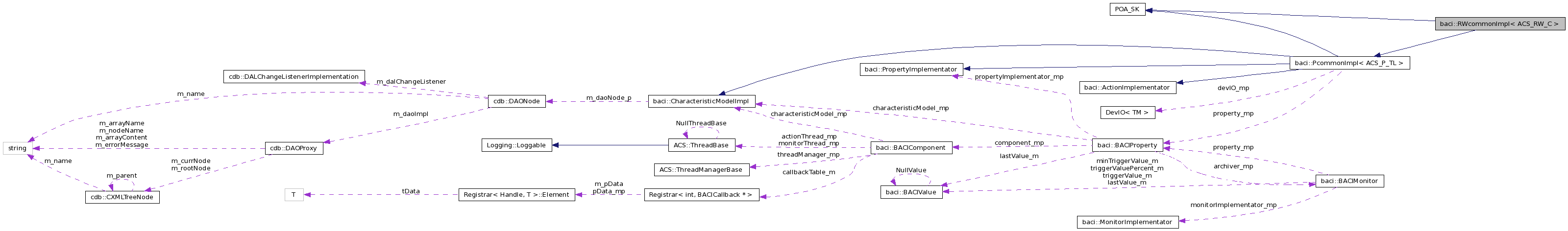

Collaboration diagram for baci::RWcommonImpl< ACS_RW_C >:

List of all members.

Public Member Functions
	RWcommonImpl (const ACE_CString &name, BACIComponent *component_p, DevIO< TM > *devIO, bool flagdeldevIO)
	RWcommonImpl (bool init, const ACE_CString &name, BACIComponent *component_p, DevIO< TM > *devIO, bool flagdeldevIO)
virtual	~RWcommonImpl ()
virtual ActionRequest	setValueAction (BACIComponent *component_p, int callbackID, const CBDescIn &descIn, BACIValue *value, Completion &completion, CBDescOut &descOut)
virtual ActionRequest	invokeAction (int function, BACIComponent *component_p, const int &callbackID, const CBDescIn &descIn, BACIValue *value, Completion &completion, CBDescOut &descOut)
virtual void	setValue (BACIProperty *property, BACIValue *value, Completion &completion, CBDescOut &descOut)
virtual ACSErr::Completion *	set_sync (TIN value)
virtual void	set_async (TIN value, ACS::CBvoid_ptr cb, const ACS::CBDescIn &desc)
virtual void	set_nonblocking (TIN value)

---

Detailed Description

template<ACS_RW_C>
class baci::RWcommonImpl< ACS_RW_C >

Implementation of RWcommonImpl property

Warning:

We have virtual inheritance from PortableServer::RefCountServantBase because of a bug in gcc 2.95 (see SPR. ALMASW2001075)

---

Constructor & Destructor Documentation

template<ACS_RW_C >

baci::RWcommonImpl< ACS_RW_C >::RWcommonImpl	(	const ACE_CString &	name,
		BACIComponent *	component_p,
		DevIO< TM > *	devIO,
		bool	flagdeldevIO
	)

Constuctor

Parameters:

	name	property name (e.q. AMSMount:decliantion)
	component_p	parent of the property

template<ACS_RW_C >

baci::RWcommonImpl< ACS_RW_C >::RWcommonImpl	(	bool	init,
		const ACE_CString &	name,
		BACIComponent *	component_p,
		DevIO< TM > *	devIO,
		bool	flagdeldevIO
	)

Constuctor that calls only readCharacteristics()

Parameters:

name

property name (e.q. AMSMount:decliantion)

template<ACS_RW_C >

virtual baci::RWcommonImpl< ACS_RW_C >::~RWcommonImpl

(

)

[virtual]

Destructor

---

Member Function Documentation

template<ACS_RW_C >

virtual ActionRequest baci::RWcommonImpl< ACS_RW_C >::invokeAction	(	int	function,
		BACIComponent *	component_p,
		const int &	callbackID,
		const CBDescIn &	descIn,
		BACIValue *	value,
		Completion &	completion,
		CBDescOut &	descOut
	)			[virtual]

Action dispatcher function (overrides from Pcommon)

Parameters:

	function	action funtion to be invoked
	component_p	owner of the action
	callbackID	id of the callback to be notified
	descIn	callback descriptor (passed by client)
	value	action data (e.g. value to be set)
	completion	error handing structure
	descOut	callback descriptor which will be passed to client

Returns:

request to be performed by BACI

• reqNone - do nothing (action will be kept in queue)
• reqInvokeWorking - invoke <type>Callback::working
• reqInvokeDone - invoke <type>Callback::done and destroy callback
• reqDestroy - destroy callback (callback should has been called already by function)

Reimplemented from baci::PcommonImpl< ACS_P_TL >.

template<ACS_RW_C >

virtual void baci::RWcommonImpl< ACS_RW_C >::set_async	(	TIN	value,
		ACS::CBvoid_ptr	cb,
		const ACS::CBDescIn &	desc
	)			[virtual]

template<ACS_RW_C >

virtual void baci::RWcommonImpl< ACS_RW_C >::set_nonblocking

(

TIN

value

)

[virtual]

template<ACS_RW_C >

virtual ACSErr::Completion* baci::RWcommonImpl< ACS_RW_C >::set_sync

(

TIN

value

)

[virtual]

template<ACS_RW_C >

virtual void baci::RWcommonImpl< ACS_RW_C >::setValue	(	BACIProperty *	property,
		BACIValue *	value,
		Completion &	completion,
		CBDescOut &	descOut
	)			[virtual]

Set value method (value mutator) To make RW property simetric to RO property

Parameters:

	property	property which requested value
	value	value to be returned
	completion	error handling structure
	descOut	callback descriptor

template<ACS_RW_C >

virtual ActionRequest baci::RWcommonImpl< ACS_RW_C >::setValueAction	(	BACIComponent *	component_p,
		int	callbackID,
		const CBDescIn &	descIn,
		BACIValue *	value,
		Completion &	completion,
		CBDescOut &	descOut
	)			[virtual]

---

The documentation for this class was generated from the following file:

• baciRWcommonImpl_T.h
