#include <baciPcommonImpl_T.h>

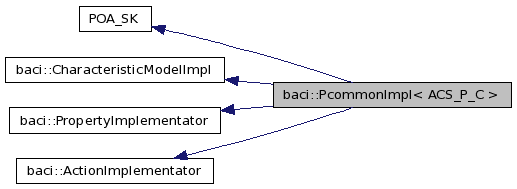

Inheritance diagram for baci::PcommonImpl< ACS_P_C >:

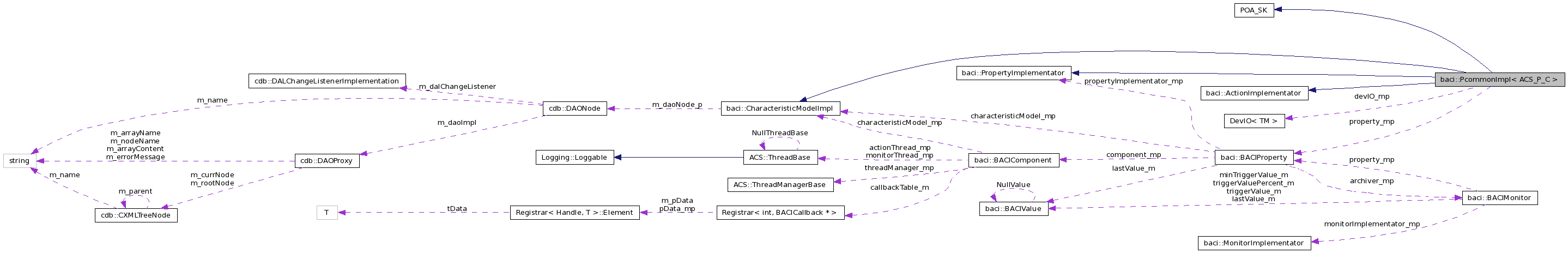

Collaboration diagram for baci::PcommonImpl< ACS_P_C >:

Public Member Functions
	PcommonImpl (const ACE_CString &name, BACIComponent component_p, DevIO< TM > devIO, bool flagdeldevIO)
virtual	~PcommonImpl ()
virtual int	initialization ()
CORBA::Object_ptr	getCORBAReference () const
BACIProperty *	getProperty () const
virtual void	publishNow ()
virtual void	destroy ()
DevIO< TM > *	getDevIO () const
virtual ActionRequest	getValueAction (BACIComponent component_p, int callbackID, const CBDescIn &descIn, BACIValue value, Completion &completion, CBDescOut &descOut)
virtual ActionRequest	invokeAction (int function, BACIComponent component_p, const int &callbackID, const CBDescIn &descIn, BACIValue value, Completion &completion, CBDescOut &descOut)
virtual void	getValue (BACIProperty property, BACIValue value, Completion &completion, CBDescOut &descOut)
virtual char *	name ()
virtual char *	characteristic_component_name ()
virtual CORBA::Boolean	initialize_devio ()
virtual char *	description ()
virtual char *	format ()
virtual char *	units ()
virtual ACS::pattern	resolution ()
virtual ACS::TimeInterval	default_timer_trigger ()
virtual ACS::TimeInterval	min_timer_trigger ()
virtual TS	default_value ()
virtual T	get_sync (ACSErr::Completion_out c)
virtual void	get_async (TCB *cb, const ACS::CBDescIn &desc)
virtual CORBA::Long	get_history (CORBA::Long n_last_values, TSeq_out vs, ACS::TimeSeq_out ts)
virtual TMonitor *	create_monitor (TCB *cb, const ACS::CBDescIn &desc)
virtual TMonitor *	create_postponed_monitor (ACS::Time start_time, TCB *cb, const ACS::CBDescIn &desc)
Protected Types
typedef ActionRequest(PcommonImpl < ACS_P_TL >::*	ActionFunction )(BACIComponent component_p, int callbackID, const CBDescIn &descIn, BACIValue value, ACSErr::Completion &completion, CBDescOut &descOut)
Protected Member Functions
virtual bool	readCharacteristics ()
void	addValueToHistory (ACS::Time time, TM &value)
Protected Attributes
BACIProperty *	property_mp
	BACI property.
DevIO< TM > *	devIO_mp
bool	deldevIO_m
TM	value_m
int	initialization_m
	Initialization status.
bool	destroyed_m
	Destroy status.
CORBA::Object_ptr	reference_mp
	CORBA reference.
TM	historyValue_m [HISTORY_SIZE]
	history value buffer
ACS::Time	historyTime_m [HISTORY_SIZE]
	history time buffer
int	historyStart_m
	history start pointer
bool	historyTurnaround_m
	history end pointer
bool	initializeDevIO_m
ACE_CString	description_m
ACE_CString	format_m
ACE_CString	units_m
ACS::pattern	resolution_m
TSM	defaultValue_m
ACS::TimeInterval	defaultTimerTrig_m
ACS::TimeInterval	minTimerTrig_m
Private Member Functions
void	operator= (const PcommonImpl &)
	PcommonImpl (const PcommonImpl &)

Detailed Description

template<ACS_P_C>
class baci::PcommonImpl< ACS_P_C >

Implementation of P (common) property

Warning:: We have virtual inheritance from PortableServer::RefCountServantBase because of a bug in gcc 2.95 (see SPR. ALMASW2001075)

Constructor & Destructor Documentation

template<ACS_P_C >

baci::PcommonImpl< ACS_P_C >::PcommonImpl	(	const ACE_CString &	name,
		BACIComponent *	component_p,
		DevIO< TM > *	devIO,
		bool	flagdeldevIO
	)

Constuctor

Parameters:

	name	property name (e.q. AMSMount:decliantion)
	component_p	parent of the property

template<ACS_P_C >

virtual baci::PcommonImpl< ACS_P_C >::~PcommonImpl ( ) [virtual]

Destructor

template<ACS_P_C >

baci::PcommonImpl< ACS_P_C >::PcommonImpl ( const PcommonImpl< ACS_P_C > & ) [private]

ALMA C++ coding standards state copy constructors should be disabled.

Member Function Documentation

template<ACS_P_C >

void baci::PcommonImpl< ACS_P_C >::addValueToHistory	(	ACS::Time	time,
		TM &	value
	)			`[protected]`

template<ACS_P_C >

virtual char* baci::PcommonImpl< ACS_P_C >::characteristic_component_name ( ) [virtual]

template<ACS_P_C >

virtual TMonitor* baci::PcommonImpl< ACS_P_C >::create_monitor	(	TCB *	cb,
		const ACS::CBDescIn &	desc
	)			`[virtual]`

template<ACS_P_C >

virtual TMonitor* baci::PcommonImpl< ACS_P_C >::create_postponed_monitor	(	ACS::Time	start_time,
		TCB *	cb,
		const ACS::CBDescIn &	desc
	)			`[virtual]`

template<ACS_P_C >

virtual ACS::TimeInterval baci::PcommonImpl< ACS_P_C >::default_timer_trigger ( ) [virtual]

template<ACS_P_C >

virtual TS baci::PcommonImpl< ACS_P_C >::default_value ( ) [virtual]

template<ACS_P_C >

virtual char* baci::PcommonImpl< ACS_P_C >::description ( ) [virtual]

template<ACS_P_C >

virtual void baci::PcommonImpl< ACS_P_C >::destroy ( ) [virtual]

Destructor method This method must be called to destroy property, POA will call destructor (direct call of destructor will most likely cause code to crash)

template<ACS_P_C >

virtual char* baci::PcommonImpl< ACS_P_C >::format ( ) [virtual]

template<ACS_P_C >

virtual void baci::PcommonImpl< ACS_P_C >::get_async	(	TCB *	cb,
		const ACS::CBDescIn &	desc
	)			`[virtual]`

template<ACS_P_C >

virtual CORBA::Long baci::PcommonImpl< ACS_P_C >::get_history	(	CORBA::Long	n_last_values,
		TSeq_out	vs,
		ACS::TimeSeq_out	ts
	)			`[virtual]`

template<ACS_P_C >

virtual T baci::PcommonImpl< ACS_P_C >::get_sync ( ACSErr::Completion_out c ) [virtual]

template<ACS_P_C >

CORBA::Object_ptr baci::PcommonImpl< ACS_P_C >::getCORBAReference ( ) const [inline]

Get CORBA referece of this object

Returns:: reference to CORBa object

template<ACS_P_C >

DevIO<TM>* baci::PcommonImpl< ACS_P_C >::getDevIO ( ) const [inline]

DevIO accessor

template<ACS_P_C >

BACIProperty* baci::PcommonImpl< ACS_P_C >::getProperty ( ) const [inline]

BACI Monitor instance accessor

template<ACS_P_C >

virtual void baci::PcommonImpl< ACS_P_C >::getValue	(	BACIProperty *	property,
		BACIValue *	value,
		Completion &	completion,
		CBDescOut &	descOut
	)			`[virtual]`

Get value method (value accessor)

Parameters:

	property	property which requested value
	value	value to be returned
	completion	error handling structure
	descOut	callback descriptor

template<ACS_P_C >

virtual ActionRequest baci::PcommonImpl< ACS_P_C >::getValueAction	(	BACIComponent *	component_p,
		int	callbackID,
		const CBDescIn &	descIn,
		BACIValue *	value,
		Completion &	completion,
		CBDescOut &	descOut
	)			`[virtual]`

template<ACS_P_C >

virtual int baci::PcommonImpl< ACS_P_C >::initialization ( ) [inline, virtual]

template<ACS_P_C >

virtual CORBA::Boolean baci::PcommonImpl< ACS_P_C >::initialize_devio ( ) [virtual]

template<ACS_P_C >

virtual ActionRequest baci::PcommonImpl< ACS_P_C >::invokeAction	(	int	function,
		BACIComponent *	component_p,
		const int &	callbackID,
		const CBDescIn &	descIn,
		BACIValue *	value,
		Completion &	completion,
		CBDescOut &	descOut
	)			`[virtual]`

Action dispatcher function

Parameters:

	function	action funtion to be invoked
	component_p	owner of the action
	callbackID	id of the callback to be notified
	descIn	callback descriptor (passed by client)
	value	action data (e.g. value to be set)
	completion	error handing structure
	descOut	callback descriptor which will be passed to client

Returns:

request to be performed by BACI

reqNone - do nothing (action will be kept in queue)
reqInvokeWorking - invoke <type>Callback::working
reqInvokeDone - invoke <type>Callback::done and destroy callback
reqDestroy - destroy callback (callback should has been called already by function)

Implements baci::ActionImplementator.

Reimplemented in baci::RWcommonImpl< ACS_RW_C >, and baci::RWcommonImpl< ACS_RW_TL >.

template<ACS_P_C >

virtual ACS::TimeInterval baci::PcommonImpl< ACS_P_C >::min_timer_trigger ( ) [virtual]

template<ACS_P_C >

virtual char* baci::PcommonImpl< ACS_P_C >::name ( ) [virtual]

template<ACS_P_C >

void baci::PcommonImpl< ACS_P_C >::operator= ( const PcommonImpl< ACS_P_C > & ) [private]

ALMA C++ coding standards state assignment operators should be disabled.

template<ACS_P_C >

virtual void baci::PcommonImpl< ACS_P_C >::publishNow ( ) [virtual]

template<ACS_P_C >

virtual bool baci::PcommonImpl< ACS_P_C >::readCharacteristics ( ) [protected, virtual]

Read characteristics from CDB

Parameters:

propertyName

name of the property whose characteristics to read

Returns:: true on success, false on failure

Reimplemented in baci::ROcommonImpl< ACS_RO_C >, and baci::ROcommonImpl< ACS_RO_TL >.

template<ACS_P_C >

virtual ACS::pattern baci::PcommonImpl< ACS_P_C >::resolution ( ) [virtual]

template<ACS_P_C >

virtual char* baci::PcommonImpl< ACS_P_C >::units ( ) [virtual]

Member Data Documentation

template<ACS_P_C >

ACS::TimeInterval baci::PcommonImpl< ACS_P_C >::defaultTimerTrig_m [protected]

template<ACS_P_C >

TSM baci::PcommonImpl< ACS_P_C >::defaultValue_m [protected]

template<ACS_P_C >

bool baci::PcommonImpl< ACS_P_C >::deldevIO_m [protected]

template<ACS_P_C >

ACE_CString baci::PcommonImpl< ACS_P_C >::description_m [protected]

template<ACS_P_C >

bool baci::PcommonImpl< ACS_P_C >::destroyed_m [protected]

Destroy status.

template<ACS_P_C >

DevIO<TM>* baci::PcommonImpl< ACS_P_C >::devIO_mp [protected]

template<ACS_P_C >

ACE_CString baci::PcommonImpl< ACS_P_C >::format_m [protected]

template<ACS_P_C >

int baci::PcommonImpl< ACS_P_C >::historyStart_m [protected]

history start pointer

template<ACS_P_C >

ACS::Time baci::PcommonImpl< ACS_P_C >::historyTime_m[HISTORY_SIZE] [protected]

history time buffer

template<ACS_P_C >

bool baci::PcommonImpl< ACS_P_C >::historyTurnaround_m [protected]

history end pointer

template<ACS_P_C >

TM baci::PcommonImpl< ACS_P_C >::historyValue_m[HISTORY_SIZE] [protected]

history value buffer

template<ACS_P_C >

int baci::PcommonImpl< ACS_P_C >::initialization_m [protected]

Initialization status.

template<ACS_P_C >

bool baci::PcommonImpl< ACS_P_C >::initializeDevIO_m [protected]

Characteristics

template<ACS_P_C >

ACS::TimeInterval baci::PcommonImpl< ACS_P_C >::minTimerTrig_m [protected]

template<ACS_P_C >

BACIProperty* baci::PcommonImpl< ACS_P_C >::property_mp [protected]

BACI property.

template<ACS_P_C >

CORBA::Object_ptr baci::PcommonImpl< ACS_P_C >::reference_mp [protected]

CORBA reference.

template<ACS_P_C >

ACS::pattern baci::PcommonImpl< ACS_P_C >::resolution_m [protected]

template<ACS_P_C >

ACE_CString baci::PcommonImpl< ACS_P_C >::units_m [protected]

template<ACS_P_C >

TM baci::PcommonImpl< ACS_P_C >::value_m [protected]

The documentation for this class was generated from the following file:

baciPcommonImpl_T.h
