#include <baciBACIComponent.h>

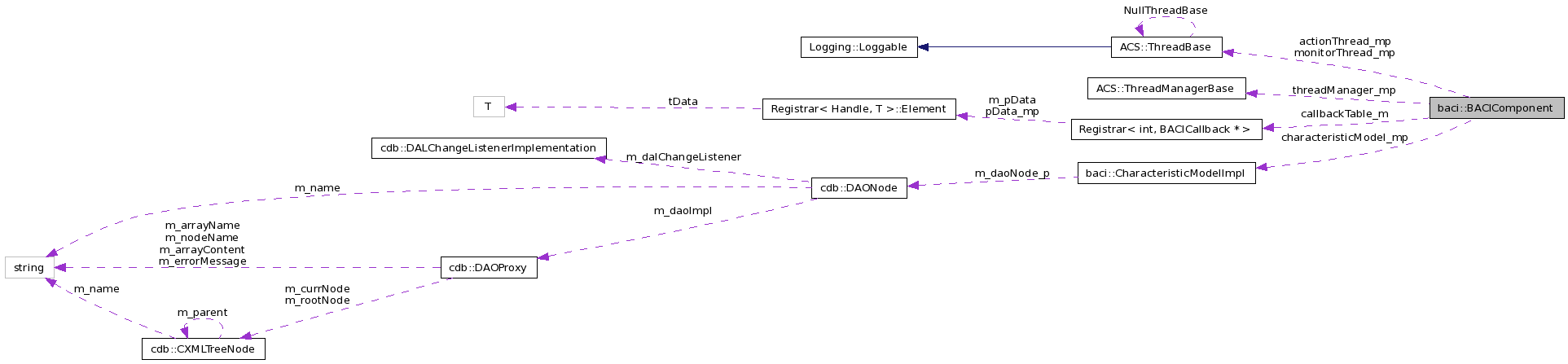

Collaboration diagram for baci::BACIComponent:

Public Member Functions
	BACIComponent (ACS::ThreadManager thrMgr, const ACE_CString &name, const ACE_CString &type, CharacteristicModelImpl characteristicModel, size_t actionThreadStackSize, size_t monitorThreadStackSize, const ACS::TimeInterval &actionThreadResponseTime=defaultRTResponseTime_m, const ACS::TimeInterval &actionThreadSleepTime=minRTSleepTime_m, const ACS::TimeInterval &monitorThreadResponseTime=defaultMTResponseTime_m, const ACS::TimeInterval &monitorThreadSleepTime=minMTSleepTime_m)
	~BACIComponent ()
const char *	getName () const
const char *	getType () const
int	registerCallback (const BACIValue::Type type, Callback_ptr callback_p, const CBDescIn descIn)
int	registerAction (const BACIValue::Type type, Callback_ptr callback_p, const CBDescIn descIn, ActionImplementator *actionImplementator_, int actionFunction_)
int	registerAction (const BACIValue::Type type, Callback_ptr callback_p, const CBDescIn descIn, ActionImplementator *actionImplementator_, int actionFunction, const BACIValue &value)
BACIThreadManager *	getThreadManager () const
ACS::TimeInterval	getMTResponseTime () const
void	setMTResponseTime (const ACS::TimeInterval &_monitorThreadResponseTime)
ACS::TimeInterval	getMTSleepTime () const
void	setMTSleepTime (const ACS::TimeInterval &_monitorThreadSleepTime)
ACS::TimeInterval	getRTResponseTime () const
void	setRTResponseTime (const ACS::TimeInterval &_actionThreadResponseTime)
ACS::TimeInterval	getRTSleepTime () const
void	setRTSleepTime (const ACS::TimeInterval &_actionThreadSleepTime)
bool	dispatchCallback (int callbackID, const BACIValue &value, CBDescOut &descOut, const Completion &completion, const BACIMonitor *archiver=0)
bool	finishCallback (int callbackID, const BACIValue &value, CBDescOut &descOut, const Completion &completion)
bool	isInDestructionState () const
int	getActionCount () const
void	pushAction (BACIAction *action)
BACIAction *	popAction ()
void	removeCallbackAndAction (int callbackID)
BACICallback *	getCallback (int callbackID)
void	removeCallback (int callbackID)
int	getPropertyCount () const
BACIProperty *	getPropertyAt (int pos) const
void	stopAllThreads ()
bool	startAllThreads ()
void	startMonitoringThread ()
void	startActionThread ()
void	stopMonitoringThread ()
void	stopActionThread ()
void	cancelMonitoringThread ()
void	cancelActionThread ()
bool	isMonitoringActive ()
bool	isActionThreadActive ()
CharacteristicModelImpl *	getCharacteristicModel () const
Protected Member Functions
BACIThread *	getActionThread () const
BACIThread *	getMonitorThread () const
int	getThreadCount () const
void	removeAction (int callbackID)
void	addProperty (BACIProperty *property)
void	removeProperty (BACIProperty *property)
Static Protected Attributes
static const ACS::TimeInterval	defaultRTResponseTime_m
static const ACS::TimeInterval	minRTSleepTime_m
static const ACS::TimeInterval	defaultMTResponseTime_m
static const ACS::TimeInterval	minMTSleepTime_m
Private Member Functions
void	operator= (const BACIComponent &)
	BACIComponent (const BACIComponent &)
Private Attributes
ACE_CString	name_m
ACE_CString	type_m
CharacteristicModelImpl *	characteristicModel_mp
BACICallbackTable	callbackTable_m
BACIActionQueue	actionQueue_m
BACIPropertyVector	propertyVector_m
ACS::TimeInterval	actionThreadResponseTime_m
ACS::TimeInterval	actionThreadSleepTime_m
ACS::TimeInterval	monitorThreadResponseTime_m
ACS::TimeInterval	monitorThreadSleepTime_m
BACIThread *	actionThread_mp
BACIThread *	monitorThread_mp
BACIThreadManager *	threadManager_mp
bool	inDestructionState_m
BACIMutex	actionQueueMutex_m
BACIMutex	propertyVectorMutex_m
BACIMutex	callbackTableMutex_m
size_t	actionThreadStackSize_m
size_t	monitoringThreadStackSize_m
Friends
class	BACIProperty

Detailed Description

Class represeting BACI Component Component is responsible for action, monitor dispatching

Author:: Matej Sekoranja, Jozef Stefan Institute, Slovenia

Constructor & Destructor Documentation

baci::BACIComponent::BACIComponent	(	ACS::ThreadManager *	thrMgr,
		const ACE_CString &	name,
		const ACE_CString &	type,
		CharacteristicModelImpl *	characteristicModel,
		size_t	actionThreadStackSize,
		size_t	monitorThreadStackSize,
		const ACS::TimeInterval &	actionThreadResponseTime = `defaultRTResponseTime_m`,
		const ACS::TimeInterval &	actionThreadSleepTime = `minRTSleepTime_m`,
		const ACS::TimeInterval &	monitorThreadResponseTime = `defaultMTResponseTime_m`,
		const ACS::TimeInterval &	monitorThreadSleepTime = `minMTSleepTime_m`
	)

Component constructor that allows to pass thread manager This class is a property containder providing action and monitor queues.

Parameters:

	threadManager	ACS Thread Manager
	name	name of the Component
	characteristicModel	characteristic model to be used to retrieve data
	actionThreadResponseTime	response time of the action thread in 100ns unit
	actionThreadSleepTime	sleep time of the action thread in 100ns unit
	monitorThreadResponseTime	response time of the monitor thread in 100ns unit
	monitorThreadSleepTime	sleep time of the monitor thread in 100ns unit

baci::BACIComponent::~BACIComponent ( )

baci::BACIComponent::BACIComponent ( const BACIComponent & ) [private]

ALMA C++ coding standards state copy constructors should be disabled.

Member Function Documentation

void baci::BACIComponent::addProperty ( BACIProperty * property ) [protected]

void baci::BACIComponent::cancelActionThread ( )

Cancels the Action thread if one has been created. We need to cancel the thread to avoid waiting unneccessary waiting in sleep of the thread, because cancel

void baci::BACIComponent::cancelMonitoringThread ( )

Cancels the Monitoring thread if one has been created. We need to cancel the thread to avoid waiting unneccessary waiting in sleep of the thread, because cancel

bool baci::BACIComponent::dispatchCallback	(	int	callbackID,
		const BACIValue &	value,
		CBDescOut &	descOut,
		const Completion &	completion,
		const BACIMonitor *	archiver = `0`
	)

bool baci::BACIComponent::finishCallback	(	int	callbackID,
		const BACIValue &	value,
		CBDescOut &	descOut,
		const Completion &	completion
	)

int baci::BACIComponent::getActionCount ( ) const [inline]

BACIThread* baci::BACIComponent::getActionThread ( ) const [inline, protected]

BACICallback* baci::BACIComponent::getCallback ( int callbackID )

CharacteristicModelImpl* baci::BACIComponent::getCharacteristicModel ( ) const [inline]

BACIThread* baci::BACIComponent::getMonitorThread ( ) const [inline, protected]

ACS::TimeInterval baci::BACIComponent::getMTResponseTime ( ) const [inline]

ACS::TimeInterval baci::BACIComponent::getMTSleepTime ( ) const [inline]

const char* baci::BACIComponent::getName ( void ) const [inline]

BACIProperty* baci::BACIComponent::getPropertyAt ( int pos ) const

int baci::BACIComponent::getPropertyCount ( ) const [inline]

ACS::TimeInterval baci::BACIComponent::getRTResponseTime ( ) const [inline]

ACS::TimeInterval baci::BACIComponent::getRTSleepTime ( ) const [inline]

int baci::BACIComponent::getThreadCount ( ) const [inline, protected]

BACIThreadManager* baci::BACIComponent::getThreadManager ( ) const [inline]

const char* baci::BACIComponent::getType ( ) const [inline]

bool baci::BACIComponent::isActionThreadActive ( )

Returns true if Action Thread is active, i.e. if the action thread is created and resumed.

bool baci::BACIComponent::isInDestructionState ( ) const [inline]

bool baci::BACIComponent::isMonitoringActive ( )

Returns true if monitoring is active, i.e. if monitoring thread is created and resumed.

void baci::BACIComponent::operator= ( const BACIComponent & ) [private]

ALMA C++ coding standards state assignment operators should be disabled.

BACIAction* baci::BACIComponent::popAction ( )

void baci::BACIComponent::pushAction ( BACIAction * action )

int baci::BACIComponent::registerAction	(	const BACIValue::Type	type,
		Callback_ptr	callback_p,
		const CBDescIn	descIn,
		ActionImplementator *	actionImplementator_,
		int	actionFunction_
	)

Register action to BACI

Parameters:

	type	callback type (e.g. type double means callback is type of CBdouble)
	callback	callback reference
	descIn	callback descriptor (passed by client)
	actionImplemenator	action implementator
	actionFunction	action function to be invoked in execute action
	value	action data (e.g. value to be set)

Returns:: callback ID (0 on failure)

int baci::BACIComponent::registerAction	(	const BACIValue::Type	type,
		Callback_ptr	callback_p,
		const CBDescIn	descIn,
		ActionImplementator *	actionImplementator_,
		int	actionFunction,
		const BACIValue &	value
	)

Register action to BACI

Parameters:

	type	callback type (e.g. type double means callback is type of CBdouble)
	callback	callback reference
	descIn	callback descriptor (passed by client)
	actionImplemenator	action implementator
	actionFunction_	action function to be invoked in execute action

Returns:: callback ID (0 on failure)

int baci::BACIComponent::registerCallback	(	const BACIValue::Type	type,
		Callback_ptr	callback_p,
		const CBDescIn	descIn
	)

Register callback to BACI

Parameters:

	type	callback type (e.g. type double means callback is type of CBdouble)
	callback	callback reference
	descIn	callback descriptor (passed by client)

Returns:: callback ID (0 on failure)

void baci::BACIComponent::removeAction ( int callbackID ) [protected]

void baci::BACIComponent::removeCallback ( int callbackID )

void baci::BACIComponent::removeCallbackAndAction ( int callbackID )

void baci::BACIComponent::removeProperty ( BACIProperty * property ) [protected]

void baci::BACIComponent::setMTResponseTime ( const ACS::TimeInterval & _monitorThreadResponseTime )

void baci::BACIComponent::setMTSleepTime ( const ACS::TimeInterval & _monitorThreadSleepTime )

void baci::BACIComponent::setRTResponseTime ( const ACS::TimeInterval & _actionThreadResponseTime )

void baci::BACIComponent::setRTSleepTime ( const ACS::TimeInterval & _actionThreadSleepTime )

void baci::BACIComponent::startActionThread ( )

Creates and starts the Action thread. The thread which is used for executing asyhronous commmand. In case of an error it throws an exception:

Exceptions:

	ACSErrTypeCommon::NullPointerExImpl	if there is no thread manager
	acsthreadErrType::CanNotCreateThreadExImpl	if the thread can not be created

bool baci::BACIComponent::startAllThreads ( )

void baci::BACIComponent::startMonitoringThread ( )

Creates and starts the Monitoring thread. In case of an error it throws an exception:

Exceptions:

	ACSErrTypeCommon::NullPointerExImpl	if there is no thread manager
	acsthreadErrType::CanNotCreateThreadExImpl	if the thread can not be created

void baci::BACIComponent::stopActionThread ( )

Stops (suspends) the Action thread. If the thread is already suspended, or if it has not been created yet, it just returns.

void baci::BACIComponent::stopAllThreads ( )

void baci::BACIComponent::stopMonitoringThread ( )

Stops (suspends) the Monitoring thread If the thread is already suspended, or if it has not been created yet, it just returns.

Friends And Related Function Documentation

friend class BACIProperty [friend]

Member Data Documentation

BACIActionQueue baci::BACIComponent::actionQueue_m [private]

BACIMutex baci::BACIComponent::actionQueueMutex_m [private]

BACIThread* baci::BACIComponent::actionThread_mp [private]

ACS::TimeInterval baci::BACIComponent::actionThreadResponseTime_m [private]

ACS::TimeInterval baci::BACIComponent::actionThreadSleepTime_m [private]

size_t baci::BACIComponent::actionThreadStackSize_m [private]

BACICallbackTable baci::BACIComponent::callbackTable_m [private]

BACIMutex baci::BACIComponent::callbackTableMutex_m [private]

CharacteristicModelImpl* baci::BACIComponent::characteristicModel_mp [private]

const ACS::TimeInterval baci::BACIComponent::defaultMTResponseTime_m [static, protected]

const ACS::TimeInterval baci::BACIComponent::defaultRTResponseTime_m [static, protected]

bool baci::BACIComponent::inDestructionState_m [private]

const ACS::TimeInterval baci::BACIComponent::minMTSleepTime_m [static, protected]

const ACS::TimeInterval baci::BACIComponent::minRTSleepTime_m [static, protected]

size_t baci::BACIComponent::monitoringThreadStackSize_m [private]

BACIThread* baci::BACIComponent::monitorThread_mp [private]

ACS::TimeInterval baci::BACIComponent::monitorThreadResponseTime_m [private]

ACS::TimeInterval baci::BACIComponent::monitorThreadSleepTime_m [private]

ACE_CString baci::BACIComponent::name_m [private]

BACIPropertyVector baci::BACIComponent::propertyVector_m [private]

BACIMutex baci::BACIComponent::propertyVectorMutex_m [private]

BACIThreadManager* baci::BACIComponent::threadManager_mp [private]

ACE_CString baci::BACIComponent::type_m [private]

The documentation for this class was generated from the following file:

baciBACIComponent.h

baci::BACIComponent Class Reference

Public Member Functions

Protected Member Functions

Static Protected Attributes

Private Member Functions

Private Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
