baci::RWcontImpl< ACS_RW_C > Class Template Reference

! order of inheritance is important: RWcommonImpl has to become befor PcontImpl More...

#include <baciRWcontImpl_T.h>

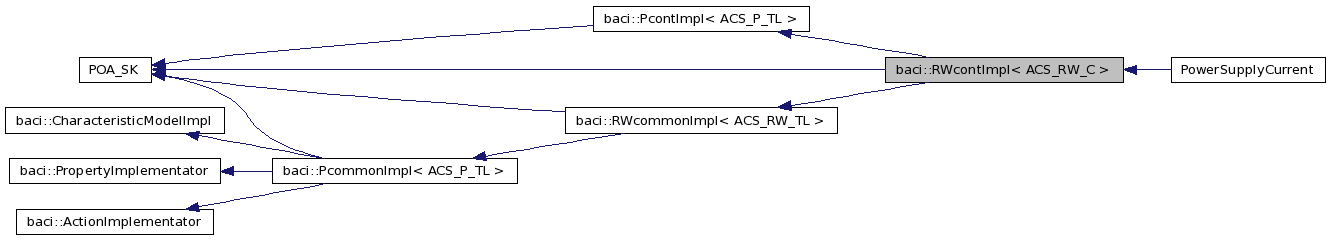

Inheritance diagram for baci::RWcontImpl< ACS_RW_C >:

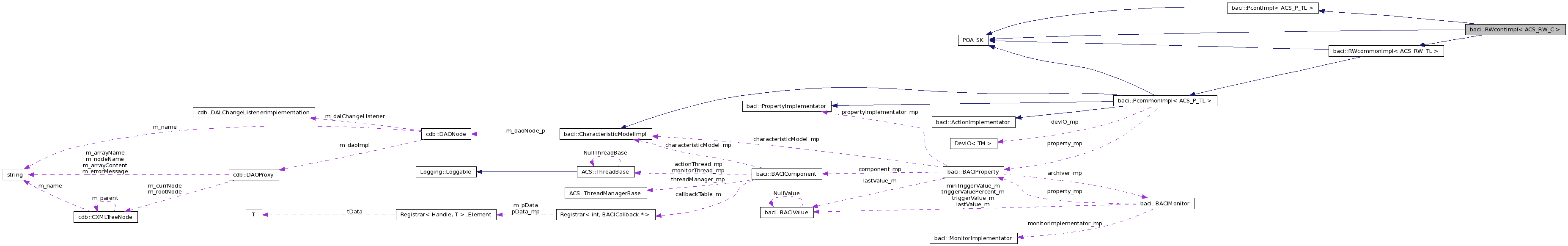

Collaboration diagram for baci::RWcontImpl< ACS_RW_C >:

List of all members.

Public Member Functions
	RWcontImpl (const ACE_CString &name, BACIComponent *component_p, DevIO< TM > *devIO=0, bool flagdeldevIO=false)
	RWcontImpl (bool initValue, const ACE_CString &name, BACIComponent *component_p, DevIO< TM > *devIO=0, bool flagdeldevIO=false)
virtual	~RWcontImpl ()
virtual ActionRequest	invokeAction (int function, BACIComponent *component_p, const int &callbackID, const CBDescIn &descIn, BACIValue *value, Completion &completion, CBDescOut &descOut)
virtual void	setValue (BACIProperty *property, BACIValue *value, Completion &completion, CBDescOut &descOut)
virtual ActionRequest	incrementAction (BACIComponent *component_p, int callbackID, const CBDescIn &descIn, BACIValue *value, Completion &completion, CBDescOut &descOut)
virtual ActionRequest	decrementAction (BACIComponent *component_p, int callbackID, const CBDescIn &descIn, BACIValue *value, Completion &completion, CBDescOut &descOut)
virtual TS	min_value ()
virtual TS	max_value ()
virtual void	increment (ACS::CBvoid_ptr cb, const ACS::CBDescIn &desc)
virtual void	decrement (ACS::CBvoid_ptr cb, const ACS::CBDescIn &desc)
Protected Member Functions
virtual bool	readCharacteristics ()
Private Attributes
TSM	min_value_m
TSM	max_value_m

---

Detailed Description

template<ACS_RW_C>
class baci::RWcontImpl< ACS_RW_C >

! order of inheritance is important: RWcommonImpl has to become befor PcontImpl

Implementation of RWcontImpl property

Warning:

We have virtual inheritance from PortableServer::RefCountServantBase because of a bug in gcc 2.95 (see SPR. ALMASW2001075)

---

Constructor & Destructor Documentation

template<ACS_RW_C >

baci::RWcontImpl< ACS_RW_C >::RWcontImpl	(	const ACE_CString &	name,
		BACIComponent *	component_p,
		DevIO< TM > *	devIO = 0,
		bool	flagdeldevIO = false
	)

Constuctor

Parameters:

	name	property name (e.q. AMSMount:decliantion)
	component_p	parent of the property

template<ACS_RW_C >

baci::RWcontImpl< ACS_RW_C >::RWcontImpl	(	bool	initValue,
		const ACE_CString &	name,
		BACIComponent *	component_p,
		DevIO< TM > *	devIO = 0,
		bool	flagdeldevIO = false
	)

Constuctor that has to be called from superclasses

Parameters:

	name	property name (e.q. AMSMount:decliantion)
	component_p	parent of the property

template<ACS_RW_C >

virtual baci::RWcontImpl< ACS_RW_C >::~RWcontImpl

(

)

[virtual]

Destructor

---

Member Function Documentation

template<ACS_RW_C >

virtual void baci::RWcontImpl< ACS_RW_C >::decrement	(	ACS::CBvoid_ptr	cb,
		const ACS::CBDescIn &	desc
	)			[virtual]

template<ACS_RW_C >

virtual ActionRequest baci::RWcontImpl< ACS_RW_C >::decrementAction	(	BACIComponent *	component_p,
		int	callbackID,
		const CBDescIn &	descIn,
		BACIValue *	value,
		Completion &	completion,
		CBDescOut &	descOut
	)			[virtual]

Implementation of async. decrement method

Reimplemented in baci::RWSeqContImpl< ACS_RW_C >.

template<ACS_RW_C >

virtual void baci::RWcontImpl< ACS_RW_C >::increment	(	ACS::CBvoid_ptr	cb,
		const ACS::CBDescIn &	desc
	)			[virtual]

template<ACS_RW_C >

virtual ActionRequest baci::RWcontImpl< ACS_RW_C >::incrementAction	(	BACIComponent *	component_p,
		int	callbackID,
		const CBDescIn &	descIn,
		BACIValue *	value,
		Completion &	completion,
		CBDescOut &	descOut
	)			[virtual]

Implementation of async. increment method

Reimplemented in baci::RWSeqContImpl< ACS_RW_C >.

template<ACS_RW_C >

virtual ActionRequest baci::RWcontImpl< ACS_RW_C >::invokeAction	(	int	function,
		BACIComponent *	component_p,
		const int &	callbackID,
		const CBDescIn &	descIn,
		BACIValue *	value,
		Completion &	completion,
		CBDescOut &	descOut
	)			[virtual]

Action dispatcher function (overrides from Pcommon)

Parameters:

	function	action funtion to be invoked
	component_p	owner of the action
	callbackID	id of the callback to be notified
	descIn	callback descriptor (passed by client)
	value	action data (e.g. value to be set)
	completion	error handing structure
	descOut	callback descriptor which will be passed to client

Returns:

request to be performed by BACI

• reqNone - do nothing (action will be kept in queue)
• reqInvokeWorking - invoke <type>Callback::working
• reqInvokeDone - invoke <type>Callback::done and destroy callback
• reqDestroy - destroy callback (callback should has been called already by function)

template<ACS_RW_C >

virtual TS baci::RWcontImpl< ACS_RW_C >::max_value

(

)

[virtual]

template<ACS_RW_C >

virtual TS baci::RWcontImpl< ACS_RW_C >::min_value

(

)

[virtual]

template<ACS_RW_C >

virtual bool baci::RWcontImpl< ACS_RW_C >::readCharacteristics

(

)

[protected, virtual]

template<ACS_RW_C >

virtual void baci::RWcontImpl< ACS_RW_C >::setValue	(	BACIProperty *	property,
		BACIValue *	value,
		Completion &	completion,
		CBDescOut &	descOut
	)			[virtual]

Set value method (value mutator) overriden from RWcommon To make RW property simetric to RO property

Parameters:

	property	property which requested value
	value	value to be returned
	completion	error handling structure
	descOut	callback descriptor

Reimplemented in PowerSupplyCurrent, and baci::RWSeqContImpl< ACS_RW_C >.

---

Member Data Documentation

template<ACS_RW_C >

TSM baci::RWcontImpl< ACS_RW_C >::max_value_m [private]

template<ACS_RW_C >

TSM baci::RWcontImpl< ACS_RW_C >::min_value_m [private]

---

The documentation for this class was generated from the following file:

• baciRWcontImpl_T.h
