#include <acsexmplPowerSupplyImpl.h>

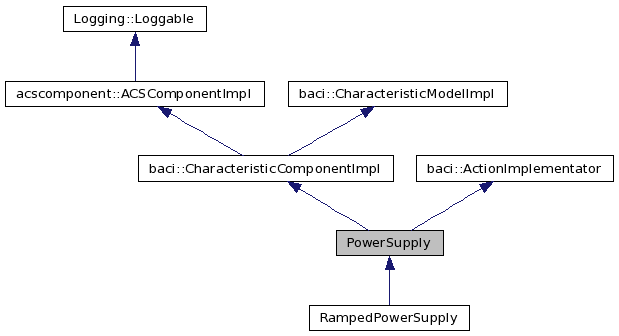

Inheritance diagram for PowerSupply:

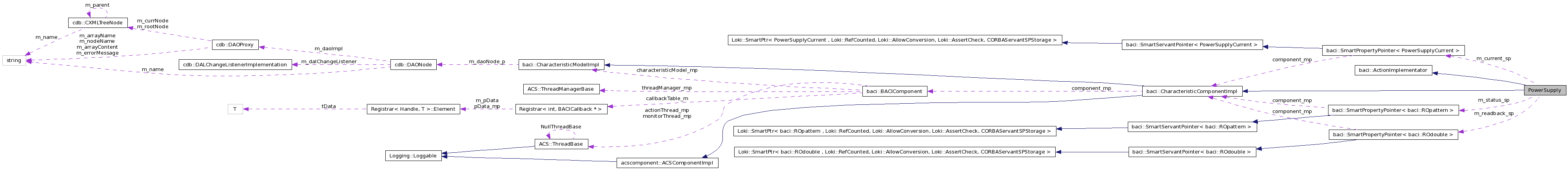

Collaboration diagram for PowerSupply:
Public Member Functions | |
| PowerSupply (const ACE_CString &name, maci::ContainerServices *containerServices) | |
| virtual | ~PowerSupply () |
| virtual baci::ActionRequest | invokeAction (int function, baci::BACIComponent *component_p, const int &callbackID, const CBDescIn &descIn, baci::BACIValue *value_p, Completion &completion, CBDescOut &descOut) |
| virtual baci::ActionRequest | onAction (baci::BACIComponent *component_p, const int &callbackID, const CBDescIn &descIn, baci::BACIValue *value_p, Completion &completion, CBDescOut &descOut) |
| virtual baci::ActionRequest | offAction (baci::BACIComponent *component_p, const int &callbackID, const CBDescIn &descIn, baci::BACIValue *value_p, Completion &completion, CBDescOut &descOut) |
| virtual baci::ActionRequest | resetAction (baci::BACIComponent *component_p, const int &callbackID, const CBDescIn &descIn, baci::BACIValue *value_p, Completion &completion, CBDescOut &descOut) |
| virtual void | on (ACS::CBvoid_ptr cb, const ACS::CBDescIn &desc) |
| virtual void | off (ACS::CBvoid_ptr cb, const ACS::CBDescIn &desc) |
| virtual void | reset (ACS::CBvoid_ptr cb, const ACS::CBDescIn &desc) |
| virtual ACS::RWdouble_ptr | current () |
| virtual ACS::ROdouble_ptr | readback () |
| virtual ACS::ROpattern_ptr | status () |
| virtual void | execute () |
Protected Attributes | |
| baci::SmartPropertyPointer < baci::ROpattern > | m_status_sp |
Private Member Functions | |
| void | operator= (const PowerSupply &) |
Private Attributes | |
| baci::SmartPropertyPointer < baci::ROdouble > | m_readback_sp |
| baci::SmartPropertyPointer < PowerSupplyCurrent > | m_current_sp |
Detailed Description
Simulates the behavior of a power supply and overwrites an ACS property. The class PowerSupply simulates the behaviour of a power supply. It provides three methods: on, off and reset. It also provides the properties current, readback and status. Asynchronous calls are implemented using the ...... pattern and the ..... support classes. For each xxx action defined in the IDL interface two methods are provided:
- xxx() just registers the action and installs the callback
- xxxAction() performs (asyncronously) the action and invokes the callback when finished. The PowerSupply::invokeAction method is called by the asynchronous dispatcher whenever there is an xxx pending action and it calls the xxxAction corresponding method.
- Version:
- "@(#) $Id: acsexmplPowerSupplyImpl.h,v 1.106 2008/10/09 08:41:11 cparedes Exp $"
Constructor & Destructor Documentation
| PowerSupply::PowerSupply | ( | const ACE_CString & | name, | |
| maci::ContainerServices * | containerServices | |||
| ) |
Constructor
- Parameters:
-
name component name containerService A pointer to the container services
The documentation for this class was generated from the following file:
