#include <acsContainerServices.h>

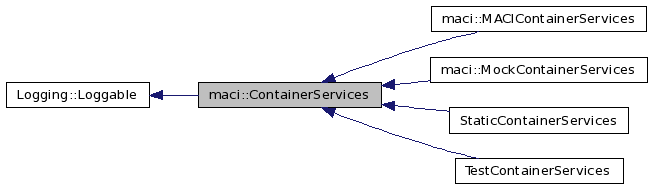

Inheritance diagram for maci::ContainerServices:

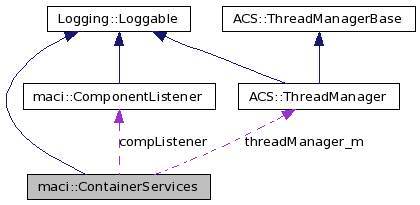

Collaboration diagram for maci::ContainerServices:

Public Member Functions
	ContainerServices (ACE_CString &compName, PortableServer::POA_ptr poa)
virtual	~ContainerServices ()
ACE_CString	getName ()
ACE_CString	getType ()
PortableServer::POA_var	getPOA ()
void	registerComponentListener (ComponentListener *listener)
void	fireComponentsUnavailable (ACE_CString_Vector &compNames)
void	fireComponentsAvailable (ACE_CString_Vector &compNames)
template<class T >
T *	getComponent (const char *name)
template<class T >
T *	getComponentNonSticky (const char *name)
template<class T >
T *	getDynamicComponent (maci::ComponentSpec compSpec, bool markAsDefault)
template<class T >
T *	getCollocatedComponent (maci::ComponentSpec compSpec, bool markAsDefault, const char *targetComponent)
template<class T >
T *	getDefaultComponent (const char *idlType)
template<typename T >
SmartPtr< T >	getComponentSmartPtr (const char *name)
template<typename T >
SmartPtr< T >	getComponentNonStickySmartPtr (const char *name)
template<typename T >
SmartPtr< T >	getDynamicComponentSmartPtr (maci::ComponentSpec compSpec, bool markAsDefault)
template<typename T >
SmartPtr< T >	getCollocatedComponentSmartPtr (maci::ComponentSpec compSpec, bool markAsDefault, const char *targetComponent)
template<typename T >
SmartPtr< T >	getDefaultComponentSmartPtr (const char *idlType)
virtual maci::ComponentInfo	getComponentDescriptor (const char *componentName)=0
virtual ACE_CString_Vector	findComponents (const char nameWilcard, const char typeWildcard)=0
virtual void	releaseComponent (const char *name)=0
virtual void	releaseAllComponents ()=0
virtual CDB::DAL_ptr	getCDB ()=0
virtual PortableServer::POA_var	getOffShootPOA ()=0
virtual ACS::OffShoot_ptr	activateOffShoot (PortableServer::Servant cbServant)=0
virtual void	deactivateOffShoot (PortableServer::Servant cbServant)=0
virtual PortableServer::POA_var	createOffShootPOA ()=0
virtual ComponentStateManager *	getComponentStateManager ()=0
virtual acsalarm::AlarmSource *	getAlarmSource ()=0
virtual ACS::ThreadManager *	getThreadManager ()
Protected Member Functions
virtual CORBA::Object *	getCORBAComponent (const char *name)=0
virtual CORBA::Object *	getCORBAComponentNonSticky (const char *name)=0
virtual CORBA::Object *	getCORBADynamicComponent (maci::ComponentSpec compSpec, bool markAsDefault)=0
virtual CORBA::Object *	getCORBACollocatedComponent (maci::ComponentSpec compSpec, bool markAsDefault, const char *targetComponent)=0
virtual CORBA::Object *	getCORBADefaultComponent (const char *idlType)=0
Protected Attributes
ACE_CString	m_componentName
ACE_CString	m_componentType
ComponentListener *	compListener
bool	withCompListener
PortableServer::POA_var	m_poa
ACS::ThreadManager	threadManager_m

Detailed Description

Specializing this class, the container offers services to its hosted components. The component must call these methods explicitly; in this respect, ContainerServices is different from the other services that the container provides without the component implementation knowing about it. It can be thought of as a callback handle or a library. Currently, methods are added to this interface as the functionality becomes available.

Constructor & Destructor Documentation

maci::ContainerServices::ContainerServices	(	ACE_CString &	compName,
		PortableServer::POA_ptr	poa
	)

Constructor

Parameters:

	componentName	The name of the component
	poa	The POA

virtual maci::ContainerServices::~ContainerServices ( ) [virtual]

Destructor

Member Function Documentation

virtual ACS::OffShoot_ptr maci::ContainerServices::activateOffShoot ( PortableServer::Servant cbServant ) [pure virtual]

Activates a CORBA servant that implements the OffShoot interface.

Parameters:

cbServant

the CORBA-generated servant, e.g. CBdoublePOA

Returns:: A reference to the OffShoot

Implemented in TestContainerServices, maci::MACIContainerServices, and StaticContainerServices.

virtual PortableServer::POA_var maci::ContainerServices::createOffShootPOA ( ) [pure virtual]

Create the offshoot POA

Returns:: The newly created POA

Implemented in maci::MockContainerServices, TestContainerServices, maci::MACIContainerServices, and StaticContainerServices.

virtual void maci::ContainerServices::deactivateOffShoot ( PortableServer::Servant cbServant ) [pure virtual]

Deactivate the offshoot CORBA servant

Parameters:

cbServant

the CORBA servant

Exceptions:

	acsErrTypeContainerServices::OffShootDeactivationExImpl
	acsErrTypeContainerServices::OffShootPOAExImpl

Implemented in TestContainerServices, maci::MACIContainerServices, and StaticContainerServices.

virtual ACE_CString_Vector maci::ContainerServices::findComponents	(	const char *	nameWilcard,
		const char *	typeWildcard
	)			`[pure virtual]`

Finds components by their instance name (curl) and/or by their type. Wildcards can be used for the curl and type. This method returns a possibly empty array of component curls; for each curl, you may use getComponent to obtain the reference.

Parameters:

	nameWildcard	(`null` is understood as "*")
	typeWildcard	(`null` is understood as "*")

Returns:: A vector of ACE_CString that contains the name of the component(s) that match the search.

Implemented in maci::MockContainerServices, TestContainerServices, maci::MACIContainerServices, and StaticContainerServices.

void maci::ContainerServices::fireComponentsAvailable ( ACE_CString_Vector & compNames )

Reimplemented in maci::MACIContainerServices.

void maci::ContainerServices::fireComponentsUnavailable ( ACE_CString_Vector & compNames )

Reimplemented in maci::MACIContainerServices.

virtual acsalarm::AlarmSource* maci::ContainerServices::getAlarmSource ( ) [pure virtual]

Returns a pointer to the AlarmSource object used to send alarms in a smart way.

Returns:: the alarm source object owned by this Container Services

See also:: alma.ACS.ComponentStates

Implemented in maci::MockContainerServices, TestContainerServices, maci::MACIContainerServices, and StaticContainerServices.

virtual CDB::DAL_ptr maci::ContainerServices::getCDB ( ) [pure virtual]

Get a reference to the DAL object

Exceptions:

acsErrTypeContainerServices::CanNotGetCDBExImpl

Returns:: A reference to the DAL

Implemented in maci::MockContainerServices, TestContainerServices, maci::MACIContainerServices, and StaticContainerServices.

template<class T >

T* maci::ContainerServices::getCollocatedComponent	(	maci::ComponentSpec	compSpec,
		bool	markAsDefault,
		const char *	targetComponent
	)

Gets a collocated component This method uses templates, so no cast to the request object is required

Parameters:

	compSpec	The description of the component to activate
	markAsDefault	If true, the component becomes the default component for that IDL type
	targetComponent	name of the target component (where to activate component)

Exceptions:

	maciErrType::NoPermissionExImpl
	maciErrType::IncompleteComponentSpecExImpl
	maciErrType::InvalidComponentSpecExImpl
	maciErrType::ComponentSpecIncompatibleWithActiveComponentExImpl
	maciErrType::CannotGetComponentExImpl

Returns:: The reference to the component

template<typename T >

SmartPtr<T> maci::ContainerServices::getCollocatedComponentSmartPtr	(	maci::ComponentSpec	compSpec,
		bool	markAsDefault,
		const char *	targetComponent
	)

Gets a smart ponter to a collocated component This method uses templates, so no cast to the request object is required

Parameters:

	compSpec	The description of the component to activate
	markAsDefault	If true, the component becomes the default component for that IDL type
	targetComponent	name of the target component (where to activate component)

Exceptions:

	maciErrType::NoPermissionExImpl
	maciErrType::IncompleteComponentSpecExImpl
	maciErrType::InvalidComponentSpecExImpl
	maciErrType::ComponentSpecIncompatibleWithActiveComponentExImpl
	maciErrType::CannotGetComponentExImpl

Returns:: A smart pointer containing the reference to the component

template<class T >

T* maci::ContainerServices::getComponent ( const char * name )

Gets the specified component This method uses templates, so no cast to the request object is required

Parameters:

The

name of the deployed component instance

Exceptions:

maciErrType::CannotGetComponentExImpl

Returns:: Reference to the component

Reimplemented in maci::MockContainerServices.

virtual maci::ComponentInfo maci::ContainerServices::getComponentDescriptor ( const char * componentName ) [pure virtual]

Gets the component info for the component

Parameters:

componentName

The name of the component

Exceptions:

acsErrTypeContainerServices::GettingCompInfoExImpl

Returns:: The ComponentInfo struct of the component

Implemented in maci::MockContainerServices, TestContainerServices, maci::MACIContainerServices, and StaticContainerServices.

template<class T >

T* maci::ContainerServices::getComponentNonSticky ( const char * name )

Gets the specified component as non sticky. for the details of getting a componet non sticky see get_component_non_sticky This method uses templates, so no cast to the request object is required

Parameters:

The

name of the deployed component instance

Exceptions:

maciErrType::CannotGetComponentExImpl

Returns:: Reference to the component

template<typename T >

SmartPtr<T> maci::ContainerServices::getComponentNonStickySmartPtr ( const char * name )

Gets a smart pointer to the specified component as non sticky. for the details of getting a componet non sticky see get_component_non_sticky This method uses templates, so no cast to the request object is required

Parameters:

The

name of the deployed component instance

Exceptions:

maciErrType::CannotGetComponentExImpl

Returns:: A smart pointer containing the reference to the component

template<typename T >

SmartPtr<T> maci::ContainerServices::getComponentSmartPtr ( const char * name )

Gets a smart pointer to the specified component This method uses templates, so no cast to the request object is required

Parameters:

The

name of the deployed component instance

Exceptions:

maciErrType::CannotGetComponentExImpl

Returns:: A smart pointer containing the reference to the component

virtual ComponentStateManager* maci::ContainerServices::getComponentStateManager ( ) [pure virtual]

Returns a pointer to the ComponentStateManager through which the component and the container administrate the state of the component.

The component needs to access the ComponentStateManager if it wishes to change its state. If it doesn't, only the container will change the state based on the information it has available.

Returns:: the state manager

See also:: alma.ACS.ComponentStates

Implemented in maci::MockContainerServices, TestContainerServices, maci::MACIContainerServices, and StaticContainerServices.

virtual CORBA::Object* maci::ContainerServices::getCORBACollocatedComponent	(	maci::ComponentSpec	compSpec,
		bool	markAsDefault,
		const char *	targetComponent
	)			`[protected, pure virtual]`

Gets a collocated component as a Corba object.

Parameters:

	compSpec	The description of the component to activate
	markAsDefault	If true, the component becomes the default component for that IDL type
	targetComponent	name of the target component (where to activate component)

Exceptions:

	maciErrType::NoPermissionExImpl
	maciErrType::IncompleteComponentSpecExImpl
	maciErrType::InvalidComponentSpecExImpl
	maciErrType::ComponentSpecIncompatibleWithActiveComponentExImpl
	maciErrType::CannotGetComponentExImpl

Returns:: The reference to the component

Implemented in maci::MockContainerServices, TestContainerServices, maci::MACIContainerServices, and StaticContainerServices.

virtual CORBA::Object* maci::ContainerServices::getCORBAComponent ( const char * name ) [protected, pure virtual]

Gets the specified component as a Corba object.

Parameters:

The

name of the deployed component instance

Exceptions:

maciErrType::CannotGetComponentExImpl

Returns:: Reference to the component

Implemented in maci::MockContainerServices, TestContainerServices, maci::MACIContainerServices, and StaticContainerServices.

virtual CORBA::Object* maci::ContainerServices::getCORBAComponentNonSticky ( const char * name ) [protected, pure virtual]

Gets the specified component non sticky as a Corba object. for details about getting a component non sticky see get_component_non_sticky

Parameters:

The

name of the deployed component instance

Exceptions:

maciErrType::CannotGetComponentExImpl

Returns:: Reference to the component

Implemented in maci::MockContainerServices, TestContainerServices, maci::MACIContainerServices, and StaticContainerServices.

virtual CORBA::Object* maci::ContainerServices::getCORBADefaultComponent ( const char * idlType ) [protected, pure virtual]

Gets the default component specified by the IDL component type as a CORBA object.

Parameters:

idlType,:

the idl type of the component to activate For example IDL:alma/PS/PowerSupply:1.0

Exceptions:

	maciErrType::NoPermissionExImpl
	maciErrType::NoDefaultComponentExImpl
	maciErrType::CannotGetComponentExImpl

Returns:: The reference to the component

Implemented in maci::MockContainerServices, TestContainerServices, maci::MACIContainerServices, and StaticContainerServices.

virtual CORBA::Object* maci::ContainerServices::getCORBADynamicComponent	(	maci::ComponentSpec	compSpec,
		bool	markAsDefault
	)			`[protected, pure virtual]`

Gets a dynamic component as a Corba object.

Parameters:

	compSpec	The description of the component to activate
	markAsDefault	If true, the component becomes the default component for that IDL type

Exceptions:

	maciErrType::NoPermissionExImpl
	maciErrType::IncompleteComponentSpecExImpl
	maciErrType::InvalidComponentSpecExImpl
	maciErrType::ComponentSpecIncompatibleWithActiveComponentExImpl
	maciErrType::CannotGetComponentExImpl

Returns:: The reference to the component

Implemented in maci::MockContainerServices, TestContainerServices, maci::MACIContainerServices, and StaticContainerServices.

template<class T >

T* maci::ContainerServices::getDefaultComponent ( const char * idlType )

Gets the default component specified by the IDL component type. This method uses templates, so no cast to the request object is required

Parameters:

idlType,:

the idl type of the component to activate For example IDL:alma/PS/PowerSupply:1.0

Exceptions:

	maciErrType::NoPermissionExImpl
	maciErrType::NoDefaultComponentExImpl
	maciErrType::CannotGetComponentExImpl

Returns:: The reference to the component

template<typename T >

SmartPtr<T> maci::ContainerServices::getDefaultComponentSmartPtr ( const char * idlType )

Gets a smart pointer to the default component specified by the IDL component type. This method uses templates, so no cast to the request object is required

Parameters:

idlType,:

the idl type of the component to activate For example IDL:alma/PS/PowerSupply:1.0

Exceptions:

	maciErrType::NoPermissionExImpl
	maciErrType::NoDefaultComponentExImpl
	maciErrType::CannotGetComponentExImpl

Returns:: A smart pointer containing the reference to the component

template<class T >

T* maci::ContainerServices::getDynamicComponent	(	maci::ComponentSpec	compSpec,
		bool	markAsDefault
	)

Gets a dynamic component This method uses templates, so no cast to the request object is required

Parameters:

	compSpec	The description of the component to activate
	markAsDefault	If true, the component becomes the default component for that IDL type

Exceptions:

	maciErrType::NoPermissionExImpl
	maciErrType::IncompleteComponentSpecExImpl
	maciErrType::InvalidComponentSpecExImpl
	maciErrType::ComponentSpecIncompatibleWithActiveComponentExImpl
	maciErrType::CannotGetComponentExImpl

Returns:: The reference to the component

template<typename T >

SmartPtr<T> maci::ContainerServices::getDynamicComponentSmartPtr	(	maci::ComponentSpec	compSpec,
		bool	markAsDefault
	)

Gets a smart pointer to a dynamic component This method uses templates, so no cast to the request object is required

Parameters:

	compSpec	The description of the component to activate
	markAsDefault	If true, the component becomes the default component for that IDL type

Exceptions:

	maciErrType::NoPermissionExImpl
	maciErrType::IncompleteComponentSpecExImpl
	maciErrType::InvalidComponentSpecExImpl
	maciErrType::ComponentSpecIncompatibleWithActiveComponentExImpl
	maciErrType::CannotGetComponentExImpl

Returns:: A smart pointer containing the reference to the component

ACE_CString maci::ContainerServices::getName ( ) [inline]

Return the name of the component

Returns:: The ACE_CString string with the name of the component

References m_componentName.

virtual PortableServer::POA_var maci::ContainerServices::getOffShootPOA ( ) [pure virtual]

Get the OffShoot POA

Returns:: The offshoot POA

Implemented in maci::MockContainerServices, TestContainerServices, maci::MACIContainerServices, and StaticContainerServices.

PortableServer::POA_var maci::ContainerServices::getPOA ( ) [inline]

Get POA reference This function is used to return m_poa because inherited classes would not have access to it otherwise.

Returns:: POA reference

References m_poa.

virtual ACS::ThreadManager* maci::ContainerServices::getThreadManager ( ) [inline, virtual]

Returns a pointer to the ThreadManager which should be used for creating and destroying threads inside a component

Todo:: This returns a pointer to the intermal threadManager object. This operation is potentially dangerous and we should may be better return a reference counting Loki smart pointer, but this requires changing the interfaces.

References threadManager_m.

ACE_CString maci::ContainerServices::getType ( ) [inline]

Return the component IDL type
