#include <baciCharacteristicComponentImpl.h>

Inheritance diagram for baci::CharacteristicComponentImpl:

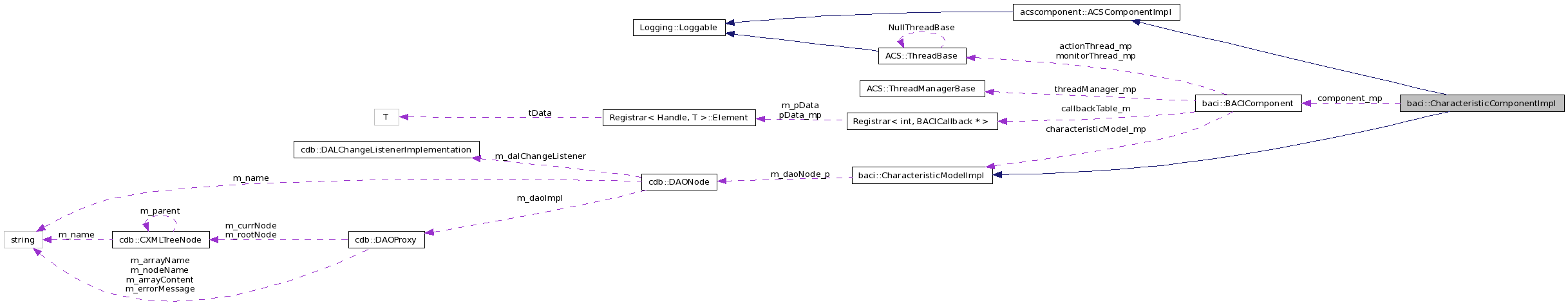

Collaboration diagram for baci::CharacteristicComponentImpl:

Public Member Functions
	CharacteristicComponentImpl (const ACE_CString &name, maci::ContainerServices *containerServices, bool monitoringProperties=true)
virtual	~CharacteristicComponentImpl ()
BACIComponent *	getComponent () const
virtual ACS::CharacteristicComponentDesc *	descriptor ()
void	addPropertyToDesc (ACS::Property_ptr prop)
virtual void	__execute ()
virtual void	__aboutToAbort ()
virtual void	__cleanUp ()
void	startPropertiesMonitoring ()
void	stopPropertiesMonitoring ()
bool	isPropertiesMonitoringActive ()
Protected Attributes
ACS::CharacteristicComponentDesc_var	desc_m
Private Member Functions
void	operator= (const CharacteristicComponentImpl &)
	CharacteristicComponentImpl (const CharacteristicComponentImpl &)
Private Attributes
bool	monitoringProperties_mp
BACIComponent *	component_mp

Detailed Description

This class implements the ACS DO. All the standard methods and macros necessary for the CORBA interface implementation and the MACI-DLL support are in this class.

Constructor & Destructor Documentation

baci::CharacteristicComponentImpl::CharacteristicComponentImpl	(	const ACE_CString &	name,
		maci::ContainerServices *	containerServices,
		bool	monitoringProperties = `true`
	)

Constructor. The CharacteristicComponent shall be considered an abstract class and at the end of the constructor an CharacteristicComponent is not initilized (i.e. initilization() would return 1 == incomplete).

Parameters:

	Tha	name of the Component
	containerServices	pointer to services provided by the container
	monitoringProperties	flag that indicates if monitoring of properties has to be turned on or not. Default is monitroing turned on (true). Be aware that turning monitoring off means that monitors created by users, archive monitors and alarm monitors will be turned off! If monitoringProperties flag is set to false an user has to take care for turning the monitoring on and also to turn the monitoring off when a component is deleted.

virtual baci::CharacteristicComponentImpl::~CharacteristicComponentImpl ( ) [virtual]

Destructor

baci::CharacteristicComponentImpl::CharacteristicComponentImpl ( const CharacteristicComponentImpl & ) [private]

ALMA C++ coding standards state copy constructors should be disabled.

Member Function Documentation

virtual void baci::CharacteristicComponentImpl::__aboutToAbort ( ) [virtual]

The function stops the threads before calling aboutToAbort()

Returns:: void

virtual void baci::CharacteristicComponentImpl::__cleanUp ( ) [virtual]

The function stops the threads before calling cleanUp()

Returns:: void

virtual void baci::CharacteristicComponentImpl::__execute ( ) [virtual]

The function creates and starts the thread before calling execute

Exceptions:

ACSErr::ACSbaseExImpl

Returns:: void

void baci::CharacteristicComponentImpl::addPropertyToDesc ( ACS::Property_ptr prop )

Add a property to the descriptor desc_m

Parameters:

	fun	The idl accessor of the property
	name	The name of the property
	propSet	The property set of the property

virtual ACS::CharacteristicComponentDesc* baci::CharacteristicComponentImpl::descriptor ( ) [virtual]

Descriptor of the CharacteristicComponent This method returns a pointer to this CharacteristicComponent's descriptor. The descriptor contains data (i.e., DO reference, name, UID, etc) used by typical clients retrieved in only one network call. However, the descriptor ONLY contains named members that are declared by BACI and not a specific control system.

Returns:: A pointer to this DO's descriptor.

BACIComponent* baci::CharacteristicComponentImpl::getComponent ( ) const [inline]

Get BACI Component instance of DO This function is used to return component_mp because inherited classes would not have access to it otherwise.

Returns:: BACI Component instance

References component_mp.

bool baci::CharacteristicComponentImpl::isPropertiesMonitoringActive ( )

Returns true if monitoring of properties is turned on (=active), otherwise false

Returns:: bool

Reimplemented in BaciTestAlarmClassImpl.

void baci::CharacteristicComponentImpl::operator= ( const CharacteristicComponentImpl & ) [private]

ALMA C++ coding standards state assignment operators should be disabled.

void baci::CharacteristicComponentImpl::startPropertiesMonitoring ( )

Method to start monitoring of the properties. If monitoring is already started it just remains active. If the thread has not been yet created, it creates one. If the thread has been already created, it just resumes it.

Exceptions:

	acsthreadErrType::CanNotStartThreadExImpl	In case the monitoring thread can not be created
	ACSErrTypeCommon::NullPointerExImpl	if BACIComponent is NULL

Returns:: void

Referenced by BaciTestClassImpl::turnOnMonitoring().

void baci::CharacteristicComponentImpl::stopPropertiesMonitoring ( )

Method to stop monitoring of the properties. If the monitoring thread has not been created yet, or if monitring is already stopped (=monitoring thread is suspended), it just returns.
