baci::Monitor< ACS_MONITOR_C > Class Template Reference

#include <baciMonitor_T.h>

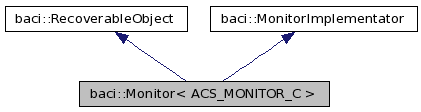

Inheritance diagram for baci::Monitor< ACS_MONITOR_C >:

Collaboration diagram for baci::Monitor< ACS_MONITOR_C >:

List of all members.

Public Member Functions
	Monitor (ACE_CString name, const ACS::TimeInterval &minTriggerTime, const baci::BACIValue &minTriggerValue, BACIProperty *property)
	Monitor (ACE_CString name, Callback_ptr callback_p, const CBDescIn &inDesc, const ACS::TimeInterval &triggerTime, const baci::BACIValue &triggerValue, const ACS::TimeInterval &minTriggerTime, const baci::BACIValue &minTriggerValue, BACIProperty *property, const ACS::TimeInterval &transmitTime=0, const BACIMonitor::UpdateMode &updateMode=BACIMonitor::mumLast)
virtual	~Monitor ()
virtual int	initialization ()
CORBA::Object_ptr	getCORBAReference () const
BACIMonitor *	getMonitor () const
virtual int	getId (void)
virtual const char *	getName (void)
virtual const char *	getObjectState (void)
virtual void	setObjectState (const char *state)
virtual void	setObjectState (const char *state, const ACS::TimeInterval &minTriggerTime, const baci::BACIValue &minTriggerValue, BACIProperty *property)
virtual void	monitorDestroyed (void)
virtual void	monitorStateChanged (void)
virtual void	suspend ()
virtual void	resume ()
virtual void	destroy ()
virtual void	set_timer_trigger (ACS::TimeInterval timer)
virtual void	get_timer_trigger (ACS::TimeInterval_out timer)
virtual void	set_value_trigger (TCORBA delta, CORBA::Boolean enable)
virtual void	get_value_trigger (TCORBA_out delta, CORBA::Boolean_out enable)
virtual void	set_value_percent_trigger (CORBA::Double delta, CORBA::Boolean enable)
virtual void	get_value_percent_trigger (CORBA::Double_out delta, CORBA::Boolean_out enable)
virtual ACS::Time	start_time ()
Private Member Functions
void	operator= (const Monitor &)
	Monitor (const Monitor &)
Private Attributes
int	initialization_m
BACIMonitor *	monitor_mp
CORBA::Object_ptr	reference_mp

template<ACS_MONITOR_C>
class baci::Monitor< ACS_MONITOR_C >

---

Constructor & Destructor Documentation

template<ACS_MONITOR_C >

baci::Monitor< ACS_MONITOR_C >::Monitor	(	ACE_CString	name,
		const ACS::TimeInterval &	minTriggerTime,
		const baci::BACIValue &	minTriggerValue,
		BACIProperty *	property
	)

template<ACS_MONITOR_C >

baci::Monitor< ACS_MONITOR_C >::Monitor	(	ACE_CString	name,
		Callback_ptr	callback_p,
		const CBDescIn &	inDesc,
		const ACS::TimeInterval &	triggerTime,
		const baci::BACIValue &	triggerValue,
		const ACS::TimeInterval &	minTriggerTime,
		const baci::BACIValue &	minTriggerValue,
		BACIProperty *	property,
		const ACS::TimeInterval &	transmitTime = 0,
		const BACIMonitor< ACS_MONITOR_C >::UpdateMode &	updateMode = BACIMonitor< ACS_MONITOR_C >::mumLast
	)

template<ACS_MONITOR_C >

virtual baci::Monitor< ACS_MONITOR_C >::~Monitor

(

)

[virtual]

template<ACS_MONITOR_C >

baci::Monitor< ACS_MONITOR_C >::Monitor

(

const Monitor< ACS_MONITOR_C > &

)

[private]

ALMA C++ coding standards state copy constructors should be disabled.

---

Member Function Documentation

template<ACS_MONITOR_C >

virtual void baci::Monitor< ACS_MONITOR_C >::destroy

(

)

[virtual]

template<ACS_MONITOR_C >

virtual void baci::Monitor< ACS_MONITOR_C >::get_timer_trigger

(

ACS::TimeInterval_out

timer

)

[virtual]

template<ACS_MONITOR_C >

virtual void baci::Monitor< ACS_MONITOR_C >::get_value_percent_trigger	(	CORBA::Double_out	delta,
		CORBA::Boolean_out	enable
	)			[virtual]

template<ACS_MONITOR_C >

virtual void baci::Monitor< ACS_MONITOR_C >::get_value_trigger	(	TCORBA_out	delta,
		CORBA::Boolean_out	enable
	)			[virtual]

template<ACS_MONITOR_C >

CORBA::Object_ptr baci::Monitor< ACS_MONITOR_C >::getCORBAReference

(

)

const [inline]

template<ACS_MONITOR_C >

virtual int baci::Monitor< ACS_MONITOR_C >::getId

(

void

)

[virtual]

template<ACS_MONITOR_C >

BACIMonitor* baci::Monitor< ACS_MONITOR_C >::getMonitor

(

)

const [inline]

template<ACS_MONITOR_C >

virtual const char* baci::Monitor< ACS_MONITOR_C >::getName

(

void

)

[virtual]

template<ACS_MONITOR_C >

virtual const char* baci::Monitor< ACS_MONITOR_C >::getObjectState

(

void

)

[virtual]

template<ACS_MONITOR_C >

virtual int baci::Monitor< ACS_MONITOR_C >::initialization

(

)

[inline, virtual]

Monitor status method After contruction of a monitor, this method will be called to check if construction was successful; if not, monitor will be destroyed by parent

Returns:

0 on success or any other value (value can indicate cause of faulire) on faulure

Reimplemented from baci::MonitorImplementator.

template<ACS_MONITOR_C >

virtual void baci::Monitor< ACS_MONITOR_C >::monitorDestroyed

(

void

)

[virtual]

Destructor method This method is called when BACI monitor implementation is beeing destroyed and notifies implementator also to destroy itself.

Implements baci::MonitorImplementator.

template<ACS_MONITOR_C >

virtual void baci::Monitor< ACS_MONITOR_C >::monitorStateChanged

(

void

)

[virtual]

Monitor state changed motification method This method is called when state of BACI monitor state is changed

Implements baci::MonitorImplementator.

template<ACS_MONITOR_C >

void baci::Monitor< ACS_MONITOR_C >::operator=

(

const Monitor< ACS_MONITOR_C > &

)

[private]

ALMA C++ coding standards state assignment operators should be disabled.

template<ACS_MONITOR_C >

virtual void baci::Monitor< ACS_MONITOR_C >::resume

(

)

[virtual]

template<ACS_MONITOR_C >

virtual void baci::Monitor< ACS_MONITOR_C >::set_timer_trigger

(

ACS::TimeInterval

timer

)

[virtual]

template<ACS_MONITOR_C >

virtual void baci::Monitor< ACS_MONITOR_C >::set_value_percent_trigger	(	CORBA::Double	delta,
		CORBA::Boolean	enable
	)			[virtual]

template<ACS_MONITOR_C >

virtual void baci::Monitor< ACS_MONITOR_C >::set_value_trigger	(	TCORBA	delta,
		CORBA::Boolean	enable
	)			[virtual]

template<ACS_MONITOR_C >

virtual void baci::Monitor< ACS_MONITOR_C >::setObjectState	(	const char *	state,
		const ACS::TimeInterval &	minTriggerTime,
		const baci::BACIValue &	minTriggerValue,
		BACIProperty *	property
	)			[virtual]

template<ACS_MONITOR_C >

virtual void baci::Monitor< ACS_MONITOR_C >::setObjectState

(

const char *

state

)

[virtual]

template<ACS_MONITOR_C >

virtual ACS::Time baci::Monitor< ACS_MONITOR_C >::start_time

(

)

[virtual]

template<ACS_MONITOR_C >

virtual void baci::Monitor< ACS_MONITOR_C >::suspend

(

)

[virtual]

---

Member Data Documentation

template<ACS_MONITOR_C >

int baci::Monitor< ACS_MONITOR_C >::initialization_m [private]

template<ACS_MONITOR_C >

BACIMonitor* baci::Monitor< ACS_MONITOR_C >::monitor_mp [private]

template<ACS_MONITOR_C >

CORBA::Object_ptr baci::Monitor< ACS_MONITOR_C >::reference_mp [private]

---

The documentation for this class was generated from the following file:

• baciMonitor_T.h
