PowerSupplyCurrent Class Reference

#include <acsexmplPowerSupplyCurrentImpl.h>

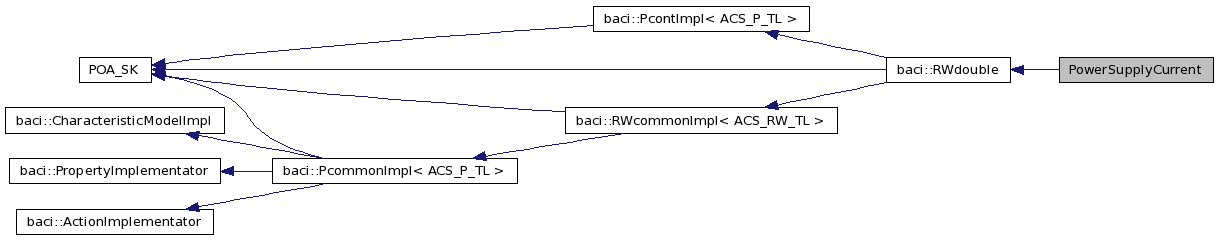

Inheritance diagram for PowerSupplyCurrent:

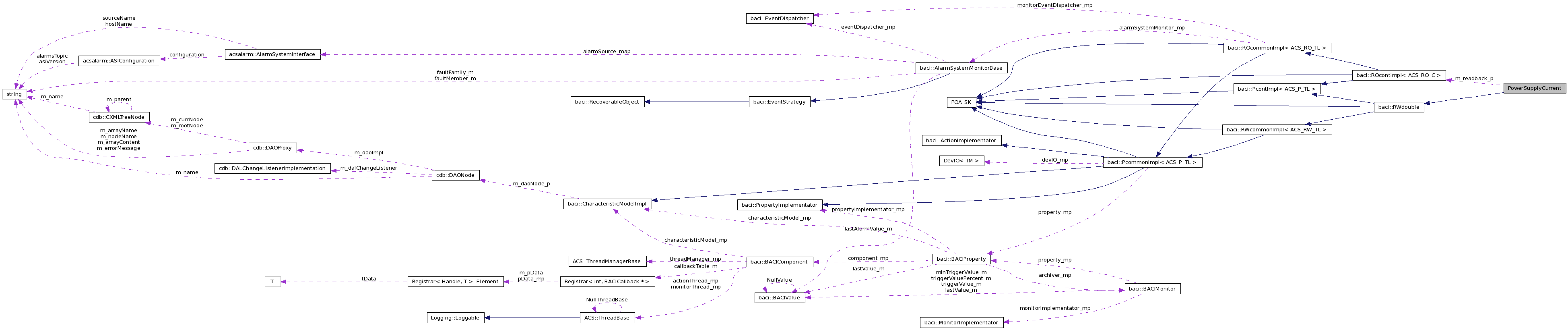

Collaboration diagram for PowerSupplyCurrent:

List of all members.

Public Member Functions
	PowerSupplyCurrent (const ACE_CString &name, baci::BACIComponent *component_p, baci::ROdouble *readback_p)
virtual void	setValue (baci::BACIProperty *property_p, baci::BACIValue *value_p, Completion &completion, CBDescOut &descOut)
Private Member Functions
void	operator= (const PowerSupplyCurrent &)
Private Attributes
baci::ROdouble *	m_readback_p

---

Detailed Description

This class provides simulation of PowerSupply current/readback interraction. It extends the basic baci::BACI baci::RWdouble by accepting at construction time the reference to a baci::ROdouble that represents the actual readback value of the current. It overrides the setValue method so that it sets at the same time the value of the property itself AND the readback propery.

Author:

Matej Sekoranja, Jozef Stefan Institute, Slovenia

Version:

"@(#) $Id: acsexmplPowerSupplyCurrentImpl.h,v 1.88 2008/07/25 07:37:04 cparedes Exp $"

---

Constructor & Destructor Documentation

PowerSupplyCurrent::PowerSupplyCurrent	(	const ACE_CString &	name,
		baci::BACIComponent *	component_p,
		baci::ROdouble *	readback_p
	)

Constuctor

Parameters:

	name	property name (e.q. PowerSupply:m_current_p) This is also the name that will be used to find the configuration data for the property in the Configuration Database.
	component_p	parent of the property
	readback_p	reference to the associated readback property

---

Member Function Documentation

void PowerSupplyCurrent::operator=

(

const PowerSupplyCurrent &

)

[private]

ALMA C++ coding standards state copy operators should be disabled.

virtual void PowerSupplyCurrent::setValue	(	baci::BACIProperty *	property_p,
		baci::BACIValue *	value_p,
		Completion &	completion,
		CBDescOut &	descOut
	)			[virtual]

Set value method (value mutator) We add this to override the setValue method inherited from baci::RWdouble. We do this to make the baci::RW property symetric to the baci::RO property passed to the constructor.

Parameters:

	property_p	property which requested value
	value_p	value to be returned
	completion	error handling structure
	descOut	callback descriptor

Reimplemented from baci::RWcontImpl< ACS_RW_C >.

---

Member Data Documentation

baci::ROdouble* PowerSupplyCurrent::m_readback_p [private]

m_readback_p is never created in this class. It just points to the baci::ROdouble passed to this class's constructor. This is done so that we can synchronize this class and the baci::ROdouble's value.

---

The documentation for this class was generated from the following file:

• acsexmplPowerSupplyCurrentImpl.h
