#include <acsexmplLampImpl.h>

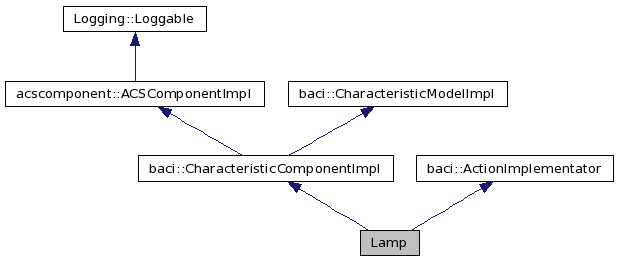

Inheritance diagram for Lamp:

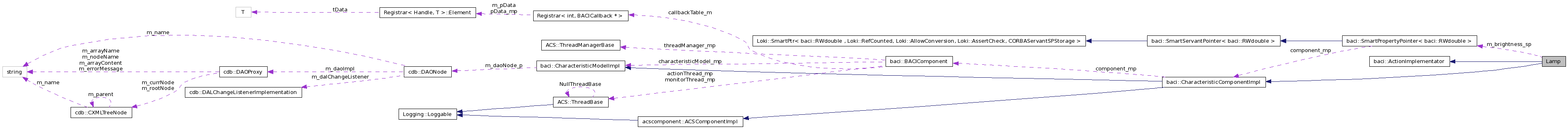

Collaboration diagram for Lamp:
Public Member Functions | |
| Lamp (const ACE_CString &name, maci::ContainerServices *containerServices) | |
| virtual | ~Lamp () |
| virtual baci::ActionRequest | invokeAction (int function, baci::BACIComponent *cob_p, const int &callbackID, const CBDescIn &descIn, baci::BACIValue *value_p, Completion &completion, CBDescOut &descOut) |
| virtual baci::ActionRequest | onAction (baci::BACIComponent *cob_p, const int &callbackID, const CBDescIn &descIn, baci::BACIValue *value_p, Completion &completion, CBDescOut &descOut) |
| virtual baci::ActionRequest | offAction (baci::BACIComponent *cob_p, const int &callbackID, const CBDescIn &descIn, baci::BACIValue *value_p, Completion &completion, CBDescOut &descOut) |
| virtual void | on (ACS::CBvoid_ptr cb, const ACS::CBDescIn &desc) |
| virtual void | off (ACS::CBvoid_ptr cb, const ACS::CBDescIn &desc) |
| virtual ACS::RWdouble_ptr | brightness () |
Private Member Functions | |
| void | operator= (const Lamp &) |
Private Attributes | |
| baci::SmartPropertyPointer < baci::RWdouble > | m_brightness_sp |
Detailed Description
Simple component with asynchronous methods. This class Lamp simulates the behavior of a lamp. It provides two asynchronous methods: on and off. It also provides the property brightness. Lastly, it implements timeout negotiation between client and servant for the two methods. Asynchronous calls are implemented using the ...... pattern and the ..... support classes. For each xxx action defined in the IDL interface two methods are provided:
- xxx() just registers the action and installs the callback
- xxxAction() performs (asyncronously) the action and invokes the callback when finished. The Lamp::invokeAction method is called by the asynchronous dispatcher whenever there is an xxx pending action and it calls the xxxAction corresponding method.
- Version:
- "@(#) $Id: acsexmplLampImpl.h,v 1.99 2008/10/01 04:30:47 cparedes Exp $"
Constructor & Destructor Documentation
| Lamp::Lamp | ( | const ACE_CString & | name, | |
| maci::ContainerServices * | containerServices | |||
| ) |
Constructor
- Parameters:
-
name component's name. This is also the name that will be used to find the configuration data for the component in the Configuration Database. containerServices The pointer to the ContainerServices
The documentation for this class was generated from the following file:
