MUSE p2 tutorial: WFM-AO observations of a sparse field

The Phase 2 process begins when you receive an email from ESO telling you that the allocation of time for the coming period has finalized and that you can view the results by logging into the User Portal and clicking on "Check the web letters." Note that the username and password that you need to use for the User Portal are the same as those you will use to prepare your OBs.

You follow the instructions given by ESO and find that time was allocated to your run with MUSE. Therefore, you decide to start preparing your Phase 2 material, which consists of a README file, and one or more OBs equipped with finding charts.

In what follows we will discuss and focus on concepts that are only specific to MUSE observations, therefore assuming you have read the p2 documentation and, as such, you are familiar with the general concepts of p2, and its features.

Goal of the run

In this tutorial we will prepare an OB for a simple example observing run, consisting of IFU observations of distant galaxies in the Hubble Ultra Deep Field RA(2000)=03:32:39.0, DEC(2000)=-27:47:29.1, by using the WFM-AO-N mode. It is intended to provide an example of MUSE observations of a sparse field, therefore with no need for off-target sky monitoring, but the need of accurate target centring due to the assumption that we need to stack together multiple similar OBs.

The observing strategy based on the science requirements is:

  • WFM-AO-N
  • VLT Guide star selection
  • Blind offset from reference star
  • Sky monitored on target (i.e., no need for off-target exposures)
  • On-target integration split in multiple sub-exposures taken at different orientation and position (i.e., dithering + rotation).

Getting started

For the sake of this tutorial, we will use the p2 demo facility, which allows users who do not have their own p2 login data to still use p2 and prepare example OBs (for instance during the Phase 1 preparation to get the overheads right!).  You cannot use it to prepare actual OBs intended to be executed.  When you prepare OBs that should be executed in PARANAL you must use your ESO User Portal credentials to log into the p2 (with http://www.eso.org/p2).

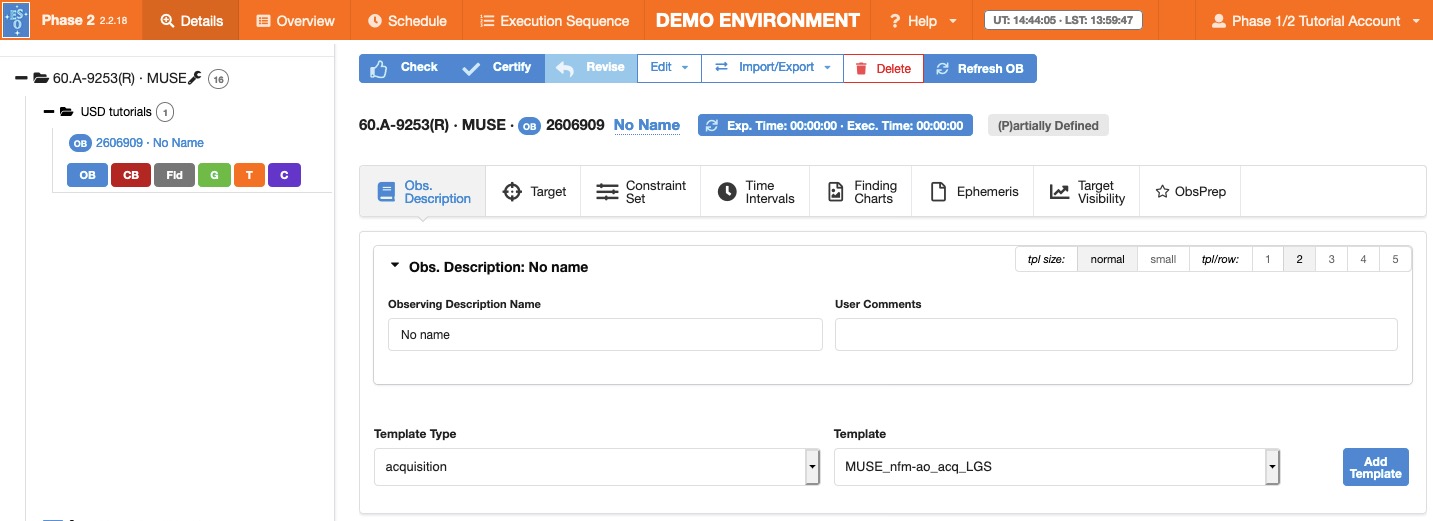

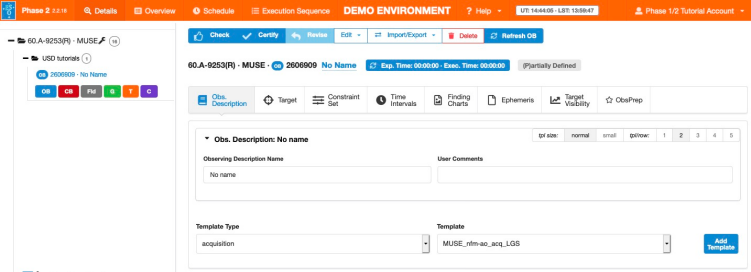

After directing your browser to the p2, and creating an empty new OB under your SM MUSE run ID by clicking on the OB icon, the main p2 GUI will appear as follows (note that the p2 GUI is regularly updated and might look slightly different):


file

To the top

OB general sections

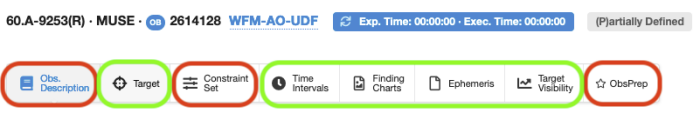

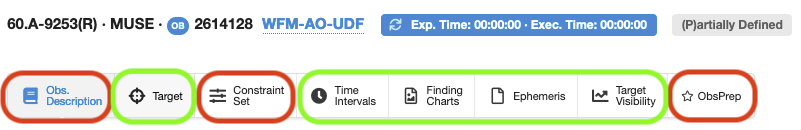

Your newly created OB consists of general (Target, Time Intervals, Finding Charts, Ephemeris, Target Visibility) and instrument specific (Obs. Description, Constraint Set and ObsPrep) sections that in the figure below are highlighted in red and green, respectively. Each section is accessible through the corresponding tab that appears just below the OB name.

Filling the general OB sections should be fairly straightforward (i.e. Target name, RA and DEC  etc..) because each field has its own mini help accessible to users when moving the mouse over it. However, should you need more detailed instructions please consult this page.

file

To the top

OB instrument specific sections

1. Constraint Set

By clicking on to the Constraint Set tab you access the corresponding section, where you will have to provide constraints on airmass, Sky Transparency (i.e., Photometric, Clear, Variable thin cirrus, Variable thick cirrus), Lunar Illumination, Image Quality, Moon Angular Distance, Twilight (min) and Precipitable Water Vapor (mm). While defining the OB constraints you should always remember that Phase 2 constraint must agree with Phase 1 request. Details on each specific constraint (i.e., range and meaning) can be found in the general and specific observing conditions pages.



file

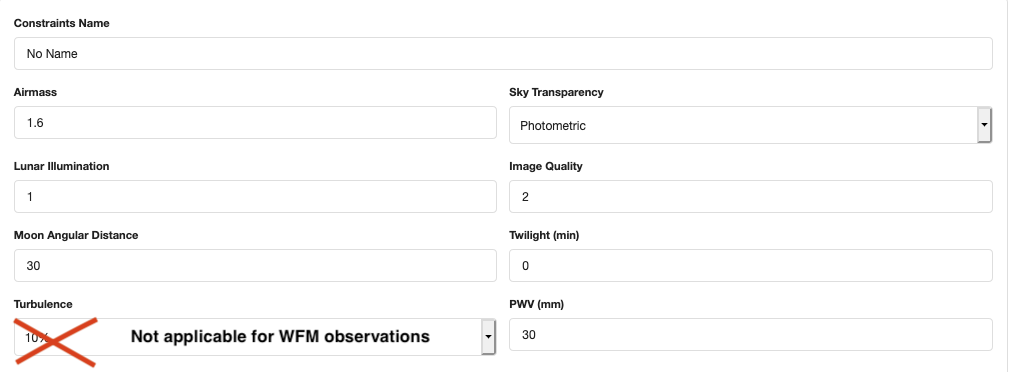

Screenshot of the Constraint Set section. Note that the Turbulence constraint is only applicable for the NFM case. For WFM observations, the relevant parameter describing the seeing is the Image Quality, which refers to the FWHM on a MUSE image at the requested airmass and measuread at 700nm. The Image Quality value is given by the ETC when using Phase 1 constraints as input parameters. Due to the physical limit imposed by the AOF system, WFM-AO observations can be performed only when the target airmass is up to 1.9. In addition, the sky transparency cannot be set to thick.

To the top

2. Obs. Description: the Acquisition template

The Obs. Description section should be regarded as the core of any given OB bacause it contains the details of the observations, arranged in templates. Each OB must have an acquisition and one or more science templates.

Selecting the right acquisition template

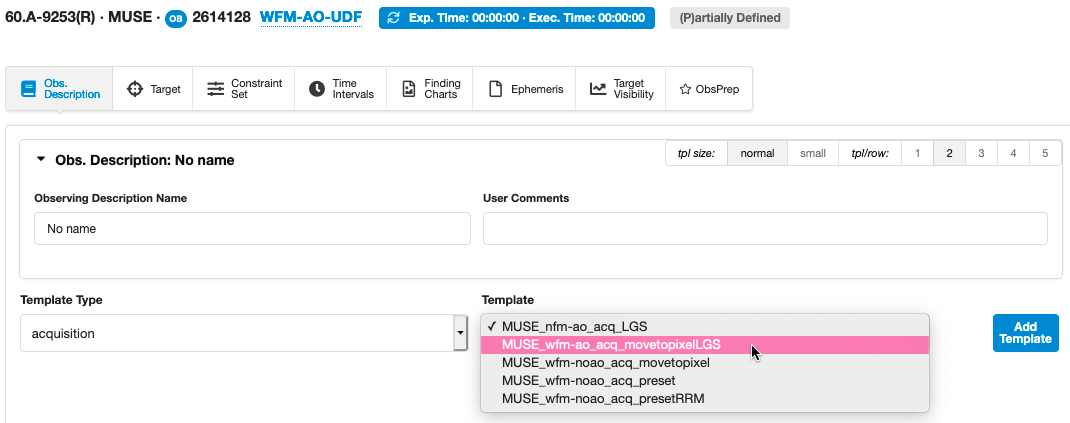

The instrument mode is defined in the acquisition template, therefore each mode has its own dedicated acquisition template. As summarised in this table, for the case of GLAO observations there is just one possible acquisition template (MUSE_wfm-ao_acq_movetopixelLGS).

In this example the target field is very sparse and we do not expect to see many sources after the short exposure taken during the acquisition. In addition, we assume that to fulfill the science goal we need to combine many identical (or very similar) OBs to that we are about to prepare here. Because the field does not contain many (i.e. > 5-10) point source like objects, an accurate stacking of multiple OBs might be problematic. Therefore, to circumvent this problem we must make sure that for all OBs the target (in this case the FoV center) is accurately centered in the same position, so that during the data processing we can rely on the accuracy and consistency of the coordinates and offsets stored in the header of all OB frames we will combine. To load the acquisition template into the OB click on to the Obs. Description tab to access the corresponding section and select the acquisition template as shown in the picture below. Then click on the "Add Template" button to access the content of the template.

file

To the top

Filling the acquisition template

The set of acquisition parameters appearing on the p2 GUI after loading the MUSE_wfm-ao_acq_movetopixelLGS template can either be defined completely manually or in a more automatic way by using ObsPrep.

In what follows we first provide a short desciption of each parameter, and then we will use ObsPrep to fill in the template.

  • Integration Time (seconds): it obviously defines the integration time of the acquisition exposure taken on the target field and used for the target centering. Generally it can be left to its default value (1 sec) unless there is a compelling reason (target field samples only very faint sources and the centering is done by using a faint source in the field, which is anyway highly discouraged).
  • Perform acquisition with TTS: If set to 'YES' then the observations are performed by using a Tip Tilt Star (TTS), otherwise if set to 'NO' only the lasers are used (i.e., TTS-free mode).
  • Start slow-guiding?: The MUSE derotator produces a residual mechanical wobble, which produces a repeatable pattern as a function of the derotator position. The effect of this wobble can be compensated by the slow-guiding system (SGS) when point-sources are present in the metrology field outside the FoV (i.e., the four banana-shaped areas). Therefore, it is strongly recommended to enable the SGS if i) suitable sources are present in the metrology fields; ii) the target is neither a moving object nor a high proper motions source; and iii) the on-target exposure time is longer than 4 minutes. Four minutes is in fact the minimum interval of time after which offset corrections are sent from the slow guiding system to the telescope.
  • Alpha offset for the target (arcsec): RA offset between the target and the reference star to be used for accurate target centring (i.e., optional as it applicable only in case the blind-offset procedure is performed, see dedicated note below)
  • Delta offset for the target (arcsec): DEC offset between the target and the reference star to be used for accurate target centring (see dedicated note below).
  • Get Guide Star from: If left to CATALOGUE then the VLT-GS is selected by the telescope operator (see note below)
  • RA of guide star: RA coordinate of the VLT guide star (VLT-GS, see dedicated note below)
  • DEC of guide star: DEC coordinate of the VLT-GS
  • RA of TT star 1: RA coordinate of the first available TTS (i.e., TTS1, see dedicated note below)
  • DEC of TT star 1: DEC coordinate of TTS1
  • R magnitude of TT Star: R-mag of TTS1
  • RA for alternative TT Star: RA coordinate of an alternative TTS (i.e., TTS2)
  • DEC for alternative TT Star: DEC coordinate of TTS2
  • R magnitude of alternative TT Star: R-mag of TTS2
  • Position Angle on Sky (deg): Orientation of the MUSE FoV
  • Instrument Mode: Select the desired filter (i.e., Nominal or Extended)



Special Note on the VLT-GS:

Suitable VLT-GSs should not be closer than 4' from the MUSE field center but still within the VLT unvignetted FoV (i.e. within 11' radius) and should have a magnitude in the range: 11<R<13.5. The position of the selected VLT-GS is provided by the user in the acquisition template through the star's absolute coordinate (i.e. RA of guide star, DEC of guide star). The parameter Get guide Star from must be set to SETUPFILE in case a specific star is given. Finally, the selection of the VLT-GS is optional, however users are encouraged to define a VLT-GS in the OBs in case the observing strategy requires: i) stacking together multiple OBs (i.e., by selecting for all similar OBs the same VLT-GS you can rely on the accuracy and consistency of the coordinates and offsets stored in the header of all raw frames you will combine); ii) mosaicking a large area; iii) performing very large offsets (i.e., for sky monitoring purpose).

Special Note on the Reference Star:

The reference object can be either within or outside the MUSE FoV. However, in the latter case one should check that both target and reference star are accessible by using the same VLT-GS. The position of the selected reference star is provided by the user through offsets in RA and Dec with respect to the target position (i.e. Alpha offset for the target, and Delta offset for the target). This is because the telescope will first point to the target coordinates, then, after the VLT-GS has been acquired, the telescope will move to the reference object after applying the provided alpha and delta offsets. The instrument operator centers the reference object in the MUSE field center, and then the telescope goes back to the target by applying the provided offsets but with reverted signs. In any case, the selection of the reference star is optional, however users are encouraged to define in the OB a reference object in case the observing strategy requires: i) stacking together multiple OBs in very sparse fields; ii) accurate field centering.

Special Note on the TTS:

The TTS must be located between 52" and 107" off axis and must be brighter than R=17.5 mag. However, for OBs requesting Image Quality better than 0.6" the TTS can be as faint as R=18.5.  For any given OB, users can provide up to two TTSs such as, should the first TTS not be suitable, the second (i.e., alternative) can be used. Please note that when providing two TTS, users should remember to select as TTS1 the brightest among them.



file

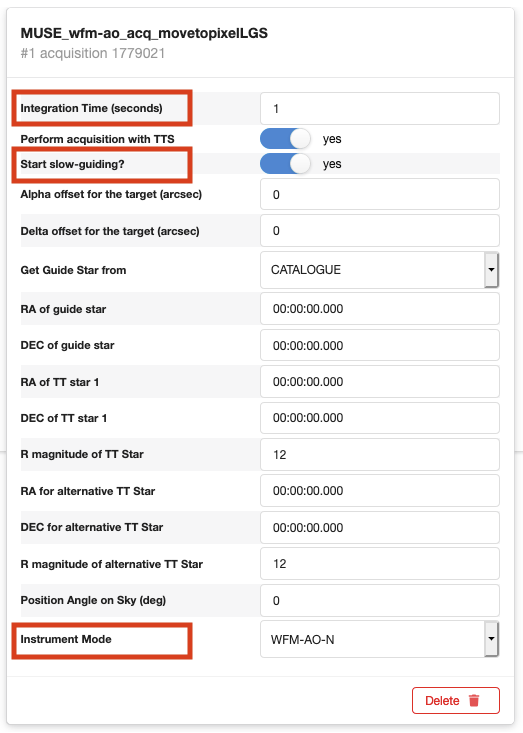

Screenshot of the selected acquisition template.

Parameters highlighted with the red boxes must be defined manually in the acquisition template, whereas the remaining can be specified by using ObsPrep.



To the top

3. ObsPrep: the Acquisition template

Assuming that you have already partially filled in the Target section with at least the target coordinates RA and DEC, by clicking on the ObsPrep tab, the p2 main GUI appears as follows (note that the screenshots refer to the ObsPrep version in P105; additional functionalities were added later):



ObsPrep Pointing

file

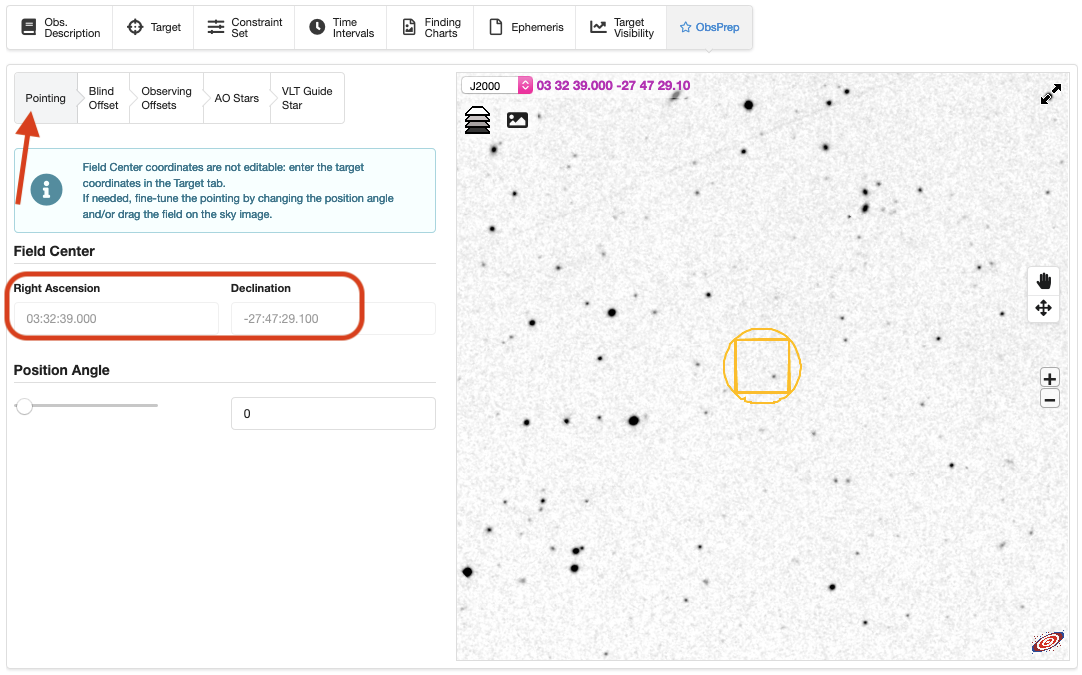

Screenshot of the ObsPrep-Pointing GUI showing the position of the MUSE FoV as defined in the Target section. Note that the coordinates Alpha and Delta (highlighted with the red box), previously defined in the Target section, are automatically propagated to the ObsPrep-Pointing tab (see red arrow), and a DSS image around the pointing is shown in the right GUI. The MUSE WFM FoV and SGS footprint is marked in yellow. You can zoom in/out by using the +/- buttons on the right-hand side of the GUI, or even change the background displayed image by clicking on the picture icon (second icon on the upper left-hand side of the GUI). Should you need to fine-tune the exact target centering (e.g., to make sure that at least one star falls within the SGS area) you can do that directly on the GUI by dragging the yellow footprint on the desired position (i.e., see the instructions outlined in the blue box), and the tool will update the Alpha and Delta coordinates accordingly in all corresponding fields (i.e., not only in ObsPrep-Pointing tab, but also more importantly in the Target section). Finally, should you need it, the field orientation can be modified by either using the Position-Angle bar or inserting the value in the Position-Angle field.

ObsPrep Blind Offset

file

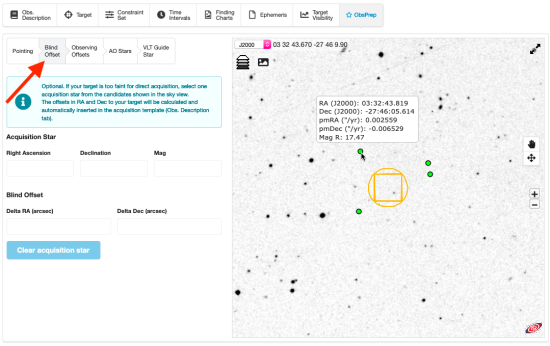

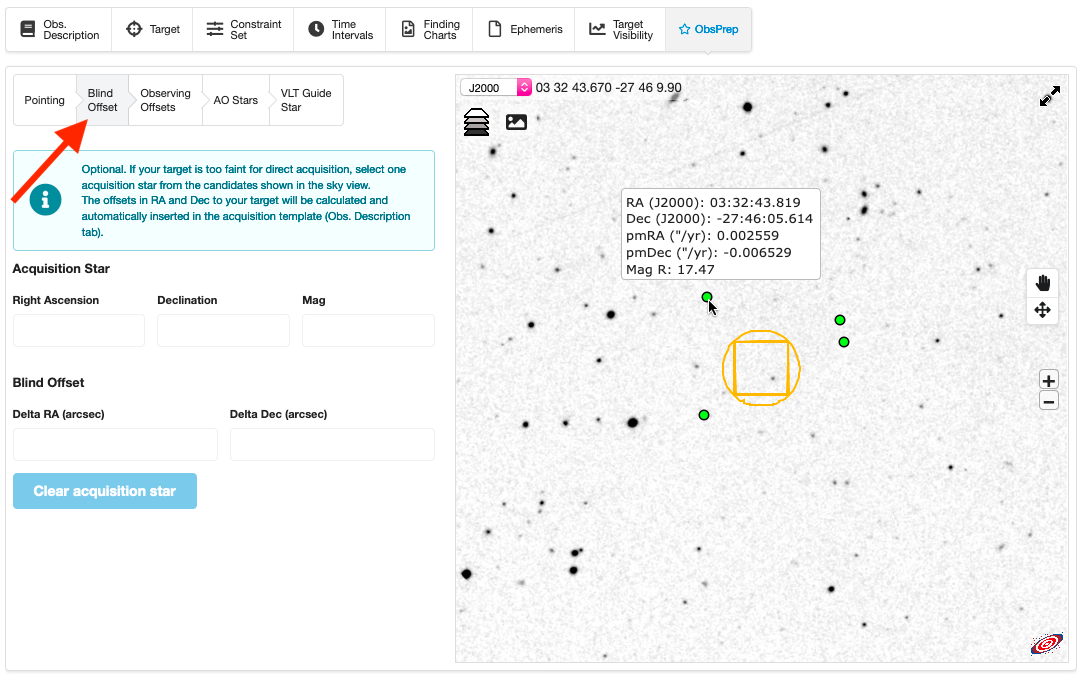

Screenshot of the ObsPrep-BlindOffset GUI highlighting the position of all suitable stars (marked as green big dots, and taken from the Gaia-DR2 catalog) to be used as reference object for accurate target centering. Moving the mouse over any of the marked stars you have access to its position, proper motions and magnitude.

file

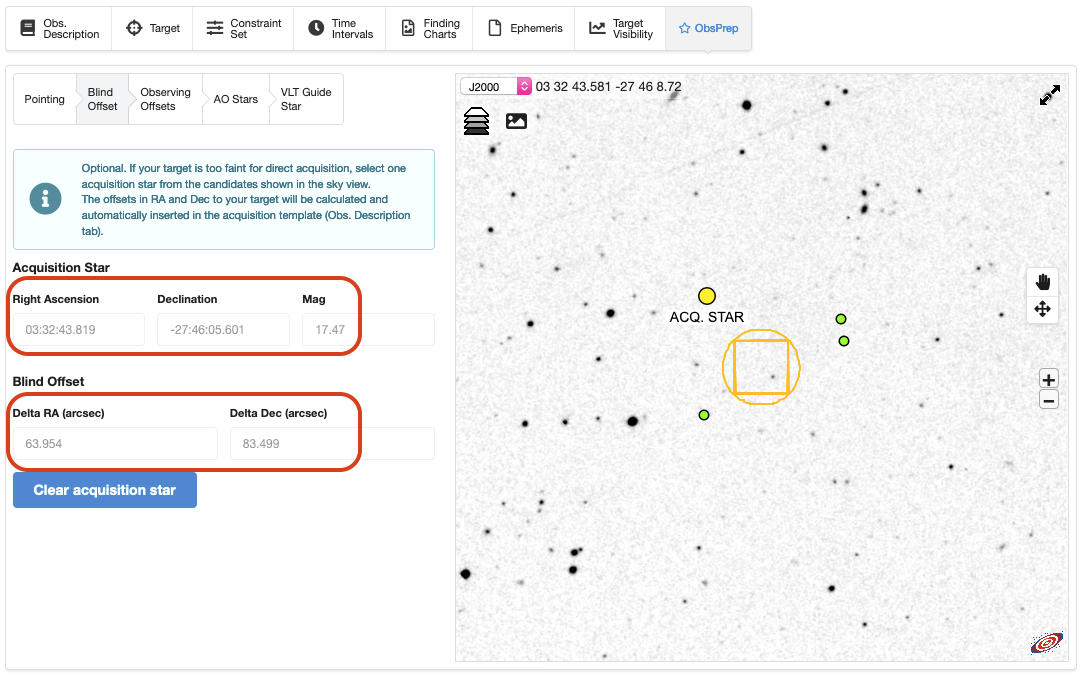

Screenshot of the ObsPrep-BlindOffset GUI after having selected a reference star directly on the image. By selecting one of the suggested stars on the image, the tool marks it with a yellow big dot, labels it as 'ACQ.STAR' and populates the relevant fields accordingly (i.e., see fields on the left-hand side of the ObsPrep-BlindOffset tab highlighted with the red box). Note that the fields are not editable, therefore should you need to change the reference star you must first click on the Clear acquisition star button (red trash bin on the top right in the newest ObsPrep version), and after that you can select a new star directly on the image.

ObsPrep TTS selection

file

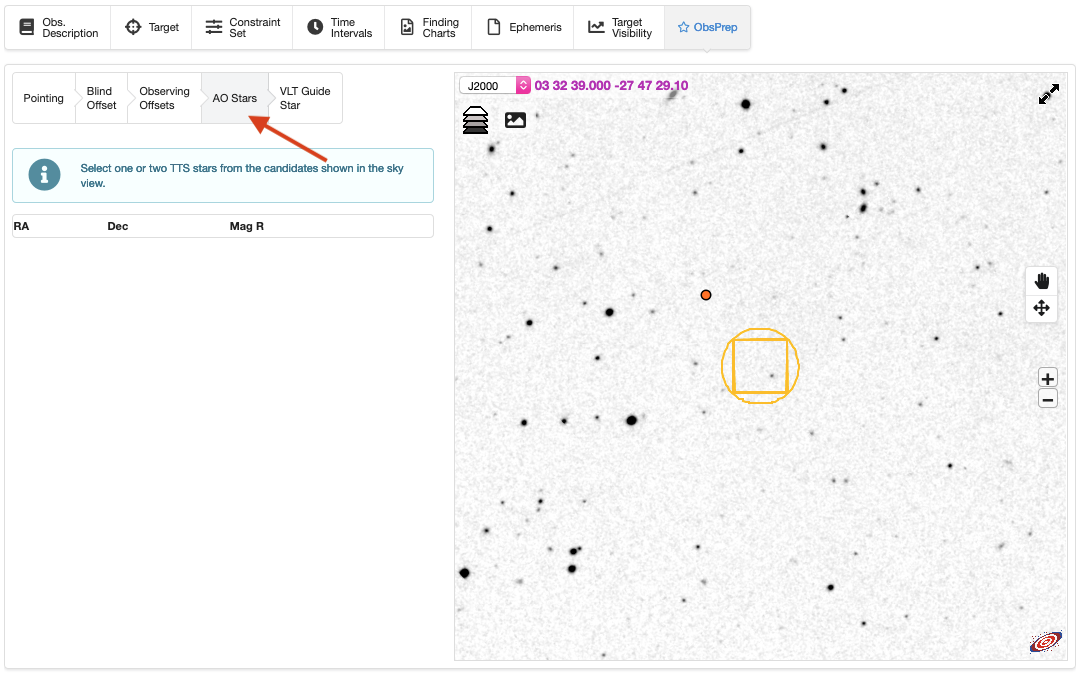

Screenshot of the ObsPrep-AO Stars GUI highlighting the position of all suitable stars (marked as red big dots, and taken from the Gaia-DR2 catalog) to be used as TTS. Moving the mouse over any of the marked stars you have access to its position, proper motions and magnitude.

file

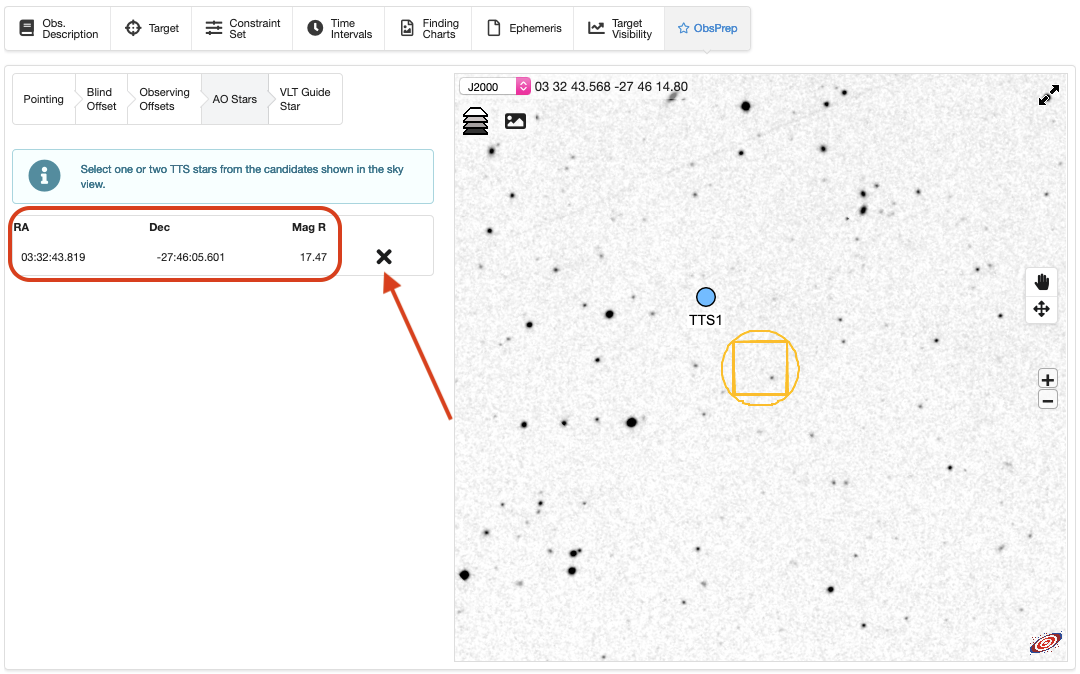

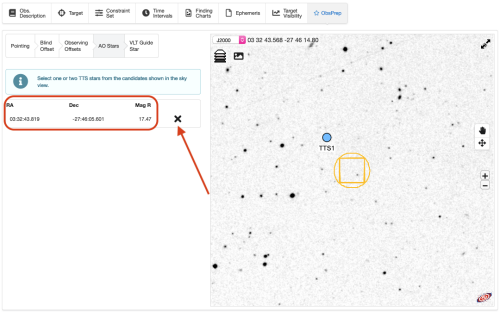

Screenshot of the ObsPrep-AO Stars GUI after having selected the only available TTS directly on the image. By selecting the suggested star on the image, the tool marks it with a blue big dot, labels it as 'TTS1' and populates the relevant fields accordingly (i.e., see fields on the left-hand side of the ObsPrep-AO Stars tab highlighted with the red box). Note that the fields are not editable, therefore should you need to change the TTS you must first click on the X button (trash bin in the new ObsPrep version), and then select a new star directly on the image.

ObsPrep VLT Guide Star

file

Screenshot of the ObsPrep-VLT Guide Star GUI showing the position of suitable VLT-GSs (cyan big dots, and taken from the Gaia-DR2 catalog) and the telescope patrol field (blue big circle) with respect to the defined target and reference star position. Moving the mouse over any of the marked stars you have access to its position, proper motions and magnitude. In addition, the footprint of the telescope guider arm is also shown in blue.

file

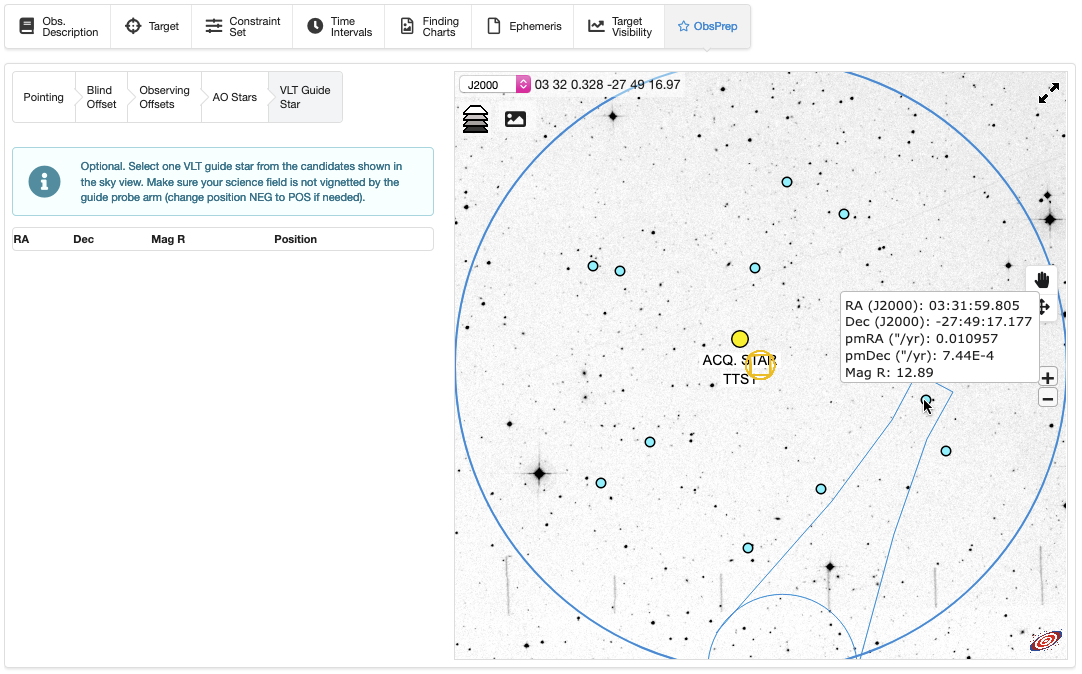

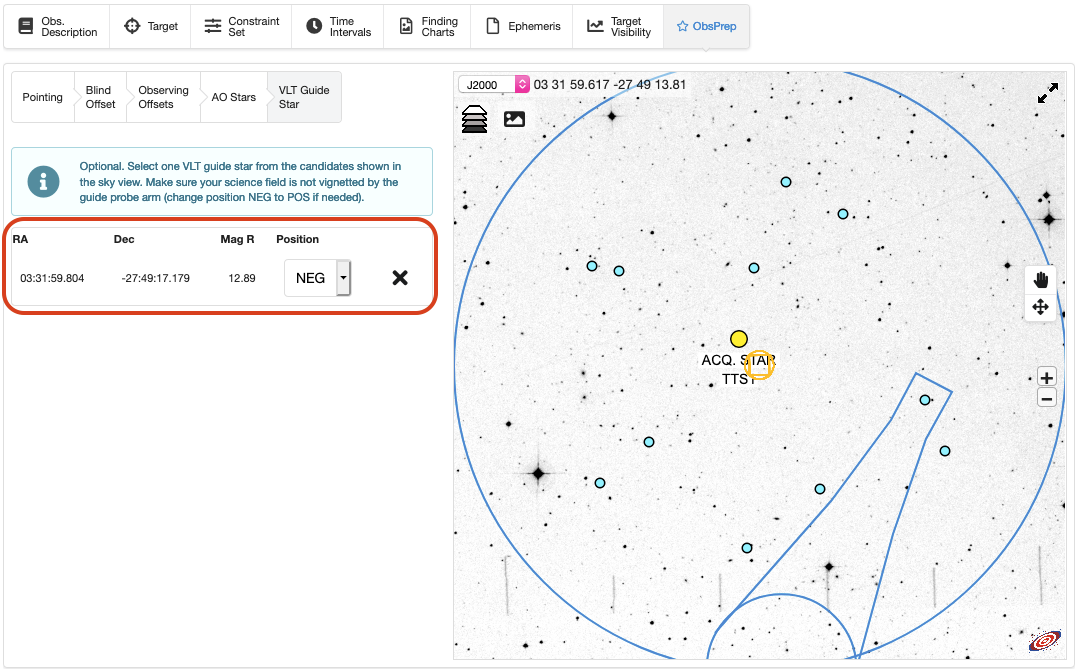

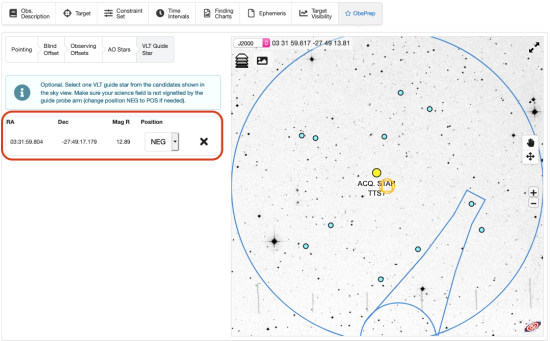

Screenshot of the ObsPrep-VLT Guide Star GUI after having selected a VLT-GS directly on the image. In doing so the tool populates the relevant fields accordingly (i.e., see fields on the left-hand side of the GUI highlighted with the red box).

Now, if you go back to the acquisition template under the Obs. Description section you will notice that all relevant template parameters have been properly propagated by ObsPrep (see figure below). Specifically, the Alpha/Delta offset from the target to the reference star and the RA/DEC coordinate of the VLT-GS and TTS1.

file

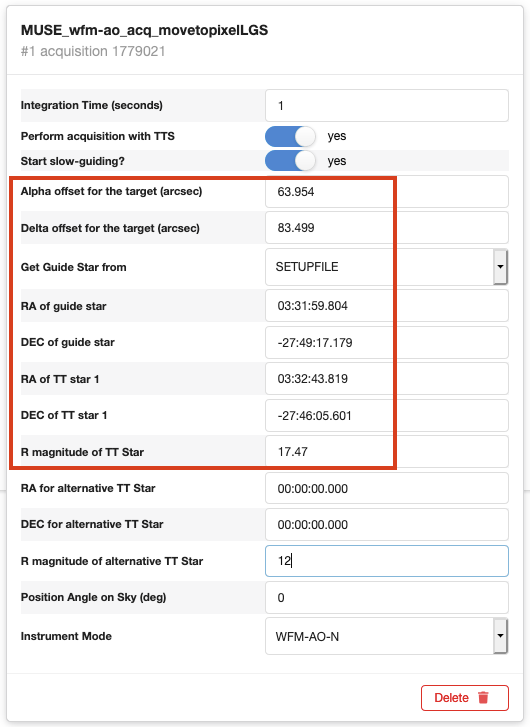

Screenshot of the acquisition template once all relevant information (see red box) has been inserted by using ObsPrep.

To the top

4. Obs. Desciption: the Science template

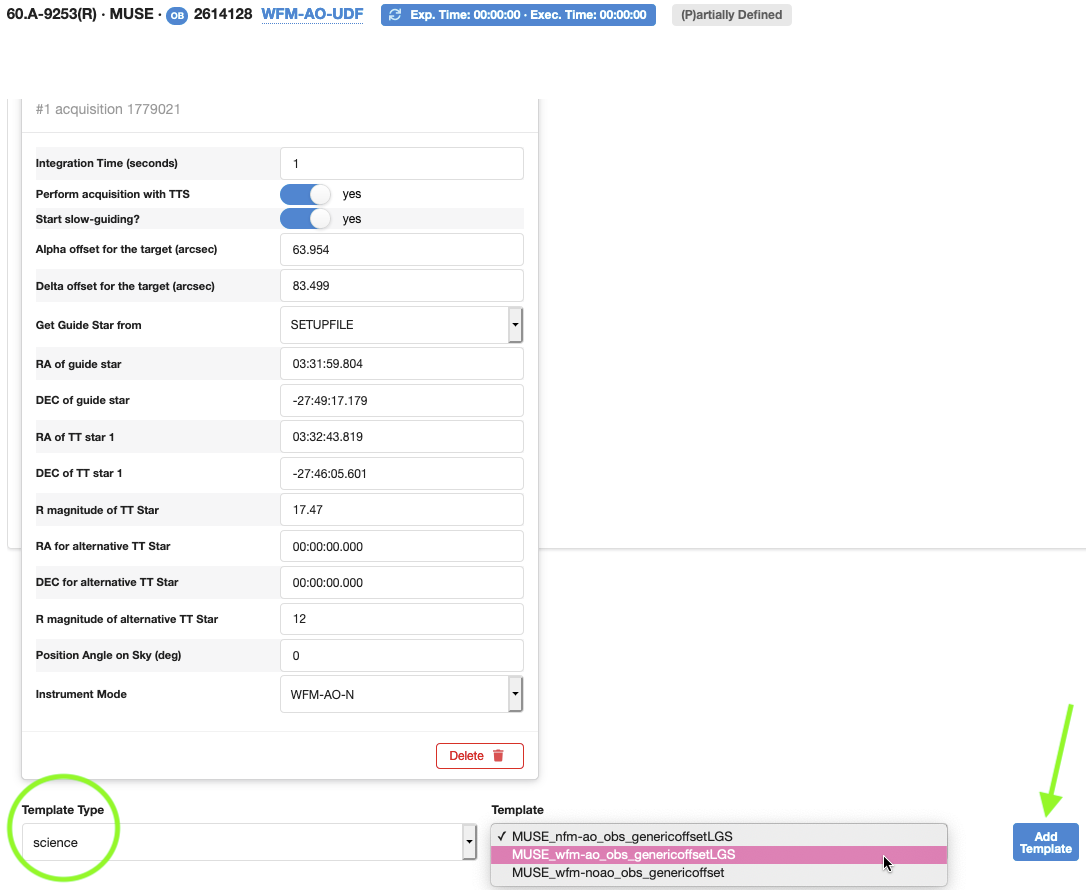

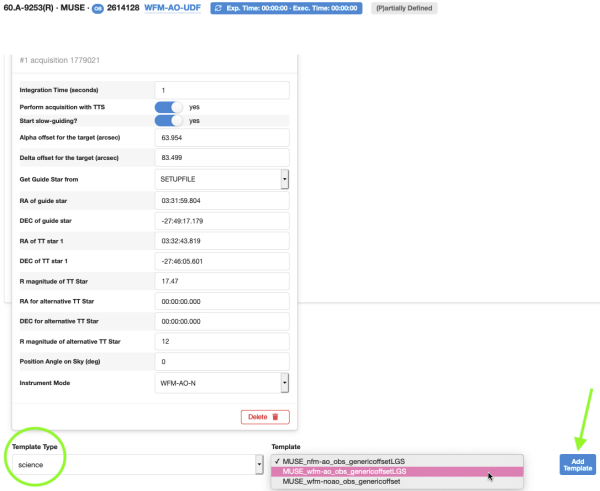

The only available science template for WFM-AO observations is the MUSE_wfm-ao_obs_genericoffset. To load it into the OB, first select the option science in the drop down menu "Template Type", then select the MUSE_wfm-ao_obs_genericoffset from the drop down menu on the right and click on the "Add Template" icon as shown in the figure below.

file

As for the Acquisition case, the set of science parameters appearing on the p2 GUI after loading the MUSE_wfm-ao_obs_genericoffset template can either be defined completely manually or in a more automatic way by using ObsPrep.

In what follows we first provide a short desciption of each parameter, and then we will use ObsPrep to fill in the template.

  • Number of offset positions: Number of positions at which you want to take exposures
  • Number of exposures per offset position: Number of exposures to be taken at any defined position
  • Observation type list, O/S: Each defined exposure must be tagged either as 'O' for on-target observations, or as 'S' for sky monitoring (see sec. 5.4 of User Manual).
  • Offset coordinate type selection: The offsets pattern can be defined either in DETECTOR or SKY coordinates system (see sec. 5.4 of User Manual).
  • List of relative offsets in position angle (deg): The field orientation at each defined offset position (offsets in position angle are cumulative).
  • List of relative offsets in RA or X (arcsec): Offset in RA/X of each defined position (offsets are cumulative).
  • List of relative offsets in DEC or Y (arcsec): Offset in DEC/Y of each defined position (offsets are cumulative).
  • Return to origin?: This flag is set always to "Yes", meaning that the telescope returns to the original position after the defined offsets pattern is completed. Note that the original position matches the telescope pointing before the science template has started (i.e., after the acquisition). Should you need to set this keyword to "No" you must submit a waiver.
  • List of UITs: Integration time (in seconds) of each defined exposure. If all defined exposures must be taken with the same integration time you can just type in a single value.


Note on offsets and field orientation:

To improve the flat-fielding of the slicer and channel patterns during the data reduction we strongly advise the observer to always split the on-target observation in multiple exposures taken at least at two different position angles (separated by 90 degrees) and with a small offsets pattern. The size of each on-object offset should at least be larger than a spaxel (i.e. >0.2" for the WFM).





file

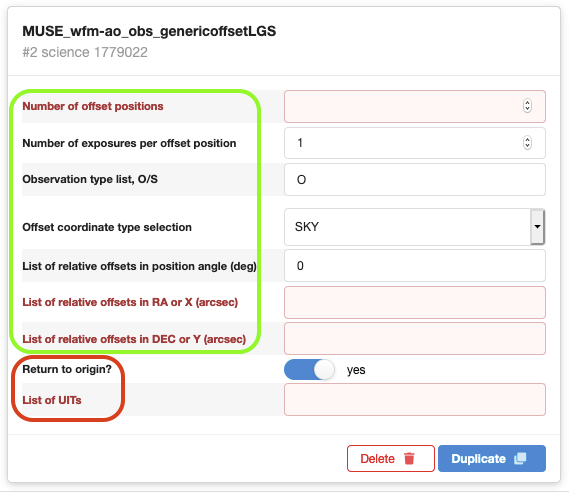

Screenshot of the selected science template.

Parameters highlighted with the red boxes must be defined manually in the science template, whereas those enclosed by the green box can be specified by using ObsPrep.



To the top

5. ObsPrep: the Science template

To prepare the science observing sequence we will make use of ObsPrep. To this end go back to the ObsPrep section and click on the Observing Offsets tab. The main P2 GUI will appear as follows:

ObsPrep Observing Offsets



file

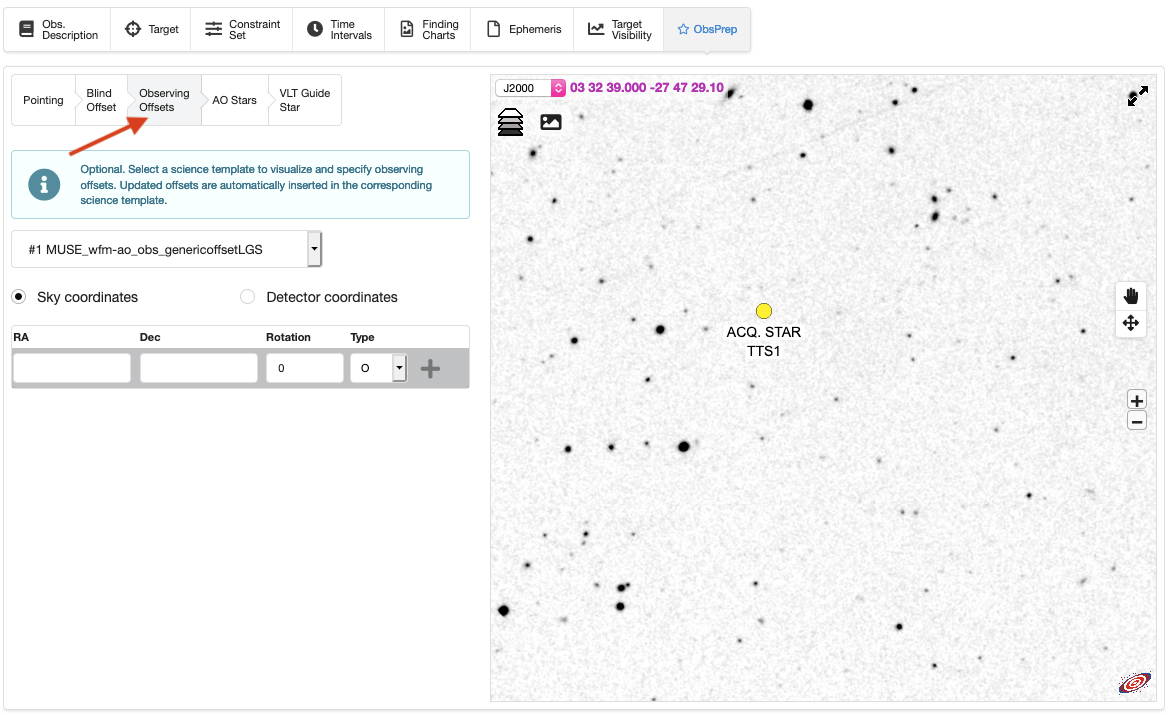

Screenshot of the ObsPrep Observing Offsets showing the position of the selected reference star (big yellow dot), which in this case is also used as TTS1. The coordinates reference system for the offsets (i.e., Sky or Detector) can be directly selected in the left-hand side of the GUI, together with the list of offsets in RA, Dec and position angle. The type of exposure (i.e., O or S) can be also defined for each offset.

Because the target field is very poorly populated there are enough spaxels from which a sky background estimate can be derived (i.e., no need for sky monitoring off-target), we decide to perform on-target (i.e. offset type 'O') observations only. In addition, to obtain the best results in terms of cosmics rejection and to improve the flat-fielding of the slicer and channel patterns during the data reduction, we plan to split the total integration time on source into 3 exposures, each one rotated by 90 degrees and taken at different position. Note that the number of exposures and their exposure time should be defined with the help of the ETC to ensure the requested S/N is reached with respect to the total integration time on source.

file

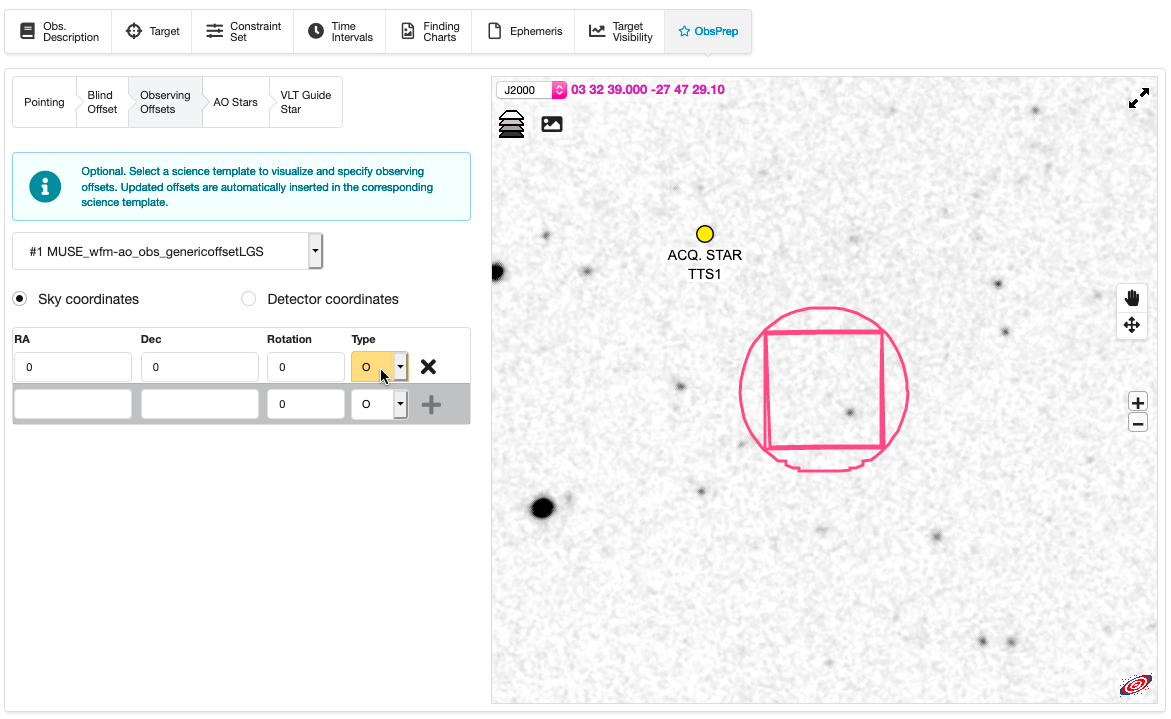

Screenshot of the ObsPrep Observing Offsets GUI showing the position of the MUSE FoV corresponding to the position defined by the first offset. The first offset has been included by inserting the value 0 in the RA and Dec fields (see left-hand side of the GUI) and then pressing the + button next to the offset type field.

file

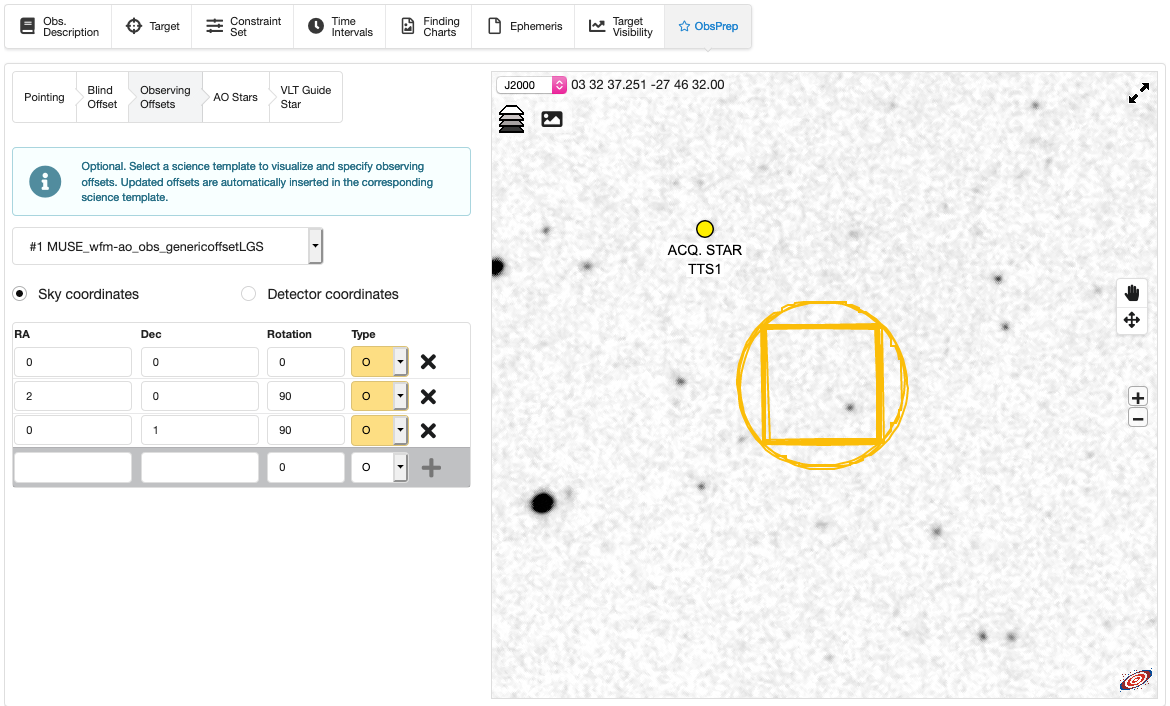

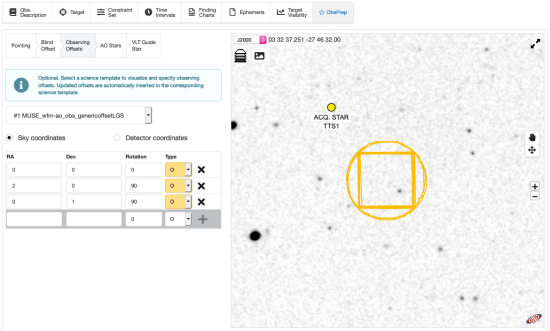

Screenshot of the ObsPrep Observing Offsets GUI zoomed onto the observed field after having defined a set of 3 exposures, dithered by a few arcsec and each one rotated by 90 degrees. The MUSE footprint of each defined offset is shown on the image.

Now, if you go back to the science template (i.e., in the Obs. Description section) you will notice that most of the parameters have been properly propagated by ObsPrep (see figure below).  Specifically, all but the list of UITs that you must fill in manually.

file

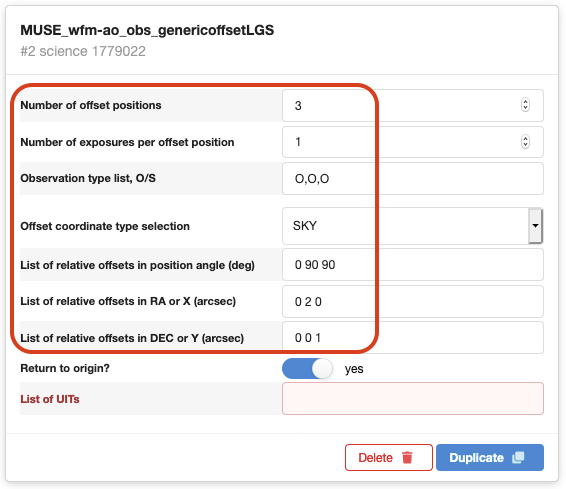

Screenshot of the science template once most of the relevant information (see red box) has been propagated by using the Observing Offsets feature within ObsPrep.  Note that the list of exposure time must be inserted manually. In this example, we plan to use the same integration time for all 3 exposures (e.g., 900 sec), therefore we can just type in 900 in the List of UITs field.

To the top

Finding charts

At this point you must create finding charts compliant with ESO general and MUSE specific requirements. The easiest and quickest way to do that is by using the finding charts generator embedded in the p2 environment. Once the OB templates content has been fully provided, click on the "Generate Finding Chart" button you find under the Finding Charts section. In doing that 2 finding charts will be created and automatically attached to the OB. Specifically, the tool produces a finding chart showing the position of the selected VLT-GS with respect to the telescope pointing (i.e., large field of view chart showing the telescope patrol field), and a second one showing the MUSE FoV footprint centred on the reference star selected for the accurate target centering onto the target field showing the final centering.



file

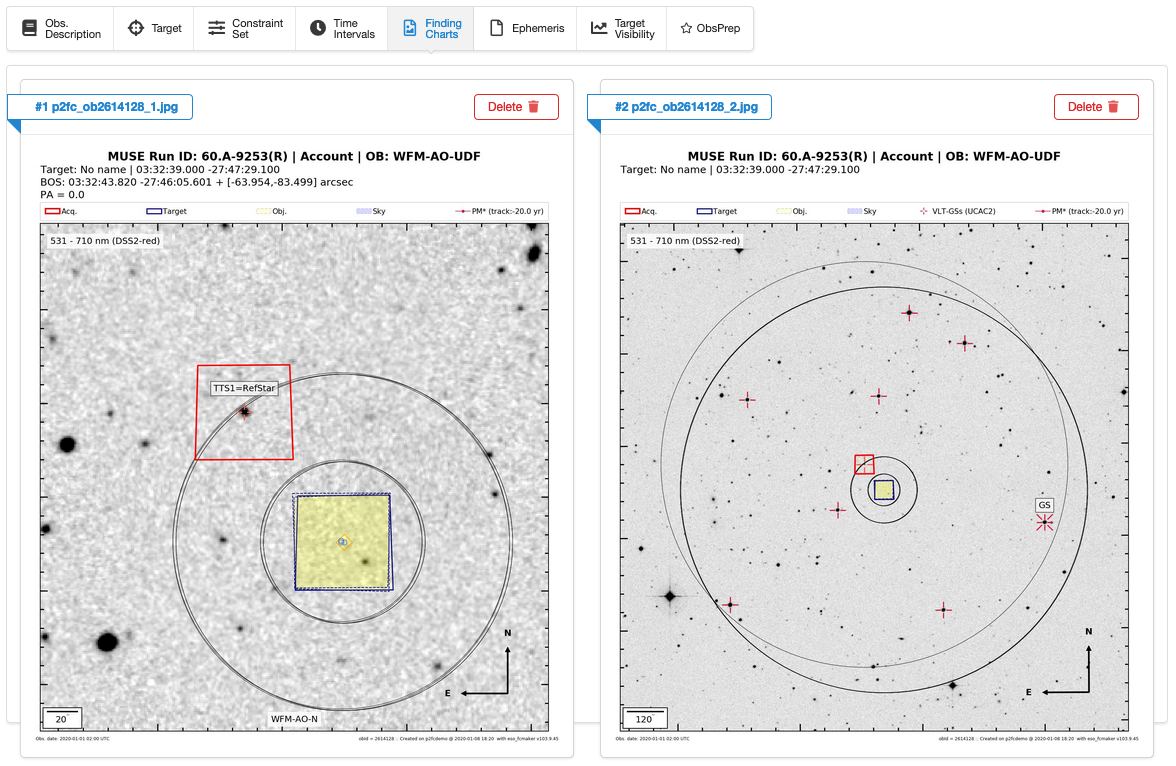

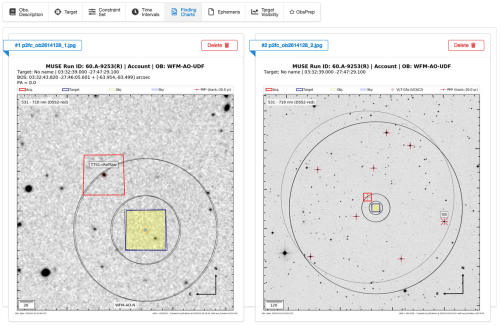

Screenshot of the finding charts created by the Finding Charts Generator. The left image is zoomed onto the target field and it shows the position of the FoV during the acquisition (i.e., red footprint centred on the defined reference star) and during the defined science offsets pattern (i.e., blue footprints shadowed in yellow). The right-hand image  shows a zoomed out version of the first finding chart, in which the selected VLT-GS as well as the position of the telescope patrol field (i.e., big circles) are marked with respect to all defined offsets.

Alternatively, you can provide your own-made finding charts (please consult this page to check all the requirements), which you must manually attach to the OB (i.e., click on the "Upload Finding Chart" button you find in the Finding Charts section).

To the top

Access to the final OB

The ascii version of the OB  just created, together with the corresponding finding charts can be downloaded here.

Alternatively, by logging into p2 demo, under the programme ID 60.A-9253(R) you can access to the USD-Tutorials folder where this OB have been created and stored. In the same folder you can also find a sample of OBs designed for different modes and observing strategy. The example OBs are not editable but can be exported if needed. We kindly ask you to please refrain from creating new OBs in the USD-Tutorials folder.
