baci::BACIAction Class Reference

#include <baciBACIAction.h>

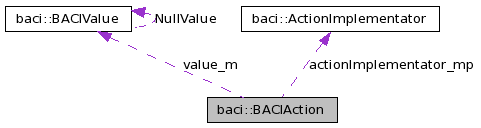

Collaboration diagram for baci::BACIAction:

List of all members.

Public Member Functions
	BACIAction ()
	BACIAction (ActionImplementator *actionImplementator_, int actionFunction_, int callbackID_)
	BACIAction (ActionImplementator *actionImplementator_, int actionFunction_, int callbackID_, const BACIValue &value_)
BACIAction &	operator= (const BACIAction &action)
bool	operator== (const BACIAction &action) const
ActionRequest	invoke (BACIComponent *component_p, int callbackID_, const CBDescIn &descIn, BACIValue *value, Completion &completion, CBDescOut &descOut)
int	getActionFunction () const
ActionImplementator *	getActionImplementator () const
int	getCallbackID () const
BACIValue	getValue () const
BACIValue *	getValueRef () const
bool	isCompleted () const
Completion	getCompletion () const
void	setCompletion (const Completion &c)
Private Member Functions
	BACIAction (const BACIAction &)
Private Attributes
int	actionFunction_m
ActionImplementator *	actionImplementator_mp
int	callbackID_m
BACIValue	value_m
bool	completed_m
Completion	completion_m

---

Detailed Description

Class representing BACI Action Since all BACI asynchronious class has to keep all needed data to invoke action in the future...

Author:

Matej Sekoranja, Jozef Stefan Institute, Slovenia

---

Constructor & Destructor Documentation

baci::BACIAction::BACIAction

(

)

[inline]

Null contructor

baci::BACIAction::BACIAction	(	ActionImplementator *	actionImplementator_,
		int	actionFunction_,
		int	callbackID_
	)			[inline]

Null value constructor

Parameters:

	actionFunction_	action function to be invoked in execute action
	callbackID_	id of the callback to be invoked

baci::BACIAction::BACIAction	(	ActionImplementator *	actionImplementator_,
		int	actionFunction_,
		int	callbackID_,
		const BACIValue &	value_
	)			[inline]

Constructor

Parameters:

	actionImplemenator_	action implementator
	actionFunction_	action function to be invoked in execute action
	callbackID_	id of the callback to be invoked
	value_	action data (e.g. value to be set)

baci::BACIAction::BACIAction

(

const BACIAction &

)

[private]

ALMA C++ coding standards state copy constructors should be disabled.

---

Member Function Documentation

int baci::BACIAction::getActionFunction

(

)

const [inline]

Get BACI Action Function

Returns:

action function

ActionImplementator* baci::BACIAction::getActionImplementator

(

)

const [inline]

Get BACI Action Implementator

Returns:

action implementator

int baci::BACIAction::getCallbackID

(

)

const [inline]

Get callback ID

Returns:

callback ID

Completion baci::BACIAction::getCompletion

(

)

const [inline]

Get completion data

Returns:

completion data

BACIValue baci::BACIAction::getValue

(

)

const [inline]

Get action data

Returns:

action data (e.g. value to be set)

BACIValue* baci::BACIAction::getValueRef

(

)

const [inline]

Get reference to action data

Returns:

action data (e.g. value to be set)

ActionRequest baci::BACIAction::invoke	(	BACIComponent *	component_p,
		int	callbackID_,
		const CBDescIn &	descIn,
		BACIValue *	value,
		Completion &	completion,
		CBDescOut &	descOut
	)			[inline]

Invoke action

Parameters:

	component_p	owner of the action
	callbackID	id of the callback to be notified
	descIn	callback descriptor (passed by client)
	value	action data (e.g. value to be set)
	completion	error handing structure
	descOut	callback descriptor which will be passed to client

Returns:

request to be performed by BACI

bool baci::BACIAction::isCompleted

(

)

const [inline]

Get completion state

Returns:

completion state

BACIAction& baci::BACIAction::operator=

(

const BACIAction &

action

)

[inline]

Assignment operator

References actionFunction_m, actionImplementator_mp, callbackID_m, completed_m, completion_m, and value_m.

bool baci::BACIAction::operator==

(

const BACIAction &

action

)

const [inline]

Compare (equals) operator

References callbackID_m.

void baci::BACIAction::setCompletion

(

const Completion &

c

)

[inline]

Set completion state to true

---

Member Data Documentation

int baci::BACIAction::actionFunction_m [private]

BACI Action Function

Referenced by operator=().

ActionImplementator* baci::BACIAction::actionImplementator_mp [private]

BACI Action Implementator

Referenced by operator=().

int baci::BACIAction::callbackID_m [private]

Callback ID

Referenced by operator=(), and operator==().

bool baci::BACIAction::completed_m [private]

Completion state

Referenced by operator=().

Completion baci::BACIAction::completion_m [private]

Completion data

Referenced by operator=().

BACIValue baci::BACIAction::value_m [private]

Action data (e.g. value to be set)

Referenced by operator=().

---

The documentation for this class was generated from the following file:

• baciBACIAction.h
