#include <baciAlarmSystemMonitorBase.h>

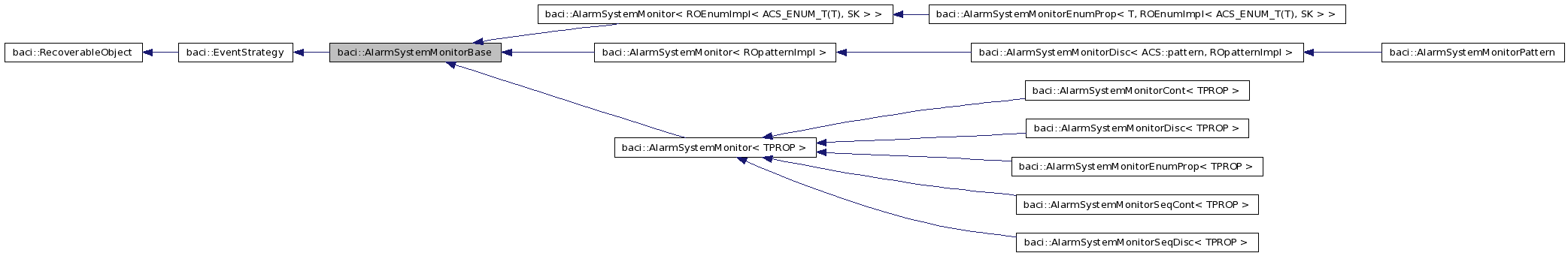

Inheritance diagram for baci::AlarmSystemMonitorBase:

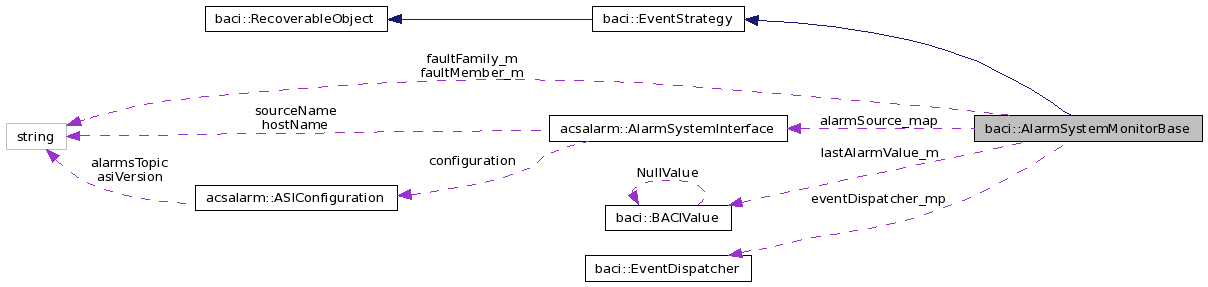

Collaboration diagram for baci::AlarmSystemMonitorBase:

Public Member Functions
	AlarmSystemMonitorBase (EventDispatcher *eventDispatcher)
virtual	~AlarmSystemMonitorBase ()
bool	failed ()
void	succeeded ()
virtual bool	isSuspended ()
virtual int	getId (void)
virtual const char *	getName (void)
virtual const char *	getObjectState (void)
virtual void	setObjectState (const char *state)
virtual void	suspend ()
virtual void	resume ()
virtual void	destroy ()
void	setLevel (int level)
void	setFaultFamily (const char *ff)
void	setFaultMember (const char *fm)
Protected Member Functions
virtual void	check (BACIValue &val, const ACSErr::Completion &c, const ACS::CBDescOut &desc)=0
void	sendAlarm (int code, bool active)
virtual void	clearAlarm ()
virtual void	recheckAlarm ()
void	setProperty (const char name, const char prop)
template<class VT >
void	setProperty (const char *name, VT value)
Protected Attributes
ACE_CString	name_m
bool	suspended_m
int	failureCount_m
CBDescIn	desc_mIn
ACS::TimeInterval	interval_m
EventDispatcher *	eventDispatcher_mp
acsalarm::AlarmSystemInterface *	alarmSource_map
int	alarmRaised_m
std::string	faultMember_m
std::string	faultFamily_m
	alarm fault member that is used to send alarm
int	alarmLevel_m
	alarm fault family that is used to send alarm
int	lastAlarmFaultCode_m
	alarm's level (priorty)
BACIValue	lastAlarmValue_m
	fault code of sent alarm
std::map< std::string, std::string >	alarmProperties_m
ACE_Recursive_Thread_Mutex	faultStructMutex_m
Private Member Functions
void	operator= (const AlarmSystemMonitorBase &)
	AlarmSystemMonitorBase (const AlarmSystemMonitorBase &)

Detailed Description

Base class for the Alarm System Monitor that is not template class. The purpose of this class to have a not template base class for all Alarm System monitors.

Constructor & Destructor Documentation

baci::AlarmSystemMonitorBase::AlarmSystemMonitorBase ( EventDispatcher * eventDispatcher )

virtual baci::AlarmSystemMonitorBase::~AlarmSystemMonitorBase ( ) [virtual]

baci::AlarmSystemMonitorBase::AlarmSystemMonitorBase ( const AlarmSystemMonitorBase & ) [private]

ALMA C++ coding standards state copy constructors should be disabled.

Member Function Documentation

virtual void baci::AlarmSystemMonitorBase::check	(	BACIValue &	value,
		const ACSErr::Completion &	c,
		const ACS::CBDescOut &	desc
	)			`[protected, pure virtual]`

Event cheking method This virtual method is called periodically to check property state if event should be raised

Implements baci::EventStrategy.

Implemented in baci::AlarmSystemMonitorCont< T, TPROP >, baci::AlarmSystemMonitorDisc< T, TPROP >, baci::AlarmSystemMonitorPattern, baci::AlarmSystemMonitorSeqCont< T, TPROP >, baci::AlarmSystemMonitorSeqDisc< TPROP >, baci::AlarmSystemMonitorEnumProp< T, TPROP >, baci::AlarmSystemMonitorDisc< ACS::pattern, ROpatternImpl >, and baci::AlarmSystemMonitorEnumProp< T, ROEnumImpl< ACS_ENUM_T(T), SK > >.

virtual void baci::AlarmSystemMonitorBase::clearAlarm ( ) [protected, virtual]

Clear the alarm that was previously set/raised. For the alarm code it is used alarm code used for sending/raising the alarm. Main goal of the method is to be called when fault family or fault member is changed to clear the alarm.

Reimplemented in baci::AlarmSystemMonitorPattern.

virtual void baci::AlarmSystemMonitorBase::destroy ( ) [inline, virtual]

Destroy event subscription

Implements baci::EventStrategy.

bool baci::AlarmSystemMonitorBase::failed ( )

virtual int baci::AlarmSystemMonitorBase::getId ( void ) [inline, virtual]

Get object's "recovery" id; each object type sould have unique id

Returns:: object's id

Implements baci::EventStrategy.

virtual const char* baci::AlarmSystemMonitorBase::getName ( void ) [inline, virtual]

Returns objects name; each instance should have unique name

Returns:: object's name

Implements baci::EventStrategy.

virtual const char* baci::AlarmSystemMonitorBase::getObjectState ( void ) [inline, virtual]

Get object's state represented as string

Returns:: pointer to stringified object's state

Implements baci::EventStrategy.

virtual bool baci::AlarmSystemMonitorBase::isSuspended ( ) [inline, virtual]

Is suspended

Implements baci::EventStrategy.

void baci::AlarmSystemMonitorBase::operator= ( const AlarmSystemMonitorBase & ) [private]

ALMA C++ coding standards state assignment operators should be disabled.

virtual void baci::AlarmSystemMonitorBase::recheckAlarm ( ) [protected, virtual]

Check last value that caused an alarm for the alarm. The purpose of the method is to be used afer fault family or fault member is changed.

virtual void baci::AlarmSystemMonitorBase::resume ( ) [inline, virtual]

Resume suspended event subscription

Implements baci::EventStrategy.

void baci::AlarmSystemMonitorBase::sendAlarm	(	int	code,
		bool	active
	)			`[protected]`

Send an alarm with a certain alarm code to the AlarmSystem code alarm code active true-raise an alarm, false-clear an alarm

void baci::AlarmSystemMonitorBase::setFaultFamily ( const char * ff )

(re)set Alarm's fault family

Parameters:

fault

family

void baci::AlarmSystemMonitorBase::setFaultMember ( const char * fm )

(re)set Alarm's fault member

Parameters:

fault

member

void baci::AlarmSystemMonitorBase::setLevel ( int level ) [inline]

set level of the alarm alarm level

virtual void baci::AlarmSystemMonitorBase::setObjectState ( const char * state ) [inline, virtual]

Set object's state stored in given string

Parameters:

stringified

object's state

Implements baci::EventStrategy.

void baci::AlarmSystemMonitorBase::setProperty	(	const char *	name,
		const char *	prop
	)			`[protected]`

sets property of the alarm. If the property was already set it will be set to a new value. name - property name prop value of the property

template<class VT >

void baci::AlarmSystemMonitorBase::setProperty	(	const char *	name,
		VT	value
	)			`[inline, protected]`

void baci::AlarmSystemMonitorBase::succeeded ( )

virtual void baci::AlarmSystemMonitorBase::suspend ( ) [inline, virtual]

Suspend event subscription

Implements baci::EventStrategy.

Member Data Documentation

int baci::AlarmSystemMonitorBase::alarmLevel_m [protected]

alarm fault family that is used to send alarm

std::map<std::string, std::string> baci::AlarmSystemMonitorBase::alarmProperties_m [protected]

int baci::AlarmSystemMonitorBase::alarmRaised_m [protected]

indicator (flag) if an alarm was raised. in case of pattern how many alarms were raised in case of continues types like long/dobule etc. -1 low alarm, 1 high alarm

acsalarm::AlarmSystemInterface* baci::AlarmSystemMonitorBase::alarmSource_map [protected]

CBDescIn baci::AlarmSystemMonitorBase::desc_mIn [protected]

EventDispatcher* baci::AlarmSystemMonitorBase::eventDispatcher_mp [protected]

int baci::AlarmSystemMonitorBase::failureCount_m [protected]

std::string baci::AlarmSystemMonitorBase::faultFamily_m [protected]

alarm fault member that is used to send alarm

std::string baci::AlarmSystemMonitorBase::faultMember_m [protected]

ACE_Recursive_Thread_Mutex baci::AlarmSystemMonitorBase::faultStructMutex_m [protected]

ACS::TimeInterval baci::AlarmSystemMonitorBase::interval_m [protected]

int baci::AlarmSystemMonitorBase::lastAlarmFaultCode_m [protected]

alarm's level (priorty)

BACIValue baci::AlarmSystemMonitorBase::lastAlarmValue_m [protected]
