#include <AlarmSystemInterface.h>

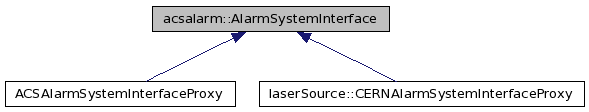

Inheritance diagram for acsalarm::AlarmSystemInterface:

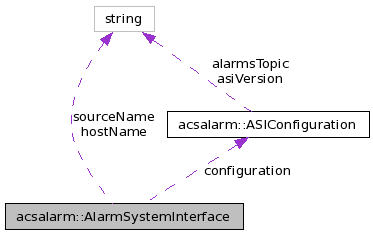

Collaboration diagram for acsalarm::AlarmSystemInterface:

Public Member Functions
	AlarmSystemInterface ()
virtual	~AlarmSystemInterface ()
virtual void	setSourceName (std::string newSourceName)
virtual std::string	getSourceName ()
virtual void	setHostName (std::string newHostName)
virtual std::string	getHostName ()
virtual void	push (FaultState &state)
virtual void	push (std::vector< FaultState > &states)
virtual void	pushActiveList (std::vector< FaultState > &activeFaults)
virtual void	close ()=0
Protected Member Functions
virtual bool	publishMessage (ASIMessage msg)=0
Protected Attributes
std::string	sourceName
std::string	hostName
acsalarm::ASIConfiguration	configuration
ACE_Recursive_Thread_Mutex	m_mutex
Private Member Functions
void	commonPush (std::vector< FaultState > &states, bool backup)

Detailed Description

Alarm System interface for C++ alarm generators

Author:: sharring Based on cern's java implementation

Constructor & Destructor Documentation

acsalarm::AlarmSystemInterface::AlarmSystemInterface ( ) [inline]

virtual acsalarm::AlarmSystemInterface::~AlarmSystemInterface ( ) [inline, virtual]

Member Function Documentation

virtual void acsalarm::AlarmSystemInterface::close ( ) [pure virtual]

Cleanup. Must be implemented by concrete sub classes; may be called by destructor or explicitly by client; it's up to you how you wish the cleanup process to be initiated.

Implemented in ACSAlarmSystemInterfaceProxy, and laserSource::CERNAlarmSystemInterfaceProxy.

void acsalarm::AlarmSystemInterface::commonPush	(	std::vector< FaultState > &	states,
		bool	backup
	)			`[private]`

Private method to push a collection of fault states, containing the logic which is common to both the push() and pushActiveList() methods.

Parameters:

	states
	backup	whether we are sending 'backup' alarms or not. backup alarms are alarms in the active list that are sent on startup, when the source starts and periodically according to the expected backup frequency.

Exceptions:

ASIException

if the fault state collection can not be pushed.

virtual std::string acsalarm::AlarmSystemInterface::getHostName ( ) [inline, virtual]

Get the host name.

Returns:: the host name.

References hostName.

virtual std::string acsalarm::AlarmSystemInterface::getSourceName ( ) [inline, virtual]

Get the source name.

Returns:: the source name.

References sourceName.

virtual bool acsalarm::AlarmSystemInterface::publishMessage ( ASIMessage msg ) [protected, pure virtual]

Sends the message to the alarm server; concrete classes must override this and use the communication mechanism of their choice. For an example of a concrete class, see ACSLaser/laser-source-cpp/CERNAlarmSystemInterfaceProxy.

Implemented in ACSAlarmSystemInterfaceProxy, and laserSource::CERNAlarmSystemInterfaceProxy.

virtual void acsalarm::AlarmSystemInterface::push ( FaultState & state ) [virtual]

Push a fault state.

Parameters:

state

the fault state change to push.

Exceptions:

ASIException

if the fault state can not be pushed.

Reimplemented in ACSAlarmSystemInterfaceProxy.

virtual void acsalarm::AlarmSystemInterface::push ( std::vector< FaultState > & states ) [virtual]

Push a collection of fault states.
