TMCDB::MonitorCollectorImpl Class Reference

#include <MonitorCollectorImpl.h>

Inheritance diagram for TMCDB::MonitorCollectorImpl:

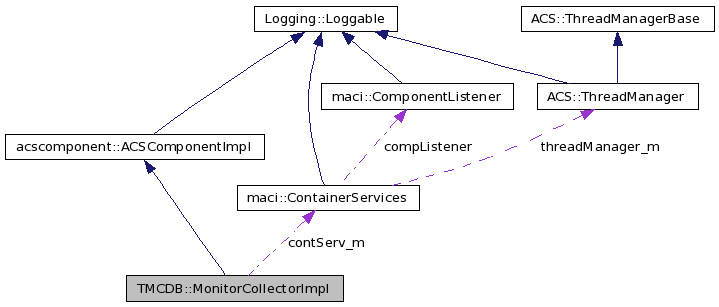

Collaboration diagram for TMCDB::MonitorCollectorImpl:

List of all members.

Public Member Functions
	MonitorCollectorImpl (const ACE_CString &name, maci::ContainerServices *containerServices)
	~MonitorCollectorImpl ()
void	initialize ()
void	cleanUp ()
void	registerMonitoredDevice (const char *componentName, const char *serialNumber)
void	registerMonitoredDeviceWithMultipleSerial (const char *componentName, const TMCDB::propertySerialNumberSeq &serialNumbers)
void	deregisterMonitoredDevice (const char *componentName)
void	startMonitoring (const char *componentName)
void	stopMonitoring (const char *componentName)
TMCDB::MonitorDataBlocks *	getMonitorData ()
void	set_archiving_interval (const char *componentName, const char *propertyName, ACS::TimeInterval time)
void	suppress_archiving (const char *componentName, const char *propertyName)
void	enable_archiving (const char *componentName, const char *propertyName)
Private Member Functions
MonitorComponent *	registerMonitoredComponent (const char *componentName)
Private Attributes
ACE_Hash_Map_Manager < ACE_CString, MonitorComponent *, ACE_Recursive_Thread_Mutex >	monitorComponents_m
ACE_Recursive_Thread_Mutex	mcMutex_m
unsigned int	numOfComponents_m
	protection for monitorComponents_m and related stuff
maci::ContainerServices *	contServ_m
	number of registered devices
MonitorArchiver::Controller_var	archiveMonitorController_m
	here we hold reference to Archive monitor controller

---

Detailed Description

Monitor collector implementation

---

Constructor & Destructor Documentation

TMCDB::MonitorCollectorImpl::MonitorCollectorImpl	(	const ACE_CString &	name,
		maci::ContainerServices *	containerServices
	)

TMCDB::MonitorCollectorImpl::~MonitorCollectorImpl

(

)

---

Member Function Documentation

void TMCDB::MonitorCollectorImpl::cleanUp

(

)

[virtual]

Called after the last functional call to the component has finished. The component should then orderly release resources etc. If this method is overwritten in a subclass, the developer has to make sure that all cleanup performed by the implementation of the base class take place. The best way to do this is to call the implementation of the base itself explicitly, as would be done implicitly in a destructor chain.

Returns:

void

---

Reimplemented from acscomponent::ACSComponentImpl.

void TMCDB::MonitorCollectorImpl::deregisterMonitoredDevice

(

const char *

componentName

)

void TMCDB::MonitorCollectorImpl::enable_archiving	(	const char *	componentName,
		const char *	propertyName
	)

TMCDB::MonitorDataBlocks* TMCDB::MonitorCollectorImpl::getMonitorData

(

)

void TMCDB::MonitorCollectorImpl::initialize

(

)

[virtual]

Called to give the component time to initialize itself. For instance, the component could retrieve connections, read in configuration files/parameters, build up in-memory tables, ... Called before execute. In fact, this method might be called quite some time before functional requests can be sent to the component. Must be implemented as a synchronous (blocking) call.

Returns:

void

---

Reimplemented from acscomponent::ACSComponentImpl.

MonitorComponent* TMCDB::MonitorCollectorImpl::registerMonitoredComponent

(

const char *

componentName

)

[private]

void TMCDB::MonitorCollectorImpl::registerMonitoredDevice	(	const char *	componentName,
		const char *	serialNumber
	)

void TMCDB::MonitorCollectorImpl::registerMonitoredDeviceWithMultipleSerial	(	const char *	componentName,
		const TMCDB::propertySerialNumberSeq &	serialNumbers
	)

void TMCDB::MonitorCollectorImpl::set_archiving_interval	(	const char *	componentName,
		const char *	propertyName,
		ACS::TimeInterval	time
	)

void TMCDB::MonitorCollectorImpl::startMonitoring

(

const char *

componentName

)

void TMCDB::MonitorCollectorImpl::stopMonitoring

(

const char *

componentName

)

void TMCDB::MonitorCollectorImpl::suppress_archiving	(	const char *	componentName,
		const char *	propertyName
	)

---

Member Data Documentation

MonitorArchiver::Controller_var TMCDB::MonitorCollectorImpl::archiveMonitorController_m [private]

here we hold reference to Archive monitor controller

maci::ContainerServices* TMCDB::MonitorCollectorImpl::contServ_m [private]

number of registered devices

pointer to container services

ACE_Recursive_Thread_Mutex TMCDB::MonitorCollectorImpl::mcMutex_m [private]

ACE_Hash_Map_Manager<ACE_CString, MonitorComponent*, ACE_Recursive_Thread_Mutex> TMCDB::MonitorCollectorImpl::monitorComponents_m [private]

unsigned int TMCDB::MonitorCollectorImpl::numOfComponents_m [private]

protection for monitorComponents_m and related stuff

---

The documentation for this class was generated from the following file:

• MonitorCollectorImpl.h
