TMCDB::MonitorComponent Class Reference

#include <MonitorComponent.h>

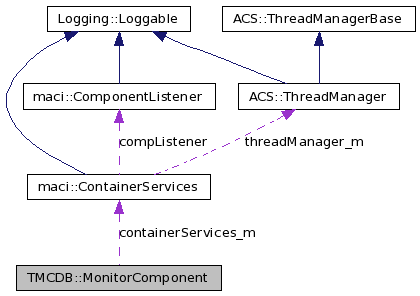

Collaboration diagram for TMCDB::MonitorComponent:

List of all members.

Public Member Functions
	MonitorComponent (ACS::CharacteristicComponent_ptr comp, maci::ContainerServices *cs)
	ctor where , MonitorDataBlock is also created.
virtual	~MonitorComponent ()
void	startMonitoring ()
void	stopMonitoring ()
bool	addProperty (const char *propName)
bool	addProperty (const char *propName, const char *pType, ACS::Property *propRef, ACS::TimeInterval &monitoringInterval)
void	addAllProperties ()
	adds all component's properties
void	fillSeq ()
MonitorDataBlock &	getMonitorDataBlock ()
void	setDeviceSerialNumber (serialNumberType sn)
void	setPropertySerialNumber (char *propertyName, serialNumberTypeSeq sn)
void	set_archiving_interval (const char *propertyName, ACS::TimeInterval time)
void	suppress_archiving (const char *propertyName)
void	enable_archiving (const char *propertyName)
Private Member Functions
ACS::TimeInterval	propertyArchivingInterval (ACS::PropertyDesc *)
Private Attributes
std::vector< MonitorPointBase * >	monitorPoints_m
	list of properties - points that we have to monitor
ACS::CharacteristicComponent_var	component_m
	component reference
MonitorDataBlock	monitorDataBlock_m
	here we collect data for the device
unsigned int	seqIndex_m
	index of last added property in monitorPoints_m and monitorDataBlock_m.monitorBlobs
maci::ContainerServices *	containerServices_m
ACS::CharacteristicComponentDesc_var	compDesc_m
	Description of the monitored characteristic component.
CORBA::ULong	numOfProp_m
	number of properties that monitored characteristic component has
bool	monitoring_m
ACS::Time	m_monitoringStartTime
	is monitoring turned on or off ?
ACE_Thread_Mutex	m_proMutex
	time when the monitoring started

---

Detailed Description

Class that represent a component/device whose properties are going to be monitored

---

Constructor & Destructor Documentation

TMCDB::MonitorComponent::MonitorComponent	(	ACS::CharacteristicComponent_ptr	comp,
		maci::ContainerServices *	cs
	)

ctor where , MonitorDataBlock is also created.

virtual TMCDB::MonitorComponent::~MonitorComponent

(

)

[virtual]

---

Member Function Documentation

void TMCDB::MonitorComponent::addAllProperties

(

)

adds all component's properties

bool TMCDB::MonitorComponent::addProperty

(

const char *

propName

)

adds a property with certain name the method has to find the type and monitoring interval

bool TMCDB::MonitorComponent::addProperty	(	const char *	propName,
		const char *	pType,
		ACS::Property *	propRef,
		ACS::TimeInterval &	monitoringInterval
	)

void TMCDB::MonitorComponent::enable_archiving

(

const char *

propertyName

)

void TMCDB::MonitorComponent::fillSeq

(

)

MonitorDataBlock& TMCDB::MonitorComponent::getMonitorDataBlock

(

)

[inline]

References monitorDataBlock_m.

ACS::TimeInterval TMCDB::MonitorComponent::propertyArchivingInterval

(

ACS::PropertyDesc *

)

[private]

returns archiving interval for the property if the interval is 0 means that shall not be archived for archive

void TMCDB::MonitorComponent::set_archiving_interval	(	const char *	propertyName,
		ACS::TimeInterval	time
	)

void TMCDB::MonitorComponent::setDeviceSerialNumber

(

serialNumberType

sn

)

void TMCDB::MonitorComponent::setPropertySerialNumber	(	char *	propertyName,
		serialNumberTypeSeq	sn
	)

void TMCDB::MonitorComponent::startMonitoring

(

)

void TMCDB::MonitorComponent::stopMonitoring

(

)

void TMCDB::MonitorComponent::suppress_archiving

(

const char *

propertyName

)

---

Member Data Documentation

ACS::CharacteristicComponentDesc_var TMCDB::MonitorComponent::compDesc_m [private]

Description of the monitored characteristic component.

ACS::CharacteristicComponent_var TMCDB::MonitorComponent::component_m [private]

component reference

maci::ContainerServices* TMCDB::MonitorComponent::containerServices_m [private]

ACS::Time TMCDB::MonitorComponent::m_monitoringStartTime [private]

is monitoring turned on or off ?

ACE_Thread_Mutex TMCDB::MonitorComponent::m_proMutex [private]

time when the monitoring started

MonitorDataBlock TMCDB::MonitorComponent::monitorDataBlock_m [private]

here we collect data for the device

Referenced by getMonitorDataBlock().

bool TMCDB::MonitorComponent::monitoring_m [private]

std::vector<MonitorPointBase*> TMCDB::MonitorComponent::monitorPoints_m [private]

list of properties - points that we have to monitor

CORBA::ULong TMCDB::MonitorComponent::numOfProp_m [private]

number of properties that monitored characteristic component has

unsigned int TMCDB::MonitorComponent::seqIndex_m [private]

index of last added property in monitorPoints_m and monitorDataBlock_m.monitorBlobs

---

The documentation for this class was generated from the following file:

• MonitorComponent.h
