ACSAlarmSystemInterfaceFactory Class Reference

#include <ACSAlarmSystemInterfaceFactory.h>

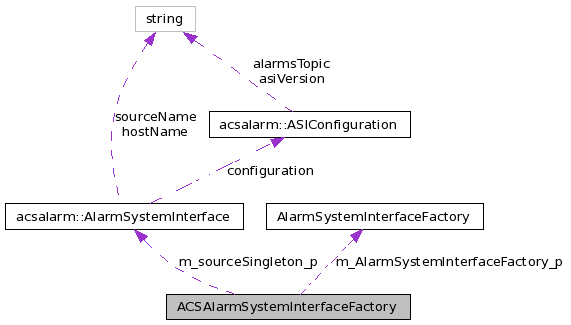

Collaboration diagram for ACSAlarmSystemInterfaceFactory:

List of all members.

Static Public Member Functions
static maci::Manager_ptr	getManager ()
static bool	init (maci::Manager_ptr manager) throw (acsErrTypeAlarmSourceFactory::ErrorLoadingCERNDLLExImpl)
static AlarmSystemType	usingACSAlarmSystem () throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl)
static void	done ()
static acsalarm::AlarmSystemInterface *	createSource (std::string sourceName) throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl)
static acsalarm::AlarmSystemInterface *	createSource () throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl)
static std::auto_ptr < acsalarm::FaultState >	createFaultState (std::string family, std::string member, int code) throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl)
static std::auto_ptr < acsalarm::FaultState >	createFaultState () throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl)
static void	createAndSendAlarm (std::string &faultFamily, std::string &faultMember, int faultCode, bool active, std::string sourceName=asiConfigurationConstants::ALARM_SOURCE_NAME) throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl)
static void	createAndSendAlarm (std::string &faultFamily, std::string &faultMember, int faultCode, bool active, acsalarm::Properties &faultProperties, std::string sourceName=asiConfigurationConstants::ALARM_SOURCE_NAME) throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl)
Private Member Functions
	ACSAlarmSystemInterfaceFactory ()
	ACSAlarmSystemInterfaceFactory (const ACSAlarmSystemInterfaceFactory &)
ACSAlarmSystemInterfaceFactory	operator= (const ACSAlarmSystemInterfaceFactory &)
	~ACSAlarmSystemInterfaceFactory ()
Static Private Member Functions
static void	cleanUpAlarmSystemInterfacePtr ()
static void	cleanUpSourceSingleton ()
static void	cleanUpDLL ()
static void	cleanUpManagerReference ()
static void	initImplementationType (maci::Manager_ptr manager)
static bool	initDLL ()
static acsalarm::AlarmSystemInterface *	getSourceSingleton ()
Static Private Attributes
static void *	dllHandle
static acsalarm::AlarmSystemInterface *	m_sourceSingleton_p
static AlarmSystemType	m_AlarmSystemType
static maci::Manager_ptr	m_manager
static AlarmSystemInterfaceFactory *	m_AlarmSystemInterfaceFactory_p
static ACE_Recursive_Thread_Mutex	main_mutex

---

Detailed Description

The class to create sources and fault states. It extends the laser source but it returns different implementations of the sources depending of a value of a property of the CDB

The ACS implementation of the source logs a message for each alarm

Before using the static methods of this class, the init method must be called otherwise an exception is thrown.

---

Constructor & Destructor Documentation

ACSAlarmSystemInterfaceFactory::ACSAlarmSystemInterfaceFactory

(

)

[private]

Default constructor.

ACSAlarmSystemInterfaceFactory::ACSAlarmSystemInterfaceFactory

(

const ACSAlarmSystemInterfaceFactory &

)

[private]

ACSAlarmSystemInterfaceFactory::~ACSAlarmSystemInterfaceFactory

(

)

[private]

---

Member Function Documentation

static void ACSAlarmSystemInterfaceFactory::cleanUpAlarmSystemInterfacePtr

(

)

[static, private]

static void ACSAlarmSystemInterfaceFactory::cleanUpDLL

(

)

[static, private]

static void ACSAlarmSystemInterfaceFactory::cleanUpManagerReference

(

)

[static, private]

static void ACSAlarmSystemInterfaceFactory::cleanUpSourceSingleton

(

)

[static, private]

static void ACSAlarmSystemInterfaceFactory::createAndSendAlarm	(	std::string &	faultFamily,
		std::string &	faultMember,
		int	faultCode,
		bool	active,
		std::string	sourceName = asiConfigurationConstants::ALARM_SOURCE_NAME
	)			throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl) [static]

Convenience API for creating/sending an alarm in a single step, without user defined properties.

Parameters:

	family	a string indicating the 'family' of the alarm (see alarm system documentation for explanation).
	member	a string indicating the 'member' of the alarm (see alarm system documentation for explanation).
	code	an int indicating the 'code' of the alarm (see alarm system documentation for explanation).
	active	a boolean indicating if the alarm is active (true) or not (false)
	sourceName	the source name, defaults to ALARM_SOURCE_NAME constant defined in "asiConfigurationConstants.h"

Exceptions:

ACSASFactoryNotInitedExImpl

if the alarm system has not been previously initialized.

static void ACSAlarmSystemInterfaceFactory::createAndSendAlarm	(	std::string &	faultFamily,
		std::string &	faultMember,
		int	faultCode,
		bool	active,
		acsalarm::Properties &	faultProperties,
		std::string	sourceName = asiConfigurationConstants::ALARM_SOURCE_NAME
	)			throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl) [static]

Convenience API for creating/sending an alarm in a single step, with user-defined properties.

Parameters:

	family	a string indicating the 'family' of the alarm (see alarm system documentation for explanation).
	member	a string indicating the 'member' of the alarm (see alarm system documentation for explanation).
	code	an int indicating the 'code' of the alarm (see alarm system documentation for explanation).
	active	a boolean indicating if the alarm is active (true) or not (false)
	faultProperties	user-defined properties associated with the alarm.
	sourceName	the source name, defaults to ALARM_SOURCE_NAME constant defined in "asiConfigurationConstants.h"

Exceptions:

ACSASFactoryNotInitedExImpl

if the alarm system has not been previously initialized.

static std::auto_ptr<acsalarm::FaultState> ACSAlarmSystemInterfaceFactory::createFaultState

(

)

throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl) [static]

Create a fault state

Exceptions:

ACSASFactoryNotInitedExImpl

if the alarm system has not been previously initialized.

static std::auto_ptr<acsalarm::FaultState> ACSAlarmSystemInterfaceFactory::createFaultState	(	std::string	family,
		std::string	member,
		int	code
	)			throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl) [static]

Create a fault state with the given family, member and code

Parameters:

	family	a string indicating the 'family' of the alarm (see alarm system documentation for explanation).
	member	a string indicating the 'member' of the alarm (see alarm system documentation for explanation).
	code	an int indicating the 'code' of the alarm (see alarm system documentation for explanation).

Exceptions:

ACSASFactoryNotInitedExImpl

if the alarm system has not been previously initialized.

static acsalarm::AlarmSystemInterface* ACSAlarmSystemInterfaceFactory::createSource

(

std::string

sourceName

)

throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl) [static]

Create a new instance of an alarm system interface.

Parameters:

sourceName

the source name.

Exceptions:

ACSASFactoryNotInitedExImpl

if the alarm system has not been previously initialized.

Returns:

the interface instance.

static acsalarm::AlarmSystemInterface* ACSAlarmSystemInterfaceFactory::createSource

(

)

throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl) [static]

Create a new instance of an alarm system interface without binding it to any source.

Exceptions:

ACSASFactoryNotInitedExImpl

if the alarm system has not been previously initialized.

Returns:

the interface instance.

static void ACSAlarmSystemInterfaceFactory::done

(

)

[static]

Release the resources: must be called when finished using the methods of this class

static maci::Manager_ptr ACSAlarmSystemInterfaceFactory::getManager

(

)

[static]

static acsalarm::AlarmSystemInterface* ACSAlarmSystemInterfaceFactory::getSourceSingleton

(

)

[static, private]

Return the source singleton;

If the singleton is null, this method instatiates a new one.

static bool ACSAlarmSystemInterfaceFactory::init

(

maci::Manager_ptr

manager

)

throw (acsErrTypeAlarmSourceFactory::ErrorLoadingCERNDLLExImpl) [static]

Init the object of the class: must be called before using the other methods of this class otherwise an exception will be thrown.

Parameters:

manager

ptr to the acs manager.

Exceptions:

acsErrTypeAlarmSourceFactory::ErrorLoadingCERNDLLExImpl

if there was a problem loading the DLL

Returns:

true if the initialization went ok

static bool ACSAlarmSystemInterfaceFactory::initDLL

(

)

[static, private]

static void ACSAlarmSystemInterfaceFactory::initImplementationType

(

maci::Manager_ptr

manager

)

[static, private]

ACSAlarmSystemInterfaceFactory ACSAlarmSystemInterfaceFactory::operator=

(

const ACSAlarmSystemInterfaceFactory &

)

[private]

static AlarmSystemType ACSAlarmSystemInterfaceFactory::usingACSAlarmSystem

(

)

throw (acsErrTypeAlarmSourceFactory::ACSASFactoryNotInitedExImpl) [static]

Getter for whether we're using the ACS Alarm system (true) or not (false).

Exceptions:

ACSASFactoryNotInitedExImpl

if the alarm system has not been previously initialized.

Returns:

boolean indicating whether the ACS alarm system is in use (true) or not (false), where ACS alarm system means alarms are sent to the logs, otherwise they are sent to the alarm channel.

---

Member Data Documentation

void* ACSAlarmSystemInterfaceFactory::dllHandle [static, private]

AlarmSystemInterfaceFactory* ACSAlarmSystemInterfaceFactory::m_AlarmSystemInterfaceFactory_p [static, private]

AlarmSystemType ACSAlarmSystemInterfaceFactory::m_AlarmSystemType [static, private]

maci::Manager_ptr ACSAlarmSystemInterfaceFactory::m_manager [static, private]

acsalarm::AlarmSystemInterface* ACSAlarmSystemInterfaceFactory::m_sourceSingleton_p [static, private]

ACE_Recursive_Thread_Mutex ACSAlarmSystemInterfaceFactory::main_mutex [static, private]

---

The documentation for this class was generated from the following file:

• ACSAlarmSystemInterfaceFactory.h
