AlarmSystemInterfaceFactory Class Reference

#include <AlarmSystemInterfaceFactory.h>

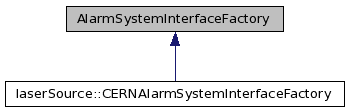

Inheritance diagram for AlarmSystemInterfaceFactory:

List of all members.

Public Member Functions
virtual	~AlarmSystemInterfaceFactory ()
virtual bool	init ()=0
virtual void	done ()=0
virtual acsalarm::AlarmSystemInterface *	createSource (std::string sourceName)=0
virtual acsalarm::AlarmSystemInterface *	createSource ()=0
virtual std::auto_ptr < acsalarm::FaultState >	createFaultState (std::string family, std::string member, int code)
virtual std::auto_ptr < acsalarm::FaultState >	createFaultState ()

---

Detailed Description

The abstract base class (actually just an interface) to create sources and fault states.

---

Constructor & Destructor Documentation

virtual AlarmSystemInterfaceFactory::~AlarmSystemInterfaceFactory

(

)

[inline, virtual]

---

Member Function Documentation

virtual std::auto_ptr<acsalarm::FaultState> AlarmSystemInterfaceFactory::createFaultState	(	std::string	family,
		std::string	member,
		int	code
	)			[virtual]

Create a fault state with the given family, member and code

virtual std::auto_ptr<acsalarm::FaultState> AlarmSystemInterfaceFactory::createFaultState

(

)

[virtual]

Create a fault state

virtual acsalarm::AlarmSystemInterface* AlarmSystemInterfaceFactory::createSource

(

)

[pure virtual]

Create a new instance of an alarm system interface without binding it to any source.

Returns:

the interface instance.

Implemented in laserSource::CERNAlarmSystemInterfaceFactory.

virtual acsalarm::AlarmSystemInterface* AlarmSystemInterfaceFactory::createSource

(

std::string

sourceName

)

[pure virtual]

Create a new instance of an alarm system interface.

Parameters:

sourceName

the source name.

Returns:

the interface instance.

Implemented in laserSource::CERNAlarmSystemInterfaceFactory.

virtual void AlarmSystemInterfaceFactory::done

(

)

[pure virtual]

Release the resources: must be called when finished using the methods of this class

Implemented in laserSource::CERNAlarmSystemInterfaceFactory.

virtual bool AlarmSystemInterfaceFactory::init

(

)

[pure virtual]

Init the object of the class: must be called before using the other methods of this class otherwise an exception will be thrown. Return true if the initialization went ok

Implemented in laserSource::CERNAlarmSystemInterfaceFactory.

---

The documentation for this class was generated from the following file:

• AlarmSystemInterfaceFactory.h
