#include <maciSimpleClient.h>

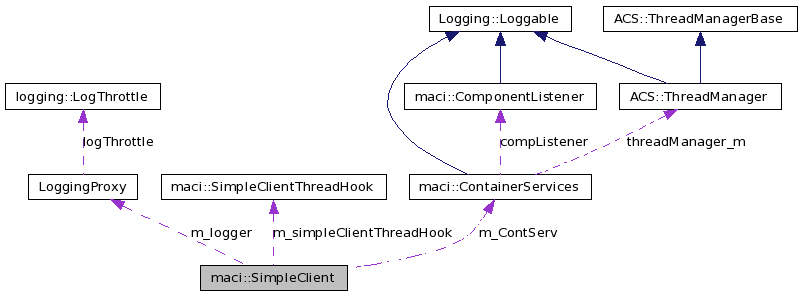

Collaboration diagram for maci::SimpleClient:

Public Member Functions
	SimpleClient ()
virtual	~SimpleClient ()
int	destroy ()
int	initCORBA (int argc, char *argv[])
CORBA::ORB_ptr	getORB ()
int	doneCORBA ()
int	login ()
int	logout ()
int	init (int argc, char *argv[])
int	run (ACE_Time_Value &tv)
int	run ()
maci::Manager_ptr	manager ()
maci::Handle	handle ()
CORBA::Object_ptr	getComponent (const char name, const char domain, bool activate)
CORBA::Object_ptr	get_object (const char name, const char domain, bool activate)
template<class T >
T *	getComponent (const char name, const char domain, bool activate)
CORBA::Object *	getDynamicComponent (maci::ComponentSpec compSpec, bool markAsDefault)
template<class T >
T *	getDynamicComponent (maci::ComponentSpec compSpec, bool markAsDefault)
template<class T >
ComponentSmartPtr< T >	getComponentSmartPtr (const char name, const char domain, bool activate)
template<class T >
ComponentSmartPtr< T >	getDynamicComponentSmartPtr (maci::ComponentSpec compSpec, bool markAsDefault)
template<class T >
T *	get_object (const char name, const char domain, bool activate)
CORBA::Object *	getComponentNonSticky (const char *name)
template<class T >
T *	getComponentNonSticky (const char *name)
template<class T >
ComponentSmartPtr< T >	getComponentNonStickySmartPtr (const char *name)
long	releaseComponent (const char *name)
template<class T >
T *	getDefaultComponent (const char *idlType)
template<typename T >
SmartPtr< T >	getDefaultComponentSmartPtr (const char *idlType)
CORBA::Object *	getCORBADefaultComponent (const char *idlType)
template<class T >
T *	getCollocatedComponent (maci::ComponentSpec compSpec, bool markAsDefault, const char *targetComponent)
template<typename T >
SmartPtr< T >	getCollocatedComponentSmartPtr (maci::ComponentSpec compSpec, bool markAsDefault, const char *targetComponent)
CORBA::Object *	getCORBACollocatedComponent (maci::ComponentSpec compSpec, bool markAsDefault, const char *targetComponent)
ACE_CString_Vector	findComponents (const char nameWilcard, const char typeWildcard)
maci::ComponentInfo	getComponentDescriptor (const char *componentName)
ContainerServices *	getContainerServices ()
virtual char *	name ()
virtual void	disconnect ()
virtual ::maci::AuthenticationData *	authenticate (::maci::ExecutionId execution_id, const char *question)
virtual void	message (CORBA::Short type, const char *message)
virtual void	taggedmessage (CORBA::Short type, CORBA::Short tag, const char *message)
virtual void	components_available (const maci::ComponentInfoSeq &cobs)
virtual void	components_unavailable (const maci::stringSeq &cob_names)
virtual CORBA::Boolean	ping ()
Static Public Member Functions
static void	initThread (const char *threadName)
static void	doneThread ()
static LoggingProxy *	getLoggerProxy ()
static const char *	getProcessName ()
Private Attributes
maci::Manager_var	m_manager
	Reference to the Manager.
maci::Handle	m_handle
	Handle.
bool	m_initialized
	Initialization status.
bool	m_loggedin
	Manager Logging status.
PortableServer::POA_var	m_poaRoot
	Root POA.
PortableServer::POA_var	m_poaPersistent
	Persistent POA.
PortableServer::POA_var	m_poaTransient
	Persistent POA.
CORBA::ORB_var	m_orb
	The CORBA ORB.
maci::SimpleClientThreadHook	m_simpleClientThreadHook
	threads' standard start-up hook
maci::ExecutionId	m_executionId
	execution id
ACS::Time	m_startTime
	client start time
ContainerServices *	m_ContServ
	Container Services Reference.
Static Private Attributes
static LoggingProxy *	m_logger
	Logger.
static ACE_CString	m_processName
	The name of the process.

Detailed Description

The class SimpleClient is the base class for a ACS C++ client. It hides most of the CORBA interface to the implementation of the real client.

Constructor & Destructor Documentation

maci::SimpleClient::SimpleClient ( )

Constructor.

virtual maci::SimpleClient::~SimpleClient ( ) [virtual]

Destructor.

Member Function Documentation

virtual ::maci::AuthenticationData* maci::SimpleClient::authenticate	(	::maci::ExecutionId	execution_id,
		const char *	question
	)

Authentication method. Method authenticate is the challenge issued to the client after it tries to login. The login will be successful if the client's authenticate() produces the expected result. Only in this case will the Manager's login method return a valid handle, which the client will later use as the id parameter with all calls to the Manager.

Parameters:

The

question posed by the Manager.

Returns:: Answer to the question. The first character of the answer identifies the type of the client: A An container (implements the Container interface) C A client (implements the Client interface) S A supervisor (implements the Administrator interface)

virtual void maci::SimpleClient::components_available ( const maci::ComponentInfoSeq & cobs ) [virtual]

Notify client about the change (availability) of the components currently in use by this client. For administrative clients, notification is issued for the change of availability of any component in the domain.

Parameters:

cobs

A sequence of ComponentInfo structures identifying the affected components. Regular clients receive the name, the type, the handle and the reference of the newly activated component. Administrative clients also receive the handle of the Container where the component was activated.

virtual void maci::SimpleClient::components_unavailable ( const maci::stringSeq & cob_names ) [virtual]

Notify client that some of the components currently in use by client have become unavailable.

Parameters:

cob_names

CURLs of the unavailable components

int maci::SimpleClient::destroy ( )

Destroys Client.

Returns:: 0 on failure

virtual void maci::SimpleClient::disconnect ( ) [virtual]

Disconnect notification. The disconnect method is called by the Manager to notify the client that it will be unavailable and that the client should log off.

int maci::SimpleClient::doneCORBA ( )

Finalizes CORBA.

Returns:: 0 on failure

static void maci::SimpleClient::doneThread ( ) [static]

ACE_CString_Vector maci::SimpleClient::findComponents	(	const char *	nameWilcard,
		const char *	typeWildcard
	)

Finds components by their instance name (curl) and/or by their type. Wildcards can be used for the curl and type. This method returns a possibly empty array of component curls; for each curl, you may use getComponent to obtain the reference.

Parameters:

	nameWildcard	(`null` is understood as "*")
	typeWildcard	(`null` is understood as "*")

Returns:: A vector of ACE_CString that contains the name of the component(s) that match the search.

template<class T >

T* maci::SimpleClient::get_object	(	const char *	name,
		const char *	domain,
		bool	activate
	)			`[inline]`

It just redirected call to getComponent (template version)

Deprecated:: the method is deprecated and will be removed in future version of ACS

Exceptions:

maciErrType::CannotGetComponentExImpl

CORBA::Object_ptr maci::SimpleClient::get_object	(	const char *	name,
		const char *	domain,
		bool	activate
	)			`[inline]`

It just redirect call to the getComponent

Deprecated:: get_object is deprecated and will be removed in future version of ACS

Exceptions:

maciErrType::CannotGetComponentExImpl

template<class T >

T * maci::SimpleClient::getCollocatedComponent	(	maci::ComponentSpec	compSpec,
		bool	markAsDefault,
		const char *	targetComponent
	)

Gets a collocated component This method uses templates, so no cast to the request object is required

Parameters:

	compSpec	The description of the component to activate
	markAsDefault	If true, the component becomes the default component for that IDL type
	targetComponent	name of the target component (where to activate component)

Exceptions:

	maciErrType::NoPermissionExImpl
	maciErrType::IncompleteComponentSpecExImpl
	maciErrType::InvalidComponentSpecExImpl
	maciErrType::ComponentSpecIncompatibleWithActiveComponentExImpl
	maciErrType::CannotGetComponentExImpl

Returns:: The reference to the component

template<typename T >

maci::SmartPtr< T > maci::SimpleClient::getCollocatedComponentSmartPtr	(	maci::ComponentSpec	compSpec,
		bool	markAsDefault,
		const char *	targetComponent
	)

Gets a smart ponter to a collocated component This method uses templates, so no cast to the request object is required

Parameters:

	compSpec	The description of the component to activate
	markAsDefault	If true, the component becomes the default component for that IDL type
	targetComponent	name of the target component (where to activate component)

Exceptions:

	maciErrType::NoPermissionExImpl
	maciErrType::IncompleteComponentSpecExImpl
	maciErrType::InvalidComponentSpecExImpl
	maciErrType::ComponentSpecIncompatibleWithActiveComponentExImpl
	maciErrType::CannotGetComponentExImpl

Returns:: A smart pointer containing the reference to the component

template<class T >

T* maci::SimpleClient::getComponent	(	const char *	name,
		const char *	domain,
		bool	activate
	)

Get a component, activating it if necessary and directly narrows it to the type declared in the template definition. The client must have adequate access rights to access the component. This is untrue of components: NameService, Log, LogFactory, NotifyEventChannelFactory, ArchivingChannel, LoggingChannel, InterfaceRepository, CDB and PDB.

Parameters:

	name	name of the component (e.g. MOUNT1)
	domain	domain name, 0 for default domain
	activate	true to activate component, false to leave it in the current state

Returns:: reference to the component.

Exceptions:

maciErrType::CannotGetComponentExImpl

If the component could not be activated For example:

    MACI_TEST::MaciTestClass_var maciTestDO = client.getComponent<MACI_TEST::MaciTestClass>(argv[1], 0, true);

See also:: getComponent()

T * maci::SimpleClient::getComponent	(	const char *	name,
		const char *	domain,
		bool	activate
	)

Get a component, activating it if necessary. The client must have adequate access rights to access the component. This is untrue of components: NameService, Log, LogFactory, NotifyEventChannelFactory, ArchivingChannel, LoggingChannel, InterfaceRepository, CDB and PDB.

Parameters:

	name	name of the component (e.g. MOUTN1)
	domain	domain name, 0 for default domain
	activate	true to activate component, false to leave it in the current state

Returns:: reference to the component.

Exceptions:

maciErrType::CannotGetComponentExImpl

If the component could not be activated

See also:: template<class T> T* getComponent

First creates the CURL, if not already a CURL, and query the Manager for the component

Todo:: why here is using get_service and not get_component ?

References ACS_SHORT_LOG, m_handle, m_initialized, manager(), name(), and releaseComponent().

maci::ComponentInfo maci::SimpleClient::getComponentDescriptor ( const char * componentName )

Gets the component info for the component

Parameters:

componentName

The name of the component

Exceptions:

acsErrTypeContainerServices::GettingCompInfoExImpl

Returns:: The ComponentInfo struct of the component

T * maci::SimpleClient::getComponentNonSticky ( const char * name )

Returns a non-sticky reference to a component

Parameters:

name

name (CURL) of the component

Exceptions:

maciErrType::CannotGetComponentExImpl

Returns:: reference to the component for details see get_component_non_sticky

template<class T >

T* maci::SimpleClient::getComponentNonSticky ( const char * name )

template version of getComponentNonSticky Returns a non-sticky reference to a component

Parameters:

name

name (CURL) of the component

Exceptions:

maciErrType::CannotGetComponentExImpl

Returns:: reference to the component for details see get_component_non_sticky

template<class T >

ComponentSmartPtr< T > maci::SimpleClient::getComponentNonStickySmartPtr ( const char * name )

template version of getComponentNonSticky Returns a SmartPointer to a component

Parameters:

name

name (CURL) of the component

Exceptions:

maciErrType::CannotGetComponentExImpl

Returns:: reference to the component for details see get_component_non_sticky

template<class T >

ComponentSmartPtr< T > maci::SimpleClient::getComponentSmartPtr	(	const char *	name,
		const char *	domain,
		bool	activate
	)

Get a SmartPointer to a component, activating it if necessary and directly narrows it to the type declared in the template definition. The client must have adequate access rights to access the component. This is untrue of components: NameService, Log, LogFactory, NotifyEventChannelFactory, ArchivingChannel, LoggingChannel, InterfaceRepository, CDB and PDB.

Parameters:

	name	name of the component (e.g. MOUNT1)
	domain	domain name, 0 for default domain
	activate	true to activate component, false to leave it in the current state

Returns:: Smart Pointer to the component.

Exceptions:

maciErrType::CannotGetComponentExImpl

If the component could not be activated For example:

    ComponentSmartPtr<MACI_TEST::MaciTestClass> maciTestDO = client.getComponentSmartPtr<MACI_TEST::MaciTestClass>(argv[1], 0, true);

See also:: getComponent()

ContainerServices* maci::SimpleClient::getContainerServices ( )

Gets the Container Services reference

CORBA::Object* maci::SimpleClient::getCORBACollocatedComponent	(	maci::ComponentSpec	compSpec,
		bool	markAsDefault,
		const char *	targetComponent
	)

Gets a collocated component as a Corba object.

Parameters:

	compSpec	The description of the component to activate
	markAsDefault	If true, the component becomes the default component for that IDL type
	targetComponent	name of the target component (where to activate component)

Exceptions:

	maciErrType::NoPermissionExImpl
	maciErrType::IncompleteComponentSpecExImpl
	maciErrType::InvalidComponentSpecExImpl
	maciErrType::ComponentSpecIncompatibleWithActiveComponentExImpl
	maciErrType::CannotGetComponentExImpl

Returns:: The reference to the component

CORBA::Object* maci::SimpleClient::getCORBADefaultComponent ( const char * idlType )

Gets the default component specified by the IDL component type as a CORBA object.

Parameters:

idlType,:

the idl type of the component to activate For example IDL:alma/PS/PowerSupply:1.0

Exceptions:

	maciErrType::NoPermissionExImpl
	maciErrType::NoDefaultComponentExImpl
	maciErrType::CannotGetComponentExImpl

Returns:: The reference to the component

template<class T >

T * maci::SimpleClient::getDefaultComponent ( const char * idlType )

Gets the default component specified by the IDL component type

Parameters:

idlType,:

the idl type of the component to activate For example IDL:alma/PS/PowerSupply:1.0

Template Parameters:

T,:

The type of the object to be returned

Exceptions:

	maciErrType::NoPermissionExImpl
	maciErrType::NoDefaultComponentExImpl
	maciErrType::CannotGetComponentExImpl

Returns:: The reference to the component

template<typename T >

maci::SmartPtr< T > maci::SimpleClient::getDefaultComponentSmartPtr ( const char * idlType )

Gets a smart pointer to the default component specified by the IDL component type. This method uses templates, so no cast to the request object is required

Parameters:

idlType,:

the idl type of the component to activate For example IDL:alma/PS/PowerSupply:1.0

Exceptions:

	maciErrType::NoPermissionExImpl
	maciErrType::NoDefaultComponentExImpl
	maciErrType::CannotGetComponentExImpl

Returns:: A smart pointer containing the reference to the component

T * maci::SimpleClient::getDynamicComponent	(	maci::ComponentSpec	compSpec,
		bool	markAsDefault
	)

Exceptions:

	maciErrType::NoPermissionExImpl
	maciErrType::IncompleteComponentSpecExImpl
	maciErrType::InvalidComponentSpecExImpl
	maciErrType::ComponentSpecIncompatibleWithActiveComponentExImpl
	maciErrType::CannotGetComponentExImpl

template<class T >

T* maci::SimpleClient::getDynamicComponent	(	maci::ComponentSpec	compSpec,
		bool	markAsDefault
	)

Exceptions:

	maciErrType::NoPermissionExImpl
	maciErrType::IncompleteComponentSpecExImpl
	maciErrType::InvalidComponentSpecExImpl
	maciErrType::ComponentSpecIncompatibleWithActiveComponentExImpl
	maciErrType::CannotGetComponentExImpl

template<class T >

ComponentSmartPtr< T > maci::SimpleClient::getDynamicComponentSmartPtr	(	maci::ComponentSpec	compSpec,
		bool	markAsDefault
	)

Exceptions:

	maciErrType::NoPermissionExImpl
	maciErrType::IncompleteComponentSpecExImpl
	maciErrType::InvalidComponentSpecExImpl
	maciErrType::ComponentSpecIncompatibleWithActiveComponentExImpl
	maciErrType::CannotGetComponentExImpl

static LoggingProxy* maci::SimpleClient::getLoggerProxy ( ) [inline, static]

Get logging proxy instance

Returns:: logging proxy instance

CORBA::ORB_ptr maci::SimpleClient::getORB ( )

Get ORB

static const char* maci::SimpleClient::getProcessName ( ) [inline, static]

Get SimpleClient's proces name

Returns:: SimpleClient's proces name

maci::Handle maci::SimpleClient::handle ( )

Get handle of the client.

Returns:: handle

int maci::SimpleClient::init	(	int	argc,
		char *	argv[]
	)

The init method logs in to the requested manager. Default is the local manager (if no arguments are given). To specify a remote manager give the parameter -m corbaloc::<host name>="">:<port number>="">/<manager>

example: -m corbaloc::te1.hq.eso.org:xxxx/Manager

Returns:: 0 on failure

int maci::SimpleClient::initCORBA	(	int	argc,
		char *	argv[]
	)

Initializes CORBA.

Returns:: 0 on failure

static void maci::SimpleClient::initThread ( const char * threadName ) [static]

int maci::SimpleClient::login ( )

Login method Logins client to the manager.

Returns:: 0 on failure

int maci::SimpleClient::logout ( )

Logout method.

Returns:: 0 on failure

maci::Manager_ptr maci::SimpleClient::manager ( )

Get manager CORBA reference.

Returns:: manager CORBA reference

Referenced by getComponent().

virtual void maci::SimpleClient::message	(	CORBA::Short	type,
		const char *	message
	)			`[virtual]`

The Manager and administrators use this method for sending textual messages to the client.

Parameters:

	type	Can be either MSG_ERROR or MSG_INFORMATION.
	message	Contents of the message. The contents are human readable.

virtual char* maci::SimpleClient::name ( ) [virtual]

Client name

Referenced by getComponent().

virtual CORBA::Boolean maci::SimpleClient::ping ( ) [virtual]

Manager pings its clients (both GUI clients, as well as Containers) repeatedly to verify that they still exist. The return value can be either true, indicating that everything is OK with the client, of false, indicating that client is malfunctioning. If CORBA::TRANSIENT exception is thrown, the Manager should retry the ping several times, and only then shall the client be assumed to be malfunctioning. If another exception is thrown, the client may be immediately assumed to be malfunctioning. Once the client is found to be malfunctioning, the Manager makes an implicit logout of the client.

Returns:: true, indicating that everything is OK with the client, of false, indicating that client is malfunctioning.

long maci::SimpleClient::releaseComponent ( const char * name )

Releases the componet.

Parameters:

name

component name

Returns:: Number of clients that are still using the component after the operation completed.

Exceptions:

maciErrType::CannotReleaseComponentExImpl

when there is a problem

Referenced by getComponent().

int maci::SimpleClient::run ( ACE_Time_Value & tv )

Run the ORB event loop with the specified <tv> time value.

Parameters:

tv

time to run

Returns:: 0 on failure

int maci::SimpleClient::run ( )

Run the ORB event loop until terminated or shutdown.

Returns:: 0 on failure

virtual void maci::SimpleClient::taggedmessage	(	CORBA::Short	type,
		CORBA::Short	tag,
		const char *	message
	)			`[virtual]`

The Manager and administrators use this method for sending tagged textual messages to the client.

Parameters:

	type	Can be either MSG_ERROR or MSG_INFORMATION.
	tag	Additional information about the message
	message	Contents of the message. The contents are human readable.
