acsalarm::AlarmSourceImpl Class Reference

#include <AlarmSourceImpl.h>

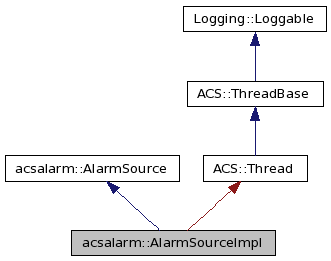

Inheritance diagram for acsalarm::AlarmSourceImpl:

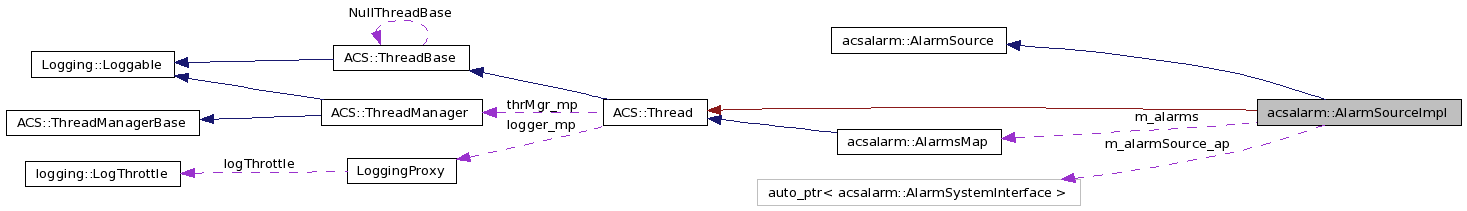

Collaboration diagram for acsalarm::AlarmSourceImpl:

List of all members.

Public Member Functions
	AlarmSourceImpl ()
virtual	~AlarmSourceImpl ()
void	raiseAlarm (std::string faultFamily, std::string faultMember, int faultCode)
void	raiseAlarm (std::string faultFamily, std::string faultMember, int faultCode, Properties properties)
void	clearAlarm (std::string faultFamily, std::string faultMember, int faultCode)
void	setAlarm (std::string faultFamily, std::string faultMember, int faultCode, Properties alarmProps, bool active)
void	setAlarm (std::string faultFamily, std::string faultMember, int faultCode, bool active)
void	terminateAllAlarms ()
void	queueAlarms (ACS::TimeInterval time)
void	queueAlarms ()
void	flushAlarms ()
void	disableAlarms ()
void	enableAlarms ()
void	runLoop ()
void	start ()
void	tearDown ()
Private Member Functions
std::string	buildAlarmID (std::string faultFamily, std::string faultMember, int faultCode)
void	internalAlarmSender (std::string faultFamily, std::string faultMember, int faultCode, Properties alarmProps, bool active)
Private Attributes
bool	m_disabled
bool	m_queuing
ACE_Recursive_Thread_Mutex	m_mutex
std::map< std::string, AlarmToQueue * >	m_queue
std::set< std::string >	m_activatedAlarms
AlarmsMap	m_alarms
auto_ptr < acsalarm::AlarmSystemInterface >	m_alarmSource_ap

---

Detailed Description

An implementation of AlarmSource.

This class uses the ACSAlarmInterfaceFactory to publish alarms. It assumes that the ACSAlarmInterfaceFactory is already initialized before using this class. In the same way, it assumes that ACSAlarmInterfaceFactory is shutdown after terminated using objects from this class. At the present, this is usually done by ACS for example for the components and the clients.

It is possible to send alarms with several overloaded methods like raise(...), clear(...) and set(...). All the overloaded methods delegate to set(...). internalAlarmSend(..) does the real sending of alarms to the alarm server.

See also:

AlarmSource

Author:

acaproni

---

Constructor & Destructor Documentation

acsalarm::AlarmSourceImpl::AlarmSourceImpl

(

)

Constructor

Parameters:

manager

The ACS manager

virtual acsalarm::AlarmSourceImpl::~AlarmSourceImpl

(

)

[virtual]

Destructor

---

Member Function Documentation

std::string acsalarm::AlarmSourceImpl::buildAlarmID	(	std::string	faultFamily,
		std::string	faultMember,
		int	faultCode
	)			[private]

Build the ID of an alarm from the triplet

Parameters:

	faultFamily	The Fault Family
	faultMember	The Fault Member
	faultCode	The Fault Code

void acsalarm::AlarmSourceImpl::clearAlarm	(	std::string	faultFamily,
		std::string	faultMember,
		int	faultCode
	)

See also:

AlarmSource

void acsalarm::AlarmSourceImpl::disableAlarms

(

)

See also:

AlarmSource

void acsalarm::AlarmSourceImpl::enableAlarms

(

)

See also:

AlarmSource

void acsalarm::AlarmSourceImpl::flushAlarms

(

)

See also:

AlarmSource

void acsalarm::AlarmSourceImpl::internalAlarmSender	(	std::string	faultFamily,
		std::string	faultMember,
		int	faultCode,
		Properties	alarmProps,
		bool	active
	)			[private]

Send an alarm to the alarm server.

Parameters:

	faultFamily	The FaultFamily
	faultMember	The FaultMember
	faultCode	The FaultCode
	alarmProps	The user properties. It can be null or empty.
	active	if true the alarm is activated otherwise it is terminated.

void acsalarm::AlarmSourceImpl::queueAlarms

(

)

See also:

AlarmSource

void acsalarm::AlarmSourceImpl::queueAlarms

(

ACS::TimeInterval

time

)

See also:

AlarmSource

void acsalarm::AlarmSourceImpl::raiseAlarm	(	std::string	faultFamily,
		std::string	faultMember,
		int	faultCode,
		Properties	properties
	)

See also:

AlarmSource

void acsalarm::AlarmSourceImpl::raiseAlarm	(	std::string	faultFamily,
		std::string	faultMember,
		int	faultCode
	)

See also:

AlarmSource

void acsalarm::AlarmSourceImpl::runLoop

(

)

[virtual]

See also:

ACS::Thread

Reimplemented from ACS::Thread.

void acsalarm::AlarmSourceImpl::setAlarm	(	std::string	faultFamily,
		std::string	faultMember,
		int	faultCode,
		Properties	alarmProps,
		bool	active
	)

See also:

AlarmSource

void acsalarm::AlarmSourceImpl::setAlarm	(	std::string	faultFamily,
		std::string	faultMember,
		int	faultCode,
		bool	active
	)

See also:

AlarmSource

void acsalarm::AlarmSourceImpl::start

(

)

See also:

AlarmSource

void acsalarm::AlarmSourceImpl::tearDown

(

)

See also:

AlarmSource

void acsalarm::AlarmSourceImpl::terminateAllAlarms

(

)

See also:

AlarmSource

---

Member Data Documentation

std::set<std::string> acsalarm::AlarmSourceImpl::m_activatedAlarms [private]

The alarms that have been activated and not yet terminated.

This is used by the terminateAllAlarms()

AlarmsMap acsalarm::AlarmSourceImpl::m_alarms [private]

The map to avoid repeating alarms if their states did not change.

auto_ptr<acsalarm::AlarmSystemInterface> acsalarm::AlarmSourceImpl::m_alarmSource_ap [private]

The source to send alarms to the AS

bool acsalarm::AlarmSourceImpl::m_disabled [private]

ACE_Recursive_Thread_Mutex acsalarm::AlarmSourceImpl::m_mutex [private]

std::map<std::string, AlarmToQueue*> acsalarm::AlarmSourceImpl::m_queue [private]

The map of queued alarms

The key is the ID of the alarm

bool acsalarm::AlarmSourceImpl::m_queuing [private]

---

The documentation for this class was generated from the following file:

• AlarmSourceImpl.h
