Mount3Impl Class Reference

#include <acscourseMount3Impl.h>

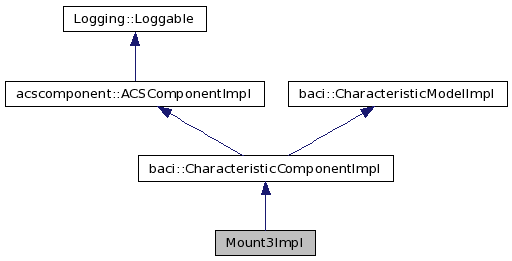

Inheritance diagram for Mount3Impl:

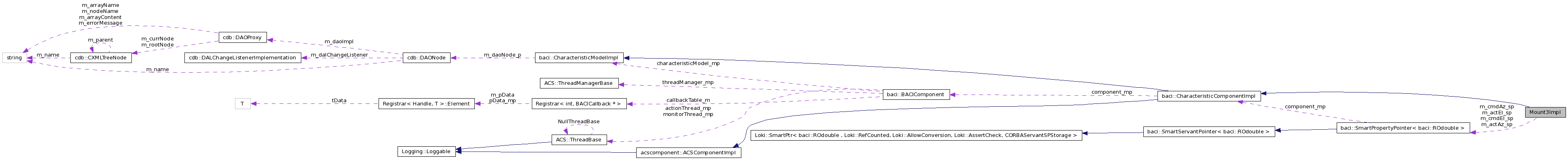

Collaboration diagram for Mount3Impl:

List of all members.

Public Member Functions
	Mount3Impl (const ACE_CString &name, maci::ContainerServices *containerServices)
virtual	~Mount3Impl ()
virtual void	objfix (CORBA::Double az, CORBA::Double elev)
virtual ACS::ROdouble_ptr	cmdAz ()
virtual ACS::ROdouble_ptr	cmdEl ()
virtual ACS::ROdouble_ptr	actAz ()
virtual ACS::ROdouble_ptr	actEl ()
Protected Member Functions
void	operator= (const Mount3Impl &)
Protected Attributes
baci::SmartPropertyPointer < baci::ROdouble >	m_cmdAz_sp
baci::SmartPropertyPointer < baci::ROdouble >	m_cmdEl_sp
baci::SmartPropertyPointer < baci::ROdouble >	m_actAz_sp
baci::SmartPropertyPointer < baci::ROdouble >	m_actEl_sp

---

Constructor & Destructor Documentation

Mount3Impl::Mount3Impl	(	const ACE_CString &	name,
		maci::ContainerServices *	containerServices
	)

Constructor

Parameters:

	name	component's name. This is also the name that will be used to find the
	containerServices	the container services object for this component

virtual Mount3Impl::~Mount3Impl

(

)

[virtual]

Destructor

---

Member Function Documentation

virtual ACS::ROdouble_ptr Mount3Impl::actAz

(

)

[virtual]

Returns a reference to the actAz property Implementation of IDL interface for the property.

Returns:

pointer to read-only double property actAz

---

virtual ACS::ROdouble_ptr Mount3Impl::actEl

(

)

[virtual]

Returns a reference to the actEl property Implementation of IDL interface for the property.

Returns:

pointer to read-only double property actEl

---

virtual ACS::ROdouble_ptr Mount3Impl::cmdAz

(

)

[virtual]

Returns a reference to the cmdAz property Implementation of IDL interface for the property.

Returns:

pointer to read-write double property cmdAz

---

virtual ACS::ROdouble_ptr Mount3Impl::cmdEl

(

)

[virtual]

Returns a reference to the cmdEl property Implementation of IDL interface for the property.

Returns:

pointer to read-only write property cmdEl

---

virtual void Mount3Impl::objfix	(	CORBA::Double	az,
		CORBA::Double	elev
	)			[virtual]

(Pre)sets a new non-moving position for the antenna. The position coordinates are given in azimuth and elevation. The actual az and elev values are written to the properties cmdAz, cmdEl, actAz and actEl.

Parameters:

	az	position azimuth (degree)
	elev	position elevation (degree)

Exceptions:

ACSErrTypeACSCourse::TargetOutOfRangeEx

Returns:

void

---

void Mount3Impl::operator=

(

const Mount3Impl &

)

[protected]

ALMA C++ coding standards state copy operators should be disabled.

---

Member Data Documentation

baci::SmartPropertyPointer<baci::ROdouble> Mount3Impl::m_actAz_sp [protected]

m_actAz_p is the antenna's actual azimuth

baci::SmartPropertyPointer<baci::ROdouble> Mount3Impl::m_actEl_sp [protected]

m_actEl_p is the antenna's actual elevation

baci::SmartPropertyPointer<baci::ROdouble> Mount3Impl::m_cmdAz_sp [protected]

m_cmdAz_p is the antenna's commanded azimuth

baci::SmartPropertyPointer<baci::ROdouble> Mount3Impl::m_cmdEl_sp [protected]

m_cmdEl_p is the antenna's commanded elevation

---

The documentation for this class was generated from the following file:

• acscourseMount3Impl.h
