BulkDataReceiverImpl< TCallback > Class Template Reference

#include <bulkDataReceiverImpl.h>

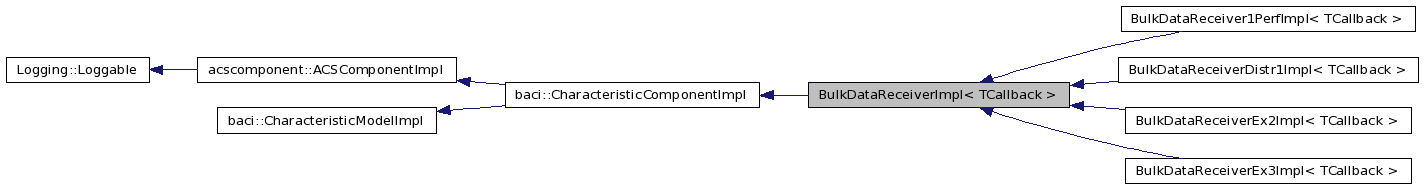

Inheritance diagram for BulkDataReceiverImpl< TCallback >:

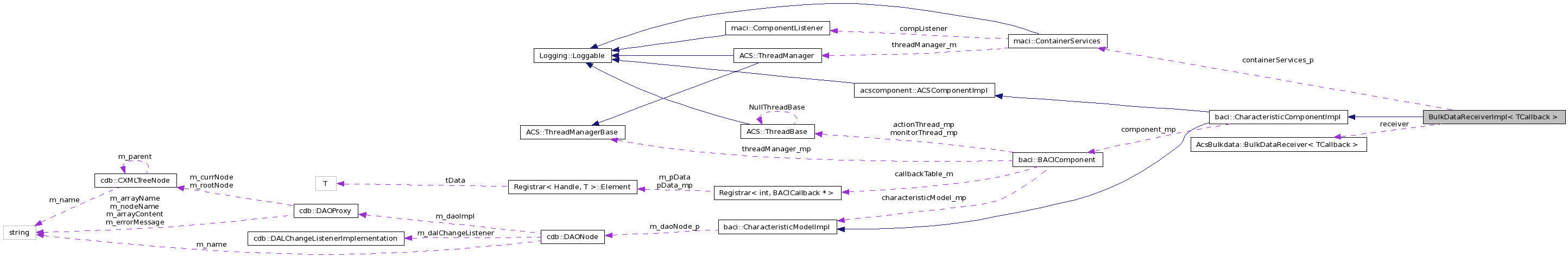

Collaboration diagram for BulkDataReceiverImpl< TCallback >:

List of all members.

Public Member Functions
	BulkDataReceiverImpl (const ACE_CString &name, maci::ContainerServices *containerServices)
virtual	~BulkDataReceiverImpl ()
void	cleanUp ()
virtual AcsBulkdata::BulkDataReceiver < TCallback > *	getReceiver ()
virtual void	openReceiver ()
virtual void	openReceiverStream (const char *stream_name)
bulkdata::BulkDataReceiverConfig *	getReceiverConfig ()
virtual void	closeReceiver ()
virtual void	closeReceiverStream (const char *stream_name)
virtual ACSErr::Completion *	getCbStatus (CORBA::ULong flowNumber)
virtual void	setTimeout (CORBA::ULong flowNumber, CORBA::ULong timeout)
virtual void	setRecvName (const char *recvName)
virtual void	subscribeNotification (ACS::CBvoid_ptr notifCb)
void	fwdData2UserCB (CORBA::Boolean enable)
Private Attributes
AcsBulkdata::BulkDataReceiver < TCallback >	receiver
maci::ContainerServices *	containerServices_p

template<class TCallback>
class BulkDataReceiverImpl< TCallback >

---

Constructor & Destructor Documentation

template<class TCallback>

BulkDataReceiverImpl< TCallback >::BulkDataReceiverImpl	(	const ACE_CString &	name,
		maci::ContainerServices *	containerServices
	)

Constructor

Parameters:

	poa	Poa which will activate this and also all other Components.
	name	component name.

template<class TCallback>

virtual BulkDataReceiverImpl< TCallback >::~BulkDataReceiverImpl

(

)

[virtual]

Destructor

---

Member Function Documentation

template<class TCallback>

void BulkDataReceiverImpl< TCallback >::cleanUp

(

)

Reimplemented in BulkDataReceiver1PerfImpl< TCallback >, BulkDataReceiverDistr1Impl< TCallback >, BulkDataReceiverDistr2Impl, BulkDataReceiverEx2Impl< TCallback >, and BulkDataReceiverEx3Impl< TCallback >.

template<class TCallback>

virtual void BulkDataReceiverImpl< TCallback >::closeReceiver

(

)

[virtual]

Exceptions:

ACSBulkDataError::AVCloseReceiverErrorEx

template<class TCallback>

virtual void BulkDataReceiverImpl< TCallback >::closeReceiverStream

(

const char *

stream_name

)

[virtual]

template<class TCallback>

void BulkDataReceiverImpl< TCallback >::fwdData2UserCB

(

CORBA::Boolean

enable

)

Enable or disable that data are sent to the user's CB. By default this is enable. This operation has to be use with caution!!!

Parameters:

enable

true -> data will be sent to the user's CB, false -> data will *not* be sent to the user's CB,

Returns:

void

template<class TCallback>

virtual ACSErr::Completion* BulkDataReceiverImpl< TCallback >::getCbStatus

(

CORBA::ULong

flowNumber

)

[virtual]

Exceptions:

	ACSBulkDataError::AVInvalidFlowNumberEx
	ACSBulkDataError::AVFlowEndpointErrorEx

template<class TCallback>

virtual AcsBulkdata::BulkDataReceiver<TCallback>* BulkDataReceiverImpl< TCallback >::getReceiver

(

)

[inline, virtual]

template<class TCallback>

bulkdata::BulkDataReceiverConfig* BulkDataReceiverImpl< TCallback >::getReceiverConfig

(

)

Exceptions:

ACSBulkDataError::AVReceiverConfigErrorEx

template<class TCallback>

virtual void BulkDataReceiverImpl< TCallback >::openReceiver

(

)

[virtual]

Opens connection creating an out-of-bound channel using TAO A/V services. It creates the Receiver Stream End Point and Flow End Point for the connection with the Sender. The Receiver Stream End Point can be retrieved as an attribute.

Exceptions:

ACSBulkDataError::AVOpenReceiverErrorEx

Returns:

void

---

template<class TCallback>

virtual void BulkDataReceiverImpl< TCallback >::openReceiverStream

(

const char *

stream_name

)

[virtual]

template<class TCallback>

virtual void BulkDataReceiverImpl< TCallback >::setRecvName

(

const char *

recvName

)

[virtual]

Exceptions:

ACSBulkDataError::AVSetReceiverNameErrorEx

template<class TCallback>

virtual void BulkDataReceiverImpl< TCallback >::setTimeout	(	CORBA::ULong	flowNumber,
		CORBA::ULong	timeout
	)			[virtual]

Exceptions:

	ACSBulkDataError::AVInvalidFlowNumberEx
	ACSBulkDataError::AVFlowEndpointErrorEx

template<class TCallback>

virtual void BulkDataReceiverImpl< TCallback >::subscribeNotification

(

ACS::CBvoid_ptr

notifCb

)

[virtual]

Exceptions:

ACSBulkDataError::AVNotificationMechanismErrorEx

---

Member Data Documentation

template<class TCallback>

maci::ContainerServices* BulkDataReceiverImpl< TCallback >::containerServices_p [private]

template<class TCallback>

AcsBulkdata::BulkDataReceiver<TCallback> BulkDataReceiverImpl< TCallback >::receiver [private]

Referenced by BulkDataReceiverImpl< BulkDataReceiverCbDistr2 >::getReceiver().

---

The documentation for this class was generated from the following file:

• bulkDataReceiverImpl.h
