BulkDataNTSenderImpl Class Reference

#include <bulkDataNTSenderImpl.h>

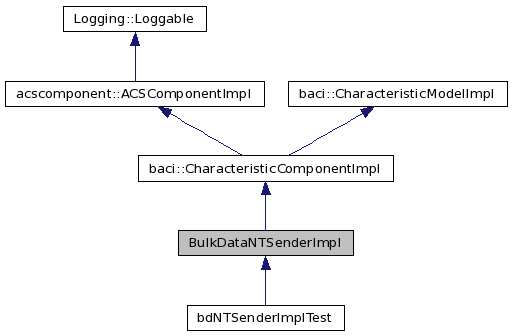

Inheritance diagram for BulkDataNTSenderImpl:

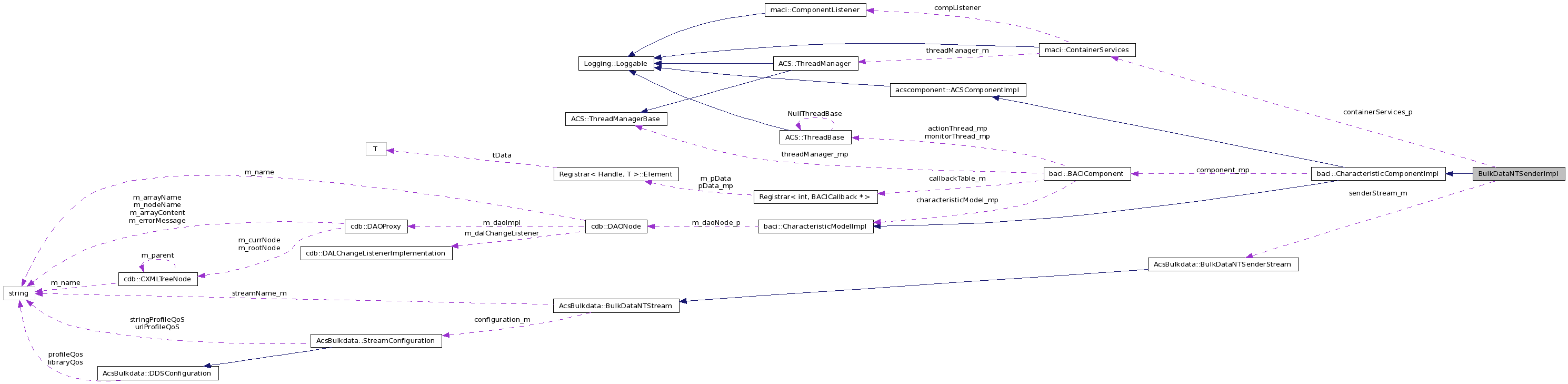

Collaboration diagram for BulkDataNTSenderImpl:

List of all members.

Public Member Functions
	BulkDataNTSenderImpl (const ACE_CString &name, maci::ContainerServices *containerServices)
virtual	~BulkDataNTSenderImpl ()
virtual void	initialize ()
virtual void	cleanUp ()
virtual void	connect (bulkdata::BulkDataReceiver_ptr receiverObj_p)
virtual void	disconnect ()
virtual AcsBulkdata::BulkDataNTSenderStream *	getSenderStream ()
virtual void	startSend ()=0
virtual void	paceData ()=0
virtual void	stopSend ()=0
Private Attributes
maci::ContainerServices *	containerServices_p
AcsBulkdata::BulkDataNTSenderStream *	senderStream_m
bulkdata::BulkDataReceiver_ptr	receiverObj_m

---

Constructor & Destructor Documentation

BulkDataNTSenderImpl::BulkDataNTSenderImpl	(	const ACE_CString &	name,
		maci::ContainerServices *	containerServices
	)

Constructor

Parameters:

	poa	poa which will activate this and also all other components
	name	component name

virtual BulkDataNTSenderImpl::~BulkDataNTSenderImpl

(

)

[virtual]

Destructor

---

Member Function Documentation

virtual void BulkDataNTSenderImpl::cleanUp

(

)

[virtual]

virtual void BulkDataNTSenderImpl::connect

(

bulkdata::BulkDataReceiver_ptr

receiverObj_p

)

[virtual]

Negotiate and initialize connection with the Sender object.

Parameters:

receiver

reference of the Receiver Component.

Exceptions:

ACSBulkDataError::AVConnectErrorEx

Returns:

void

---

virtual void BulkDataNTSenderImpl::disconnect

(

)

[virtual]

Exceptions:

ACSBulkDataError::AVDisconnectErrorEx

virtual AcsBulkdata::BulkDataNTSenderStream* BulkDataNTSenderImpl::getSenderStream

(

)

[inline, virtual]

References senderStream_m.

virtual void BulkDataNTSenderImpl::initialize

(

)

[virtual]

virtual void BulkDataNTSenderImpl::paceData

(

)

[pure virtual]

Sends data to the Receiver calling the receive_frame() method on the Receiver side. This method must be overriden by the user to send his own data.

Parameters:

size

buffer size of the sent data.

Exceptions:

ACSBulkDataError::AVPaceDataErrorEx

Returns:

void

---

Implemented in bdNTSenderImplTest.

virtual void BulkDataNTSenderImpl::startSend

(

)

[pure virtual]

Calls the Receiver handle_start() method once the connection is established.

Exceptions:

ACSBulkDataError::AVStartSendErrorEx

Returns:

void

---

Implemented in bdNTSenderImplTest.

virtual void BulkDataNTSenderImpl::stopSend

(

)

[pure virtual]

Calls the Receiver handle_stop() method.

Exceptions:

ACSBulkDataError::AVStopSendErrorEx

Returns:

void

---

Implemented in bdNTSenderImplTest.

---

Member Data Documentation

maci::ContainerServices* BulkDataNTSenderImpl::containerServices_p [private]

Pointer to the dataProtocol on which the send_frame(...) method is called in order to actually send data.

bulkdata::BulkDataReceiver_ptr BulkDataNTSenderImpl::receiverObj_m [private]

AcsBulkdata::BulkDataNTSenderStream* BulkDataNTSenderImpl::senderStream_m [private]

Referenced by getSenderStream().

---

The documentation for this class was generated from the following file:

• bulkDataNTSenderImpl.h
