BulkDataDistributerImpl< TReceiverCallback, TSenderCallback > Class Template Reference

#include <bulkDataDistributerImpl.h>

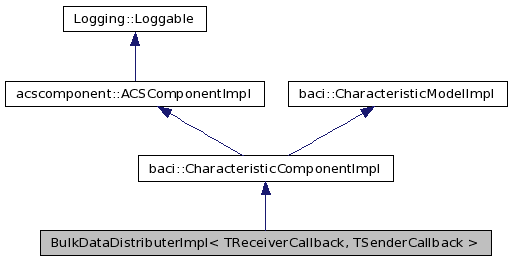

Inheritance diagram for BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >:

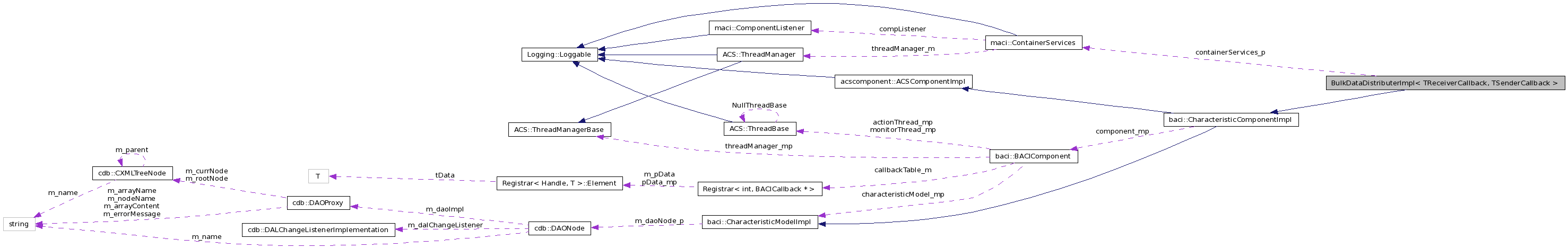

Collaboration diagram for BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >:

List of all members.

Public Member Functions
	BulkDataDistributerImpl (const ACE_CString &name, maci::ContainerServices *containerServices)
virtual	~BulkDataDistributerImpl ()
virtual void	initialize ()
virtual void	cleanUp ()
virtual void	connect (bulkdata::BulkDataReceiver_ptr receiverObj_p)
virtual void	multiConnect (bulkdata::BulkDataReceiver_ptr receiverObj_p)
virtual void	connectByName (const char *receiverName_p)
virtual void	disconnect ()
virtual void	multiDisconnect (bulkdata::BulkDataReceiver_ptr receiverObj_p)
virtual void	disconnectByName (const char *receiverName_p)
virtual void	startSend ()
virtual void	paceData ()
virtual void	stopSend ()
virtual void	openReceiver ()
void	openReceiverStream (const char *stream_name)
bulkdata::BulkDataReceiverConfig *	getReceiverConfig ()
virtual void	closeReceiver ()
void	closeReceiverStream (const char *stream_name)
virtual void	setReceiver (const bulkdata::BulkDataReceiverConfig &receiverConfig)
virtual AcsBulkdata::BulkDataDistributer < TReceiverCallback, TSenderCallback > *	getDistributer ()
virtual ACSErr::Completion *	getCbStatus (CORBA::ULong flowNumber)
virtual ACSErr::Completion *	getReceiverCbStatus (const char *recvName, CORBA::ULong flowNumber)
virtual void	setTimeout (CORBA::ULong flowNumber, CORBA::ULong timeout)
virtual void	setRecvName (const char *recvName)
virtual void	subscribeNotification (ACS::CBvoid_ptr notifCb)
void	fwdData2UserCB (CORBA::Boolean enable)
Private Types
typedef ACE_Pair < AcsBulkdata::RecvData, AcsBulkdata::BulkDataSender < TSenderCallback > * >	Sender_Map_Pair
typedef ACE_Hash_Map_Manager < ACE_CString, Sender_Map_Pair, ACE_Null_Mutex >	Sender_Map
typedef ACE_Hash_Map_Entry < ACE_CString, Sender_Map_Pair >	Sender_Map_Entry
typedef ACE_Hash_Map_Iterator < ACE_CString, Sender_Map_Pair,ACE_Null_Mutex >	Sender_Map_Iterator
Private Member Functions
void	rmEntryFromSenderMap (bulkdata::BulkDataReceiver_ptr receiverObj_p)
void	rmEntryFromSenderMap (const char *receiverName_p)
Private Attributes
maci::ContainerServices *	containerServices_p
CDB::DAL_ptr	dal_p
AcsBulkdata::BulkDataDistributer < TReceiverCallback, TSenderCallback >	distributer

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>
class BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >

---

Member Typedef Documentation

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

typedef ACE_Hash_Map_Manager<ACE_CString, Sender_Map_Pair, ACE_Null_Mutex> BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::Sender_Map [private]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

typedef ACE_Hash_Map_Entry<ACE_CString, Sender_Map_Pair > BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::Sender_Map_Entry [private]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

typedef ACE_Hash_Map_Iterator<ACE_CString, Sender_Map_Pair ,ACE_Null_Mutex> BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::Sender_Map_Iterator [private]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

typedef ACE_Pair< AcsBulkdata::RecvData , AcsBulkdata::BulkDataSender<TSenderCallback> *> BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::Sender_Map_Pair [private]

---

Constructor & Destructor Documentation

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::BulkDataDistributerImpl	(	const ACE_CString &	name,
		maci::ContainerServices *	containerServices
	)

Constructor

Parameters:

	poa	Poa which will activate this and also all other Components.
	name	component name.

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::~BulkDataDistributerImpl

(

)

[virtual]

Destructor

---

Member Function Documentation

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::cleanUp

(

)

[virtual]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::closeReceiver

(

)

[virtual]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::closeReceiverStream

(

const char *

stream_name

)

[inline]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::connect

(

bulkdata::BulkDataReceiver_ptr

receiverObj_p

)

[virtual]

Negotiate and initialize connection with the Sender object.

Parameters:

receiverObj_p

reference of the Receiver Component.

Exceptions:

ACSBulkDataError::AVConnectErrorEx

Returns:

void

---

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::connectByName

(

const char *

receiverName_p

)

[virtual]

Negotiate and initialize connection with the Sender object.

Parameters:

receiverName_p

name of the Receiver Component.

Exceptions:

ACSBulkDataError::AVConnectErrorEx

Returns:

void

---

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::disconnect

(

)

[virtual]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::disconnectByName

(

const char *

receiverName_p

)

[virtual]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::fwdData2UserCB

(

CORBA::Boolean

enable

)

[inline]

NOT implemented for distributor

---

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual ACSErr::Completion* BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::getCbStatus

(

CORBA::ULong

flowNumber

)

[virtual]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual AcsBulkdata::BulkDataDistributer<TReceiverCallback, TSenderCallback>* BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::getDistributer

(

)

[inline, virtual]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual ACSErr::Completion* BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::getReceiverCbStatus	(	const char *	recvName,
		CORBA::ULong	flowNumber
	)			[virtual]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

bulkdata::BulkDataReceiverConfig* BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::getReceiverConfig

(

)

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::initialize

(

)

[virtual]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::multiConnect

(

bulkdata::BulkDataReceiver_ptr

receiverObj_p

)

[virtual]

Negotiate and initialize connection with the Sender object.

Parameters:

receiverObj_p

reference of the Receiver Component.

Exceptions:

ACSBulkDataError::AVConnectErrorEx

Returns:

void

---

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::multiDisconnect

(

bulkdata::BulkDataReceiver_ptr

receiverObj_p

)

[virtual]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::openReceiver

(

)

[virtual]

Opens connection creating an out-of-bound channel using TAO A/V services. It creates the Receiver Stream End Point and Flow End Point for the connection with the Sender. The Receiver Stream End Point can be retrieved as an attribute.

Exceptions:

ACSBulkDataError::AVOpenReceiverErrorEx

Returns:

void

---

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::openReceiverStream

(

const char *

stream_name

)

[inline]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::paceData

(

)

[virtual]

Sends data to the Receiver calling the receive_frame() method on the Receiver side. This method must be overriden by the user to send his own data.

Parameters:

size

buffer size of the sent data.

Exceptions:

ACSBulkDataError::AVPaceDataErrorEx

Returns:

void

---

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::rmEntryFromSenderMap

(

const char *

receiverName_p

)

[private]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::rmEntryFromSenderMap

(

bulkdata::BulkDataReceiver_ptr

receiverObj_p

)

[private]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::setReceiver

(

const bulkdata::BulkDataReceiverConfig &

receiverConfig

)

[virtual]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::setRecvName

(

const char *

recvName

)

[inline, virtual]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::setTimeout	(	CORBA::ULong	flowNumber,
		CORBA::ULong	timeout
	)			[inline, virtual]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::startSend

(

)

[virtual]

Calls the Receiver handle_start() method once the connection is established.

Exceptions:

ACSBulkDataError::AVStartSendErrorEx

Returns:

void

---

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::stopSend

(

)

[virtual]

Calls the Receiver handle_stop() method.

Exceptions:

ACSBulkDataError::AVStopSendErrorEx

Returns:

void

---

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::subscribeNotification

(

ACS::CBvoid_ptr

notifCb

)

[virtual]

---

Member Data Documentation

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

maci::ContainerServices* BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::containerServices_p [private]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

CDB::DAL_ptr BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::dal_p [private]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

AcsBulkdata::BulkDataDistributer<TReceiverCallback, TSenderCallback> BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::distributer [private]

Referenced by BulkDataDistributerImpl< BulkDataDistributerStreamCb >::getDistributer().

---

The documentation for this class was generated from the following file:

• bulkDataDistributerImpl.h
