ACSSampImpl Class Reference

#include <acssampImpl.h>

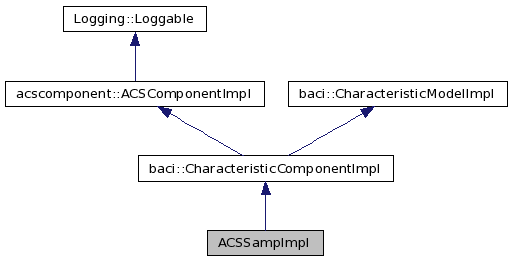

Inheritance diagram for ACSSampImpl:

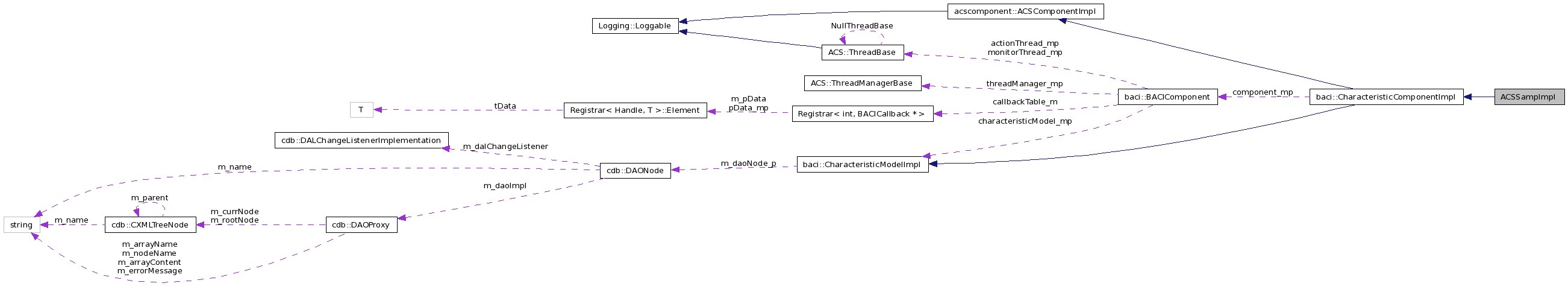

Collaboration diagram for ACSSampImpl:

List of all members.

Public Member Functions
	ACSSampImpl (const ACE_CString &name, maci::ContainerServices *containerServices)
virtual	~ACSSampImpl ()
virtual acssamp::SampObj_ptr	initSampObj (const char *name, const char *property, ACS::TimeInterval frequency, ACS::TimeInterval reportRate)
virtual void	addComponenttoList (CORBA::Object_ptr component_ref)
virtual void	removeComponentfromList (CORBA::Object_ptr component_ref)
Private Attributes
std::list< CORBA::Object_ptr >	component_list
ACE_Recursive_Thread_Mutex	m_samplingListMutex

---

Detailed Description

This class implements basically one method (initSampObj), which allows to create dynamically the so called "sampling objects". Each sampling object is connected to a specific property (e.g. LAMP1:brightness) and allows to sample its values with a user defined sampling frequency. Moreover the sampled value are not delivered immediately to the NC, but are buffered for an user-defined amount of time (in order to not waste network bandwidth).

---

Constructor & Destructor Documentation

ACSSampImpl::ACSSampImpl	(	const ACE_CString &	name,
		maci::ContainerServices *	containerServices
	)

Constructor

Parameters:

	poa	Poa which will activate this and also all other Components.
	name	DO's name. This is also the name that will be used to find the configuration data for the DO in the Configuration Database.

virtual ACSSampImpl::~ACSSampImpl

(

)

[virtual]

Destructor

---

Member Function Documentation

virtual void ACSSampImpl::addComponenttoList

(

CORBA::Object_ptr

component_ref

)

[virtual]

Internal method used to add all newly created sampling objects to an internal list (containing a reference to the active objects). If objects are not correctly destroyed, this list is used by the destructor of the factory (this class) to clean-up everything in a consistent way.

Parameters:

component_ref

pointer to a CORBA object

Returns:

void

---

virtual acssamp::SampObj_ptr ACSSampImpl::initSampObj	(	const char *	name,
		const char *	property,
		ACS::TimeInterval	frequency,
		ACS::TimeInterval	reportRate
	)			[virtual]

initSampObj Initialize and returns a reference to the newly created sampling object.

Parameters:

	name	name of the component, which property is to be sampled (e.g.LAMP1 )
	property	name of the property to be sampled (e.g. brightness )
	frequency	sampling frequency: period between two consecutive sampling (units are 100ns; e.g. 1000000 means 0.1 sec i.e. 10 samples per second)
	reportRate	number of second the process should buffer before actually sending (notifying) data (units are 100ns; e.g. 10000000 means collect data for 1 second)

Exceptions:

	ACSErrTypeCommon::OutOfBoundsEx
	ACSErrTypeCommon::MemoryFaultEx
	ACSErrTypeCommon::CORBAProblemEx
	ACSErrTypeCommon::CouldntCreateObjectEx
	ACSErrTypeCommon::TypeNotSupportedEx
	ACSErrTypeCommon::CouldntAccessPropertyEx
	ACSErrTypeCommon::CouldntAccessComponentEx

Returns:

SampObj_ptr pointer to the newly created sampling object. It allows to control the actual sampling (start/stop/pause etc.)

---

virtual void ACSSampImpl::removeComponentfromList

(

CORBA::Object_ptr

component_ref

)

[virtual]

Internal method used to remove a sampling object from the internal list of the active (instantiated) objects. This method is called automatically, whenever a previously created object is destroyed.

Parameters:

component_ref

pointer to a CORBA object

Returns:

void

---

---

Member Data Documentation

std::list<CORBA::Object_ptr> ACSSampImpl::component_list [private]

component_list is an internal list of the active sampling objects.

ACE_Recursive_Thread_Mutex ACSSampImpl::m_samplingListMutex [private]

---

The documentation for this class was generated from the following file:

• acssampImpl.h
