CCD Performance Monitoring

In a weekly base, EFOSC2, HARPS and CES CCD measurment have to be done by the day operator as follow:

  1. Do login to the corresponding instrument workstation
  2. Use the following table as a reference for light source, commands, modes and hints

    Instrument

    EFOSC2

    CES

    HARPS

    Light Source

    Beta Light on Grism wheel position 1(Free)

    Beta Light on
    Shutter Unit

    Green LED Selected and Enable at the 360 Harps Lab.

    Panel Command

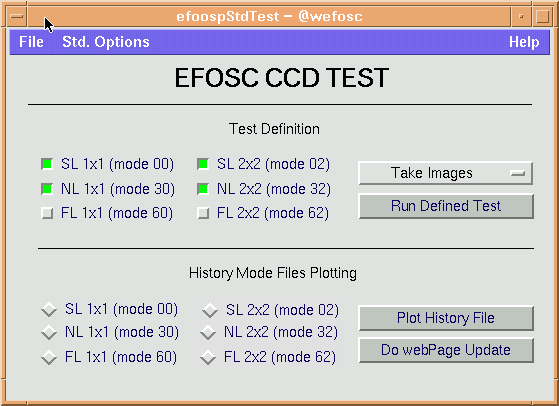

    efoopsNewStdTest

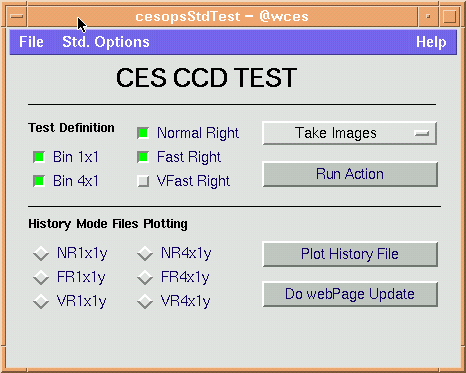

    cesopsStdTest

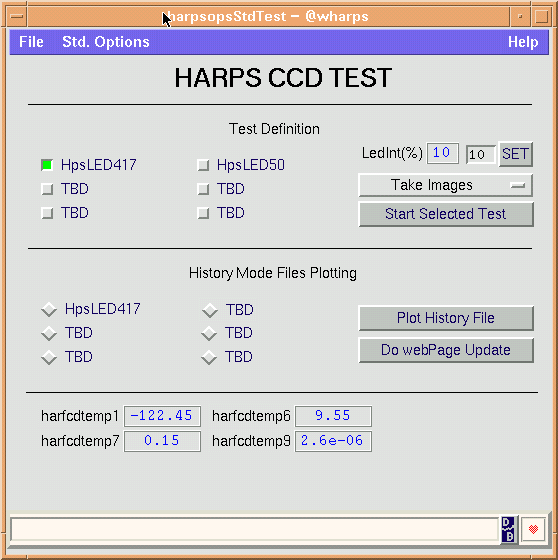

    harpsopsStdTest

    Modos

    SL1x1,SL2x2
    NL1x1, NL2x2

    NR1x1y NR4x1y
    FR1x1y FR4x1y

    F417 , F104

    • For Efosc do instrument Setting from ICS panel before trying this test
    • Always take an image as a test before starting this sequence.
    • Remove from $INS_ROOT/SYSTEM/DETDATA directory any EfStd* or Ces* or HpsLED* file before the sequence start
  3. Once the light source is in, test images done and the corresponding panel open, define sequence by selecting CCD modes and binning options
  4. Press button Select Action to select Take Images then press button Run Action All the images will be taken in a sequence of aprox. 1hours
  5. If there were no problems with the images sequence, press button Select Action to select Run Midas Procedure then press buttonRun Action
    Wait and check the results plots and prints. In case of big differences from the historic values call LIN-ODT.
    WARNING:DO NOT RELEASE RESULTS OUT OF OPERATIONAL RANGES
  6. Define all the test with good results and press button Select Action and select Results Release
  7. Remove the Blight to the second floor storage and /or Switch OFF HARPS LED (unable).
  8. File all the prints in the corresponding CCD folder.
