TWILRAWRANGE, average over all 16 detectors |
2 |
| QC1DB |
MEDIAN |
5.9e+03 |
ADU |
VAL | 50,14000 |
16 |
qc_twflat_medrng |
this |
last_yr |
all
|
TWILRAWRANGE, values of all detetcors |
3 |
| QC1DB |
MEDIAN |
840 |
ADU |
VAL | 10,2000 |
1 |
qc_twflat_medrng |
this |
last_yr |
all
|
TWILRAWRANGE, stdev over all detectors |
|
*Data sources: QC1DB: QC1 database; LOCAL: local data source
|
Plot 1 scores: not implemented
| data source: | vircam_twilight (QC1 database) |
dataset: | qc_twflat_medrng | |
median: | 5.84e+03 | ADU |
fixed thresholds: | 50...14000 | ADU |
N_data plotted: | 1 |
[click plot for closeup] |
Plot 2 scores: not implemented
| data source: | vircam_twilight (QC1 database) |
dataset: | qc_twflat_medrng | |
median: | 5.9e+03 | ADU |
fixed thresholds: | 50...14000 | ADU |
N_data plotted: | 16 |
[click plot for closeup] |
Plot 3 scores: not implemented
| data source: | vircam_twilight (QC1 database) |
dataset: | qc_twflat_medrng | |
median: | 840 | ADU |
fixed thresholds: | 10...2000 | ADU |
N_data plotted: | 1 |
[click plot for closeup] |
This plot
Trending plot for Range of raw frame medians.
QC parameters is derived from the raw frame input stack.
Name:QC_RAWMED_RANGE
Fits header: QC.FLATRNG,
QC1 DB: qc_twflat_medrng
Description:
Retrieve from each raw frame the median of the flux level. Take the range of all raw frame medians.
Setup:
INS.FILT1.NAME = Y

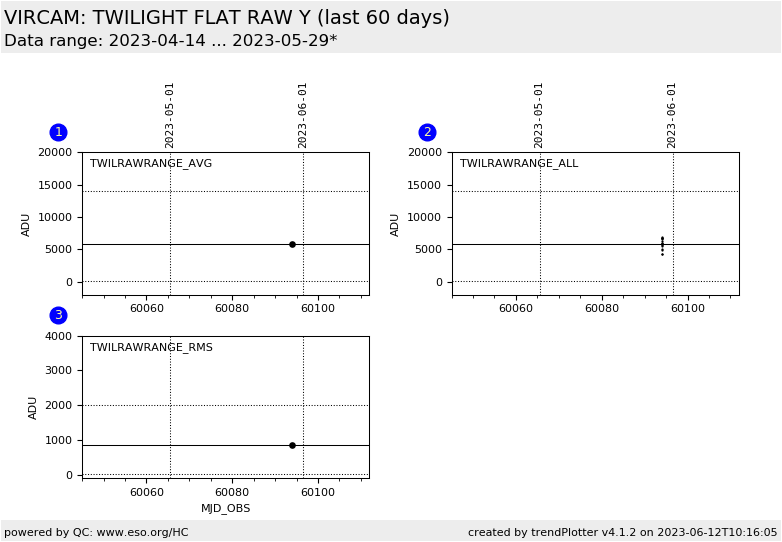

These plots describe:
Fig. 1. Average view: The QC parameter averaged over all detectors.
This view is sensitive to common changes.
Fig. 2. Resolved View: The QC parameter resolved for all detectors.
Fig. 3. Scatter View: The standard deviation of the QC parameter, obtained from the sample of all detectors.
This view is sensitive changes of individual detectors.
Fig. 4. Scoring View: Scoring values of all 16 QC parameters.
Green = within the acceptance thresholds.
Red = beyond the acceptance thresholds.
Find more information on the VIRCAM TWILIGHT FLAT tutorial page.
