This plot
Trending plot for Minimum, Average, and Maximum of raw frame medians.
QC parameters is derived from the twilight flat raw frame input stack.
Name:QC_RAWMED_AVG
Fits header: QC.FLATMIN, QC.FLATAVG, QC.FLATMAX
QC1 DB: qc_twflat_medmin, qc_twflat_medavg, qc_twflat_medmax
Description:
Retrieve from each raw frame the median of the flux level. Take the average, the maximum mand the minimum of the sample of all raw frame medians.
Setup:
INS.FILT1.NAME = J
These plots describe:

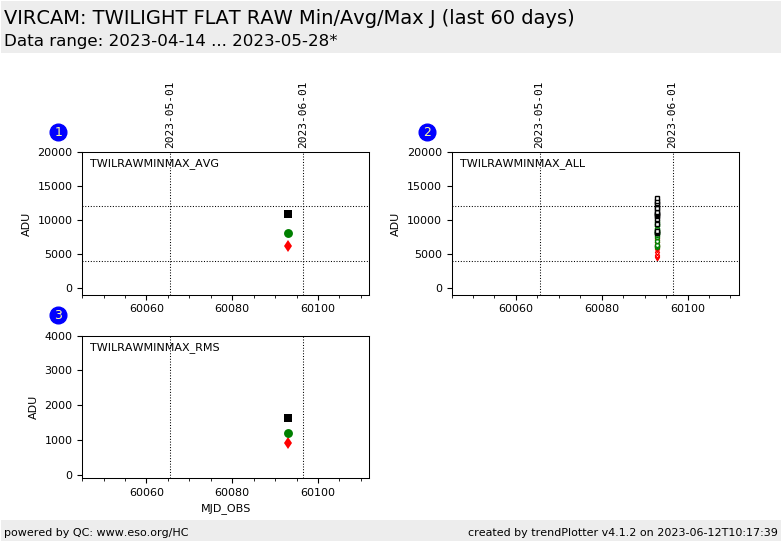

Fig. 1. Average view: The QC parameter averaged over all detectors.
This view is sensitive to common changes.
Fig. 2. Resolved View: The QC parameter resolved for all detectors.
Fig. 3. Scatter View: The standard deviation of the QC parameter, obtained from the sample of all detectors.
This view is sensitive changes of individual detectors.
Fig. 4. Extra: PRO.DATANCOM, the number of raw frames which
contributed to the master twilight flat.
Find more information on the VIRCAM TWILIGHT FLAT tutorial page.
