#include <acsncSimpleConsumer.h>

Inheritance diagram for nc::SimpleConsumer< T >:

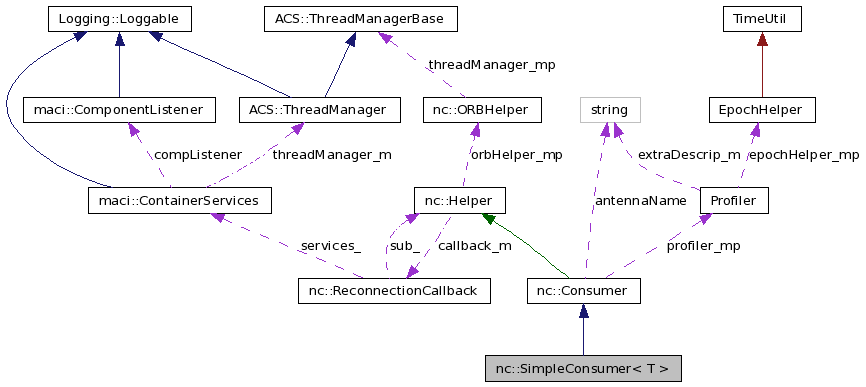

Collaboration diagram for nc::SimpleConsumer< T >:

Public Types
typedef void(*	eventHandlerFunction )(T eventData, void *handlerParam)
Public Member Functions
	SimpleConsumer (const char *channelName)
template<class J >
void	addSubscription (eventHandlerFunction templateFunction, void *handlerParam=0)
virtual void	push_structured_event (const CosNotification::StructuredEvent &notification)
Protected Member Functions
virtual	~SimpleConsumer ()
Protected Attributes
eventHandlerFunction	templateFunction_mp
void *	handlerParam_mp
Private Member Functions
void	operator= (const SimpleConsumer &)
	SimpleConsumer (const SimpleConsumer &)
void	addSubscription (const char type_name, eventHandlerFunction templateFunction, void handlerParam=0)

Detailed Description

template<class T>
class nc::SimpleConsumer< T >

SimpleConsumer is used to consume data from a notification channel defined by the string passed to SimpleConsumer's constructor. In a nutshell, this class has been provided so that developers do not have to subclass Consumer and can instead use a generic function to process events.

To begin consuming data, simply invoke the consumerReady method. After that, the eventHandlerFunction will be invoked asynchronously each time an event is received.

TODO:

add a check on the datatype in push_structured_event
support subscriptions to multiple event types...may not be feasible

Member Typedef Documentation

template<class T>

typedef void(* nc::SimpleConsumer< T >::eventHandlerFunction)(T eventData, void *handlerParam)

Constructor & Destructor Documentation

template<class T>

nc::SimpleConsumer< T >::SimpleConsumer ( const char * channelName )

Constructor to be used within components.

Parameters:

channelName

The channel's name

template<class T>

virtual nc::SimpleConsumer< T >::~SimpleConsumer ( ) [protected, virtual]

Destructor is protected.

template<class T>

nc::SimpleConsumer< T >::SimpleConsumer ( const SimpleConsumer< T > & ) [private]

ALMA C++ coding standards state copy constructors should be disabled.

Member Function Documentation

template<class T>

template<class J >

void nc::SimpleConsumer< T >::addSubscription	(	eventHandlerFunction	templateFunction,
		void *	handlerParam = `0`
	)			`[inline]`

A special version of the addSubscription method. Not only subscribes to an event_type, but it also saves a function pointer and an extra paremter to the function to be utilized when an event of type_name is received. Currently the implementation only allows this method to be invoked once (and that is done from the ACSNC_NEW_SIMPLE_CONSUMER macro). The template paramter is the type_name of the event to be received.

Parameters:

	templateFunction	A (static) method which will be invoked each time a type_name event is received. The method must accept a <T> structure as it's first parameter.
	handlerParam	A void pointer that will be passed to templateFunction (in addition to the actual ICD <T> event) each time a type_name event is received.

Exceptions:

ACSErrTypeCommon::CouldntPerformActionEx

Returns:: void

template<class T>

void nc::SimpleConsumer< T >::addSubscription	(	const char *	type_name,
		eventHandlerFunction	templateFunction,
		void *	handlerParam = `0`
	)			`[private]`

A special version of the addSubscription method. Not only subscribes to an event_type, but it also saves a function pointer and an extra paremter to the function to be utilized when an event of type_name is received. Currently the implementation only allows this method to be invoked once (and that is done from the ACSNC_NEW_SIMPLE_CONSUMER macro).

Parameters:

	type_name	Type of the event to be received
	templateFunction	A (static) method which will be invoked each time a type_name event is received. The method must accept a <T> structure as it's first parameter.
	handlerParam	A void pointer that will be passed to templateFunction (in addition to the actual ICD <T> event) each time a type_name event is received.

Returns:: void

template<class T>

void nc::SimpleConsumer< T >::operator= ( const SimpleConsumer< T > & ) [private]

ALMA C++ coding standards state assignment operators should be disabled.

template<class T>

virtual void nc::SimpleConsumer< T >::push_structured_event ( const CosNotification::StructuredEvent & notification ) [virtual]

This is the abstract method inherited Consumer which must be overridden. In the SimpleConsumer class, it just invokes some function registered via the addSubscription method. In doing this, one does not have to override SimpleConsumer. Note that this method must not be invoked by your code!

Exceptions:

CosEventComm::Disconnected
