#include <acsncRTSupplier.h>

Inheritance diagram for nc::RTSupplier:

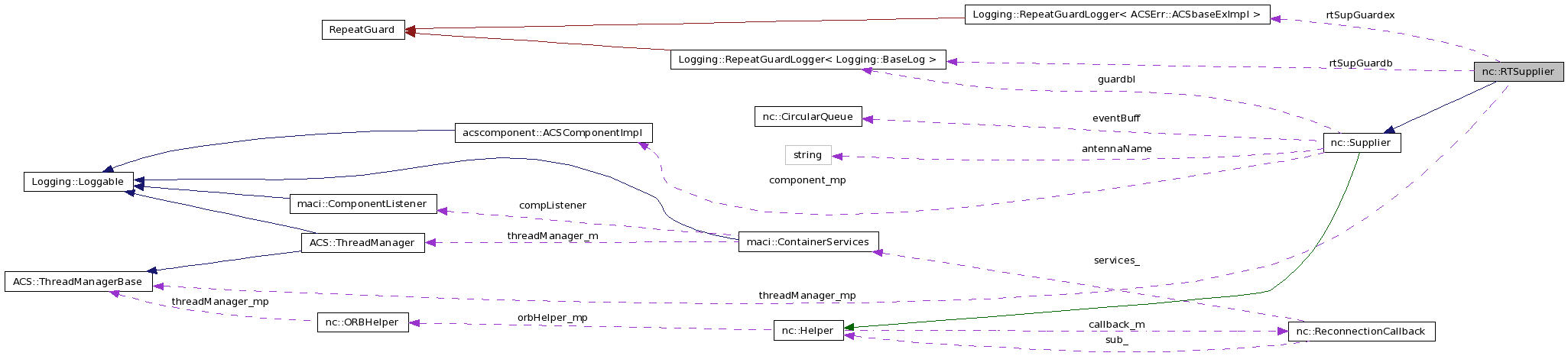

Collaboration diagram for nc::RTSupplier:

Classes
class	EventProcessingCallback
struct	unpublishedEventData
Public Member Functions
	RTSupplier (const char channelName, acscomponent::ACSComponentImpl component)
virtual void	disconnect ()
template<class T >
void	publishData (T data, EventProcessingCallback *evProcCallback=NULL)
unsigned int	getQueueSize ()
Protected Member Functions
virtual	~RTSupplier ()
Static Protected Member Functions
static void	worker (void *param_p)
Protected Attributes
baci::BACIThreadManager *	threadManager_mp
std::queue< unpublishedEventData >	unpublishedEvents_m
CORBA::Any	any_m
ACE_Thread_Mutex	eventQueueMutex_m
Logging::RepeatGuardLogger < Logging::BaseLog > *	rtSupGuardb
Logging::RepeatGuardLogger < ACSErr::ACSbaseExImpl > *	rtSupGuardex
Private Member Functions
void	operator= (const RTSupplier &)
	RTSupplier (const RTSupplier &)

Detailed Description

RTSupplier is used to publish data onto a notification channel defined by the string passed to RTSupplier's constructor. Please do not let the name confuse you as this class does not publish structured events in real-time. Instead, invocations of the publishData method merely save the structured event to an internal queue and the event will be sent across the network by a low-priority thread sometime later. In summary, it's safe to call publishData from real-time code as it does not block until the event has been received on manager's host.

TODO:

override the configQofS and configAdminProps methods for real-time use
performance tests
integrate this class with the ACS Exception Manager because asynchornous exceptions can be thrown by the static worker method
investigate whether a mutex is really needed for std::queues in gcc 3.3.

Constructor & Destructor Documentation

nc::RTSupplier::RTSupplier	(	const char *	channelName,
		acscomponent::ACSComponentImpl *	component
	)

Constructor

Parameters:

	channlName	The name of the channel events will be published to.
	component	A reference to a component is needed for the Event Description (which is normally hidden from Consumers).

virtual nc::RTSupplier::~RTSupplier ( ) [protected, virtual]

Destructor is protected.

nc::RTSupplier::RTSupplier ( const RTSupplier & ) [private]

ALMA C++ coding standards state copy constructors should be disabled.

Member Function Documentation

virtual void nc::RTSupplier::disconnect ( ) [virtual]

Overriden from Supplier class. Ensures all events in the queue are published before exiting.

Returns:: void

Reimplemented from nc::Supplier.

unsigned int nc::RTSupplier::getQueueSize ( )

Returns the size of the queue with events waiting to be sent by the worker thread.

void nc::RTSupplier::operator= ( const RTSupplier & ) [private]

ALMA C++ coding standards state assignment operators should be disabled.

template<class T >

void nc::RTSupplier::publishData	(	T	data,
		EventProcessingCallback *	evProcCallback = `NULL`
	)

Templated method called by the developer to send ICD events to consumers. publishData saves the ICD event to an internal queue and returns control immediately. Please note that any exceptions associated with actual CORBA calls involved with pushing events are only logged as this functionality is really performed by the worker method/thread.

Exceptions:

ACSErrTypeCommon::CORBAProblemEx

Parameters:

data

A user-defined IDL struct. FRIDGE::temperatureDataBlockEvent for example

static void nc::RTSupplier::worker ( void * param_p ) [static, protected]

Low priority thread method which is actually responsible for sending events across the network. Any exceptions generated by the CORBA calls are only logged here. This thread just sleeps for awhile if there are no events to publish. If the queue is non-empty, it publishes all events before sleeping again.

Parameters:

parmam_p

A pointer to this instance.
