nc::ArchiveConsumer Class Reference

#include <acsncArchiveConsumer.h>

Inheritance diagram for nc::ArchiveConsumer:

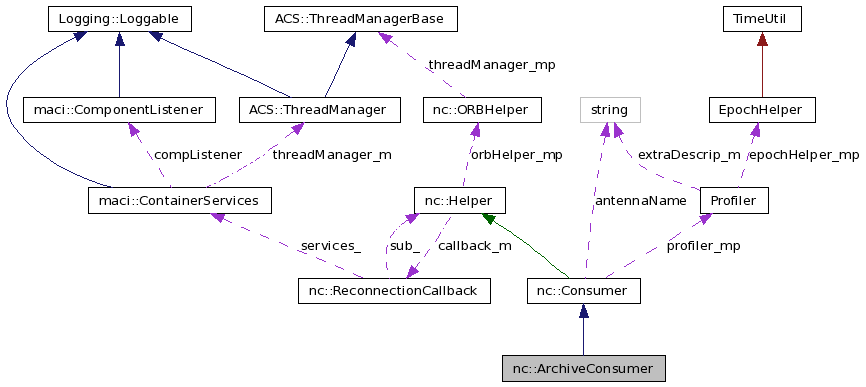

Collaboration diagram for nc::ArchiveConsumer:

List of all members.

Classes
class	ArchiveHandler
Public Types
typedef Loki::SmartPtr < ArchiveHandler, Logging::RefCounted, Loki::AllowConversion, Loki::NoCheck, Loki::DefaultSPStorage >	ArchiveHandlerSmartPtr
	Archive handler smart pointer.
Public Member Functions
	ArchiveConsumer (ArchiveHandlerSmartPtr handler)
	ArchiveConsumer (CORBA::ORB_ptr orb_p, ArchiveHandlerSmartPtr handler)
	ArchiveConsumer (int argc, char *argv[], ArchiveHandlerSmartPtr handler)
virtual void	push_structured_event (const CosNotification::StructuredEvent &publishedEvent)
Protected Member Functions
const char *	getChannelKind ()
const char *	getChannelDomain ()
const char *	getNotificationFactoryName ()
Private Member Functions
void	subscribeAllEvents ()
Private Attributes
ArchiveHandlerSmartPtr	handler_m

---

Member Typedef Documentation

typedef Loki::SmartPtr<ArchiveHandler, Logging::RefCounted, Loki::AllowConversion, Loki::NoCheck, Loki::DefaultSPStorage> nc::ArchiveConsumer::ArchiveHandlerSmartPtr

Archive handler smart pointer.

---

Constructor & Destructor Documentation

nc::ArchiveConsumer::ArchiveConsumer

(

ArchiveHandlerSmartPtr

handler

)

Constructor to be used within components. Consumer will use the Container to get a reference to the Naming Service. If a valid reference to the container cannot be obtained, Consumer will default to creating it's own ORB (assuming Consumer is run on the same host as the Naming Service).

Parameters:

handler

A (static) method which will be invoked each time an archive event is received.

nc::ArchiveConsumer::ArchiveConsumer	(	CORBA::ORB_ptr	orb_p,
		ArchiveHandlerSmartPtr	handler
	)

Constructor to be used within SimpleClient's. This constructor is provided for API users who create their own ORB that has a reference to the Naming Service.

Parameters:

	orb_mp	ORB that has a valid reference to the Naming Service.
	handler	A (static) method which will be invoked each time an archive event is received.

nc::ArchiveConsumer::ArchiveConsumer	(	int	argc,
		char *	argv[],
		ArchiveHandlerSmartPtr	handler
	)

Optional constructor - used outside of ACS. This constructor is very resource intensive (it spawns it's own ORB) and should only to be utilized when there is a reason not to use Manager to get at the Naming Service. If argc==0, default parameters (i.e., environment variables) specify how to get to the Naming Service. Otherwise, it is assumed argv has a valid corbaloc to the Naming Service.

Parameters:

	argc	Number of ORB parameters in argv or 0
	argv	ORB params. Typically something like: orbArg[0] = "" . orbArg[1] = "-ORBInitRef NameService=corbaloc::host:xxxx/NameService" orbArg[2] = "-ORBDottedDecimalAddresses=1"
	handler	A (static) method which will be invoked each time an archive event is received. Sample Usage: Consumer("fridge",0,(char **)0); - Generates ORB arguments on the fly from environment variables. Consumer("fridge",argc,argv); - Uses passed ORB arguments.

---

Member Function Documentation

const char* nc::ArchiveConsumer::getChannelDomain

(

)

[protected, virtual]

Overridden

Returns:

---

Reimplemented from nc::Helper.

const char* nc::ArchiveConsumer::getChannelKind

(

)

[protected, virtual]

Overridden

Returns:

---

Reimplemented from nc::Helper.

const char* nc::ArchiveConsumer::getNotificationFactoryName

(

)

[inline, protected, virtual]

This method returns a constant character pointer to the name of the notification service as registered with the CORBA Naming Service.

Returns:

pointer to a constant string. Normally acscommon::NOTIFICATION_FACTORY_NAME

Reimplemented from nc::Helper.

virtual void nc::ArchiveConsumer::push_structured_event

(

const CosNotification::StructuredEvent &

publishedEvent

)

[virtual]

Overridden

Parameters:

publishedEvent

The real CORBA event (defined via an IDL definition). This structure has little to do with so-called ICD events.

Exceptions:

CosEventComm::Disconnected

Returns:

void

---

Implements nc::Consumer.

void nc::ArchiveConsumer::subscribeAllEvents

(

)

[private]

Method used to subscribe to all types of events on the channel.

Returns:

Exceptions:

ACSErrTypeCommon::CORBAProblemEx

---

Member Data Documentation

ArchiveHandlerSmartPtr nc::ArchiveConsumer::handler_m [private]

This function does something with archive events.

---

The documentation for this class was generated from the following file:

• acsncArchiveConsumer.h
