#include <maciLibraryManager.h>

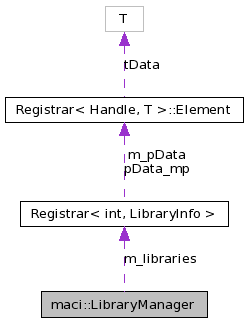

Collaboration diagram for maci::LibraryManager:

Classes
struct	LibraryInfo
	Structure to store data about loaded libraries. More...
Public Types
typedef bool(*	DLLOpenFunc )(int argc, char *argv[])
typedef void(*	DLLCloseFunc )(void)
typedef void(*	DLLSetupCORBAFunc )(CORBA::ORB_ptr m_orb, PortableServer::POAManager_ptr m_poaManager, PortableServer::POA_ptr m_poaRoot, PortableServer::POA_ptr m_poaPersistent, PortableServer::POA_ptr m_poaTransient)
typedef void(*	DLLInitThreadsFunc )(InitThreadFunc initFunc, DoneThreadFunc doneFunc)
Public Member Functions
	LibraryManager ()
	~LibraryManager ()
void	setSearchPath (const char *path)
const char *	getSearchPath ()
void	closeAllLibraries (bool inform=true)
char *	locateLibrary (const char *name)
void	lock (int h)
void	unlock (int h)
int	load (const char path, int argc=0, char argv[]=0)
void	unload (int h)
void	unload (const char *name)
void *	getSymbol (int h, const char *symbol)
bool	setupCORBAinDLL (int handle, CORBA::ORB_ptr m_orb, PortableServer::POAManager_ptr m_poaManager, PortableServer::POA_ptr m_poaRoot, PortableServer::POA_ptr m_poaPersistent, PortableServer::POA_ptr m_poaTransient)
bool	initThreadsInDLL (int handle, InitThreadFunc initFunc, DoneThreadFunc doneFunc)
Private Member Functions
int	ldfind (const ACE_TCHAR filename[], ACE_TCHAR pathname[], size_t maxpathnamelen)
Logging::Logger::LoggerSmartPtr	getLogger ()
Private Attributes
Registrar< int, LibraryInfo >	m_libraries
	Data about all loadrd libraries.
char *	m_path
	Search path.
ACE_Recursive_Thread_Mutex	mutex
	Thread synchornization mutex.
Logging::Logger::LoggerSmartPtr	logger_m
	Logger for this container;.

Detailed Description

Class responsible of loading/unloading of dynamic-linked/shared libraries

Member Typedef Documentation

typedef void(* maci::LibraryManager::DLLCloseFunc)(void)

Declaration of the DLLClose function. A DLL that expects to be unloaded by the DLL Manager can export a function named "DLLClose". The DLL Manager then invokes this function just before it unloads the DLL.

typedef void(* maci::LibraryManager::DLLInitThreadsFunc)(InitThreadFunc initFunc, DoneThreadFunc doneFunc)

Declaration of the DLLInitThreads function. A DLL that expects to be loaded by the DLL Manager can export a function named "DLLInitThreads". The DLL Manager then invokes this function just after it loads the DLL.

Parameters:

	m_orb
	m_poaRoot
	m_poaPersistent

typedef bool(* maci::LibraryManager::DLLOpenFunc)(int argc, char *argv[])

Declaration of the DLLOpen function. A DLL that expects to be loaded by the DLL Manager can export a function named "DLLOpen". The DLL Manager then invokes this function just after it loads the DLL.

Parameters:

	argc	number of arguments
	argv	array of arguments

Returns:: false on initialization failure (false indicates that DLL will be unloaded).

typedef void(* maci::LibraryManager::DLLSetupCORBAFunc)(CORBA::ORB_ptr m_orb, PortableServer::POAManager_ptr m_poaManager, PortableServer::POA_ptr m_poaRoot, PortableServer::POA_ptr m_poaPersistent, PortableServer::POA_ptr m_poaTransient)

Declaration of the DLLSetupCORBA function. A DLL that expects to be loaded by the DLL Manager can export a function named "DLLSetupCORBA". The DLL Manager then invokes this function just after it loads the DLL.

Parameters:

	m_orb
	m_poaRoot
	m_poaPersistent

Constructor & Destructor Documentation

maci::LibraryManager::LibraryManager ( )

Constructor

maci::LibraryManager::~LibraryManager ( )

Destructor

Member Function Documentation

void maci::LibraryManager::closeAllLibraries ( bool inform = true )

Close all currently opened libraries

Parameters:

inform

if true DLLClose function will be called

Logging::Logger::LoggerSmartPtr maci::LibraryManager::getLogger ( ) [inline, private]

Returns an ACS Logger created for this container.

Returns:: an ACS Logger

References logger_m.

const char* maci::LibraryManager::getSearchPath ( ) [inline]

Get path where to libraries can be found

Parameters:

path

References m_path.

void* maci::LibraryManager::getSymbol	(	int	h,
		const char *	symbol
	)

Resolves symbol from the library

Parameters:

handle

given by open method

See also:: open

bool maci::LibraryManager::initThreadsInDLL	(	int	handle,
		InitThreadFunc	initFunc,
		DoneThreadFunc	doneFunc
	)

Calls "DLLInitThreads" in library with specified handle

Parameters:

	handle
	initFunc	pointer to function
	doneFunc	pointer to function

Returns:: true if successful

int maci::LibraryManager::ldfind	(	const ACE_TCHAR	filename[],
		ACE_TCHAR	pathname[],
		size_t	maxpathnamelen
	)			`[private]`

Search throuh search path(s) for library with given name

Parameters:

	filename	library name
	pathname	found path to the library

Returns:: 0 on success, -1 on failure

int maci::LibraryManager::load	(	const char *	path,
		int	argc = `0`,
		char *	argv[] = `0`
	)

Loads library

Parameters:

	path
	argc
	argv

char* maci::LibraryManager::locateLibrary ( const char * name )

Get path of given library (e.g. ps returns /usr/lib/libps.so)

Parameters:

name

"core" name of the library

void maci::LibraryManager::lock ( int h )

Lock library (increase reference counter)

Parameters:

handle

given by open method

See also:: open

void maci::LibraryManager::setSearchPath ( const char * path )

Set path where to libraries can be found

Parameters:

path

bool maci::LibraryManager::setupCORBAinDLL	(	int	handle,
		CORBA::ORB_ptr	m_orb,
		PortableServer::POAManager_ptr	m_poaManager,
		PortableServer::POA_ptr	m_poaRoot,
		PortableServer::POA_ptr	m_poaPersistent,
		PortableServer::POA_ptr	m_poaTransient
	)
