baci::BACIRecoveryManager Class Reference

#include <baciRecovery.h>

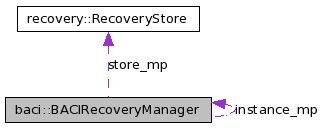

Collaboration diagram for baci::BACIRecoveryManager:

List of all members.

Public Member Functions
	BACIRecoveryManager ()
	~BACIRecoveryManager ()
void	addRecoverableObject (RecoverableObject *object)
void	updateRecoverableObject (RecoverableObject *object)
void	removeRecoverableObject (RecoverableObject *object)
ACE_CString_Vector	getObjectsStartingWith (const char *namePrefix)
const char *	getObjectState (const char *name)
char *	generateObjectName (const char *namePrefix)
Static Public Member Functions
static void	loadRecovery (bool load)
static void	activatorName (const char *activatorName)
static BACIRecoveryManager *	getInstance (void)
static void	destroyInstance ()
Private Member Functions
void	operator= (const BACIRecoveryManager &)
	BACIRecoveryManager (const BACIRecoveryManager &)
Private Attributes
recovery::RecoveryStore *	store_mp
Static Private Attributes
static BACIRecoveryManager *	instance_mp
static bool	load_m
static const char *	activatorName_mp

---

Detailed Description

Class which saves all BACI data needed to restore its state in cause of failure or unexpected terminatrion.
It uses RecoveryStore class from recovery module to store data. Since all data are coded to a ACE_CString, this class also provided data coding/decoding. There are only two structures to save, actually: monitors and events.

Author:

Matej Sekoranja, Jozef Stefan Institute, Slovenia

See also:

RecoverableObject

---

Constructor & Destructor Documentation

baci::BACIRecoveryManager::BACIRecoveryManager

(

)

Constructor

baci::BACIRecoveryManager::~BACIRecoveryManager

(

)

Destructor

baci::BACIRecoveryManager::BACIRecoveryManager

(

const BACIRecoveryManager &

)

[private]

ALMA C++ coding standards state copy constructors should be disabled.

---

Member Function Documentation

static void baci::BACIRecoveryManager::activatorName

(

const char *

activatorName

)

[static]

Set activator name.

Parameters:

activator

name

void baci::BACIRecoveryManager::addRecoverableObject

(

RecoverableObject *

object

)

Add object to recovery data

Parameters:

object

object to be added to recovery data

static void baci::BACIRecoveryManager::destroyInstance

(

)

[static]

Destroy static instance of BACIRecoveryManager (clean-up/delete recovery data)

char* baci::BACIRecoveryManager::generateObjectName

(

const char *

namePrefix

)

Generates first free name starting with given prefix
Generation algorithm: namePrefix, namePrefix0, namePrefix1, etc.

Parameters:

namePrefix

name prefix

static BACIRecoveryManager* baci::BACIRecoveryManager::getInstance

(

void

)

[static]

Get static instance of BACIRecoveryManager ("singleton" pattern)

Returns:

static instance

ACE_CString_Vector baci::BACIRecoveryManager::getObjectsStartingWith

(

const char *

namePrefix

)

Get objects' names starting with given prefix

Parameters:

namePrefix

name prefix

const char* baci::BACIRecoveryManager::getObjectState

(

const char *

name

)

Get object's stringified state

Parameters:

name

object name

static void baci::BACIRecoveryManager::loadRecovery

(

bool

load

)

[static]

Set load recovery data switch

Parameters:

bool

load

void baci::BACIRecoveryManager::operator=

(

const BACIRecoveryManager &

)

[private]

ALMA C++ coding standards state assignment operators should be disabled.

void baci::BACIRecoveryManager::removeRecoverableObject

(

RecoverableObject *

object

)

Remove object from recovery data

Parameters:

object

object to be removed from recovery data

void baci::BACIRecoveryManager::updateRecoverableObject

(

RecoverableObject *

object

)

Update object to recovery data

Parameters:

object

object to be updated in recovery data

---

Member Data Documentation

const char* baci::BACIRecoveryManager::activatorName_mp [static, private]

Activator name

BACIRecoveryManager* baci::BACIRecoveryManager::instance_mp [static, private]

Static instance of BACIRecoveryManager

bool baci::BACIRecoveryManager::load_m [static, private]

Load recovery data switch

recovery::RecoveryStore* baci::BACIRecoveryManager::store_mp [private]

Class which takes care of recovery data

See also:

RecoveryStore

---

The documentation for this class was generated from the following file:

• baciRecovery.h
