BaseSupplier Class Reference

#include <basencSupplier.h>

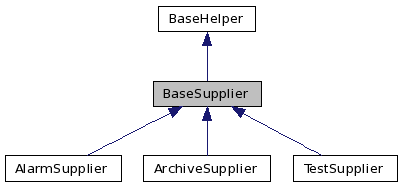

Inheritance diagram for BaseSupplier:

Collaboration diagram for BaseSupplier:

List of all members.

Public Member Functions
	BaseSupplier (const char *channelName, const char *notifyServiceDomainName=0)
virtual void	disconnect ()
void	init (CosNaming::NamingContext_ptr nc_p)
virtual void	subscription_change (const CosNotification::EventTypeSeq &added, const CosNotification::EventTypeSeq &removed)
virtual void	disconnect_structured_push_supplier ()
Protected Member Functions
virtual	~BaseSupplier ()
void	publishEvent (const CosNotification::StructuredEvent &event)
virtual void	populateHeader (CosNotification::StructuredEvent &event)
virtual const char *	getEventType ()=0
virtual const char *	getEventName ()
virtual acsnc::OSPushSupplier_ptr	getCORBARef ()
Private Member Functions
void	connect ()
Private Attributes
CosNotifyChannelAdmin::SupplierAdmin_var	supplierAdmin_m
CosNotifyChannelAdmin::StructuredProxyPushConsumer_var	proxyConsumer_m
CosNotifyChannelAdmin::ProxyID	proxyConsumerID_m
CosNotifyChannelAdmin::AdminID	adminID_m
acsnc::OSPushSupplier_var	corbaRef_m

---

Detailed Description

Abstract baseclass designed to send structured events out.

---

Constructor & Destructor Documentation

BaseSupplier::BaseSupplier	(	const char *	channelName,
		const char *	notifyServiceDomainName = 0
	)

Standard constructor.

Parameters:

	channelName	Name of the channel to use.
	notifyServiceDomainName	Name of the notification service domain name used to determine notification service.

virtual BaseSupplier::~BaseSupplier

(

)

[protected, virtual]

Destructor

---

Member Function Documentation

void BaseSupplier::connect

(

)

[private]

Connect the Supplier to the EventChannel.

Parameters:

supplier_admin

A supplier admin object which we can connect this instance of BaseSupplier to.

virtual void BaseSupplier::disconnect

(

)

[virtual]

Overridden.

Reimplemented from BaseHelper.

virtual void BaseSupplier::disconnect_structured_push_supplier

(

)

[virtual]

CORBA method we do not really care about from this class other than the fact that it must be overridden.

virtual acsnc::OSPushSupplier_ptr BaseSupplier::getCORBARef

(

)

[protected, virtual]

Utility method only used by Supplier and should not be called by your code directly. Provided just in case someone wants to create this object's underlying CORBA reference using other libraries/POAs/etc

Returns:

CORBA reference to ourself

virtual const char* BaseSupplier::getEventName

(

)

[inline, protected, virtual]

This method returns a constant character pointer to the type of event.

Returns:

pointer to a constant string.

virtual const char* BaseSupplier::getEventType

(

)

[protected, pure virtual]

This method returns a constant character pointer to the type of event.

Returns:

pointer to a constant string.

Implemented in AlarmSupplier, ArchiveSupplier, and TestSupplier.

void BaseSupplier::init

(

CosNaming::NamingContext_ptr

nc_p

)

[virtual]

Overridden. This object will not function until this method has been invoked.

Reimplemented from BaseHelper.

virtual void BaseSupplier::populateHeader

(

CosNotification::StructuredEvent &

event

)

[protected, virtual]

Developer's responsibility to call this method before sending any event.

Referenced by TestSupplier::publishEvent().

void BaseSupplier::publishEvent

(

const CosNotification::StructuredEvent &

event

)

[protected]

Send an entire structured event. Subclasses should create their own structured event and then call this method to do the real publishing of events.

Parameters:

event

A CORBA StructuredEvent

virtual void BaseSupplier::subscription_change	(	const CosNotification::EventTypeSeq &	added,
		const CosNotification::EventTypeSeq &	removed
	)			[virtual]

CORBA method we do not really care about from this class other than the fact that it must be overridden.

Exceptions:

CosNotifyComm::InvalidEventType

---

Member Data Documentation

CosNotifyChannelAdmin::AdminID BaseSupplier::adminID_m [private]

Supplier admin ID.

acsnc::OSPushSupplier_var BaseSupplier::corbaRef_m [private]

CORBA reference to myself.

CosNotifyChannelAdmin::StructuredProxyPushConsumer_var BaseSupplier::proxyConsumer_m [private]

The proxy that we are connected to.

CosNotifyChannelAdmin::ProxyID BaseSupplier::proxyConsumerID_m [private]

This supplier's id.

CosNotifyChannelAdmin::SupplierAdmin_var BaseSupplier::supplierAdmin_m [private]

Supplier Admin object is responsible for creating & managing proxy consumers w/ a common set of QoS property settings & filter objects.

---

The documentation for this class was generated from the following file:

• basencSupplier.h
