baci.h File Reference

#include "acsutil.h"
#include "baciExport.h"
#include "acsutilTimeStamp.h"
#include "baciThread.h"
#include "baciTypes.h"
#include "baciValue.h"
#include "baciCORBA.h"
#include "baciRegistrar.h"
#include "logging.h"
#include "baciError.h"
#include "acserr.h"
#include "ACSErrTypeMonitor.h"
#include "ACSErrTypeOK.h"
#include <baciErrTypeProperty.h>
#include <algorithm>
#include <map>
#include <vector>
#include <deque>
#include "baciBACIAction.h"
#include "baciBACICallback.h"
#include "baciBACIMonitor.h"
#include "baciBACIProperty.h"
#include "baciBACIComponent.h"
#include "archiveeventsArchiveSupplier.h"

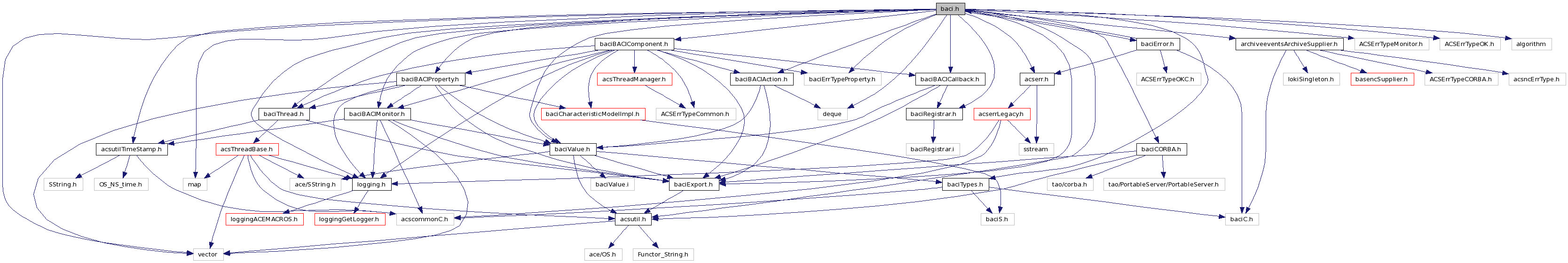

Include dependency graph for baci.h:

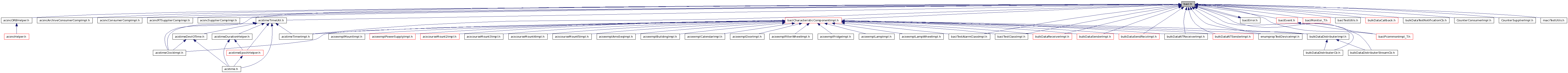

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	baci
Defines
#define	ACS_ARCHIVE(device, param, type, value)   ArchiveSupplierSingleton::Instance().sendEvent(0, getTimeStamp(), device, param, value);
#define	ACS_ARCHIVE_PRIORITY(device, param, type, value, prio)

---

Detailed Description

Header file BACI.

---

Define Documentation

#define ACS_ARCHIVE	(		device,
			param,
			type,
			value
	)			ArchiveSupplierSingleton::Instance().sendEvent(0, getTimeStamp(), device, param, value);

ACS_ARCHIVE is a macro used to log something to the archive. As far as I know, it currently does not actually send anything to the real ALMA archive.

Parameters:

	device	Some device. Presumably this is a component's name. String.
	param	Name of the property. String.
	type	Type of the value to be archived???
	value	Value to be archived. Most simple CORBA types should work fine for this as sendEvent is templated. I.e., value could be "joe", 33ULL, 3.14, etc

#define ACS_ARCHIVE_PRIORITY	(		device,
			param,
			type,
			value,
			prio
	)

Value:

{ \
CORBA::Any any; \
value.getAny(any); \
ArchiveSupplierSingleton::Instance().send_event(prio, getTimeStamp(), device, param, any, "");  \
}

ACS_ARCHIVE_PRIORITY is a macro used to log something to the archive with a given priority. As far as I know, it currently does not actually send anything to the real ALMA archive.

Parameters:

	device	Some device. Presumably this is a component's name. String.
	param	Name of the property. String.
	type	Type of the value to be archived???
	value	BACIValue object to be archived.
	prio	Priority at which the value is logged.
