First Auxiliary Telescope for the VLT Interferometer Installed at Paranal
World's Largest Moving Optical Telescope on Track
30 January 2004
Another advanced astronomical telescope has just been installed at the Paranal Observatory, located in the heart of the Chilean Atacama Desert and home of the ESO Very Large Telescope (VLT). The new telescope, known as Auxiliary Telescope no. 1 (AT1), forms part of the VLT Interferometer (VLTI). It has a main mirror of 1.8-m diameter and is installed in a compact dome. In contrast to the four giant 8.2-m telescopes and, indeed, to any other telescope in the world of this size, it can be moved along a system of railway tracks on the top of the Paranal mountain. It sends the captured light from celestial objects into the subterranean Interferometric Tunnel from where it is directed to the central Interferometric Laboratory. This is the first of four AT's that will be installed in 2004-2006. These compact, high-tech telescopes are built by the AMOS company in Liège (Belgium). When placed in different configurations on the tracks, they will enable the VLTI to operate with great flexibility (also when the large telescopes are busy with other observations) and to obtain extremely sharp images of celestial objects - ultimately with a resolution that corresponds to seeing an astronaut on the Moon.

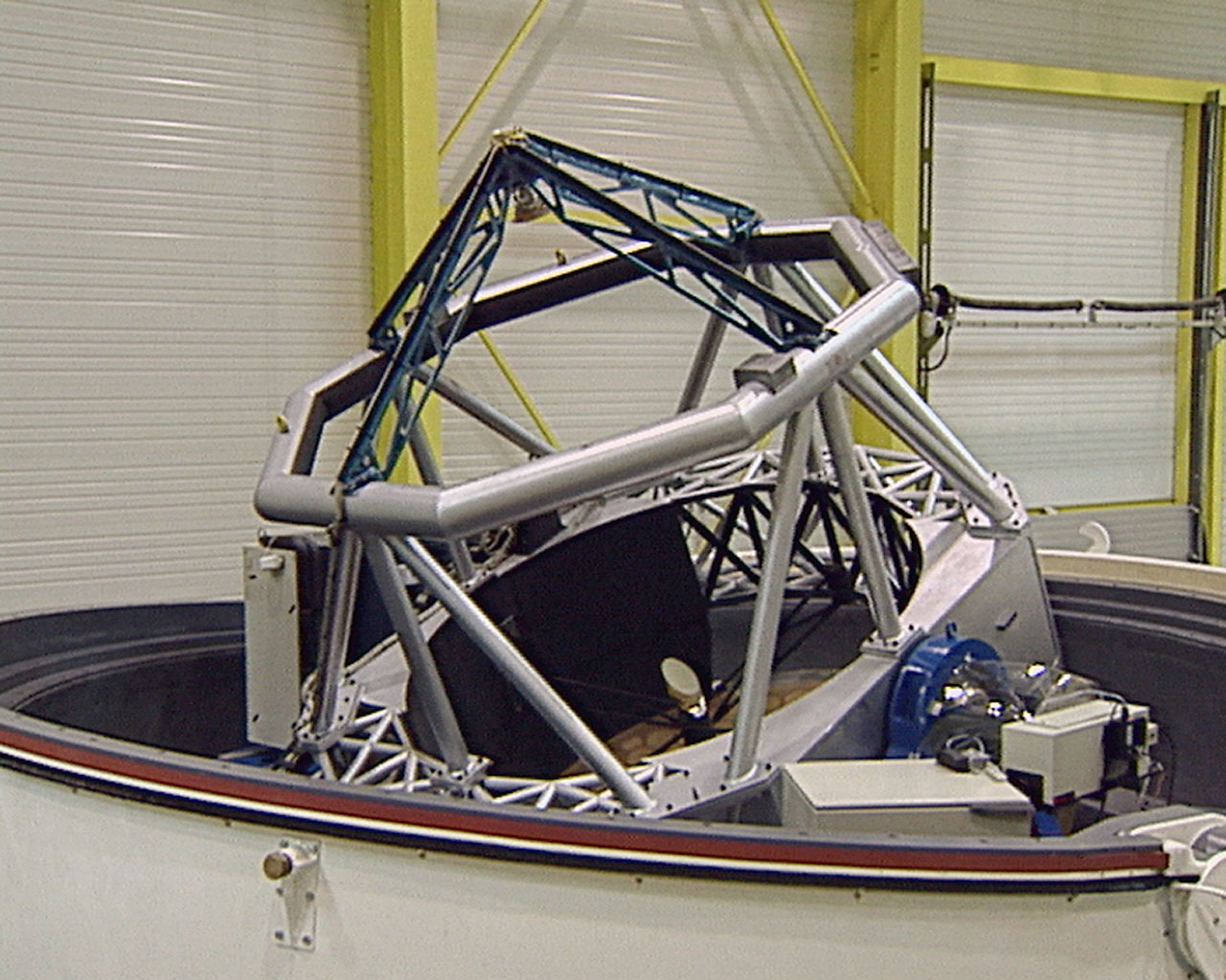

Auxiliary Telescope No. 1 (AT1)
European astronomers and engineers are opening a new chapter in the story of astronomical research and technology, by testing a new type of telescope at the ESO Paranal Observatory in Chile, the world's leading facility for ground-based optical astronomical research. This new telescope is not particularly big. In fact, the telescope mirror that catches the starlight is only 1.8-m in diameter. So why is this telescope so important?
With three sister telescopes yet to be installed, it constitutes a key element of the so-called Very Large Telescope Interferometer (VLTI) , arguably the world's most advanced optical device of this type. An interferometer of this size will allow scientists to study suitable objects in unprecedented detail, with a resolution up to 50 times better than the Hubble Space Telescope.
The VLT Interferometer
The VLTI incorporates the four gigantic 8.2-m telescopes that have already been installed at this remote mountain observatory and are operated every night in the year. Combining the light from the celestial objects, caught by pairs of these telescopes, at one focal point increases the resolving power of the instrument.
However, most of the time the large telescopes are used for other purposes. They are therefore only available for interferometric observations during a limited number of nights every year. Thus, in order to exploit the VLTI each night and to achieve the full potential of this setup, some other (smaller), dedicated telescopes are necessary.

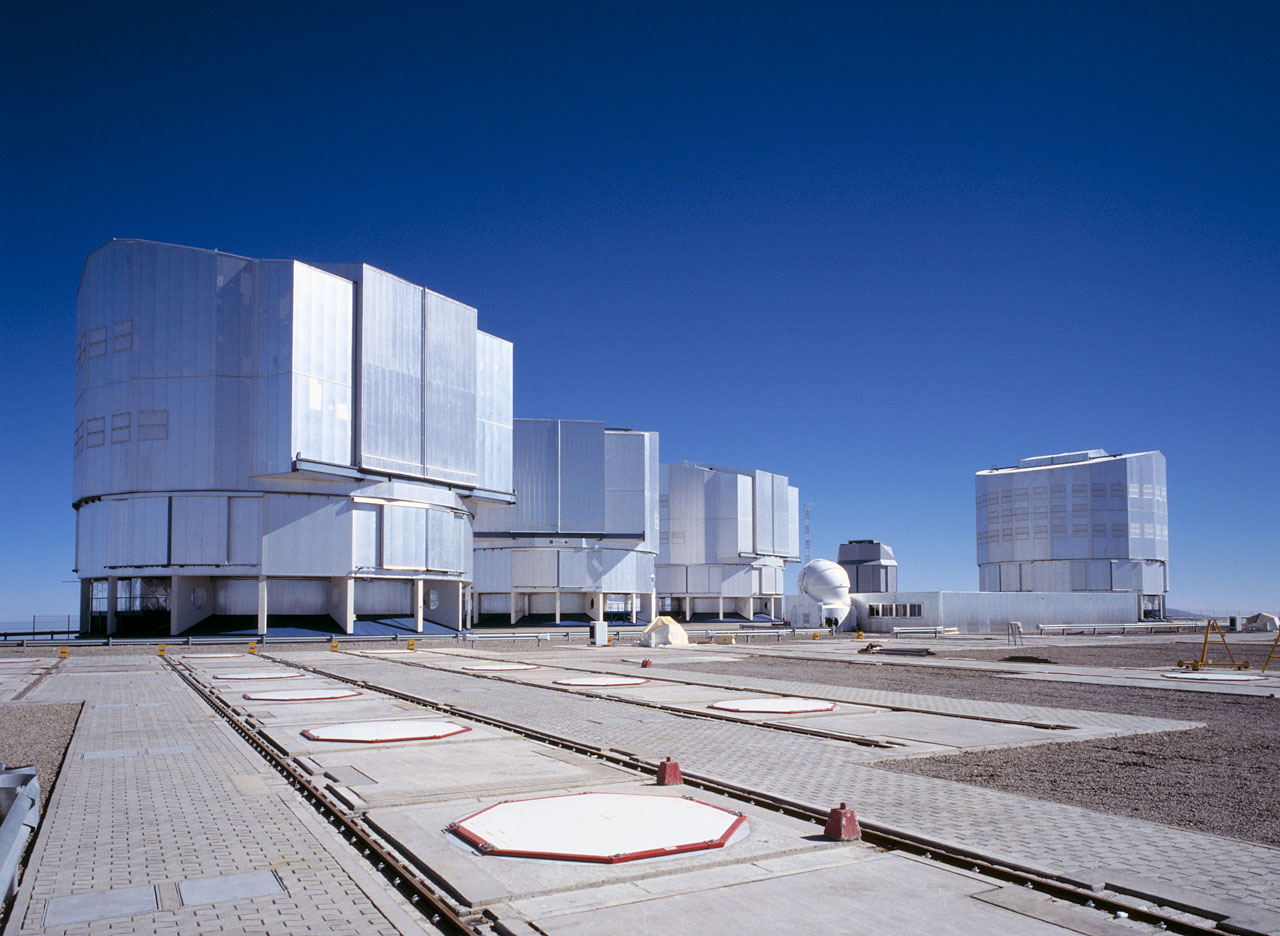

These telescopes, known as the VLTI Auxiliary Telescopes (ATs) are mounted on tracks and can be placed at precisely defined "parking" observing positions on the observatory platform. From these positions, their light beams are fed into the same common focal point via a complex systems of reflecting mirrors in an underground system of tunnels.
The possibility to move the ATs around and thereby to perform observations with different telescope configurations ensures a great degree of flexibility. Moreover, due to the nature of interferometry, more complete images of the celestial objects will be observed with the ATs. While the largest possible distance between two 8.2-m telescopes (ANTU and YEPUN) is about 130 metres, the maximal distance between two ATs can reach 200 metres. As the achievable image sharpness increases with the telescope separation, interferometric observations with the ATs positioned at the extreme positions will yield sharper images than is possible by combining light from the large telescopes alone.
The ATs are very unusual telescopes
The Auxiliary Telescopes have rather unusual characteristics:
- they are relocatable;
- they are totally self-sufficient with only electrical connections to the site;
- they carry their own dome and cooling and ventilation systems and do not need additional environmental protection;
- they must fulfil the very stringent mechanical stability requirements imposed by interferometry at the level of a few tens of nanometres.
Since the new ATs are moveable, the entire configuration of telescopes can be changed according to the observational requirements.

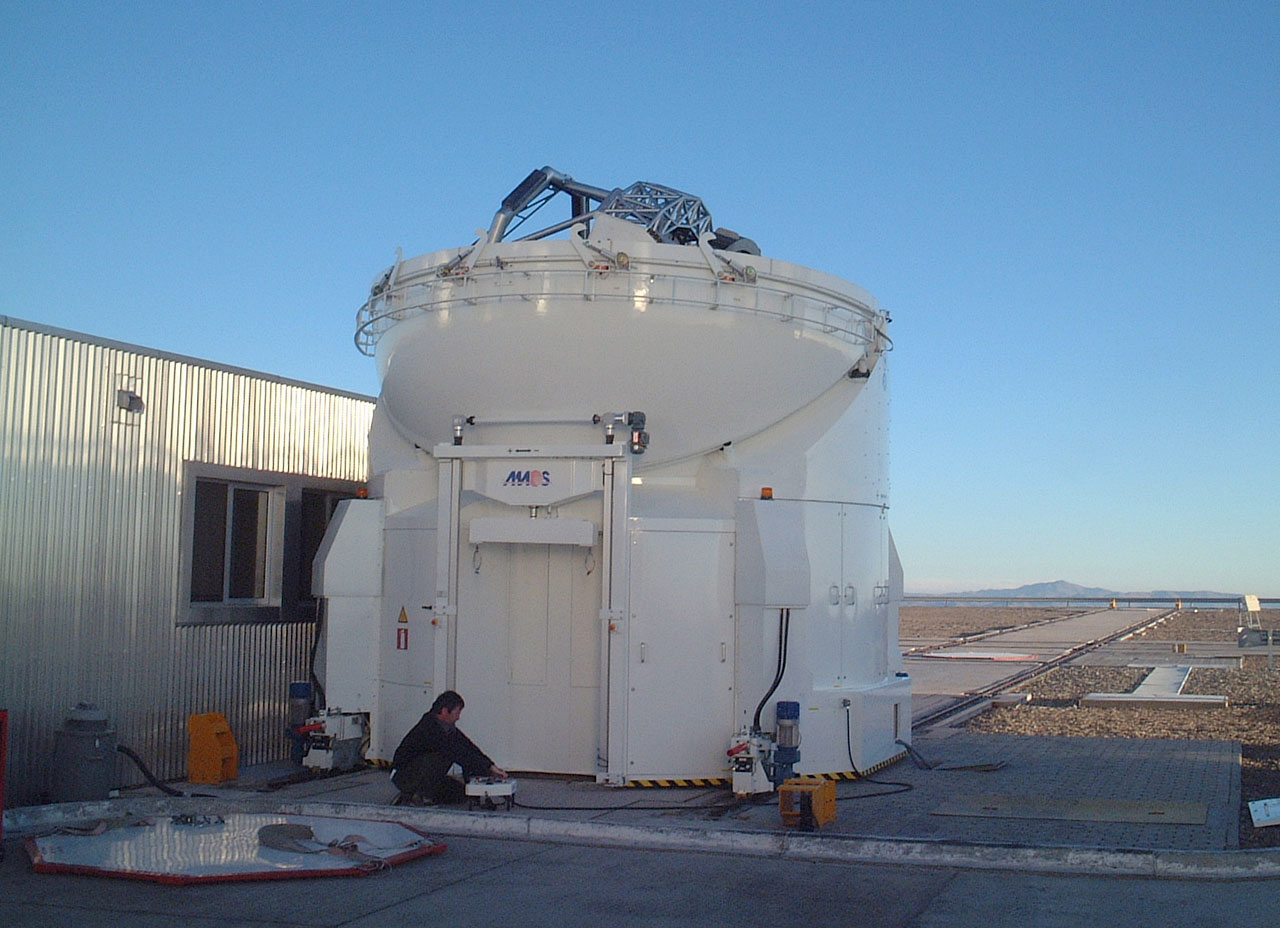

Classical telescopes of this size are housed in huge buildings with big domes. The ATs, however, are placed in ultra-compact enclosures, complete with all necessary electronics, air conditioning system and cooling liquid for thermal control, compressed air for enclosure seals, hydraulic plant for opening the dome shells, etc. Each AT is also fitted with a transporter that lifts the telescope and moves it from one station to the other. Almost like a snail, it moves around with its own housing.
At the same time, they must fulfil very stringent mechanical stability requirements imposed by interferometry. Moreover, moving ultra-high precision telescopes, each weighing 33 tonnes, without spending days or even hours to re-adjust them after each move puts exceedingly high demands on the mechanical design and manufacturing.
AT1 at Paranal

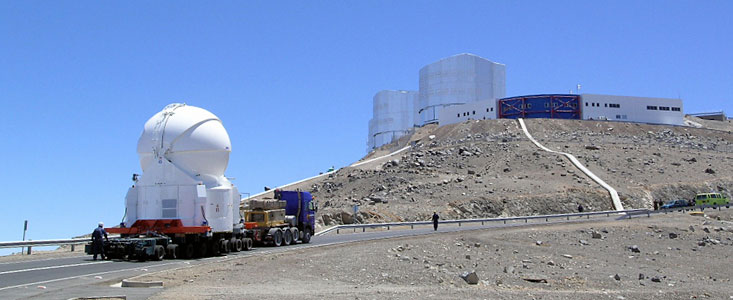

After a busy installation period lasting two and a half months, the first of the four ATs, AT1, is now in place at Paranal. To get this far has not been easy. It has been a daunting task, drawing on the innovative skills both of the ESO team of engineers and of the Belgian company, AMOS, that was entrusted with the construction.
Bertrand Koehler, the VLTI AT Project Manager, is pleased and relieved at the same time : "We are living in a very significant moment in the life of this project. It is in some way the birth of the first of four twins, belonging to a whole new generation of telescopes, the VLTI Auxiliary Telescopes. The numerous tests made in Europe and now here in Chile, have proven that the baby is in good shape. This is of course the result of five years of hard labour by engineers, scientists and technicians belonging to European industries and to ESO ."
ESO's Director General, Dr. Catherine Cesarsky, was at Paranal during the final phases of the installation of AT1: "At Paranal, in the Atacama Desert, we have created a hi-tech heaven to which we are now bringing this new telescope, the first Auxiliary Telescope. It is itself a jewel and in some ways it might even be considered more modern than the VLT itself. We had to conceive a totally new solution to a new problem, that is, to make a telescope that is able to carry all its systems with itself, and we succeeded! I don't think this has ever been done before."
A bright future for the VLTI
The installation of Auxiliary Telescope 1 at Paranal is another important step during the progressive implementation of the unique VLT Interferometer. More ATs will be added, and soon more instruments to capture and measure the light at the interferometric focus will be installed.
Optical interferometry on the scale that ESO is aiming for is an enormous technical challenge, but the reward is high. With its unrivalled ability for resolving details of astronomical objects, European astronomers will ultimately have an instrument at their disposal that may revolutionize many areas of astronomical research.
