Plot
? |
Symb
? |
Source
* |
Average ? |
Thresholds ? |
N_
data |
QC1
parameter |
Data
downloads |
Remarks |
| method |
value |
unit |
method |
value |
| 1 |
• | QC1DB |
MEDIAN |
360 |
ADU |
VAL | 0.,500 |
12 |
qc_num_bpm |
this |
last_yr |
all
|
number of non-linear pixels averaged over all 32 detectors |
| 2 |
• | QC1DB |
MEDIAN |
21.5 |
ADU |
VAL | 0.,3000 |
322 |
qc_num_bpm |
this |
last_yr |
all
|
number of non-linear pixels for each individual detector |
| 3 |
■ | LOCAL |
none |
|
none |
none | |
405 |
det_id |
n/a |
score per detector:
GREEN = within the thresholds |
| 3 |
■ | LOCAL |
none |
|
none |
none | |
0 |
det_id |
n/a |
score per detector:
RED = beyond the thresholds |
| |
|
*Data sources: QC1DB: QC1 database; LOCAL: local data source
|
Plot 1
scores: not implemented
| | data source: | omegacam_detlin
(QC1 database) |
| dataset: | qc_num_bpm | • |
| median: | 360 | ADU |
| fixed thresholds: | 0.0...500 | ADU |
| N_data plotted: | 12 |
| [click plot for closeup] |
Plot 2
scores: not implemented
| | data source: | omegacam_detlin
(QC1 database) |
| dataset: | qc_num_bpm | • |
| median: | 21.5 | ADU |
| fixed thresholds: | 0.0...3000 | ADU |
| N_data plotted: | 322 |
| [click plot for closeup] |
Plot 3
scores: not implemented
| | data source: | local data source
|
dataset:
(numbers below apply to this dataset) | det_id | ■ |
| average: | none |
| thresholds: | none |
| N_data plotted: | 405 |
| [click plot for closeup] |

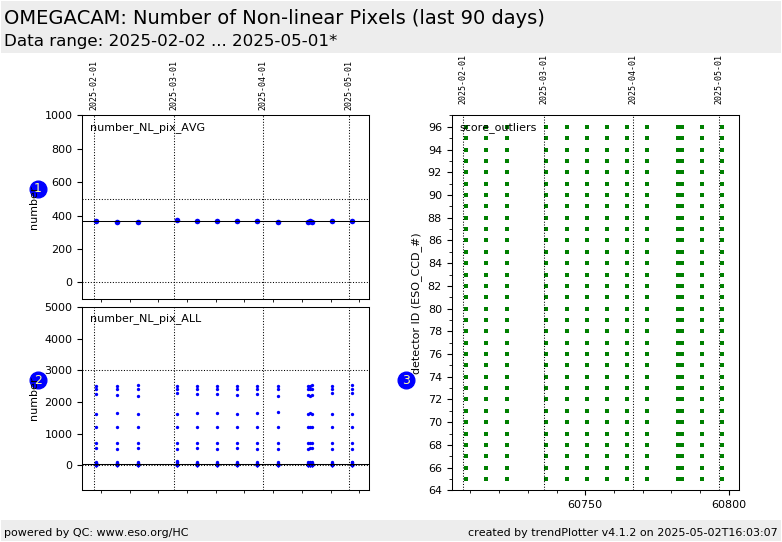

Trending plots for the detector linearity (number of non-linear
pixels found).
QC parameters are derived from each of 32 detectors of OmegaCAM dome flat frames.
DB Name: omegacam_detlin
Fits header: QC.NUM.BPM
QC1 DB: qc_num_bpm
Description:
The number of non-linear pixels as measured from the detector monitoring
pipeline product BP_MAP_NL
Setup:
BIN.X / BIN.Y / READ.MODE / READ.SPEED = 1/1/normal/normal
These Health Check plots describe:
Fig. 1 non-linearity_AVG: The effective non-linearity
correction averaged over all 32 detectors.
This plot is sensitive to any changes common to all detectors.
Fig. 2 non-linearity_ALL: The effective non-linearity
correction for each individual detector. This plot is sensitive changes in individual
detectors.
Fig. 3 flux_level_AVG: The flux level at which the
effective non-linearity correction is applied averaged over all 32
detectors (ADU).
Fig. 4 score_outliers: Scores of the effective
non-linearity correction as measured for each of the 32 detectors.
Green = within the defined thresholds.
Red = beyond the defined thresholds.
OmegaCAM detector plane layout (detector_ID locations):
General information
Click on any of the plots to see a close-up version.
The latest date is indicated on top of the plot.
If configured,
- data points belonging to the latest date are specially marked
- statistical averages are indicated by a solid line, and thresholds by broken lines
- outliers are marked by a red asterisk. They are defined as data points outside the
threshold lines
- "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
- you can download the data for each parameter set if the 'Data downloads' link shows up
|
