MUSE trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2025-05-01T16:18:08 (UT)
  | now: 2025-05-01T23:15:00 (UT) muc09 QC pipeline: muse-2.8.8 (installed 2023-06-22)
same group: ins_throughput ins_throughput_det std_throughput
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
MUSE news:
Report news:
DATE*: [?] 2025-04-24
report | NLT 		2025-04-25
report | NLT 		2025-04-26
report | NLT 		2025-04-27
report | NLT 		2025-04-28
report | NLT 		2025-04-29
report | NLT 		2025-04-30
report | NLT 		2025-05-01
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw raw
P...
CAL product quality:
products products products products products products products products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?] 		*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB MEDIAN 0.254 NONE none  36 std_thru5000 this | last_yr | all STD WFM-NOAO-N THROUGHPUT at 5000 A
1 •QC1DB MEDIAN 0.364 NONE none  36 std_thru7000 this | last_yr | all STD WFM-NOAO-N THROUGHPUT at 7000 A
1 •QC1DB MEDIAN 0.276 NONE none  36 std_thru8000 this | last_yr | all STD WFM-NOAO-N THROUGHPUT at 8000 A
1 •QC1DB MEDIAN 0.171 NONE none  36 std_thru9000 this | last_yr | all STD WFM-NOAO-N THROUGHPUT at 9000 A
2 •QC1DB MEDIAN 0.256 NONE none  28 std_thru5000 this | last_yr | all STD WFM-NOAO-E THROUGHPUT at 5000 A
2 •QC1DB MEDIAN 0.362 NONE none  28 std_thru7000 this | last_yr | all STD WFM-NOAO-E THROUGHPUT at 7000 A
2 •QC1DB MEDIAN 0.276 NONE none  28 std_thru8000 this | last_yr | all STD WFM-NOAO-E THROUGHPUT at 8000 A
2 •QC1DB MEDIAN 0.184 NONE none  28 std_thru9000 this | last_yr | all STD WFM-NOAO-E THROUGHPUT at 9000 A
3 oQC1DB MEDIAN 0.253 NONE none  35 std_thru5000 this | last_yr | all STD WFM-AO-N THROUGHPUT at 5000 A
3 oQC1DB MEDIAN 0.363 NONE none  35 std_thru7000 this | last_yr | all STD WFM-AO-N THROUGHPUT at 7000 A
3 oQC1DB MEDIAN 0.273 NONE none  35 std_thru8000 this | last_yr | all STD WFM-AO-N THROUGHPUT at 8000 A
3 oQC1DB MEDIAN 0.171 NONE none  35 std_thru9000 this | last_yr | all STD WFM-AO-N THROUGHPUT at 9000 A
4 oQC1DB MEDIAN 0.254 NONE none  28 std_thru5000 this | last_yr | all STD WFM-AO-E THROUGHPUT at 5000 A
4 oQC1DB MEDIAN 0.361 NONE none  28 std_thru7000 this | last_yr | all STD WFM-AO-E THROUGHPUT at 7000 A
4 oQC1DB MEDIAN 0.272 NONE none  28 std_thru8000 this | last_yr | all STD WFM-AO-E THROUGHPUT at 8000 A
4 oQC1DB MEDIAN 0.175 NONE none  28 std_thru9000 this | last_yr | all STD WFM-AO-E THROUGHPUT at 9000 A
5 oQC1DB none   NONE none  20 std_thru5000 this | last_yr | all STD NFM-AO-N THROUGHPUT at 5000 A
5 oQC1DB none   NONE none  20 std_thru7000 this | last_yr | all STD NFM-AO-N THROUGHPUT at 7000 A
5 oQC1DB none   NONE none  20 std_thru8000 this | last_yr | all STD NFM-AO-N THROUGHPUT at 8000 A
5 oQC1DB none   NONE none  20 std_thru9000 this | last_yr | all STD NFM-AO-N THROUGHPUT at 9000 A
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: not implemented
data source:muse_std
(QC1 database)
dataset:
(numbers below apply to this dataset)		std_thru5000•
median:0.254NONE
thresholds:none
N_data plotted:36
[click plot for closeup]
Plot 2
scores: not implemented
data source:muse_std
(QC1 database)
dataset:
(numbers below apply to this dataset)		std_thru5000•
median:0.256NONE
thresholds:none
N_data plotted:28
[click plot for closeup]
Plot 3
scores: not implemented
data source:muse_std
(QC1 database)
dataset:
(numbers below apply to this dataset)		std_thru5000o
median:0.253NONE
thresholds:none
N_data plotted:35
[click plot for closeup]
Plot 4
scores: not implemented
data source:muse_std
(QC1 database)
dataset:
(numbers below apply to this dataset)		std_thru5000o
median:0.254NONE
thresholds:none
N_data plotted:28
[click plot for closeup]
Plot 5
scores: not implemented
data source:muse_std
(QC1 database)
dataset:
(numbers below apply to this dataset)		std_thru5000o
average:none
thresholds:none
N_data plotted:20
[click plot for closeup]
This plot

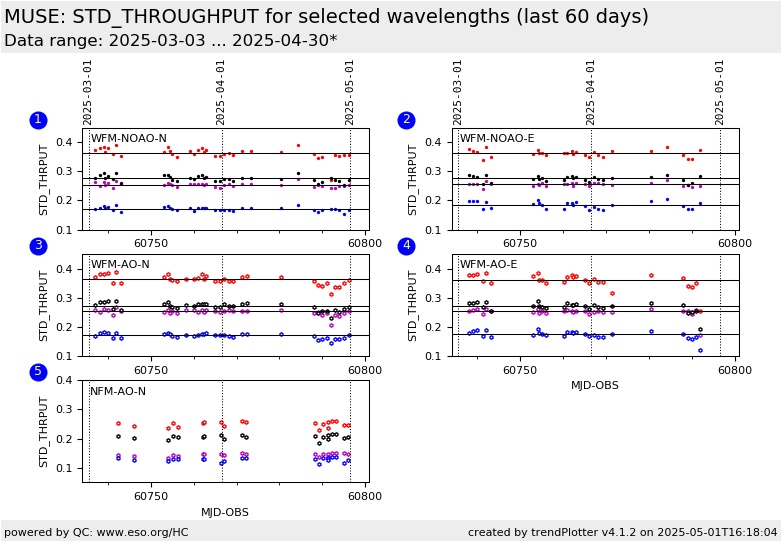

The MUSE STDTHRU health check plot shows throughput of the instrument measured from observations of the spectrophotometric standard stars. The thoughput is estimated in different wavelength bands +/- 100 A wide centered at: 5000 A, 7000 A, 8000 A and 9000 A. The 6000 A band is not used as it is affected by the presence of Na Notch filters in the AO mode. The upper panels show values derived from observations in WFM-NOAO-N (left) and WFM-NOAO-E (right) instrumental modes, middle paneles from data obtained in WFM-AO-N (left) and WFM-AO-E (right) modes, while bottom panel, from data in NFM-AO-N mode. Only data points determined from calibrations taken in the read out mode (DET.READ.CURNAME) SCI1.0 are selected.

The STDTHRU calibration data are taken with template TPL.ID=MUSE_wfm_cal_specphot


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
