MIDI trending system: HEALTH CHECK report
Last update: 2015-03-06T18:36:02 (UT)
[enable javascript for displaying time difference!]
General news:
NOTE: The Health Check and calChecker services have been moved to qcFlow. These pages are only maintained for comparison
and will be removed in 2026.
MIDI news:
2015-03-04: last night of MIDI operations
Report news:
Plot? Symb? Source Average ? Thresholds ? N_ QC1 Data Remarks
method value unit method value
1
• QC1DB MEDIAN 189.83 YES VAL 188.7,190.3 54 sp_beamA1_X
this |
last_yr |
all
BEAM A-ch 1 (Win2)
1
■ QC1DB MEDIAN 189.06 YES VAL 188.7,190.3 54 sp_beamA2_X
this |
last_yr |
all
BEAM A-ch 2 (Win3)
1
• QC1DB MEDIAN 190.01 YES VAL 188.7,190.3 54 sp_beamB1_X
this |
last_yr |
all
BEAM B-ch 1 (Win2)
1
■ QC1DB MEDIAN 189.23 YES VAL 188.7,190.3 54 sp_beamB2_X
this |
last_yr |
all
BEAM B-ch 2 (Win3)
2
• QC1DB MEDIAN 79.64 YES VAL 78.5,80.5 54 sp_beamA1_Y
this |
last_yr |
all
BEAM A-ch 1 (Win2)
2
• QC1DB MEDIAN 80.40 YES VAL 78.5,80.5 54 sp_beamB1_Y
this |
last_yr |
all
BEAM B-ch 1 (Win2)
3
■ QC1DB MEDIAN 165.09 YES VAL 164,166 54 sp_beamA2_Y
this |
last_yr |
all
BEAM A-ch 2 (Win3)
3
■ QC1DB MEDIAN 165.85 YES VAL 164,166 54 sp_beamB2_Y
this |
last_yr |
all
BEAM B-ch 2 (Win3)
4
• QC1DB MEDIAN 187.49 YES VAL 186.5,189.5 54 sp_beamPA_X
this |
last_yr |
all
BEAM A-Photom (Win4)
4
• QC1DB MEDIAN 188.53 YES VAL 186.5,189.5 54 sp_beamPB_X
this |
last_yr |
all
BEAM B-Photom (Win1)
5
• QC1DB MEDIAN 220.30 YES VAL 219.5,220.5 54 sp_beamPA_Y
this |
last_yr |
all
BEAM A-Photom (Win4)
6
• QC1DB MEDIAN 29.61 YES VAL 29,30 54 sp_beamPB_Y
this |
last_yr |
all
BEAM B-Photom (Win1)
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1 scores: multiple dataset, cannot be scored

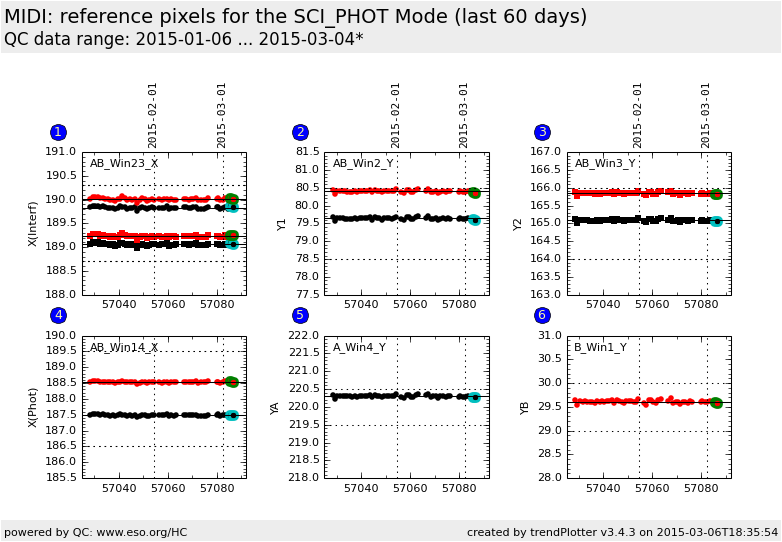

data source: midi_refpix dataset: sp_beamA1_X • median: 189.83 YES fixed thresholds: 188.7...190.3 YES N_data plotted: 54 [click on plot for closeup]
Plot 2 scores: multiple dataset, cannot be scored
data source: midi_refpix dataset: sp_beamA1_Y • median: 79.64 YES fixed thresholds: 78.5...80.5 YES N_data plotted: 54 [click on plot for closeup]
Plot 3 scores: multiple dataset, cannot be scored
data source: midi_refpix dataset: sp_beamA2_Y ■ median: 165.09 YES fixed thresholds: 164...166 YES N_data plotted: 54 [click on plot for closeup]
Plot 4 scores: multiple dataset, cannot be scored
data source: midi_refpix dataset: sp_beamPA_X • median: 187.49 YES fixed thresholds: 186.5...189.5 YES N_data plotted: 54 [click on plot for closeup]
Plot 5 scores: 8 |
data source: midi_refpix dataset: sp_beamPA_Y • median: 220.30 YES fixed thresholds: 219.5...220.5 YES N_data plotted: 54 [click on plot for closeup]
Plot 6 scores: 8 |
data source: midi_refpix dataset: sp_beamPB_Y • median: 29.61 YES fixed thresholds: 29...30 YES N_data plotted: 54 [click on plot for closeup]
This plot
The reference pixels of MIDI are the two pixels of the detector onto
which the centroids of the target images must fall in order to ensure a
proper beam overlap. They are measured using the center of a pinhole,
in the 3 set-ups OPEN, HIGH_SENS and SCI_PHOT, for telescopes beams A
and B feeding MIDI, for the interferometric channnels 1 and 2 of MIDI,
and for the photometric channels PA and PB of MIDI (in SCI_PHOT only).
