MIDI trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2015-03-06T18:29:08 (UT)
  | now: 2024-10-31T22:59:16 (UT) muc05 QC pipeline: midi-2.8.3 (installed 2014-10-20)
same group: TRANS COUNTS
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
MIDI news: 2015-03-04: last night of MIDI operations
Report news:
DATE*: [?] 2015-02-27
report | NLT 		2015-02-28
report | NLT 		2015-03-01
report | NLT 		2015-03-02
report | NLT 		2015-03-03
report | NLT 		2015-03-04
report | NLT 		2015-03-05
no data | NLT
P...
Product quality:
products products products products products products no products


scores&comments | history ... | plot tutorial ... | contact                 daily/often; important to check     [?] 		*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
- general comment: Variations in the counts are usually due to high pressure (see pressure plot)
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB MEDIAN 5.42e+03 number_counts VAL4500,7000 87 disp4_number_counts this | last_yr | all [ARIII] filter with prism
2 •QC1DB MEDIAN 940 number_counts VAL700,1300 87 disp4_number_counts this | last_yr | all [ARIII] filter with grism
3 •QC1DB MEDIAN 1.83e+03 number_counts VAL1500,2500 87 image1_number_counts this | last_yr | all [ARIII] filter open
4 •QC1DB MEDIAN 6.7e+03 number_counts VAL5500,9000 87 image1_number_counts this | last_yr | all [ARIII] filter open
5 •QC1DB MEDIAN 8.85e+03 number_counts VAL8000,12000 87 disp5_number_counts this | last_yr | all [NeII] filter with prism
6 •QC1DB MEDIAN 1.53e+03 number_counts VAL1000,2400 87 disp5_number_counts this | last_yr | all [NeII] filter with grism
7 •QC1DB MEDIAN 3.04e+03 number_counts VAL2800,3800 87 image2_number_counts this | last_yr | all [NeII] filter open
8 •QC1DB MEDIAN 1.12e+04 number_counts VAL10500,14000 87 image2_number_counts this | last_yr | all [NeII] filter open
9 •QC1DB MEDIAN 8.33e+03 number_counts VAL7500,11000 87 disp6_number_counts this | last_yr | all [SIV] filter with prism
10 •QC1DB MEDIAN 1.65e+03 number_counts VAL1000,2500 87 disp6_number_counts this | last_yr | all [SIV] filter with grism
11 •QC1DB MEDIAN 2.82e+03 number_counts VAL2500,3800 87 image3_number_counts this | last_yr | all [SIV] filter open
12 •QC1DB MEDIAN 1e+04 number_counts VAL9000,13000 87 image3_number_counts this | last_yr | all [SIV] filter open
*Data sources: QC1DB: QC1 database; LOCAL: local data source

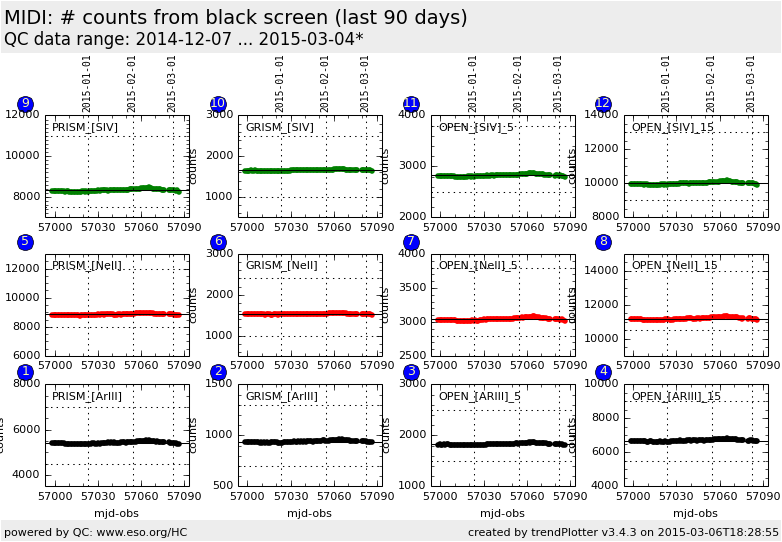

Plot 1
scores: 8|
data source:midi_dettrn
(QC1 database)
dataset:disp4_number_counts•
median:5.42e+03number_counts
fixed thresholds:4500...7000number_counts
N_data plotted:87
[click on plot for closeup]
Plot 2
scores: 8|
data source:midi_dettrn
(QC1 database)
dataset:disp4_number_counts•
median:940number_counts
fixed thresholds:700...1300number_counts
N_data plotted:87
[click on plot for closeup]
Plot 3
scores: not implemented
data source:midi_dettrn
(QC1 database)
dataset:image1_number_counts•
median:1.83e+03number_counts
fixed thresholds:1500...2500number_counts
N_data plotted:87
[click on plot for closeup]
Plot 4
scores: not implemented
data source:midi_dettrn
(QC1 database)
dataset:image1_number_counts•
median:6.7e+03number_counts
fixed thresholds:5500...9000number_counts
N_data plotted:87
[click on plot for closeup]
Plot 5
scores: 8|
data source:midi_dettrn
(QC1 database)
dataset:disp5_number_counts•
median:8.85e+03number_counts
fixed thresholds:8000...12000number_counts
N_data plotted:87
[click on plot for closeup]
Plot 6
scores: 8|
data source:midi_dettrn
(QC1 database)
dataset:disp5_number_counts•
median:1.53e+03number_counts
fixed thresholds:1000...2400number_counts
N_data plotted:87
[click on plot for closeup]
Plot 7
scores: not implemented
data source:midi_dettrn
(QC1 database)
dataset:image2_number_counts•
median:3.04e+03number_counts
fixed thresholds:2800...3800number_counts
N_data plotted:87
[click on plot for closeup]
Plot 8
scores: not implemented
data source:midi_dettrn
(QC1 database)
dataset:image2_number_counts•
median:1.12e+04number_counts
fixed thresholds:10500...14000number_counts
N_data plotted:87
[click on plot for closeup]
Plot 9
scores: 8|
data source:midi_dettrn
(QC1 database)
dataset:disp6_number_counts•
median:8.33e+03number_counts
fixed thresholds:7500...11000number_counts
N_data plotted:87
[click on plot for closeup]
Plot 10
scores: 8|
data source:midi_dettrn
(QC1 database)
dataset:disp6_number_counts•
median:1.65e+03number_counts
fixed thresholds:1000...2500number_counts
N_data plotted:87
[click on plot for closeup]
Plot 11
scores: not implemented
data source:midi_dettrn
(QC1 database)
dataset:image3_number_counts•
median:2.82e+03number_counts
fixed thresholds:2500...3800number_counts
N_data plotted:87
[click on plot for closeup]
Plot 12
scores: not implemented
data source:midi_dettrn
(QC1 database)
dataset:image3_number_counts•
median:1e+04number_counts
fixed thresholds:9000...13000number_counts
N_data plotted:87
[click on plot for closeup]
This plot

The number of counts is used to calculate the transmission of the dispersive elements. Transmission PRISM=(counts PRISM)/(counts OPEN, DIT=15ms). Transmission GRISM=(counts GRISM)/(counts OPEN, DIT=5ms)

General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
