FORS2 trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-10-31T17:04:31 (UT)
  | now: 2024-10-31T23:14:18 (UT) muc01 QC pipeline: fors-5.6.10 (installed 2024-04-19)
same group: 150I 300V 300I   600B,600RI 600z 1200B,1400V 1200R,1028z
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
FORS2 news:
Report news:
DATE*: [?] 2024-10-24
report | NLT
2024-10-25
report | NLT
2024-10-26
report | NLT
2024-10-27
report | NLT
2024-10-28
report | NLT
2024-10-29
report | NLT
2024-10-30
report | NLT
2024-10-31
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw no CAL raw files
P...
CAL product quality:
products products products products products products products no CAL products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...               [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 0.229 NONE none  2 efficiency_8 this | last_yr | all Relative efficiency for grism 1200R, and filter GG435 (upper CCD), range 6500A; all lss_slit_pos are plotted here
2 QC1DB MEDIAN 0.2 NONE none  1 efficiency_13 this | last_yr | all Relative efficiency for grism 1028z, and filter OG590 (upper CCD), range 8500A; all lss_slit_pos are plotted here

3 QC1DB none   NONE none  2 efficiency_7 this | last_yr | all Chromatic efficiency plot for grism 1200R, and filter GG435; the values trended in plot are marked. The plot is constituted from the following wavelength ranges: 6100A
3 QC1DB none   NONE none  2 efficiency_8 this | last_yr | all 6500A
3 QC1DB none   NONE none  2 efficiency_9 this | last_yr | all 6900A
3 QC1DB none   NONE none  2 efficiency_10 this | last_yr | all 7300A

4 QC1DB none   NONE none  1 efficiency_12 this | last_yr | all Chromatic efficiency plot for grism 1028z, and filter OG590 ; the values trended in plot are marked. The plot is constituted from the following wavelength ranges: 8100A
4 QC1DB none   NONE none  1 efficiency_13 this | last_yr | all 8500A
4 QC1DB none   NONE none  1 efficiency_14 this | last_yr | all 8900A
4 QC1DB none   NONE none  1 efficiency_15 this | last_yr | all 9300A
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: not implemented
data source:fors2_response
(QC1 database)
dataset:efficiency_8
median:0.229NONE
thresholds:none
N_data plotted:2
[click plot for closeup]
Plot 2
scores: not implemented
data source:fors2_response
(QC1 database)
dataset:efficiency_13
median:0.2NONE
thresholds:none
N_data plotted:1
[click plot for closeup]
Plot 3
scores: not implemented
data source:fors2_response
(QC1 database)
dataset:
(numbers below apply to this dataset)
efficiency_7
average:none
thresholds:none
N_data plotted:2
[click plot for closeup]
Plot 4
scores: not implemented
data source:fors2_response
(QC1 database)
dataset:
(numbers below apply to this dataset)
efficiency_12
average:none
thresholds:none
N_data plotted:1
[click plot for closeup]

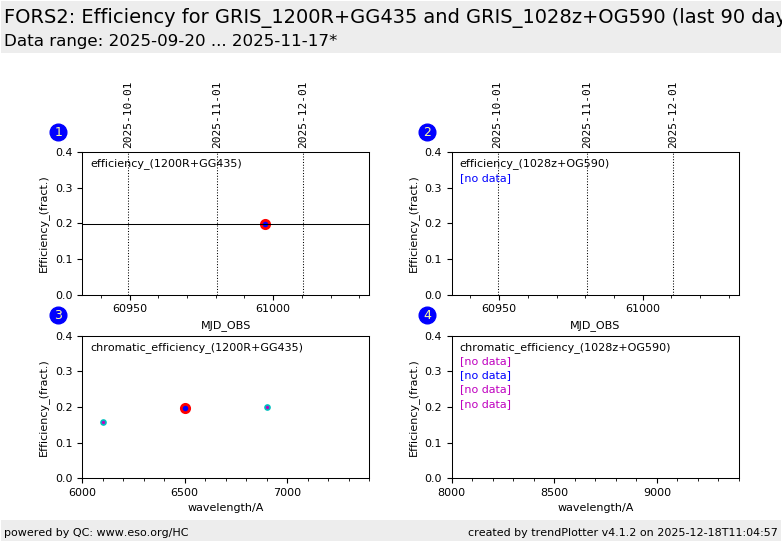

This plot

The spectrophotometric standard star observations are taken within three days of the corresponding science observations and are meant to provide a response curve for data reduction. They can also be used to determine the efficiency of the spectroscopic modes of FORS2, provided they have been taken under photometric conditions which however is not guaranteed.

Plotted here are:
a) values for the relative efficiency of the system 'telescope + spectroscopic arm of FORS2' (top), at a representative wavelength (indicated in the comment); these values can be used for trending
b) all values for the grism and the order separation filter of the upper plot, displayed over wavelength to obtain a chromatic overview (bottom); the date range is the same as for the upper plot.

Only data points for the upper CCD are plotted. The lower CCD usually has no standard stars and no response curve.

The best current estimate of the efficiency of the spectroscopic modes of FORS2 is the upper envelope of the data points in the upper panel. Under 'data downloads' you find further information regarding the photometric stability of the night ('S' if stable, 'N' if unstable, 'U' if unknown).

More information can be found on the plot tutorial page


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
