1 QC1DB none   ADU VAL100,125 123 flux this | last_yr | all normalized flux of FlatBlue+3 lamp for chip 1
2 QC1DB none   ADU VAL75,100 123 flux this | last_yr | all normalized flux of FlatBlue+3 lamp for chip 2
*Data sources: QC1DB: QC1 database; LOCAL: local data source

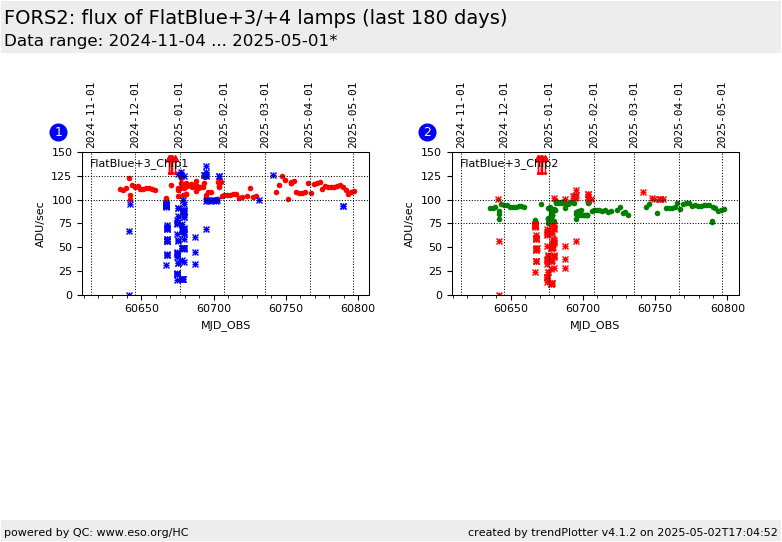

Plot 1
scores: 5|
data source:fors2_lamp_chk
(QC1 database)
dataset:flux
average:none
fixed thresholds:100...125ADU
N_data plotted:123
[click plot for closeup]
Plot 2
scores: 5|
data source:fors2_lamp_chk
(QC1 database)
dataset:flux
average:none
fixed thresholds:75...100ADU
N_data plotted:123
[click plot for closeup]
This plot

This parameter is determined from an overscan-subtracted calibration lamp exposure in LSS mode (taken with the template FORS2_lss_tec_flatLampcheck). The total signal is integrated and normalized by the exposure time and the total number of original CCD pixels (keeping into account possible binning). More information can be found in the plot tutorial. The setup of the lamp check is G300V, GG435 and 1arcsec slit.

  • FFB34 Monitoring the lamp flux of the two high brightness blue halogen lamps FlatBlue+3 and FlatBlue+4. These lamps are used to generate spectroscopic flats in blue (G300V, G600B) spectroscopic setups.

NOTE: On April 18, 2016 the FlatBlue+4 lamp was disabled and later taken out of the instrument's calibration unit. Since then, only FlatBlue+3 lamp is used for spectroscopic flats.
On November 15, 2016 the sub-plots relevant to the FlatBlue+4 lamp were removed.

DB Name: fors2_lamp_chk
TPL.ID: FORS2_lss_tec_flatLampcheck
QC1 DB parameter: flux


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
