Product Summary

Image Products >> Product Log >> Summary
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 05-Nov-2004
Product Creation Time 01:14:19
User eisdata
Session 70483
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP3
Field DEEP3d
Passband I
Total Exposure Time (seconds) 23193
Associated Catalog
Product Type Single Passband Catalog
Product Name N/A
Summary at-a-glance
Instrument WFI
ESO Filter# #879
Right Ascension (hh:mm:ss.s) 11:17:43.8
Declinaton (dd:mm:ss.s) -21:42:05
Interval between First/Last Contributing Frames (days) 88.85
Airmass 0.0
Final Pixel Scale of Product 0.24
Measured Seeing (arcsec) 0.77
PSF Distortion (rms) 0.06
Astrometry/Reference Grid
Projection TAN
Orientation (default is North up; East left) DEFAULT
Astrometric System GSC2.2
Reference Pixel: X -7452.0
Reference Pixel: Y 4167.0
Photometry
Number of nights with independent zeropoints 3
Zeropoint of Product (Vega magnitudes) 23.329
Zeropoint Error (Zp error) 0.019
.

Attributes

Image Products >> Product Log >> Attributes
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 05-Nov-2004
Product Creation Time 01:14:19
User eisdata
Session 70483
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP3
Field DEEP3d
Passband I
Total Exposure Time (seconds) 23193
General Properties
Right Ascension (decimal degrees) 169.4326
Declination (decimal degrees) -21.7016
Galactic Longitude, l 275.7027
Galactic Latitude, b 36.1666
Total Exposure Time (seconds) 23193
Number of Contributing Frames 8
First Contributing Frame MJD 52344.1156
Lsat Contributing Frame MJD 52432.9685
First Contributing Frame Civil Date 2002-03-11
Last Contributing Frame Civil Date 2002-06-07
Interval between First/Last Contributing Frames (days) 88.85
Number of Photometric Contributing Frames 5
Number of Rejected Frames 0
Number of Stacked Frames 8
Effective Gain 47597.1
Effective Non-linearity N/A
Effective Saturation N/A
Area of maximum overlap in stacked image (arcmin2) 965.8
Fraction of instrument FOV of area of stacked image with maximum overlap 0.9
Aperture Limiting Magnitudes
Aperture (arcsec) 1 sigma 2 sigma 3 sigma 4 sigma 5 sigma
1.0 26.939 26.189 25.749 25.439 25.189
2.0 25.739 24.989 24.549 24.239 23.989
3.0 25.099 24.349 23.909 23.599 23.359
4.0 24.299 23.539 23.099 22.789 22.549
5.0 24.139 23.389 22.949 22.639 22.389
6.0 23.619 22.859 22.419 22.109 21.869

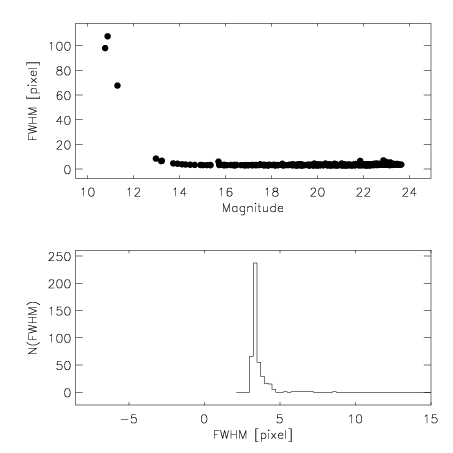

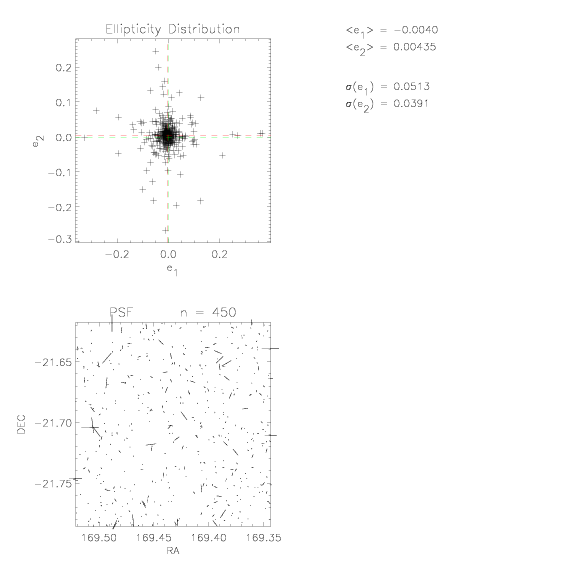

PSF
Measured Seeing (arcsec) 0.765
Measured Seeing (pixels) 3.215
PSF Distortion along X-axis (E-W), e1 -0.004
PSF Distortion along Y-axis (N-S), e2 0.004
PSF Distortion rms 0.065
Pixel Distribution
Mean Count (ADU) 0.049
Standard Deviation of Count (ADU) 2.646
Mean Sigma-Clipped Background Count (ADU) -0.002
Standard Deviation of Sigma-Clipped Background Count (ADU) 0.009
.

Stack Blocks

Image Products >> Product Log >> Stack Blocks
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 05-Nov-2004
Product Creation Time 01:14:19
User eisdata
Session 70483
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP3
Field DEEP3d
Passband I
Total Exposure Time (seconds) 23193
Stack Blocks (SB)
Number of Original Frames Input 8
Number of Photometric Frames 5
Number of Rejected Frames 0
Number of Stacked Frames 8
Mean Airmass of Contributing Frames 1.22
Mean Seeing of Contributing Frames (arcsec) 0.846
Mean of rms PSF Distortions of Contributing Frames 0.074
Mean Sky Brightness of Contributing Frames (magnitudes/arcsec2) 18.96
Frames in SB: Observations
# R.A. Dec. Passband MJD Civil Date Airmass Total Exposure Time
1 169.4322 -21.7001 I 52344.1155507 2002-03-11 1.07110730849 2999.1782
2 169.4542 -21.6919 I 52344.3167881 2002-03-11 1.44589299244 2999.1757
3 169.4622 -21.7043 I 52345.1160538 2002-03-12 1.06433472315 2999.1783
4 169.4469 -21.7124 I 52345.3067219 2002-03-12 1.42113957551 3299.0936
5 169.4099 -21.7084 I 52346.105493 2002-03-13 1.07467958182 2999.1776
6 169.4024 -21.6958 I 52346.3033109 2002-03-13 1.40353646935 3299.0941
7 169.4174 -21.6873 I 52347.0571469 2002-03-14 1.22954224527 2099.4128
8 169.4353 -21.7124 I 52432.9685081 2002-06-07 1.02811074432 2499.1754
Frames in SB: Properties
# Instrument Filter Pixel Scale NDIT Astrometric System Photometric Flag Visual Flag Automatic Flag
1 WFI #879 0.238 10 GSC2.2 PHOTOM A
2 WFI #879 0.238 10 GSC2.2 PHOTOM A
3 WFI #879 0.238 10 GSC2.2 - A
4 WFI #879 0.238 11 GSC2.2 - C
5 WFI #879 0.238 10 GSC2.2 PHOTOM A
6 WFI #879 0.238 11 GSC2.2 PHOTOM B
7 WFI #879 0.238 7 GSC2.2 PHOTOM B
8 WFI #879 0.238 10 GSC2.2 - A

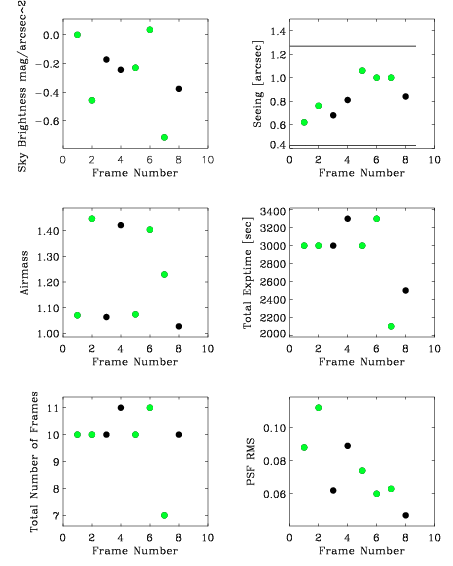

Frames in SB: Attributes
# Seeing (arcsec) PSF Distortion (rms) Sky Brightness (magnitudes/arcsec2) Limiting magnitude (5 sigma - 2 arcsec)
1 0.62 0.088 19.17 N/A
2 0.76 0.112 18.68 N/A
3 0.68 0.062 19.12 N/A
4 0.81 0.089 19.05 N/A
5 1.06 0.074 19.01 N/A
6 1.0 0.06 19.26 N/A
7 1.0 0.063 18.54 N/A
8 0.84 0.047 18.92 N/A
Frames in SB: Photometry (Vega)
# MJD. Civil Date Solution Type Zeropoint Zp error Extinction Chi2
1 52343.667 2002-03-10 N/A 23.32 0.009 0.071 0.039
2 52343.667 2002-03-10 N/A 23.32 0.009 0.071 0.039
3 52344.667 2002-03-11 N/A 23.37 -1.0 0.0 0.041
4 52344.667 2002-03-11 N/A 23.37 -1.0 0.0 0.041
5 52345.667 2002-03-12 N/A 23.33 0.008 0.018 0.042
6 52345.667 2002-03-12 N/A 23.33 0.008 0.018 0.042
7 52346.667 2002-03-13 N/A 23.35 0.007 0.015 0.051
8 52432.9685081 2002-06-07 N/A 23.37 -2.0 0.0 -2.0

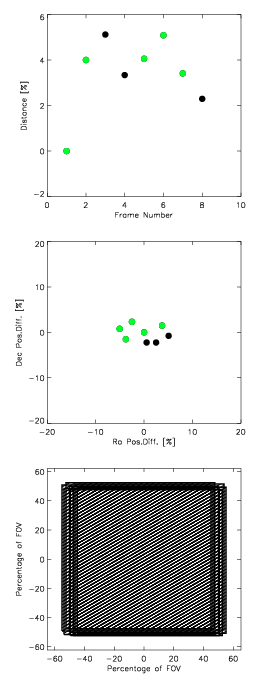

Frames in SB: Astrometry
# Projection Orientation Astrometric Reference Catalogue Reference Pixel: X Reference Pixel: Y Reference Pointing: Right Ascension Reference Pointing: Declination
1 TAN DEFAULT GSC2.2 -7870.0 3981.0 170.3 -21.7
2 TAN DEFAULT GSC2.2 -7601.0 3849.0 170.3 -21.7
3 TAN DEFAULT GSC2.2 -7452.0 4031.0 170.3 -21.7
4 TAN DEFAULT GSC2.2 -7699.0 4153.0 170.3 -21.7
5 TAN DEFAULT GSC2.2 -8193.0 4085.0 170.3 -21.7
6 TAN DEFAULT GSC2.2 -8323.0 3910.0 170.3 -21.7
7 TAN DEFAULT GSC2.2 -8222.0 3747.0 170.3 -21.7
8 TAN DEFAULT GSC2.2 -7885.0 4167.0 170.3 -21.7
.

Calibration

Image Products >> Product Log >> Calibration
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 05-Nov-2004
Product Creation Time 01:14:19
User eisdata
Session 70483
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP3
Field DEEP3d
Passband I
Total Exposure Time (seconds) 23193
USNO x GSC2
Catalog Symbol Number of Objects Brightest Magnitude Faintest Magnitude
GSC2 Blue cross 0
USNO Blue boxes 0
Night Solutions
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
1 1.07 23.32 0.01 0.07 0.039 1.07
2 1.45 23.32 0.01 0.07 0.039 1.1
5 1.07 23.33 0.01 0.02 0.042 1.02
6 1.4 23.33 0.01 0.02 0.042 1.02
7 1.23 23.35 0.01 0.02 0.051 1.02
Image Products: Calibration: Stack Non-Photometric...
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
3 1.06 23.37 -1.0
4 1.42 23.37 -1.0
8 1.03 23.37 -2.0

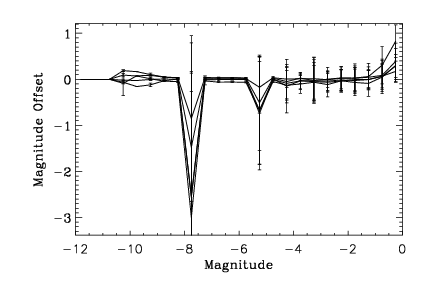

Relative Photometry

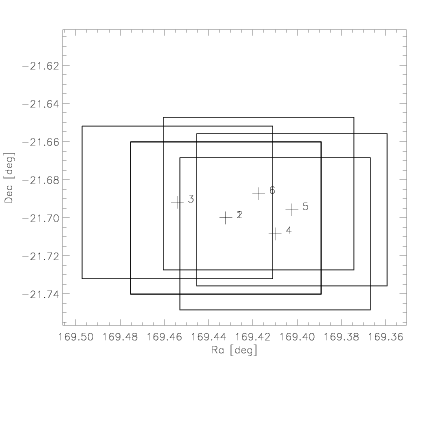

Overlap Information
Number of Fields 1
Number of Overlaps 6
Magnitude differences in overlaps
Overlap ID Fields Number of Objects Magnitude Difference Standard deviation Area
1 1,2 662 0.008 0.126 23.04
2 1,3 560 -0.006 0.193 15.41
3 1,4 634 0.054 0.144 15.31
4 1,5 651 -0.035 0.183 14.24
5 1,6 484 0.054 0.168 16.03

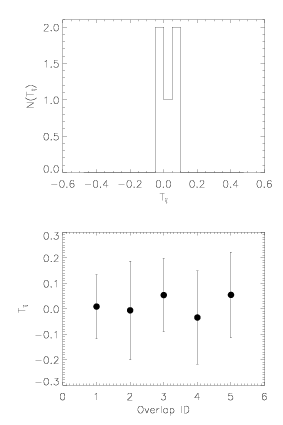

Distribution of Magnitude Differences: Tij
Mean Magnitude Difference 0.015
Standard Deviation 0.039
.

Comparison

Comparison
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 05-Nov-2004
Product Creation Time 02:01:24
User eisdata
Session 70483
Workflow N/A
Process N/A
Product Type Comparison
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP3
Field DEEP3d
Passband I
Total Exposure Time (seconds) 23193.4857
.

QC Parameters

Image Products >> Product Log >> Quality Control Parameters (Image QCP)
.
