Product Summary

Image Products >> Product Log >> Summary
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 21:20:50
User eisdata
Session 70483
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP1
Field DEEP1a
Passband I
Total Exposure Time (seconds) 29693
Associated Catalog
Product Type Single Passband Catalog
Product Name N/A
Summary at-a-glance
Instrument WFI
ESO Filter# #845
Right Ascension (hh:mm:ss.s) 22:55:00.8
Declinaton (dd:mm:ss.s) -40:12:49
Interval between First/Last Contributing Frames (days) 382.12
Airmass 0.0
Final Pixel Scale of Product 0.24
Measured Seeing (arcsec) 0.84
PSF Distortion (rms) 0.05
Astrometry/Reference Grid
Projection TAN
Orientation (default is North up; East left) DEFAULT
Astrometric System GSC2.2
Reference Pixel: X 12122.0
Reference Pixel: Y 4557.0
Photometry
Number of nights with independent zeropoints 1
Zeropoint of Product (Vega magnitudes) 23.16
Zeropoint Error (Zp error) 0.031
.

Attributes

Image Products >> Product Log >> Attributes
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 21:20:50
User eisdata
Session 70483
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP1
Field DEEP1a
Passband I
Total Exposure Time (seconds) 29693
General Properties
Right Ascension (decimal degrees) 343.7532
Declination (decimal degrees) -40.2138
Galactic Longitude, l 356.883
Galactic Latitude, b -62.6486
Total Exposure Time (seconds) 29693
Number of Contributing Frames 11
First Contributing Frame MJD 51730.2179
Lsat Contributing Frame MJD 52112.335
First Contributing Frame Civil Date 2000-07-05
Last Contributing Frame Civil Date 2001-07-22
Interval between First/Last Contributing Frames (days) 382.12
Number of Photometric Contributing Frames 3
Number of Rejected Frames 1
Number of Stacked Frames 10
Effective Gain 72361.6
Effective Non-linearity N/A
Effective Saturation N/A
Area of maximum overlap in stacked image (arcmin2) 960.7
Fraction of instrument FOV of area of stacked image with maximum overlap 0.9
Aperture Limiting Magnitudes

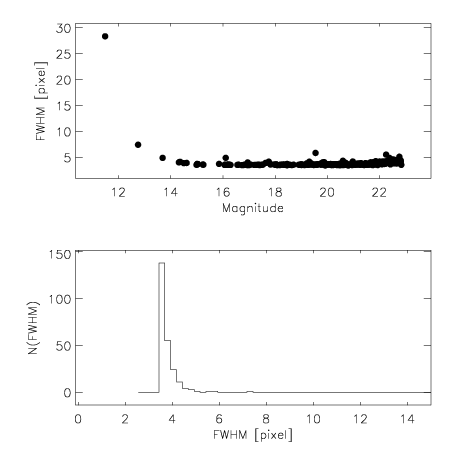

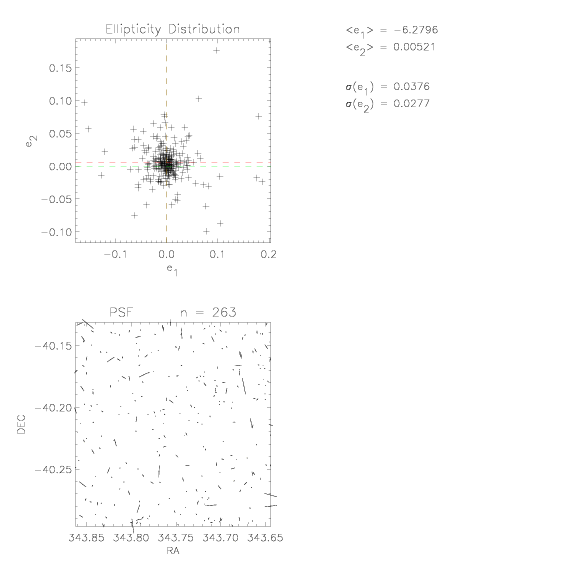

PSF
Measured Seeing (arcsec) 0.843
Measured Seeing (pixels) 3.543
PSF Distortion along X-axis (E-W), e1 -0.0
PSF Distortion along Y-axis (N-S), e2 0.005
PSF Distortion rms 0.047
Pixel Distribution
Mean Count (ADU) 0.017
Standard Deviation of Count (ADU) 1.152
Mean Sigma-Clipped Background Count (ADU) -0.001
Standard Deviation of Sigma-Clipped Background Count (ADU) 0.009
.

Stack Blocks

Image Products >> Product Log >> Stack Blocks
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 21:20:50
User eisdata
Session 70483
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP1
Field DEEP1a
Passband I
Total Exposure Time (seconds) 29693

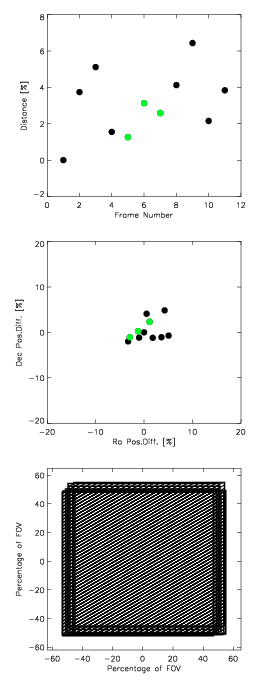

Stack Blocks (SB)
Number of Original Frames Input 11
Number of Photometric Frames 3
Number of Rejected Frames 1
Number of Stacked Frames 10
Mean Airmass of Contributing Frames 1.18
Mean Seeing of Contributing Frames (arcsec) 1.041
Mean of rms PSF Distortions of Contributing Frames 0.088
Mean Sky Brightness of Contributing Frames (magnitudes/arcsec2) 18.65
Frames in SB: Observations
# R.A. Dec. Passband MJD Civil Date Airmass Total Exposure Time
1 343.7501 -40.2168 I 51730.2178689 2000-07-05 1.30076762006 2999.508
2 343.7759 -40.2227 I 51730.2607162 2000-07-05 1.08506573222 3601.012
3 343.7866 -40.2207 I 51730.327874 2000-07-05 1.0229920371 3599.505
4 343.7427 -40.2232 I 51730.3777709 2000-07-05 1.04064756951 3599.507
5 343.7412 -40.2154 I 52085.290227 2001-06-25 1.1210397616 2399.339
6 343.7289 -40.2227 I 52085.327136 2001-06-25 1.04333726076 2399.343
7 343.7583 -40.204 I 52085.370641 2001-06-25 1.02153143396 2699.258
8 343.7539 -40.1943 I 52111.246474 2001-07-21 1.05739314302 2999.174
9 343.7807 -40.1902 I 52112.236523 2001-07-22 1.06921400766 2999.177
10 343.763 -40.2234 I 52112.283246 2001-07-22 1.02280695181 2999.174
11 343.7264 -40.2277 I 52112.335026 2001-07-22 1.04144313088 2999.175

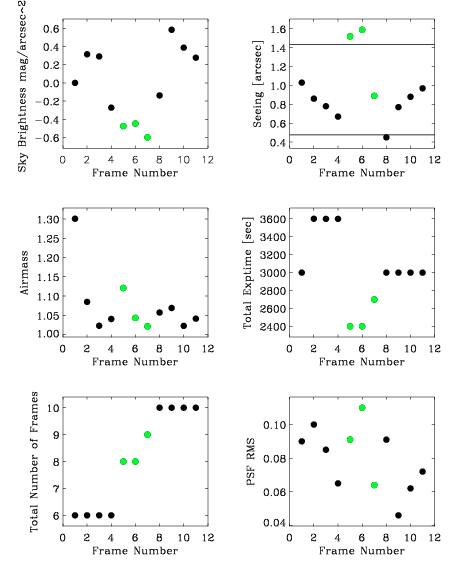

Frames in SB: Properties
# Instrument Filter Pixel Scale NDIT Astrometric System Photometric Flag Visual Flag Automatic Flag
1 WFI #845 0.238 6 GSC2.2 - C
2 WFI #845 0.238 6 GSC2.2 - D
3 WFI #845 0.238 6 GSC2.2 - C
4 WFI #845 0.238 6 GSC2.2 - B
5 WFI #845 0.238 8 GSC2.2 PHOTOM A
6 WFI #845 0.238 8 GSC2.2 PHOTOM C
7 WFI #845 0.238 9 GSC2.2 PHOTOM C
8 WFI #845 0.238 10 GSC2.2 - B
9 WFI #845 0.238 10 GSC2.2 - B
10 WFI #845 0.238 10 GSC2.2 - A
11 WFI #845 0.238 10 GSC2.2 - C
Frames in SB: Attributes
# Seeing (arcsec) PSF Distortion (rms) Sky Brightness (magnitudes/arcsec2) Limiting magnitude (5 sigma - 2 arcsec)
1 1.03 0.09 18.81 N/A
2 0.86 0.1 19.12 N/A
3 0.78 0.085 19.1 N/A
4 0.67 0.065 18.54 N/A
5 1.52 0.091 18.27 N/A
6 1.59 0.11 18.3 N/A
7 0.89 0.064 18.15 N/A
8 0.45 0.091 18.67 N/A
9 0.77 0.046 19.39 N/A
10 0.88 0.062 19.2 N/A
11 0.97 0.072 19.08 N/A
Frames in SB: Photometry (Vega)
# MJD. Civil Date Solution Type Zeropoint Zp error Extinction Chi2
1 51729.667 2000-07-04 N/A 23.14 -1.0 0.1 0.134
2 51729.667 2000-07-04 N/A 23.14 -1.0 0.1 0.134
3 51729.667 2000-07-04 N/A 23.14 -1.0 0.1 0.134
4 51729.667 2000-07-04 N/A 23.14 -1.0 0.1 0.134
5 52084.667 2001-06-24 N/A 23.16 0.005 0.076 0.054
6 52084.667 2001-06-24 N/A 23.16 0.005 0.076 0.054
7 52084.667 2001-06-24 N/A 23.16 0.005 0.076 0.054
8 52110.667 2001-07-20 N/A 23.14 -1.0 0.1 0.158
9 52111.667 2001-07-21 N/A 23.14 -1.0 0.1 0.162
10 52111.667 2001-07-21 N/A 23.14 -1.0 0.1 0.162
11 52111.667 2001-07-21 N/A 23.14 -1.0 0.1 0.162
Frames in SB: Astrometry
# Projection Orientation Astrometric Reference Catalogue Reference Pixel: X Reference Pixel: Y Reference Pointing: Right Ascension Reference Pointing: Declination
1 TAN DEFAULT GSC2.2 11575.0 4364.0 343.1 -40.2
2 TAN DEFAULT GSC2.2 12031.0 4277.0 343.1 -40.2
3 TAN DEFAULT GSC2.2 12123.0 4430.0 343.1 -40.2
4 TAN DEFAULT GSC2.2 11892.0 4557.0 343.1 -40.2
5 TAN DEFAULT GSC2.2 11633.0 4374.0 343.1 -40.2
6 TAN DEFAULT GSC2.2 11508.0 4312.0 343.1 -40.2
7 TAN DEFAULT GSC2.2 11703.0 4124.0 343.1 -40.2
8 TAN DEFAULT GSC2.2 11624.0 4175.0 343.1 -40.2
9 TAN DEFAULT GSC2.2 11993.0 3999.0 343.1 -40.2
10 TAN DEFAULT GSC2.2 11766.0 4491.0 343.1 -40.2
11 TAN DEFAULT GSC2.2 11313.0 4541.0 343.1 -40.2
.

Calibration

Image Products >> Product Log >> Calibration
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 21:20:50
User eisdata
Session 70483
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP1
Field DEEP1a
Passband I
Total Exposure Time (seconds) 29693
USNO x GSC2
Catalog Symbol Number of Objects Brightest Magnitude Faintest Magnitude
GSC2 Blue cross 96 12.33 19.49
USNO Blue boxes 219 11.5 18.0
Night Solutions
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
5 1.12 23.16 0.01 0.08 0.054 1.08
6 1.04 23.16 0.01 0.08 0.054 1.08
7 1.02 23.16 0.01 0.08 0.054 1.07
Image Products: Calibration: Stack Non-Photometric...
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
1 1.3 23.14 -1.0
2 1.09 23.14 -1.0
3 1.02 23.14 -1.0
4 1.04 23.14 -1.0
8 1.06 23.14 -1.0
9 1.07 23.14 -1.0
10 1.02 23.14 -1.0
11 1.04 23.14 -1.0

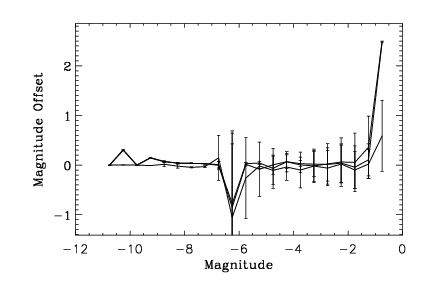

Relative Photometry

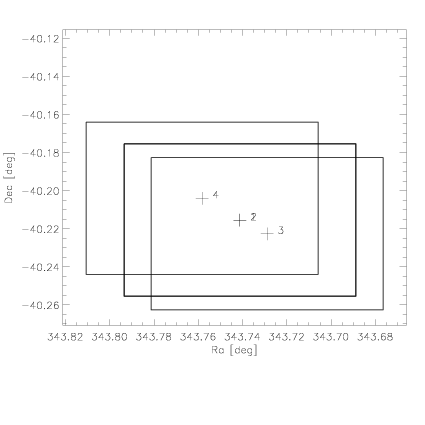

Overlap Information
Number of Fields 1
Number of Overlaps 4
Magnitude differences in overlaps
Overlap ID Fields Number of Objects Magnitude Difference Standard deviation Area
1 1,2 399 0.034 0.163 23.04
2 1,3 409 0.044 0.241 18.5
3 1,4 413 -0.001 0.171 16.53

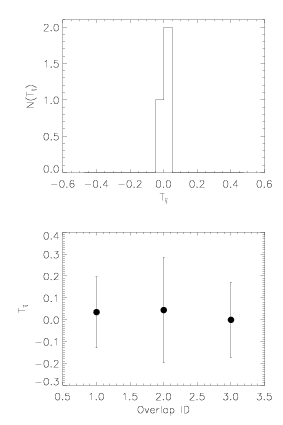

Distribution of Magnitude Differences: Tij
Mean Magnitude Difference 0.026
Standard Deviation 0.024
.

Comparison

Comparison
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 05-Nov-2004
Product Creation Time 01:53:03
User eisdata
Session 70483
Workflow N/A
Process N/A
Product Type Comparison
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP1
Field DEEP1a
Passband I
Total Exposure Time (seconds) 29693.16
.

QC Parameters

Image Products >> Product Log >> Quality Control Parameters (Image QCP)
.
