Product Summary

Image Products >> Product Log >> Summary
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 11:45:33
User eisdata
Session 70400
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-07
Field LBQS_2212-1759
Passband B
Total Exposure Time (seconds) 2699
Associated Catalog
Product Type Single Passband Catalog
Product Name N/A
Summary at-a-glance
Instrument WFI
ESO Filter# #878
Right Ascension (hh:mm:ss.s) 22:15:31.3
Declinaton (dd:mm:ss.s) -17:44:25
Number of Contributing Frames 2
Interval between First/Last Contributing Frames (days) 36.79
Airmass 0.0
Final Pixel Scale of Product 0.24
Measured Seeing (arcsec) 1.23
PSF Distortion (rms) 0.03
Astrometry/Reference Grid
Projection TAN
Orientation (default is North up; East left) DEFAULT
Astrometric System GSC2.2
Reference Pixel: X 2545.0
Reference Pixel: Y 178.0
Photometry
Number of nights with independent zeropoints 2
Zeropoint of Product (Vega magnitudes) 24.667
Zeropoint Error (Zp error) 0.023
.

Attributes

Image Products >> Product Log >> Attributes
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 11:45:33
User eisdata
Session 70400
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-07
Field LBQS_2212-1759
Passband B
Total Exposure Time (seconds) 2699
General Properties
Right Ascension (decimal degrees) 333.8804
Declination (decimal degrees) -17.7406
Galactic Longitude, l 39.2599
Galactic Latitude, b -52.9294
Total Exposure Time (seconds) 2699
Number of Contributing Frames 2
First Contributing Frame MJD 52821.4024
Lsat Contributing Frame MJD 52858.1945
First Contributing Frame Civil Date 2003-07-01
Last Contributing Frame Civil Date 2003-08-07
Interval between First/Last Contributing Frames (days) 36.79
Number of Photometric Contributing Frames 2
Number of Rejected Frames 0
Number of Stacked Frames 2
Effective Gain 6299.0
Effective Non-linearity N/A
Effective Saturation N/A
Area of maximum overlap in stacked image (arcmin2) 1093.8
Fraction of instrument FOV of area of stacked image with maximum overlap 1.0
Aperture Limiting Magnitudes
Aperture (arcsec) 1 sigma 2 sigma 3 sigma 4 sigma 5 sigma
1.0 27.977 27.227 26.787 26.477 26.237
2.0 27.037 26.287 25.847 25.527 25.287
3.0 26.517 25.757 25.317 25.007 24.767
4.0 26.207 25.457 25.007 24.697 24.457
5.0 25.537 24.777 24.337 24.027 23.787
6.0 25.287 24.537 24.097 23.787 23.537

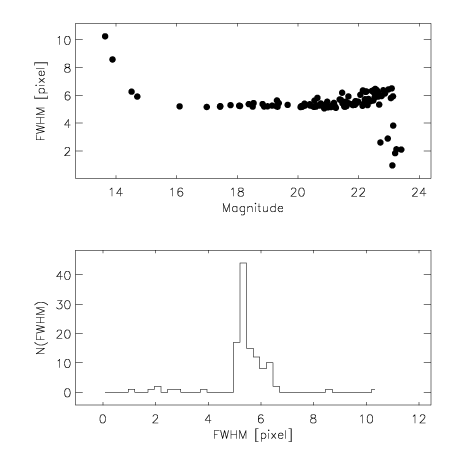

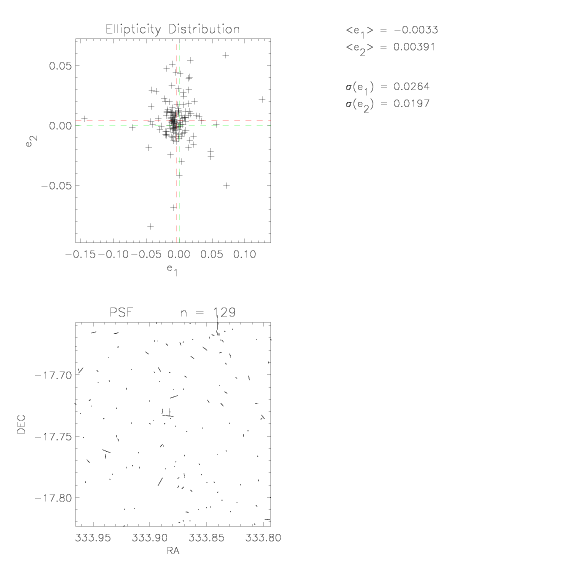

PSF
Measured Seeing (arcsec) 1.232
Measured Seeing (pixels) 5.177
PSF Distortion along X-axis (E-W), e1 -0.003
PSF Distortion along Y-axis (N-S), e2 0.004
PSF Distortion rms 0.033
Pixel Distribution
Mean Count (ADU) 0.028
Standard Deviation of Count (ADU) 1.926
Mean Sigma-Clipped Background Count (ADU) -0.001
Standard Deviation of Sigma-Clipped Background Count (ADU) 0.016
.

Stack Blocks

Image Products >> Product Log >> Stack Blocks
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 11:45:33
User eisdata
Session 70400
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-07
Field LBQS_2212-1759
Passband B
Total Exposure Time (seconds) 2699

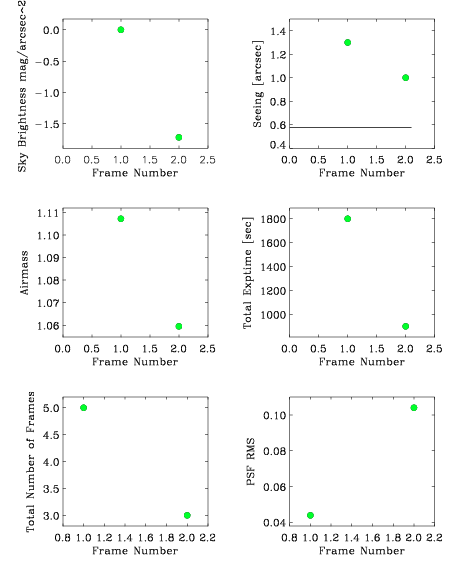

Stack Blocks (SB)
Number of Original Frames Input 2
Number of Photometric Frames 2
Number of Rejected Frames 0
Number of Stacked Frames 2
Mean Airmass of Contributing Frames 1.08
Mean Seeing of Contributing Frames (arcsec) 1.15
Mean of rms PSF Distortions of Contributing Frames 0.074
Mean Sky Brightness of Contributing Frames (magnitudes/arcsec2) 20.94
Frames in SB: Observations
# R.A. Dec. Passband MJD Civil Date Airmass Total Exposure Time
1 333.88204 -17.73514 B 52821.4023588 2003-07-01 1.10719356815 1799.587
2 333.878726 -17.74596 B 52858.1944706 2003-08-07 1.05947139554 899.7522
Frames in SB: Properties
# Instrument Filter Pixel Scale NDIT Astrometric System Photometric Flag Visual Flag Automatic Flag
1 WFI #878 0.238 5 GSC2.2 PHOTOM A
2 WFI #878 0.238 3 GSC2.2 PHOTOM A
Frames in SB: Attributes
# Seeing (arcsec) PSF Distortion (rms) Sky Brightness (magnitudes/arcsec2) Limiting magnitude (5 sigma - 2 arcsec)
1 1.3 0.044 21.89 N/A
2 1.0 0.104 20.33 N/A
Frames in SB: Photometry (Vega)
# MJD. Civil Date Solution Type Zeropoint Zp error Extinction Chi2
1 52820.667 2003-06-30 N/A 24.59 0.005 0.128 0.0269
2 52857.667 2003-08-06 N/A 24.82 0.005 0.205 0.0421

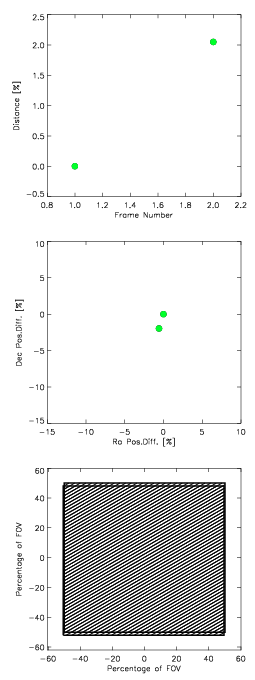

Frames in SB: Astrometry
# Projection Orientation Astrometric Reference Catalogue Reference Pixel: X Reference Pixel: Y Reference Pointing: Right Ascension Reference Pointing: Declination
1 TAN DEFAULT GSC2.2 2518.0 -36.0 334.0 -18.0
2 TAN DEFAULT GSC2.2 2545.0 178.0 334.0 -18.0
.

Calibration

Image Products >> Product Log >> Calibration
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 11:45:33
User eisdata
Session 70400
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-07
Field LBQS_2212-1759
Passband B
Total Exposure Time (seconds) 2699
USNO x GSC2
Catalog Symbol Number of Objects Brightest Magnitude Faintest Magnitude
Night Solutions
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
1 1.11 24.59 0.01 0.13 0.027 1.14
2 1.06 24.82 0.01 0.21 0.042 1.22

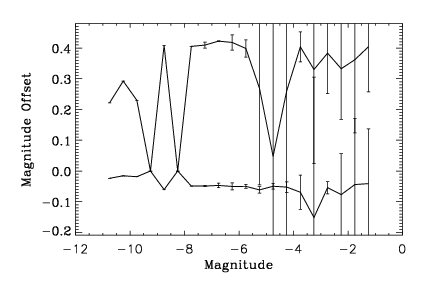

Relative Photometry

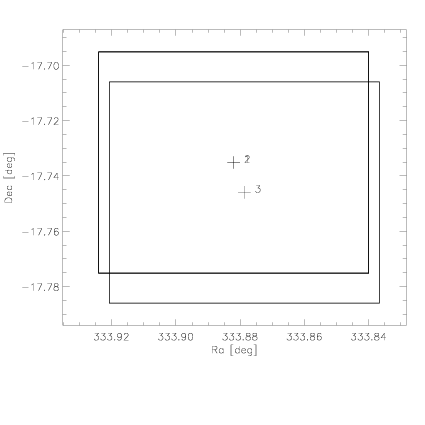

Overlap Information
Number of Fields 1
Number of Overlaps 3
Magnitude differences in overlaps
Overlap ID Fields Number of Objects Magnitude Difference Standard deviation Area
1 1,2 311 -0.049 0.054 23.04
2 1,3 177 0.39 0.089 19.14

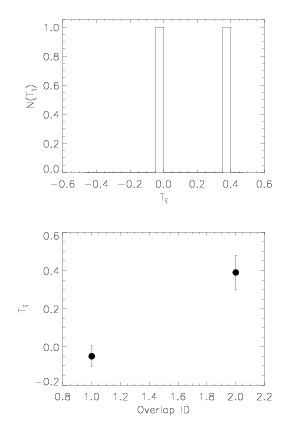

Distribution of Magnitude Differences: Tij
Mean Magnitude Difference 0.171
Standard Deviation 0.31
.

Verification

Image Products >> Product Log >> Verification
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 12:49:16
User eisdata
Session 70400
Process N/A
Product Type Stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-07
Field LBQS_2212-1759
Passband B
Total Exposure Time (seconds) 2699.3392

Comparison

Comparison
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 12:44:36
User eisdata
Session 70400
Workflow N/A
Process N/A
Product Type Comparison
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-07
Field LBQS_2212-1759
Passband B
Total Exposure Time (seconds) 2699.3392
.

QC Parameters

Image Products >> Product Log >> Quality Control Parameters (Image QCP)
.
