Product Summary

Image Products >> Product Log >> Summary
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 11:18:42
User eisdata
Session 70400
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-05
Field BPM16274
Passband R
Total Exposure Time (seconds) 12348
Associated Catalog
Product Type Single Passband Catalog
Product Name N/A
Summary at-a-glance
Instrument WFI
ESO Filter# #844
Right Ascension (hh:mm:ss.s) 00:50:01.3
Declinaton (dd:mm:ss.s) -52:08:28
Number of Contributing Frames 5
Interval between First/Last Contributing Frames (days) 0.15
Airmass 0.0
Final Pixel Scale of Product 0.24
Measured Seeing (arcsec) 0.92
PSF Distortion (rms) 0.07
Astrometry/Reference Grid
Projection TAN
Orientation (default is North up; East left) DEFAULT
Astrometric System GSC2.2
Reference Pixel: X 4439.0
Reference Pixel: Y 6245.0
Photometry
Number of nights with independent zeropoints 1
Zeropoint of Product (Vega magnitudes) 24.41
Zeropoint Error (Zp error) 0.009
.

Attributes

Image Products >> Product Log >> Attributes
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 11:18:42
User eisdata
Session 70400
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-05
Field BPM16274
Passband R
Total Exposure Time (seconds) 12348
General Properties
Right Ascension (decimal degrees) 12.5052
Declination (decimal degrees) -52.1413
Galactic Longitude, l 303.448
Galactic Latitude, b -64.9853
Total Exposure Time (seconds) 12348
Number of Contributing Frames 5
First Contributing Frame MJD 52580.0379
Lsat Contributing Frame MJD 52580.1874
First Contributing Frame Civil Date 2002-11-02
Last Contributing Frame Civil Date 2002-11-02
Interval between First/Last Contributing Frames (days) 0.15
Number of Photometric Contributing Frames 5
Number of Rejected Frames 0
Number of Stacked Frames 5
Effective Gain 26813.1
Effective Non-linearity N/A
Effective Saturation N/A
Area of maximum overlap in stacked image (arcmin2) 965.4
Fraction of instrument FOV of area of stacked image with maximum overlap 0.9
Aperture Limiting Magnitudes
Aperture (arcsec) 1 sigma 2 sigma 3 sigma 4 sigma 5 sigma
1.0 28.92 28.17 27.73 27.42 27.18
2.0 27.15 26.4 25.96 25.65 25.41
3.0 26.48 25.73 25.29 24.98 24.74
4.0 25.67 24.92 24.48 24.17 23.93
5.0 25.2 24.45 24.01 23.7 23.46
6.0 24.81 24.06 23.62 23.31 23.07

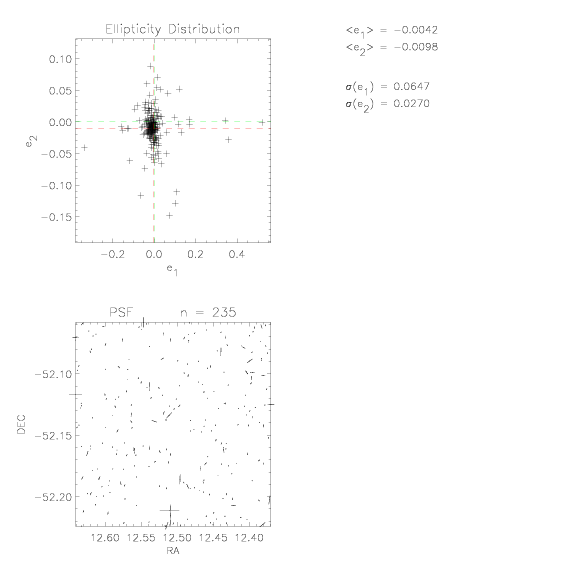

PSF

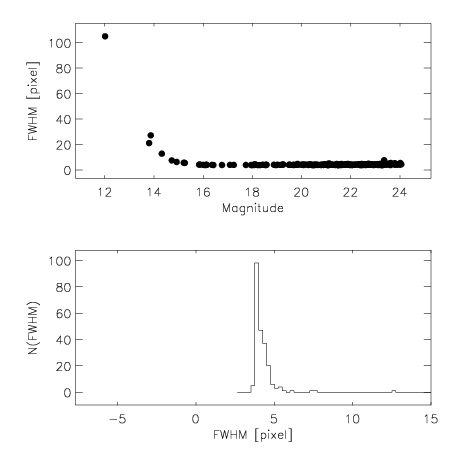

Measured Seeing (arcsec) 0.921
Measured Seeing (pixels) 3.87
PSF Distortion along X-axis (E-W), e1 -0.004
PSF Distortion along Y-axis (N-S), e2 -0.01
PSF Distortion rms 0.07
Pixel Distribution
Mean Count (ADU) 0.042
Standard Deviation of Count (ADU) 1.859
Mean Sigma-Clipped Background Count (ADU) -0.001
Standard Deviation of Sigma-Clipped Background Count (ADU) 0.011
.

Stack Blocks

Image Products >> Product Log >> Stack Blocks
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 11:18:42
User eisdata
Session 70400
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-05
Field BPM16274
Passband R
Total Exposure Time (seconds) 12348
Stack Blocks (SB)
Number of Original Frames Input 5
Number of Photometric Frames 5
Number of Rejected Frames 0
Number of Stacked Frames 5
Mean Airmass of Contributing Frames 1.13
Mean Seeing of Contributing Frames (arcsec) 0.918
Mean of rms PSF Distortions of Contributing Frames 0.126
Mean Sky Brightness of Contributing Frames (magnitudes/arcsec2) 20.69
Frames in SB: Observations
# R.A. Dec. Passband MJD Civil Date Airmass Total Exposure Time
1 12.47818 -52.13351 R 52580.0378992 2002-11-02 1.1371639942 2399.6702
2 12.543318 -52.16376 R 52580.0712097 2002-11-02 1.09376757443 2399.6697
3 12.524618 -52.16165 R 52580.1132991 2002-11-02 1.0900999527 2399.6697
4 12.498405 -52.12481 R 52580.1524091 2002-11-02 1.12011477929 2399.6699
5 12.48167 -52.12293 R 52580.1874254 2002-11-02 1.19894108708 2749.575

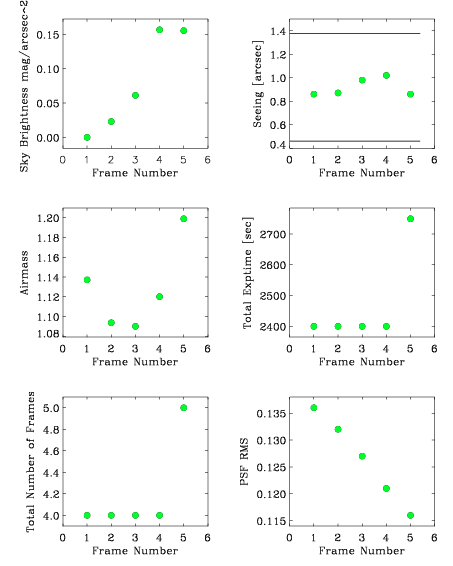

Frames in SB: Properties
# Instrument Filter Pixel Scale NDIT Astrometric System Photometric Flag Visual Flag Automatic Flag
1 WFI #844 0.238 4 GSC2.2 PHOTOM B
2 WFI #844 0.238 4 GSC2.2 PHOTOM B
3 WFI #844 0.238 4 GSC2.2 PHOTOM B
4 WFI #844 0.238 4 GSC2.2 PHOTOM A
5 WFI #844 0.238 5 GSC2.2 PHOTOM A
Frames in SB: Attributes
# Seeing (arcsec) PSF Distortion (rms) Sky Brightness (magnitudes/arcsec2) Limiting magnitude (5 sigma - 2 arcsec)
1 0.86 0.136 20.52 N/A
2 0.87 0.132 20.55 N/A
3 0.98 0.127 20.59 N/A
4 1.02 0.121 20.68 N/A
5 0.86 0.116 20.67 N/A
Frames in SB: Photometry (Vega)
# MJD. Civil Date Solution Type Zeropoint Zp error Extinction Chi2
1 52579.625 2002-11-01 N/A 24.41 0.021 0.079 0.021
2 52579.625 2002-11-01 N/A 24.41 0.021 0.079 0.021
3 52579.625 2002-11-01 N/A 24.41 0.021 0.079 0.021
4 52579.625 2002-11-01 N/A 24.41 0.021 0.079 0.021
5 52579.625 2002-11-01 N/A 24.41 0.021 0.079 0.021
Frames in SB: Astrometry
# Projection Orientation Astrometric Reference Catalogue Reference Pixel: X Reference Pixel: Y Reference Pointing: Right Ascension Reference Pointing: Declination
1 TAN DEFAULT GSC2.2 4274.0 6018.0 12.5 -52.0
2 TAN DEFAULT GSC2.2 4340.0 6245.0 12.5 -52.0
3 TAN DEFAULT GSC2.2 4392.0 6217.0 12.5 -52.0
4 TAN DEFAULT GSC2.2 4439.0 6190.0 12.5 -52.0
5 TAN DEFAULT GSC2.2 4367.0 6157.0 12.5 -52.0
.

Calibration

Image Products >> Product Log >> Calibration
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 11:18:42
User eisdata
Session 70400
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-05
Field BPM16274
Passband R
Total Exposure Time (seconds) 12348
USNO x GSC2
Catalog Symbol Number of Objects Brightest Magnitude Faintest Magnitude
Night Solutions
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
1 1.14 24.41 0.02 0.08 0.021 1.09
2 1.09 24.41 0.02 0.08 0.021 1.08
3 1.09 24.41 0.02 0.08 0.021 1.08
4 1.12 24.41 0.02 0.08 0.021 1.08
5 1.2 24.41 0.02 0.08 0.021 1.09

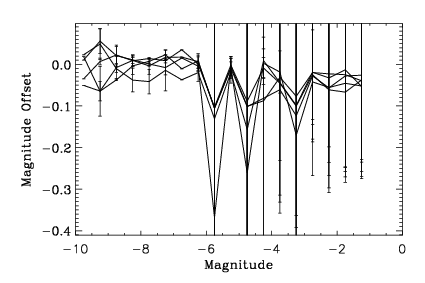

Relative Photometry

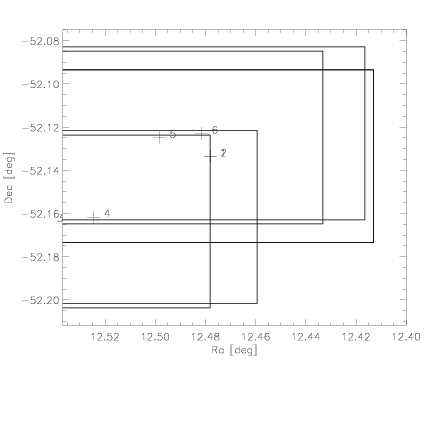

Overlap Information
Number of Fields 1
Number of Overlaps 6
Magnitude differences in overlaps
Overlap ID Fields Number of Objects Magnitude Difference Standard deviation Area
1 1,2 549 -0.002 0.1 23.04
2 1,3 476 0.003 0.091 7.17
3 1,4 430 0.012 0.083 9.61
4 1,5 555 0.005 0.1 17.35
5 1,6 521 -0.002 0.082 19.46

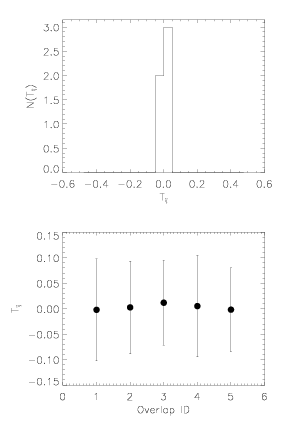

Distribution of Magnitude Differences: Tij
Mean Magnitude Difference 0.003
Standard Deviation 0.006
.

Verification

Image Products >> Product Log >> Verification
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 12:47:53
User eisdata
Session 70400
Process N/A
Product Type Stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-05
Field BPM16274
Passband R
Total Exposure Time (seconds) 12348.2545

Comparison

Comparison
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 12:43:48
User eisdata
Session 70400
Workflow N/A
Process N/A
Product Type Comparison
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-05
Field BPM16274
Passband R
Total Exposure Time (seconds) 12348.2545
.

QC Parameters

Image Products >> Product Log >> Quality Control Parameters (Image QCP)
.
