Product Summary

Image Products >> Product Log >> Summary
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 20:37:05
User eisdata
Session 70208
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-06
Field SHARC-2
Passband V
Total Exposure Time (seconds) 4399
Associated Catalog
Product Type Single Passband Catalog
Product Name N/A
Summary at-a-glance
Instrument WFI
ESO Filter# #843
Right Ascension (hh:mm:ss.s) 05:05:22.7
Declinaton (dd:mm:ss.s) -28:48:58
Number of Contributing Frames 3
Interval between First/Last Contributing Frames (days) 6.06
Airmass 0.0
Final Pixel Scale of Product 0.24
Measured Seeing (arcsec) 0.73
PSF Distortion (rms) 0.04
Astrometry/Reference Grid
Projection TAN
Orientation (default is North up; East left) DEFAULT
Astrometric System GSC2.2
Reference Pixel: X 2420.0
Reference Pixel: Y 1314.0
Photometry
Number of nights with independent zeropoints 1
Zeropoint of Product (Vega magnitudes) 24.05
Zeropoint Error (Zp error) 0.043
.

Attributes

Image Products >> Product Log >> Attributes
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 20:37:05
User eisdata
Session 70208
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-06
Field SHARC-2
Passband V
Total Exposure Time (seconds) 4399
General Properties
Right Ascension (decimal degrees) 76.3447
Declination (decimal degrees) -28.8162
Galactic Longitude, l 230.6606
Galactic Latitude, b -34.6042
Total Exposure Time (seconds) 4399
Number of Contributing Frames 3
First Contributing Frame MJD 52669.0895
Lsat Contributing Frame MJD 52675.1497
First Contributing Frame Civil Date 2003-01-30
Last Contributing Frame Civil Date 2003-02-05
Interval between First/Last Contributing Frames (days) 6.06
Number of Photometric Contributing Frames 1
Number of Rejected Frames 0
Number of Stacked Frames 3
Effective Gain 7561.5
Effective Non-linearity N/A
Effective Saturation N/A
Area of maximum overlap in stacked image (arcmin2) 1057.5
Fraction of instrument FOV of area of stacked image with maximum overlap 0.9
Aperture Limiting Magnitudes
Aperture (arcsec) 1 sigma 2 sigma 3 sigma 4 sigma 5 sigma
1.0 27.9 27.15 26.71 26.4 26.15
2.0 26.84 26.09 25.65 25.34 25.09
3.0 26.71 25.96 25.52 25.21 24.97
4.0 26.28 25.53 25.09 24.77 24.53
5.0 25.64 24.89 24.45 24.14 23.9
6.0 25.12 24.36 23.92 23.61 23.37

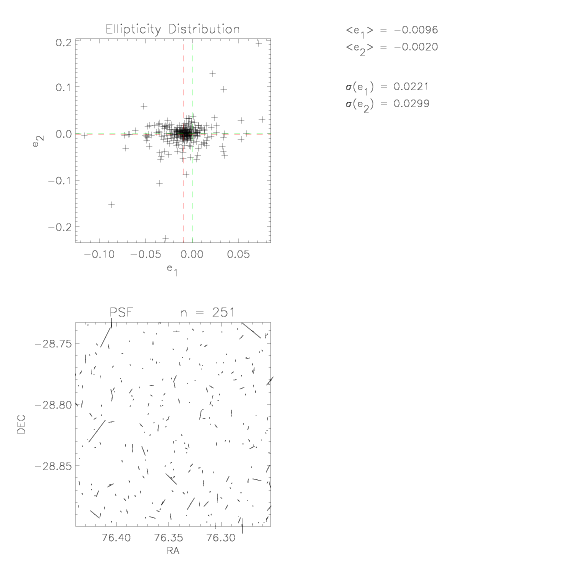

PSF

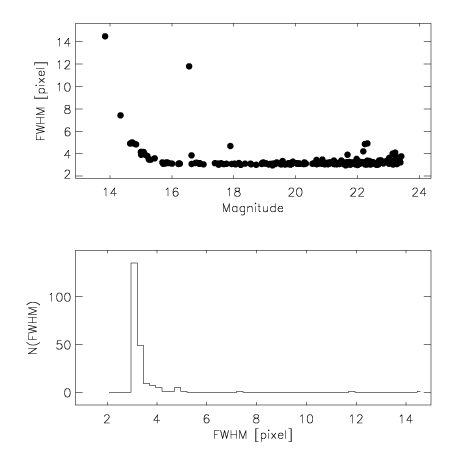

Measured Seeing (arcsec) 0.731
Measured Seeing (pixels) 3.07
PSF Distortion along X-axis (E-W), e1 -0.01
PSF Distortion along Y-axis (N-S), e2 -0.002
PSF Distortion rms 0.037
Pixel Distribution
Mean Count (ADU) 0.033
Standard Deviation of Count (ADU) 1.974
Mean Sigma-Clipped Background Count (ADU) -0.001
Standard Deviation of Sigma-Clipped Background Count (ADU) 0.011
.

Stack Blocks

Image Products >> Product Log >> Stack Blocks
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 20:37:05
User eisdata
Session 70208
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-06
Field SHARC-2
Passband V
Total Exposure Time (seconds) 4399
Stack Blocks (SB)
Number of Original Frames Input 3
Number of Photometric Frames 1
Number of Rejected Frames 0
Number of Stacked Frames 3
Mean Airmass of Contributing Frames 1.15
Mean Seeing of Contributing Frames (arcsec) 0.727
Mean of rms PSF Distortions of Contributing Frames 0.091
Mean Sky Brightness of Contributing Frames (magnitudes/arcsec2) 21.76
Frames in SB: Observations
# R.A. Dec. Passband MJD Civil Date Airmass Total Exposure Time
1 76.33271 -28.81804 V 52669.0894586 2003-01-30 1.04710902108 2199.5876
2 76.35602 -28.80911 V 52675.1080124 2003-02-05 1.10397602849 879.835
3 76.34542 -28.82135 V 52675.1496713 2003-02-05 1.28734572454 1319.7525

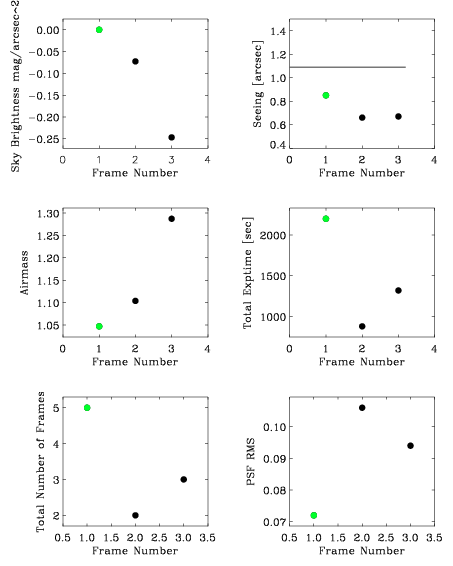

Frames in SB: Properties
# Instrument Filter Pixel Scale NDIT Astrometric System Photometric Flag Visual Flag Automatic Flag
1 WFI #843 0.238 5 GSC2.2 PHOTOM A
2 WFI #843 0.238 2 GSC2.2 - A
3 WFI #843 0.238 3 GSC2.2 - A
Frames in SB: Attributes
# Seeing (arcsec) PSF Distortion (rms) Sky Brightness (magnitudes/arcsec2) Limiting magnitude (5 sigma - 2 arcsec)
1 0.85 0.072 21.71 N/A
2 0.66 0.106 21.9 N/A
3 0.67 0.094 21.72 N/A
Frames in SB: Photometry (Vega)
# MJD. Civil Date Solution Type Zeropoint Zp error Extinction Chi2
1 52668.625 2003-01-29 N/A 24.05 0.043 0.153 0.0428
2 52675.1080124 2003-02-05 N/A 24.15 -2.0 0.11 -2.0
3 52675.1496713 2003-02-05 N/A 24.15 -2.0 0.11 -2.0
Frames in SB: Astrometry
# Projection Orientation Astrometric Reference Catalogue Reference Pixel: X Reference Pixel: Y Reference Pointing: Right Ascension Reference Pointing: Declination
1 TAN DEFAULT GSC2.2 2088.0 1314.0 76.5 -29.0
2 TAN DEFAULT GSC2.2 2119.0 985.0 76.5 -29.0
3 TAN DEFAULT GSC2.2 2421.0 1167.0 76.5 -29.0
.

Calibration

Image Products >> Product Log >> Calibration
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 20:37:05
User eisdata
Session 70208
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-06
Field SHARC-2
Passband V
Total Exposure Time (seconds) 4399
USNO x GSC2
Catalog Symbol Number of Objects Brightest Magnitude Faintest Magnitude
Night Solutions
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
1 1.05 24.05 0.04 0.15 0.043 1.0
Image Products: Calibration: Stack Non-Photometric...
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
2 1.1 24.15 -2.0 1.15
3 1.29 24.15 -2.0 1.18
Relative Photometry

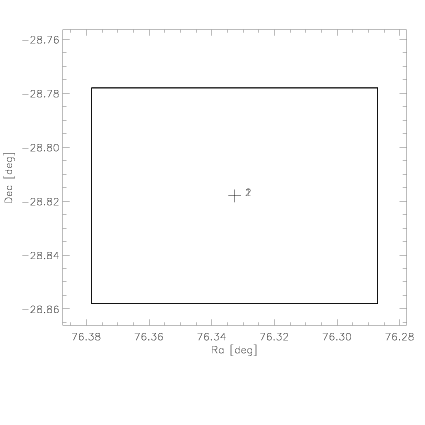

Overlap Information
Number of Fields 1
Number of Overlaps 2
Magnitude differences in overlaps
Overlap ID Fields Number of Objects Magnitude Difference Standard deviation Area
1 1,2 603 0.049 0.083 23.04

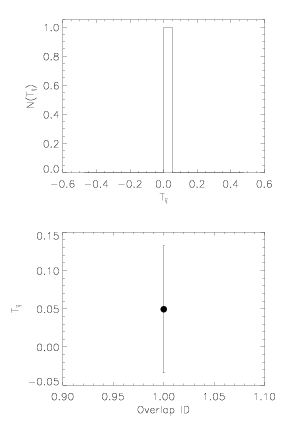

Distribution of Magnitude Differences: Tij
Mean Magnitude Difference 0.049
Standard Deviation 0.0
.

Verification

Image Products >> Product Log >> Verification
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 23:27:15
User eisdata
Session 70208
Process N/A
Product Type Stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-06
Field SHARC-2
Passband V
Total Exposure Time (seconds) 4399.1751

Comparison

Comparison
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 22:58:23
User eisdata
Session 70208
Workflow N/A
Process N/A
Product Type Comparison
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-06
Field SHARC-2
Passband V
Total Exposure Time (seconds) 4399.1751
.

QC Parameters

Image Products >> Product Log >> Quality Control Parameters (Image QCP)
.
